Mass Air Flow (MAF) Meter: Components

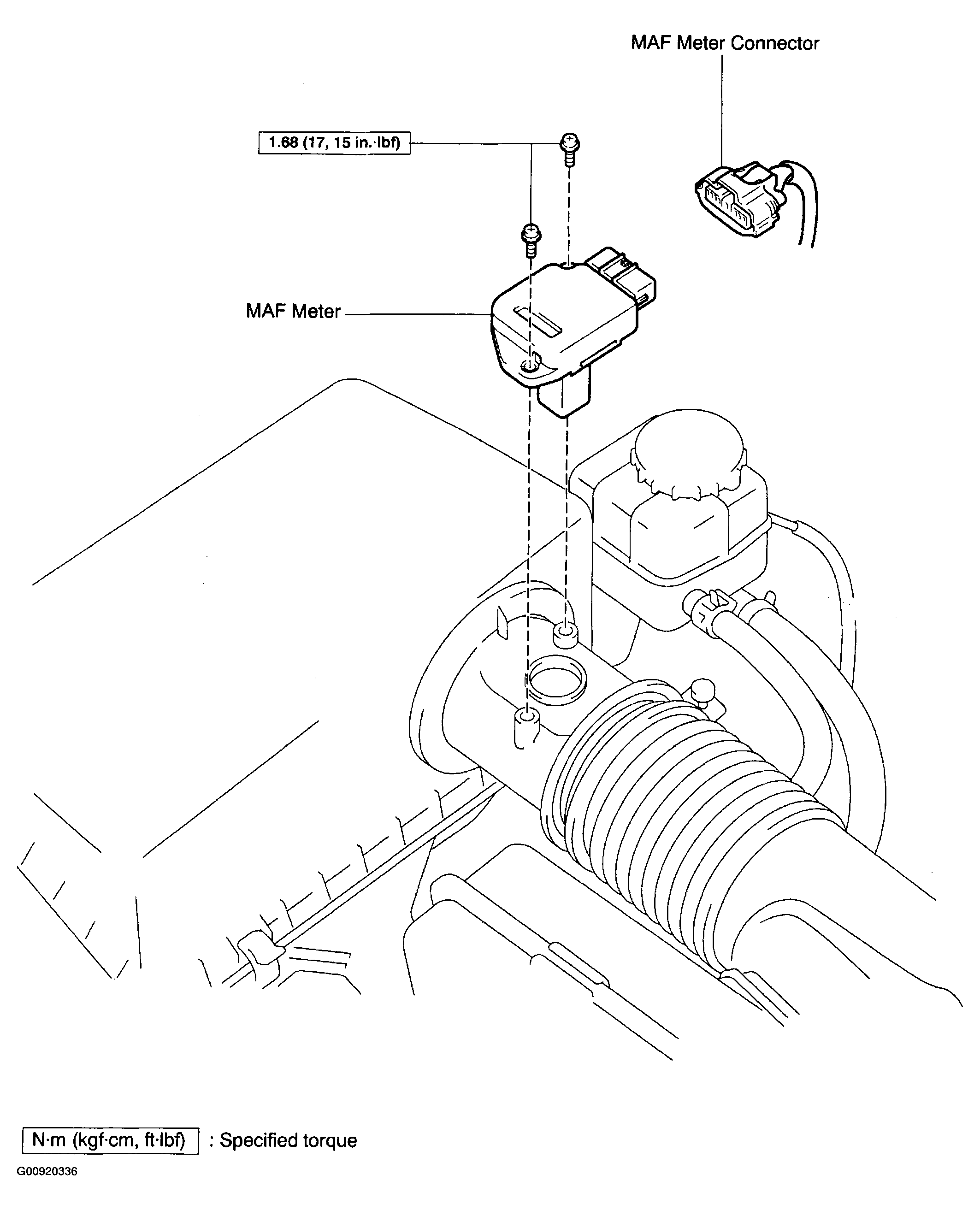

Fig 1: Identifying Mass Air Flow Meter Components
G00920336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
