Height Control Sensor: Components

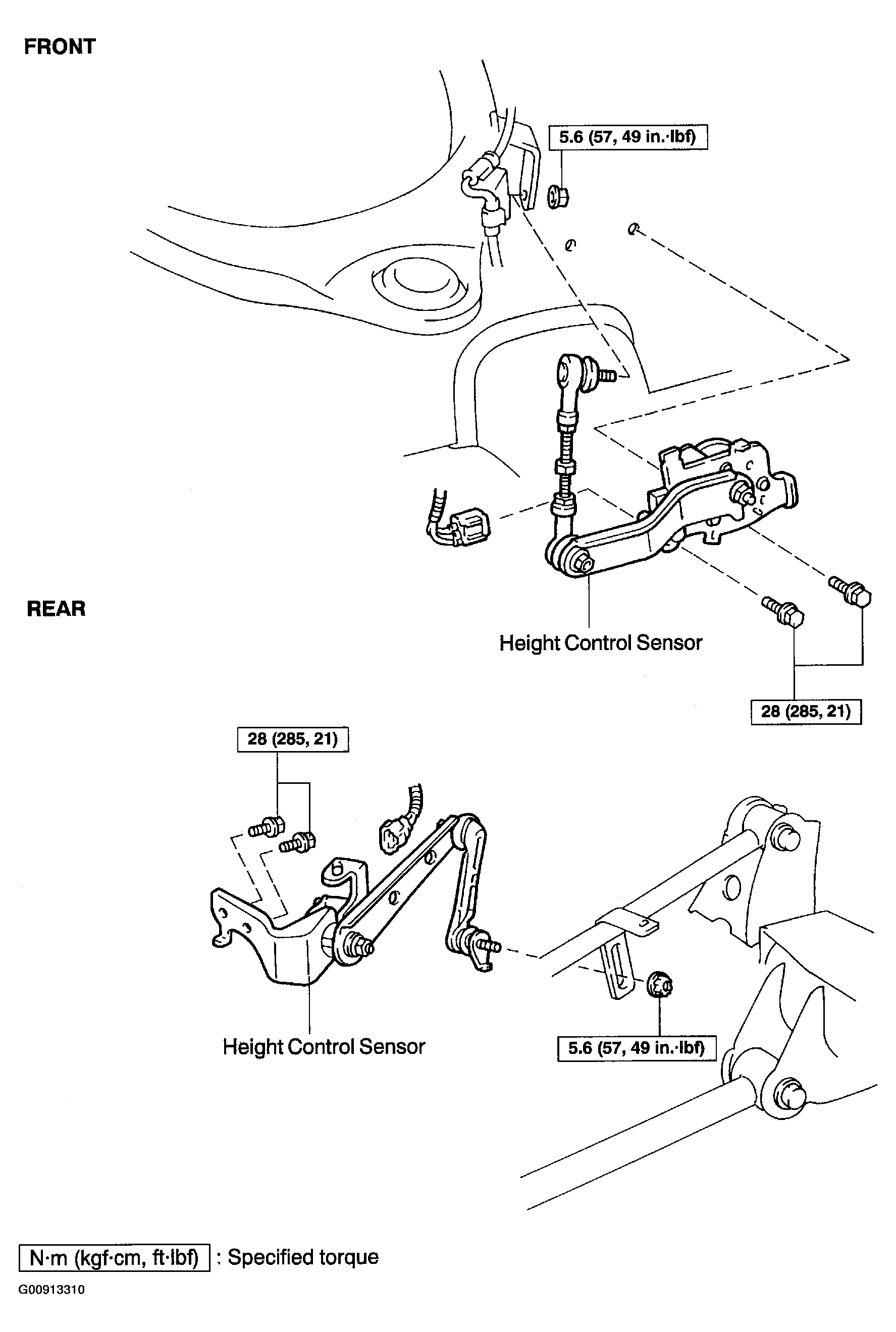

Fig 1: Identifying Components (Height Control Sensor)
G00913310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
