Height Control Sensor: Removal

  1. REMOVE FRONT HEIGHT CONTROL SENSOR
    1. Remove the front wheel.
      1. Torque: 131 N.m (1,340 kgf.cm, 97 ft.lbf)
    2. Disconnect the connector.

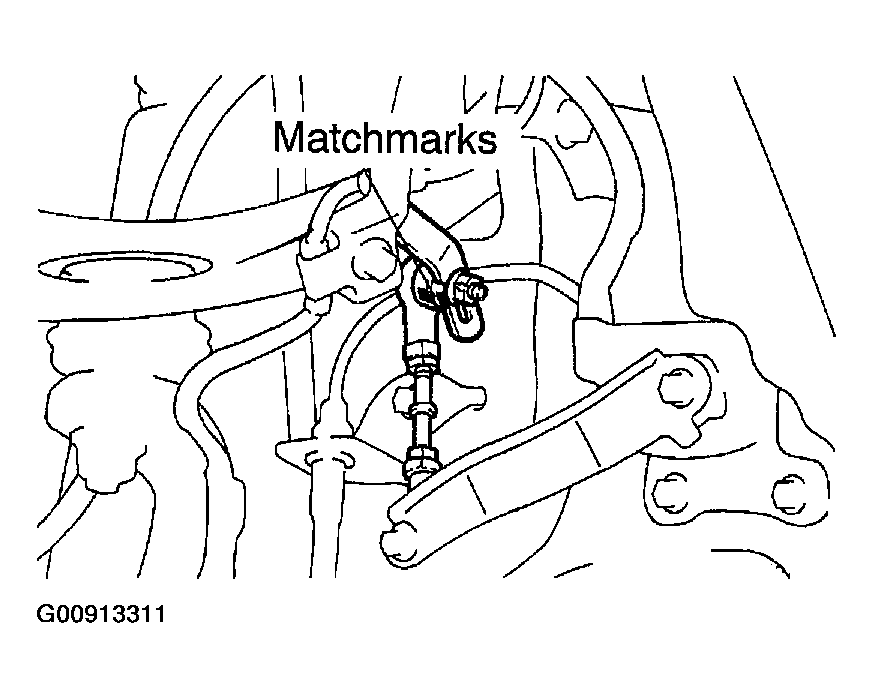

      Fig 1: Placing Matchmarks On Height Control Sensor Link & Front Upper Suspension Arm
      G00913311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the front height control sensor.
      1. Place matchmarks on the height control sensor link and front upper suspension arm.
      2. Remove the nut and disconnect the height control sensor link.
        1. Torque: 5.6 N.m (57 kgf.cm, 49 in..lbf)
      3. Remove the 2 bolts and height control sensor.
        1. Torque: 28 N.m (285 kgf.cm, 21 ft.lbf)
  2. REMOVE REAR HEIGHT CONTROL SENSOR
    1. Remove the rear wheel.
      1. Torque: 131 N.m (1,340 kgf.cm, 97 ft.lbf)
    2. Disconnect the connector.

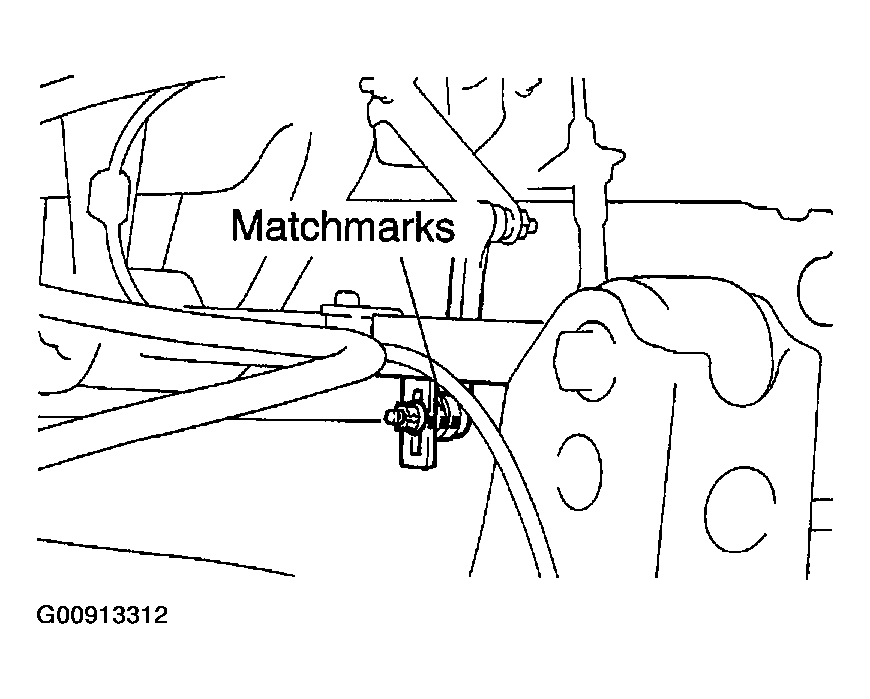

      Fig 2: Placing Matchmarks On Height Control Sensor Link & Rear Upper Control Arm
      G00913312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the rear height control sensor.
      1. Place matchmarks on height control sensor link and rear upper control arm.
      2. Remove the nut and disconnect the height control sensor link from the rear upper control arm.
        1. Torque: 5.6 N.m (57 kgf.cm, 49 in..lbf)
      3. Remove the 2 bolts and height control sensor.
        1. Torque: 28 N.m (285 kgf.cm, 21 ft.lbf)
