Automatic Transmission (Service Specifications)
>>
Automatic Transmission
>>
Service Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Service Data

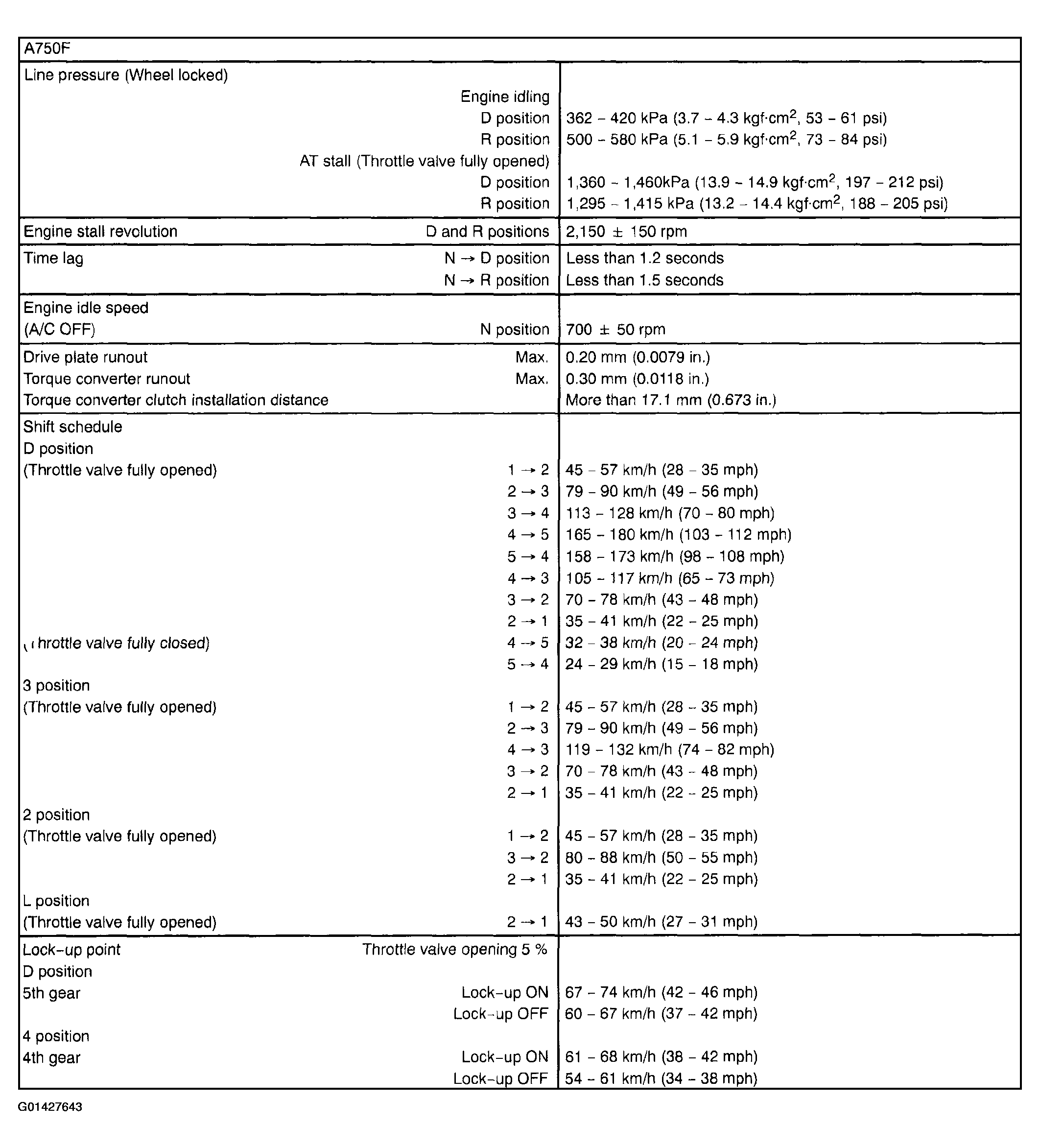

Fig 1: Automatic Transmission Service Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
