Front Extension Housing: Disassembly

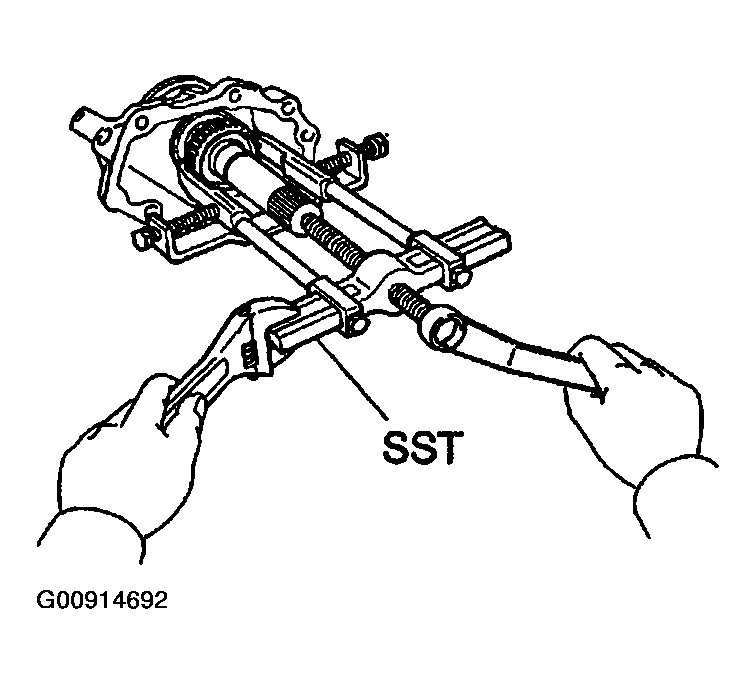

1. Using a snap ring expander, remove the snap ring.
2. Using SST, remove the drive clutch hub.
   1. SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04021, 09957-04010, 09958-04011)
   Fig 1: Removing Drive Clutch Hub Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

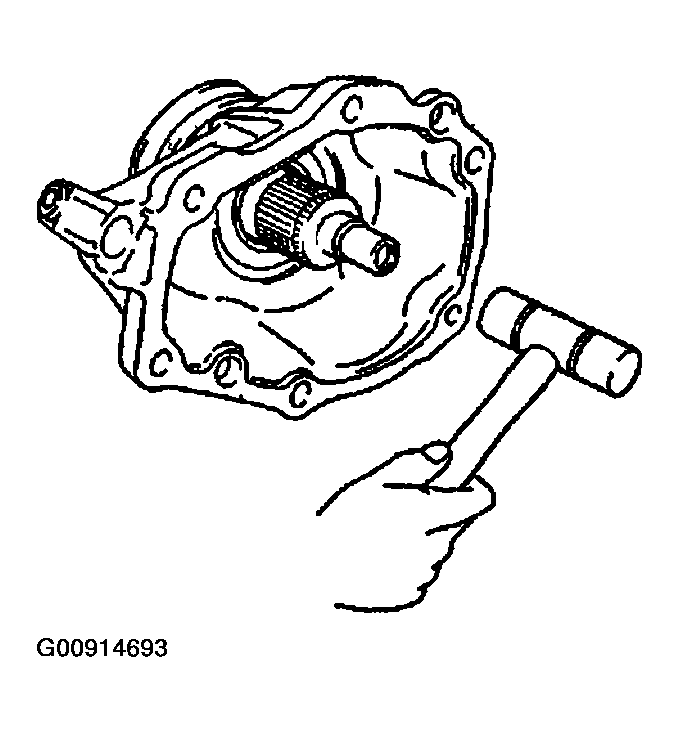

Using a plastic hammer, drive out the front output shaft.

Fig 2: Driving Out Front Output Shaft Using Plastic Hammer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

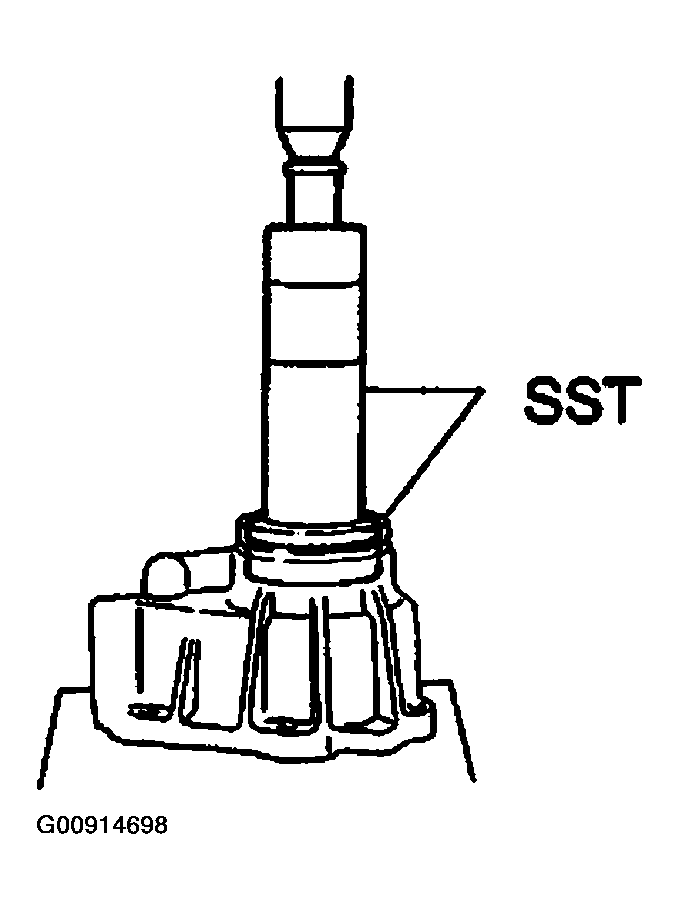

1. Using SST, remove the dust deflector.
   1. SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04051, 09957-04010, 09958-04011)
   Fig 3: Removing Dust Deflector Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

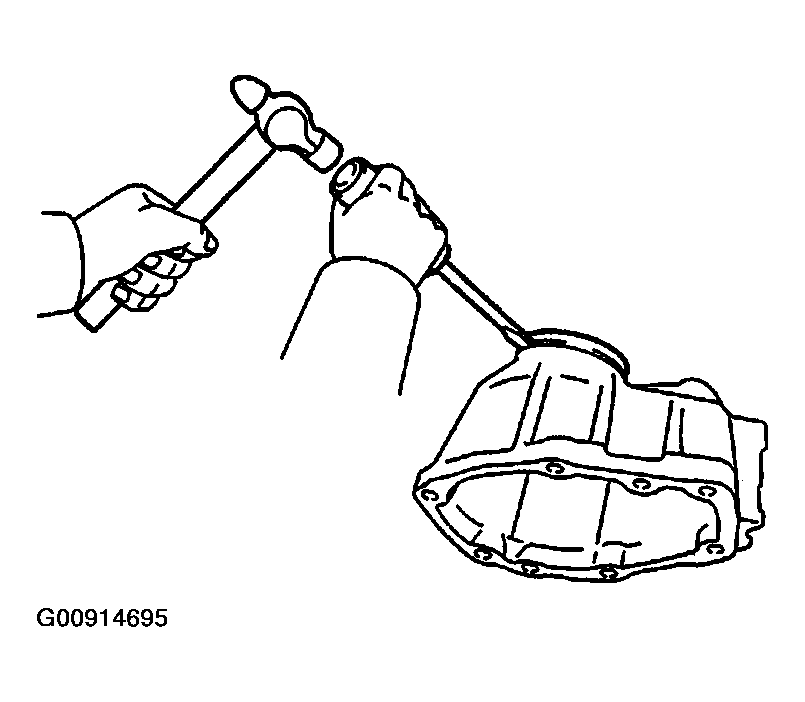

2. Using a screwdriver and hammer, tap the dust deflector and remove it from the extension housing.
   Fig 4: Tapping Dust Deflector & Removing From Extension Housing Using Screwdriver & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

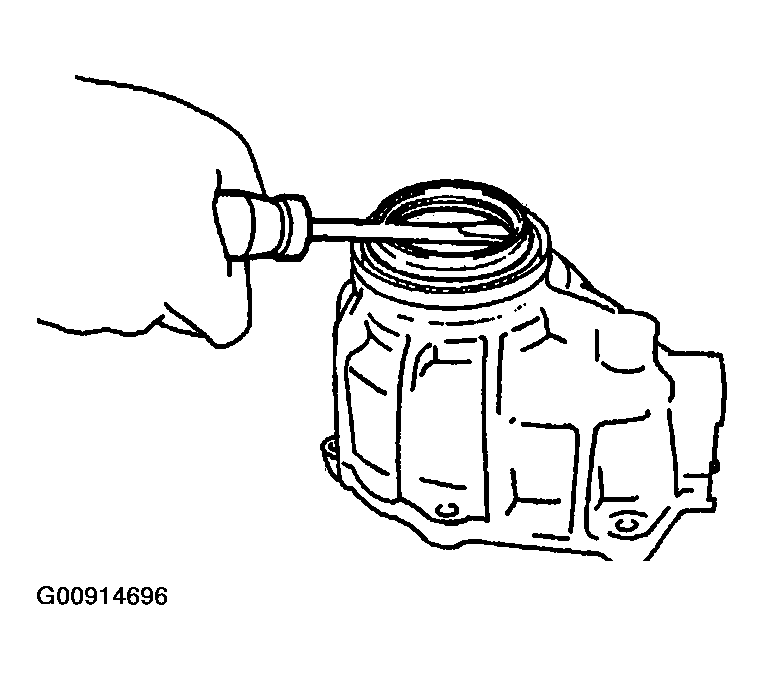

Using a screwdriver, pry out the oil seal from the front extension housing.

Fig 5: Prying Out Oil Seal From Front Extension Housing Using Screwdriver

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

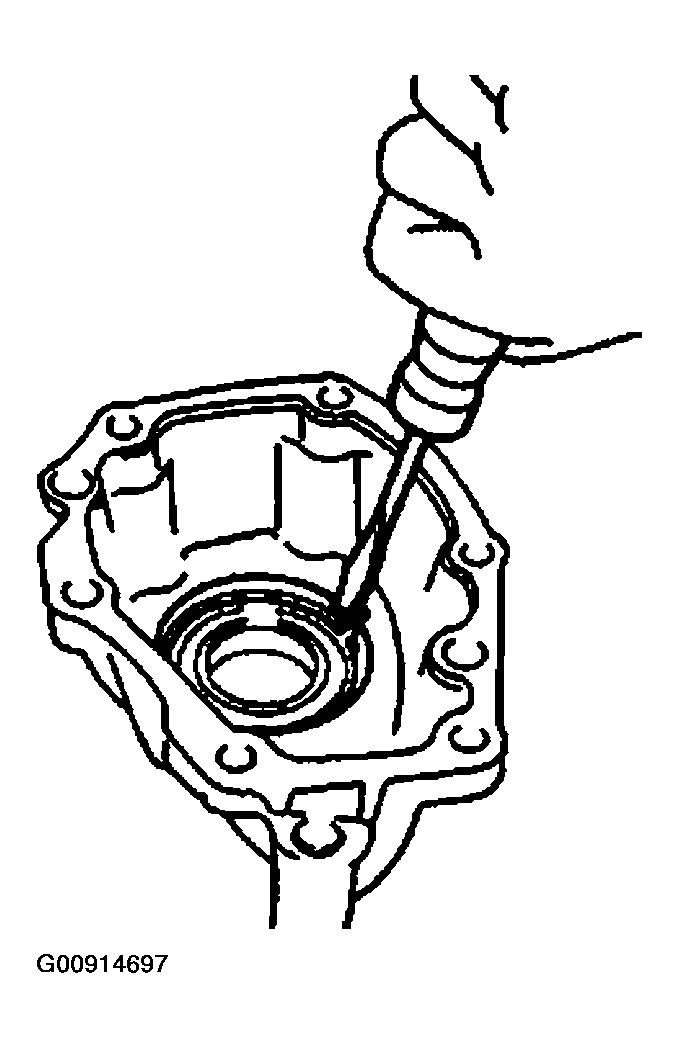

1. Using a screwdriver, remove the snap ring.
   Fig 6: Removing Snap Ring Using Screwdriver

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

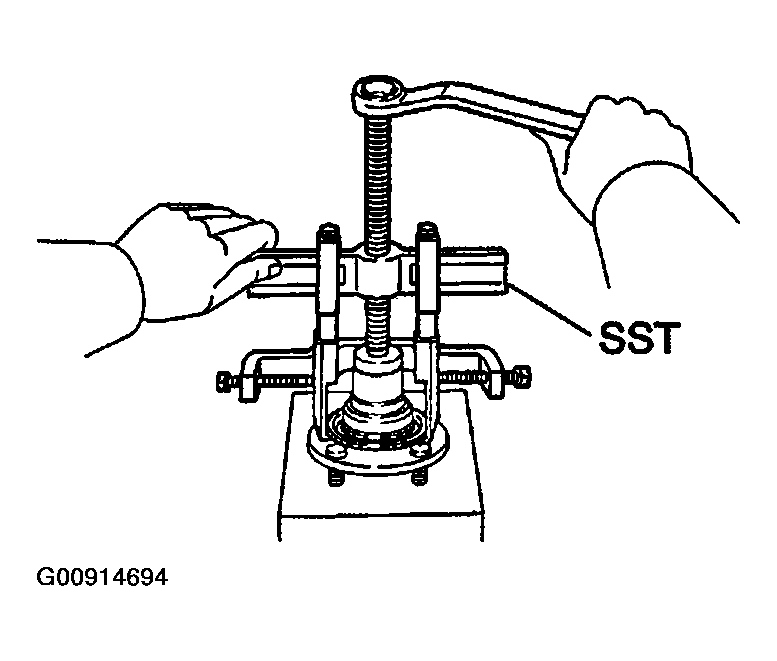

2. Using SST and a press, remove the ball bearing.
   1. SST 09316-60011 (09316-00011, 09316-00071)
   Fig 7: Removing Ball Bearing Using SST & Press

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
