Front Extension Housing: Reassembly

HINT:

Coat all of the sliding and rotating surfaces with gear oil before reassembly.

1. INSTALL DUST DEFLECTOR
   1. Using a plastic hammer, install a new dust deflector to the front extension housing.

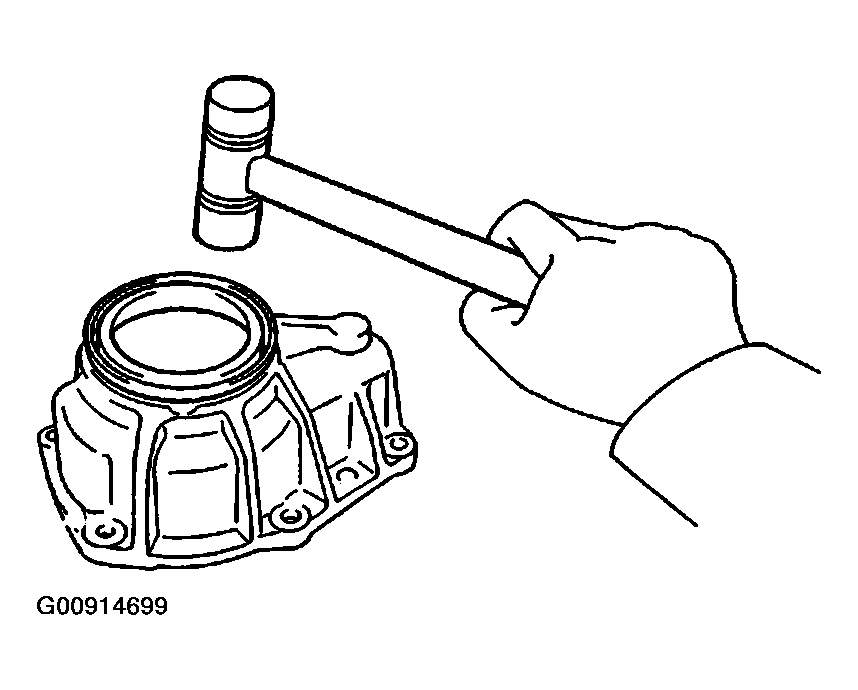

      Fig 1: Installing New Dust Deflector To Front Extension Housing Using Plastic Hammer

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using SST and a press, install a new dust deflector to the front output shaft.
      1. SST 09316-20011, 09316-60011 (09316-00011)

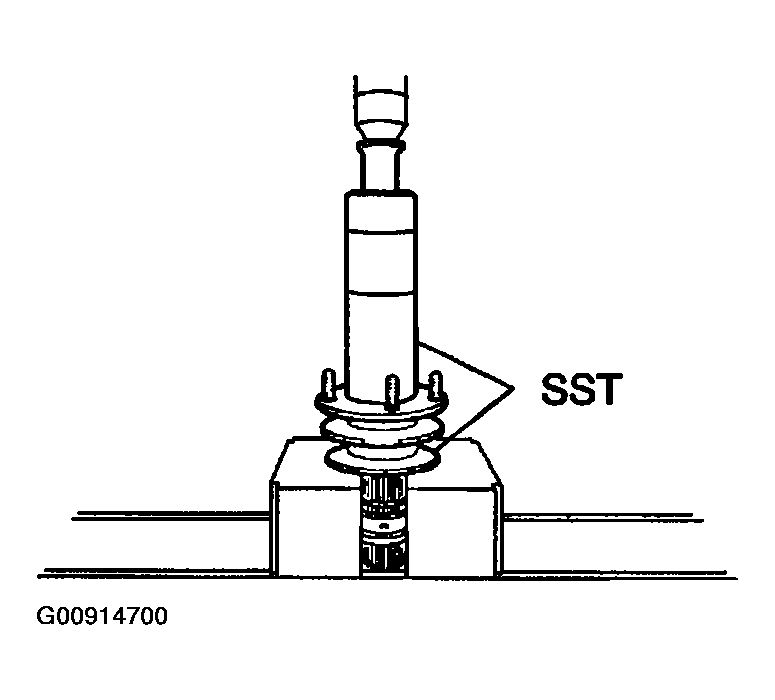

      Fig 2: Installing New Dust Deflector To Front Output Shaft Using SST & Press

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL BALL BEARING
   1. Using SST and a press, install the ball bearing to the front extension housing.
      1. SST 09316-60011 (09316-00011, 09316-00031)

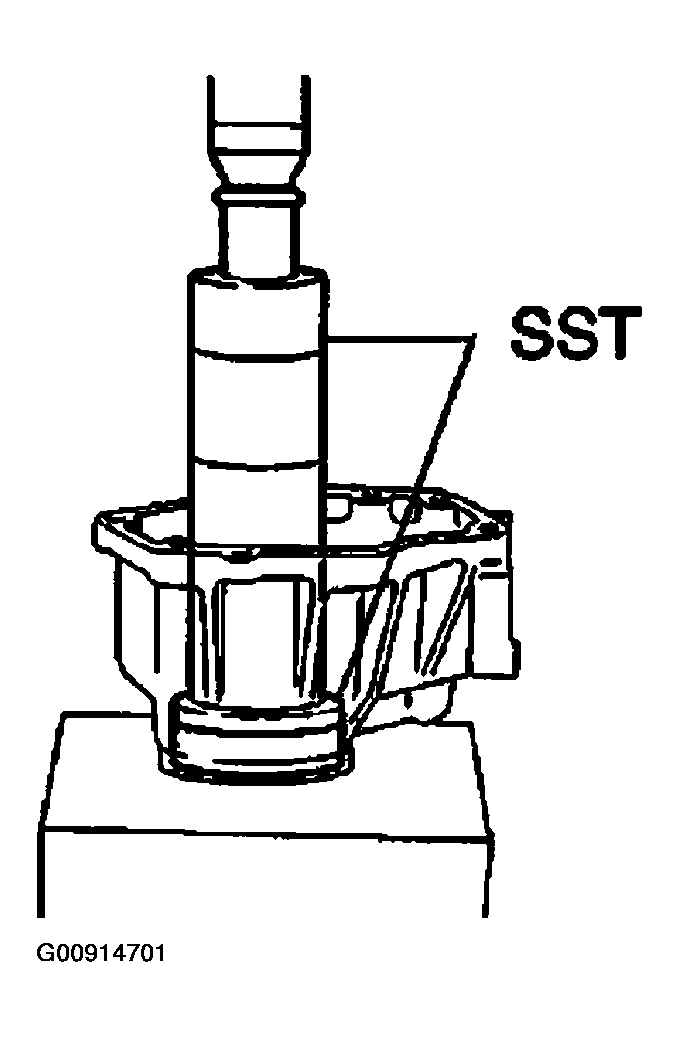

      Fig 3: Installing Ball Bearing To Front Extension Housing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a snap ring that will allow the minimum axial play.

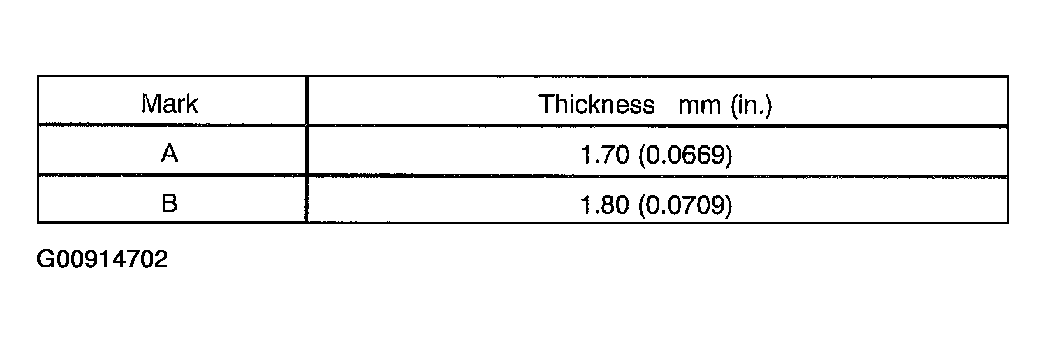

      Fig 4: Snap Ring Specification Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

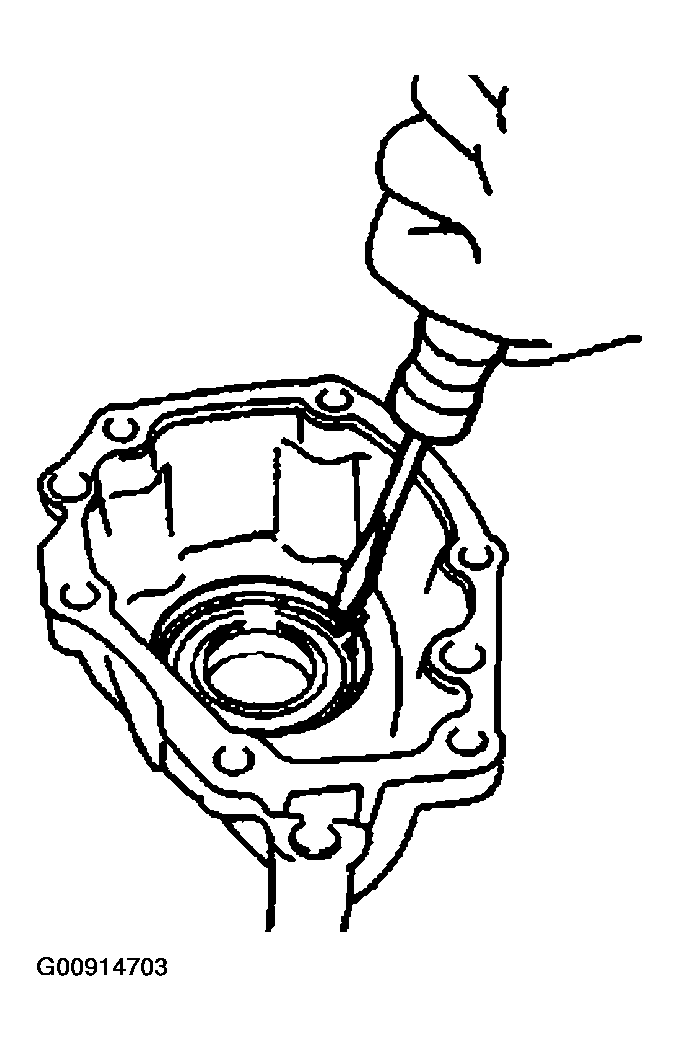

   3. Using a screwdriver, install a new snap ring.
      Fig 5: Installing New Snap Ring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL OIL SEAL
   1. Apply MP grease to the lip of a new oil seal.
   2. Using SST and a hammer, drive in a new oil seal to the front extension housing.
      1. SST 09316-60011 (09316-00011, 09316-00061)

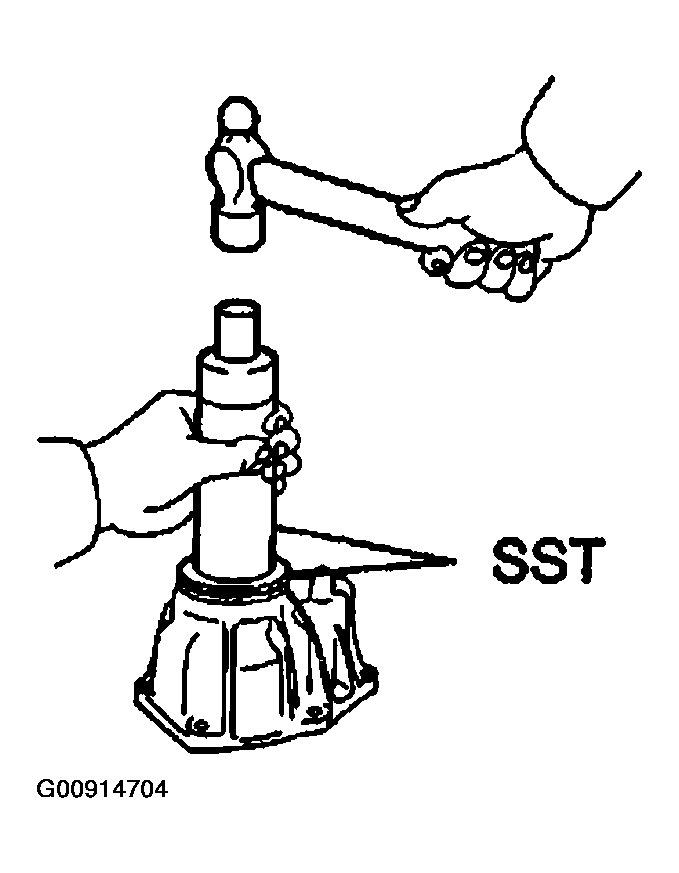

      Fig 6: Installing Oil Seal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL FRONT OUTPUT SHAFT AND DRIVE CLUTCH HUB
   1. Using SST and a press, install the front output shaft and drive clutch hub.
      1. SST 09316-20011, 09316-60011 (09316-00011, 09316-00041, 09316-00071)

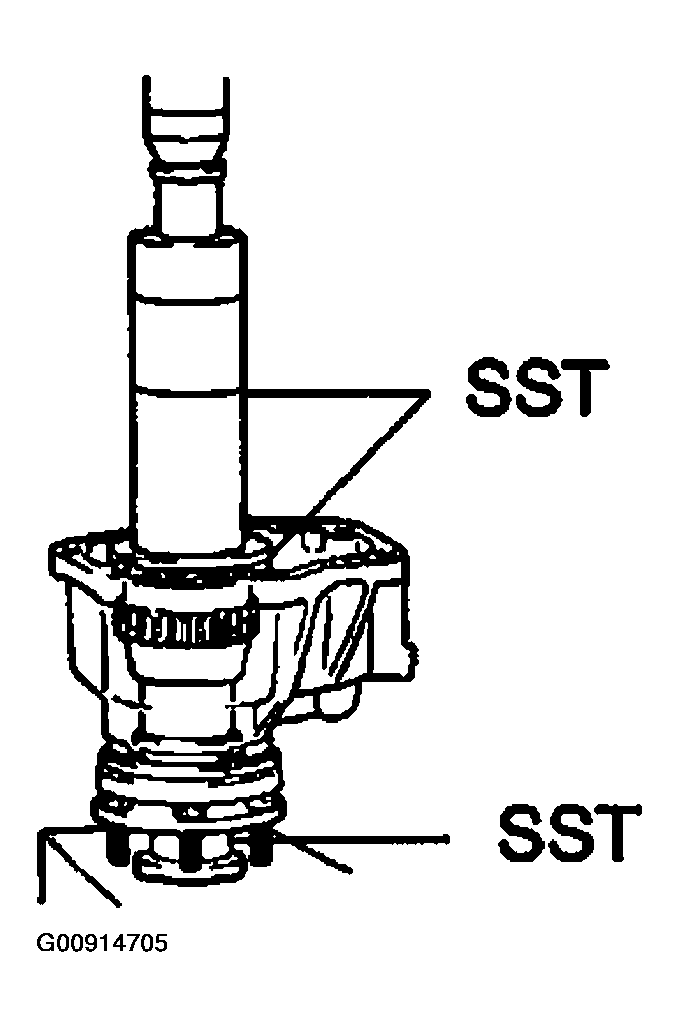

      Fig 7: Installing Front Output Shaft & Drive Clutch Hub

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a snap ring that will allow the minimum axial play.

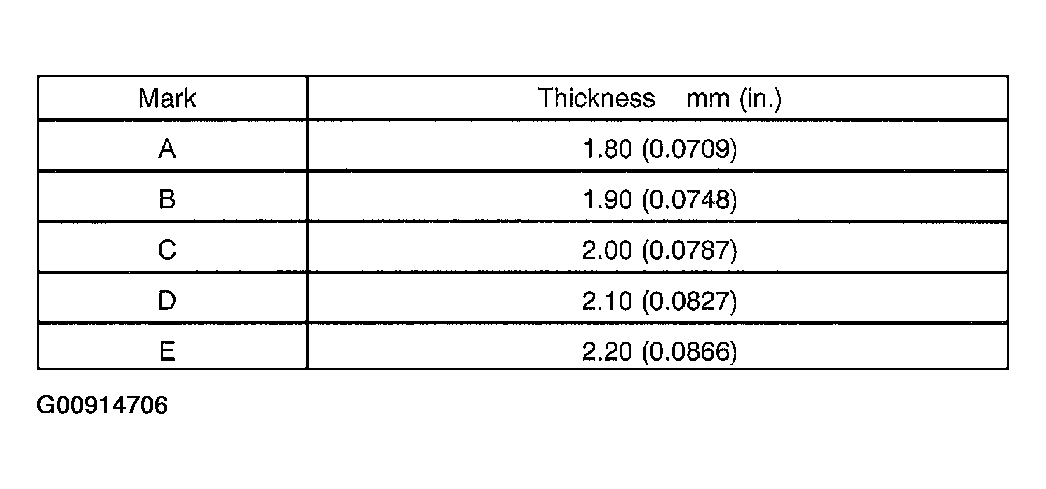

      Fig 8: Snap Ring Specification Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a snap ring expander, install a new snap ring.

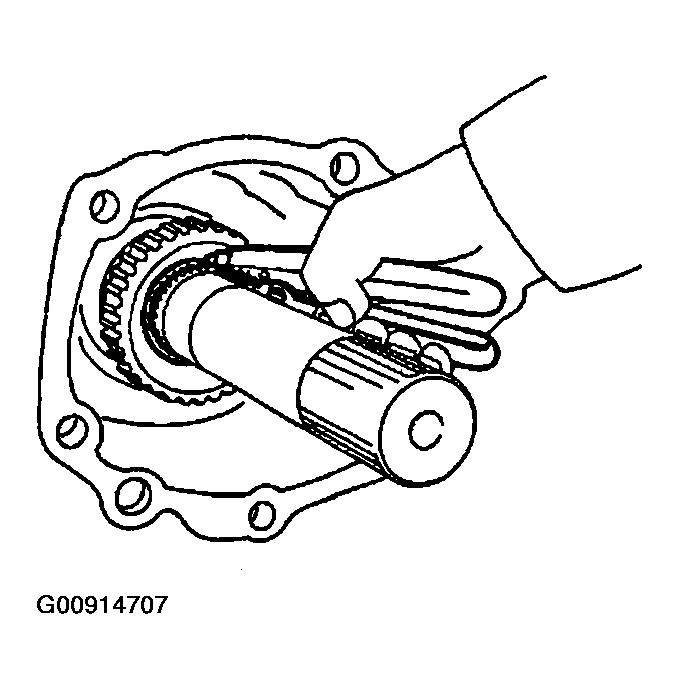

      Fig 9: Installing New Snap Ring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
