Rear Extension Housing: Disassembly

1. Using a torx socket wrench (T30), remove the 3 screws.
2. Install the 2 suitable bolts to the pump cover.
3. Remove the pump cover from the rear extension housing.

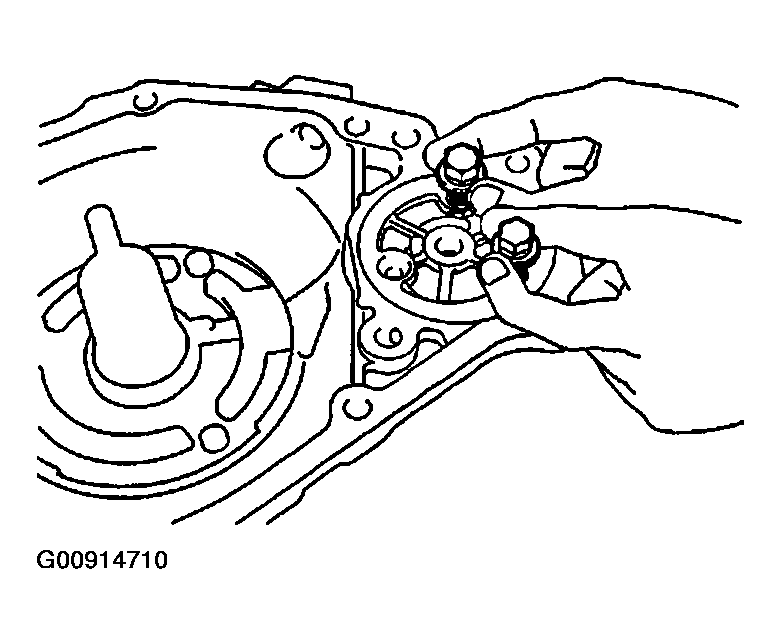

   Fig 2: Installing Bolts To Pump Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a hexagon wrench, remove the screw plug.
2. Using a magnetic finger, remove the spring, ball and valve seat from the rear extension housing.

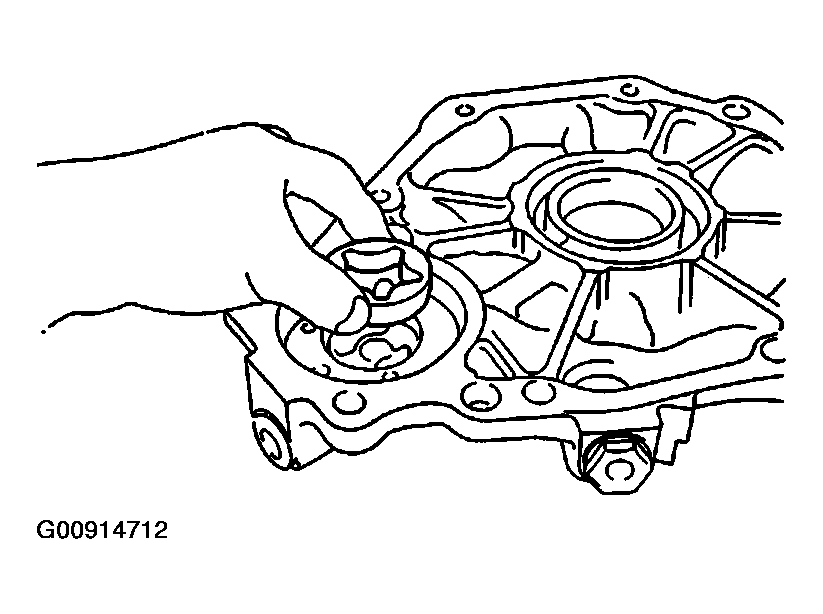

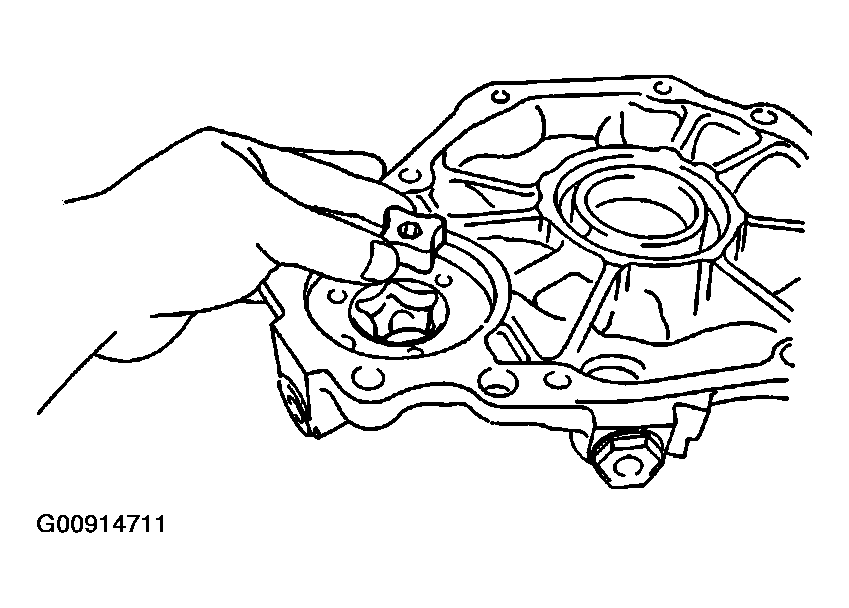

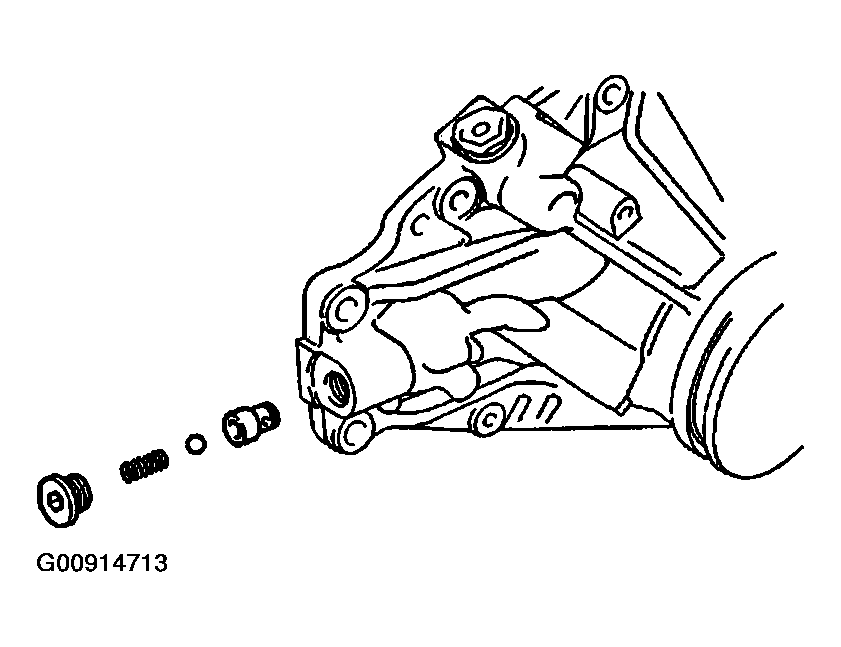

   Fig 5: Removing Screw Plug, Spring, Ball & Valve Seat

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

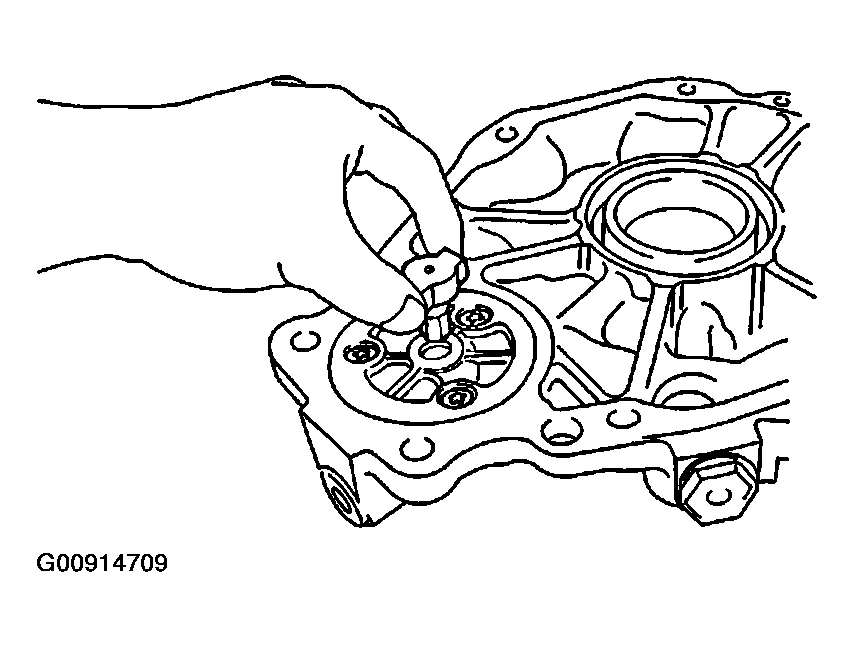

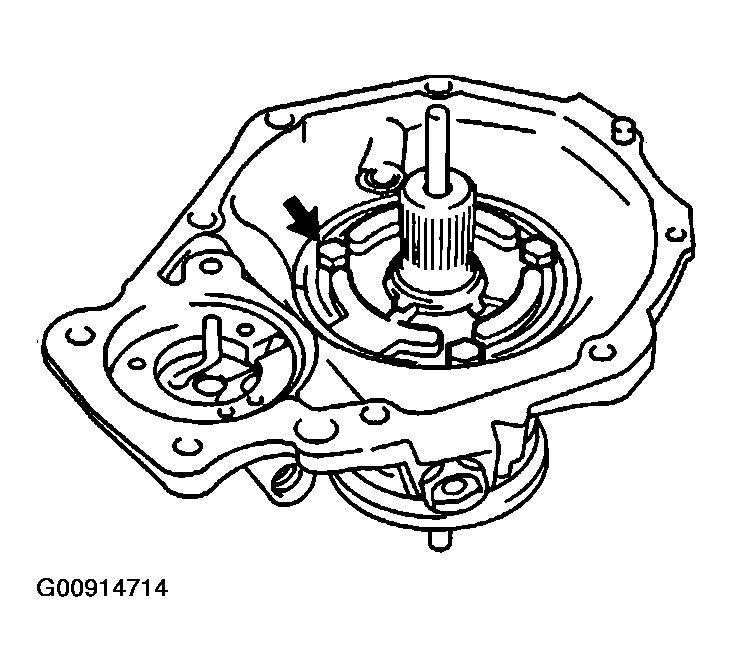

Remove the 3 bolts and oil pump plate.

1. Using a snap ring expander, remove the snap ring.
2. Remove the speed sensor drive gear.

1. Using a snap ring expander, remove the snap ring.
2. Using SST and a hammer, remove the rear output shaft.
   1. SST 09325-12010

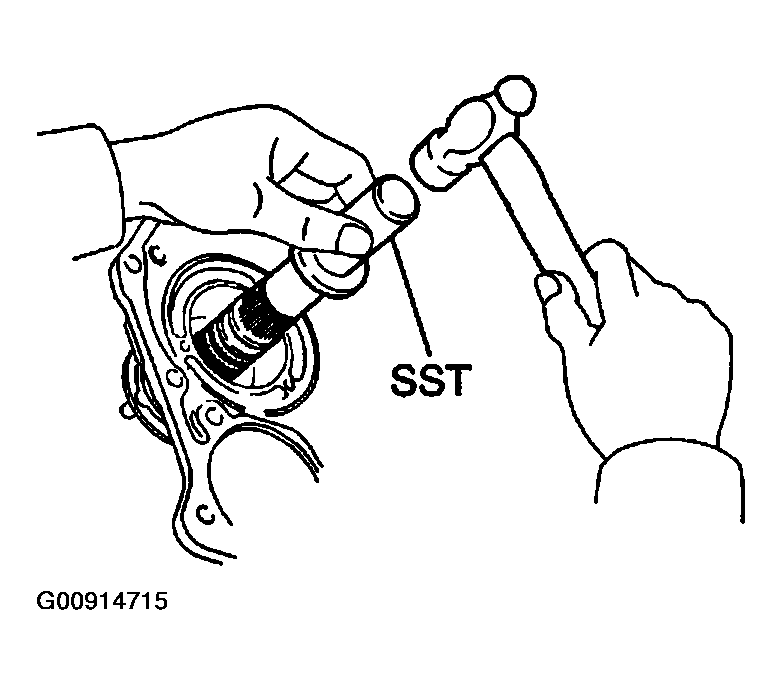

Fig 7: Removing Rear Output Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 seal rings from the rear output shaft.

1. Using a screwdriver and hammer, remove the rear extension housing dust deflector.
2. Using a screwdriver and hammer, remove the rear output shaft dust deflector.

Using a screwdriver, pry out the oil seal from the rear extension housing.

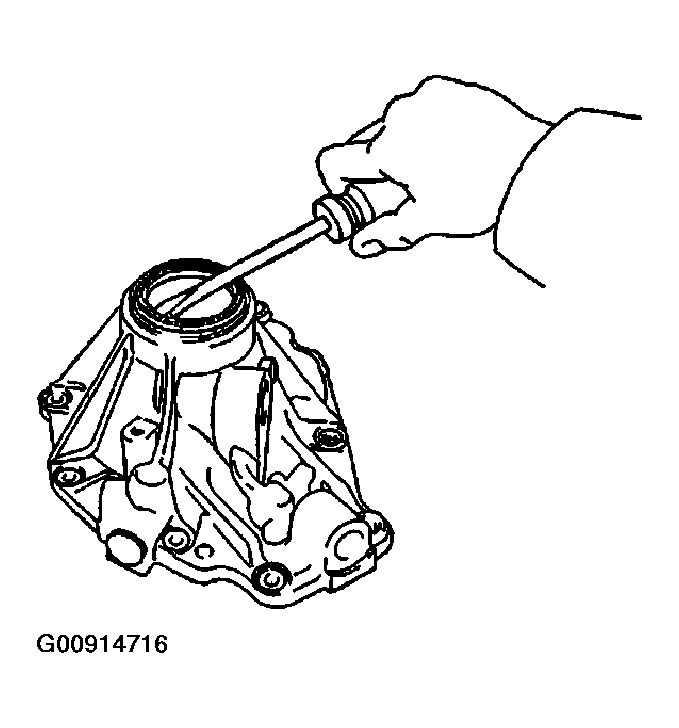

Fig 8: Prying Out Oil Seal From Rear Extension Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the snap ring.
2. Using SST and a press, remove the ball bearing from the rear extension housing.
   1. SST 09316-60011 (09316-00011,09316-00021)

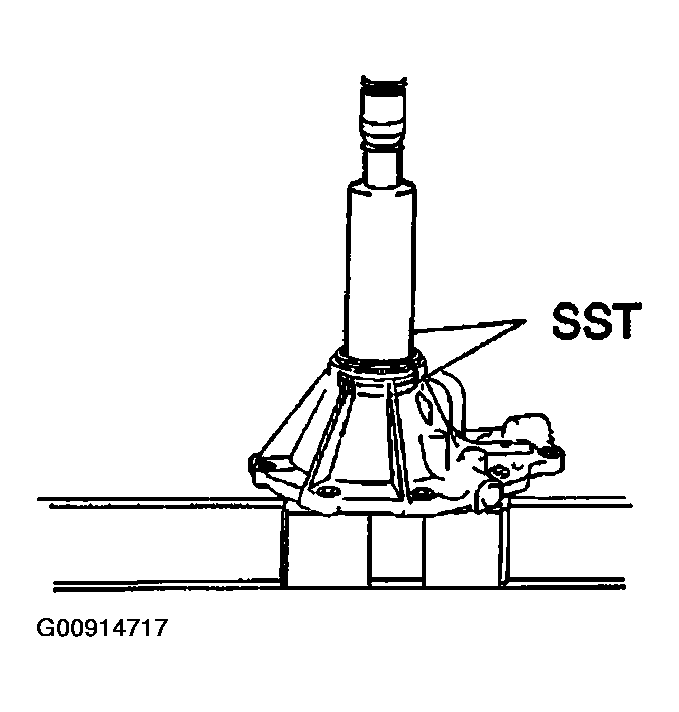

   Fig 9: Removing Ball Bearing From Rear Extension Housing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
