Cruise Control Module: Service and Repair

CRUISE CONTROL ECU ASSY

REPLACEMENT
1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER

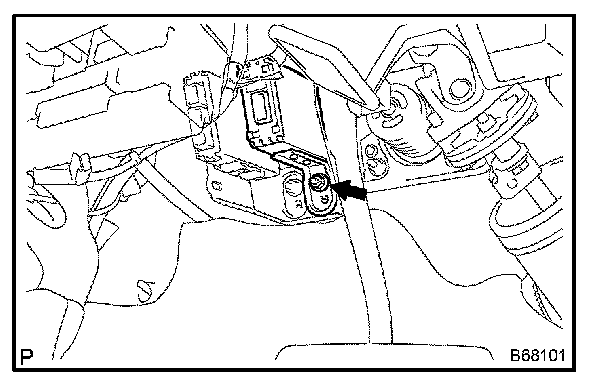

3. REMOVE CRUISE CONTROL ECU ASSY
a. Disconnect the connector.
b. Remove the nut and cruise control ECU (distance control ECU) assy.

4. INSTALL CRUISE CONTROL ECU ASSY
a. Install the cruise control ECU (distance control ECU) assy with the nut.

NOTE: Do not install the cruise control ECU (distance control ECU) assy if it has been damaged or received some sort of shock.
