Seat Control System

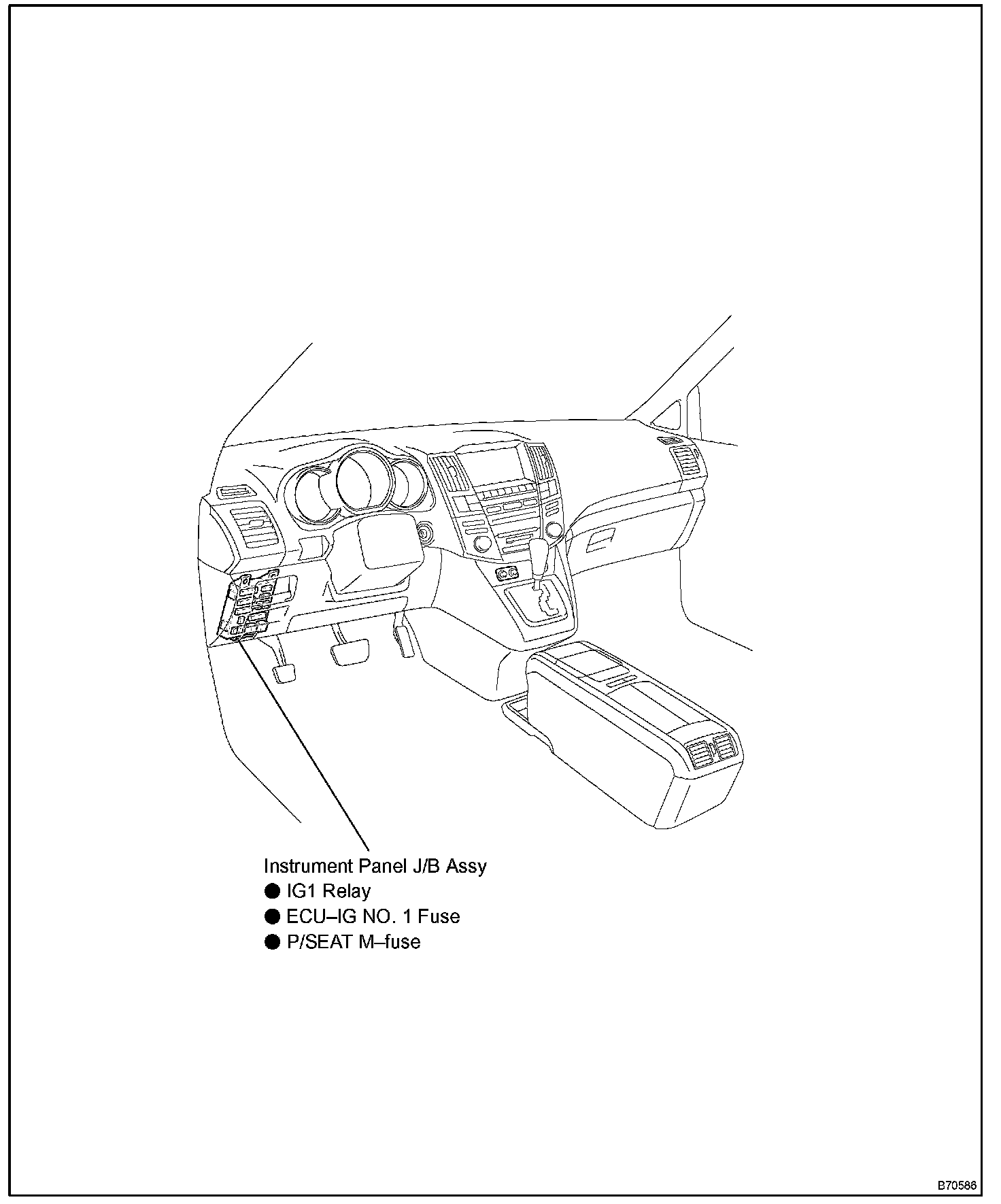

Front Power Seat Control System - Part 1:

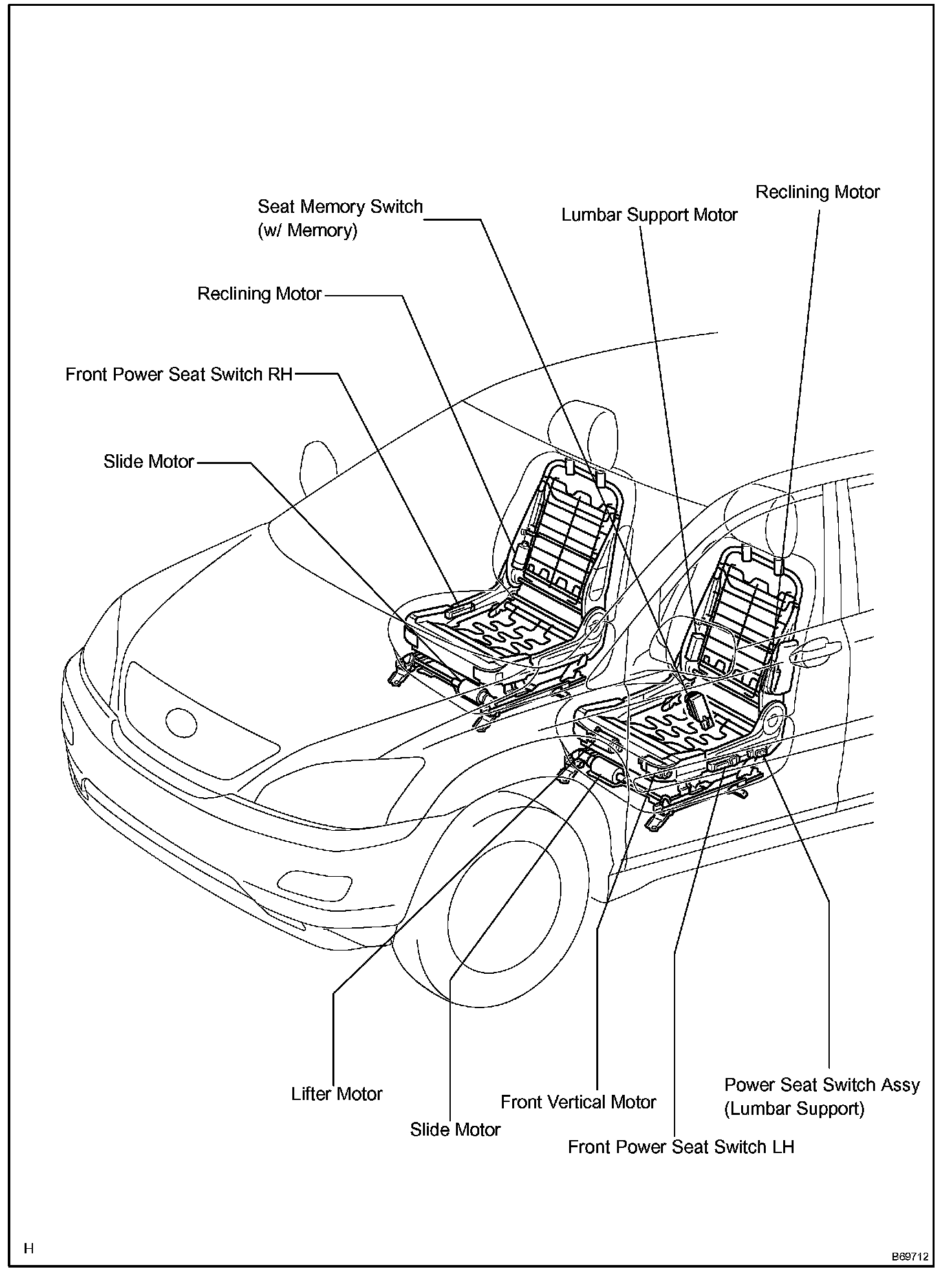

Front Power Seat Control System - Part 2:
