Control Module HVAC: Service and Repair

AIRCONDITIONER AMPLIFIER ASSY

REPLACEMENT
1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE COWL SIDE TRIM SUB-ASSY RH
3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
4. REMOVE GLOVE COMPARTMENT DOOR ASSY
5. REMOVE ECM




6. REMOVE AIRCONDITIONER AMPLIFIER ASSY

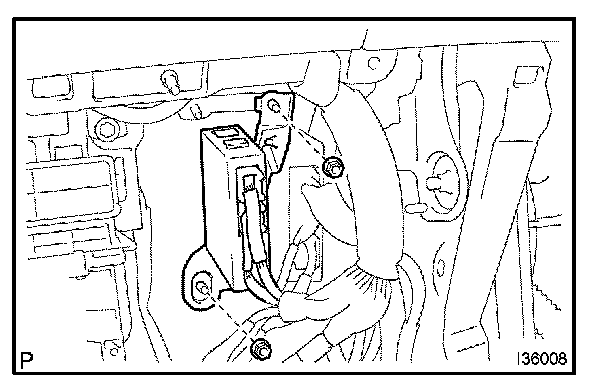

a. Disconnect the connectors.
b. Remove the 2 nuts and air conditioner amplifier assy.

7. REMOVE SUSPENSION CONTROL ECU (W/ AIR SUSPENSION)
8. INSTALL SUSPENSION CONTROL ECU (W/ AIR SUSPENSION)
9. INSTALL ECM
