Alignment


FRONT WHEEL ALIGNMENT

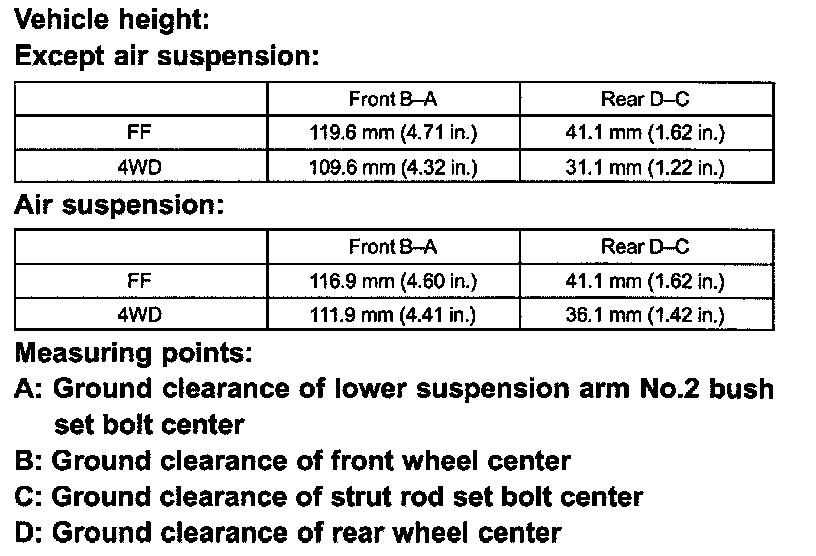

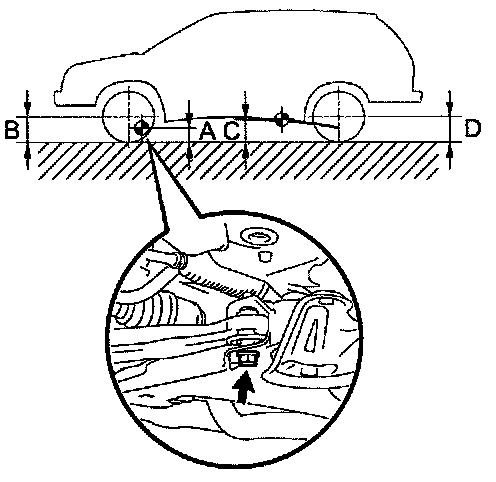

Vehicle Height

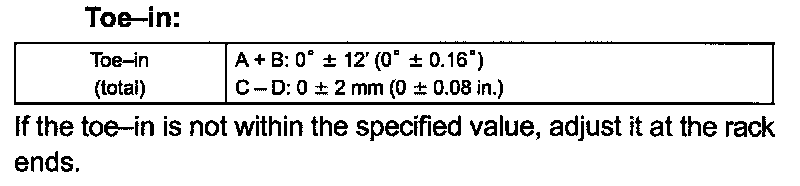

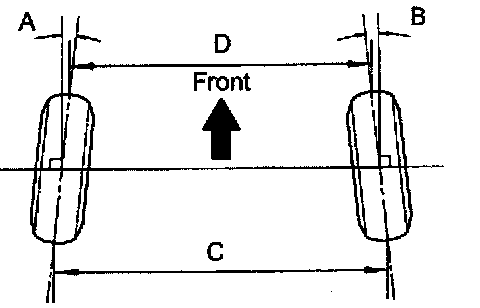

Toe-In

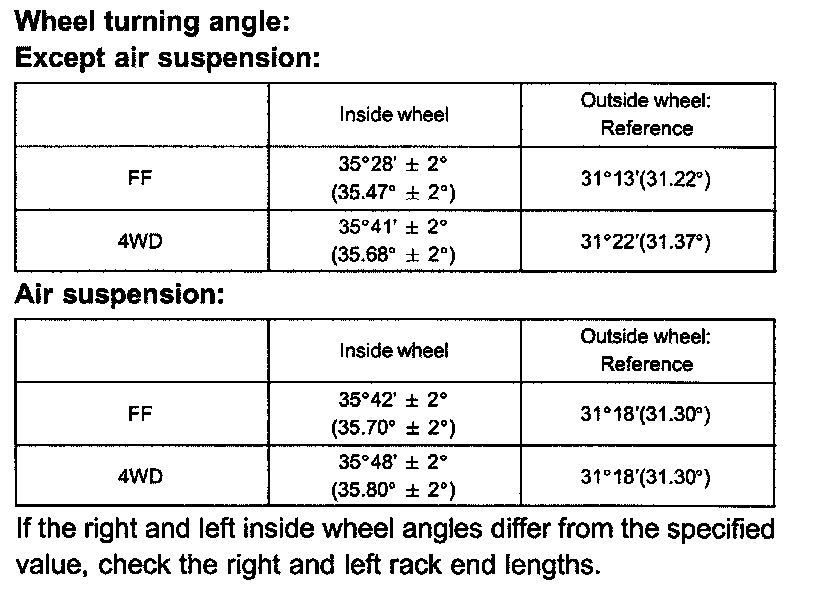

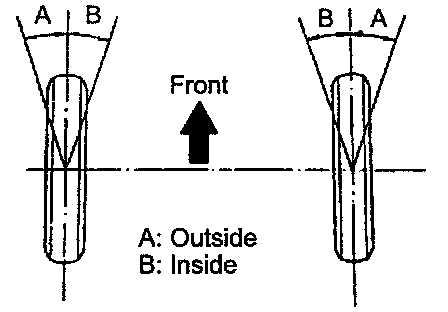

Wheel turning angle

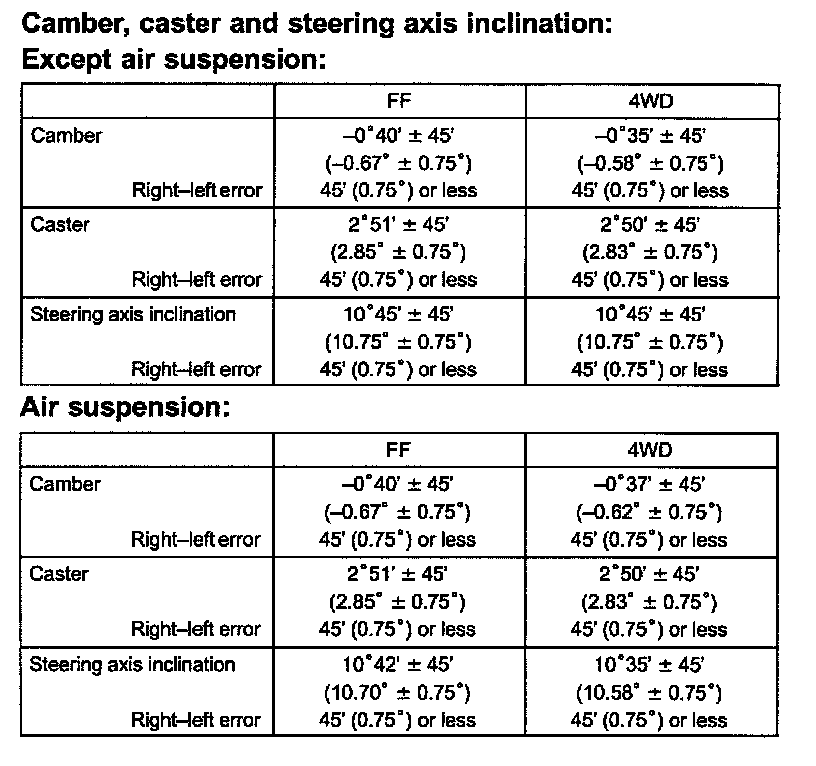

Camber, caster and steering axis inclination

REAR WHEEL ALIGNMENT








Vehicle Height

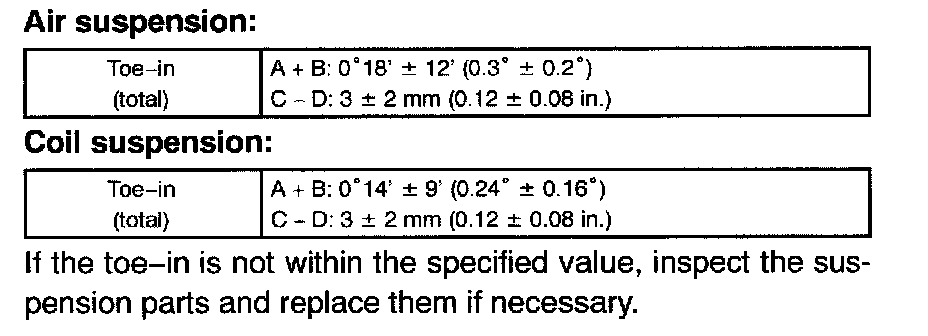

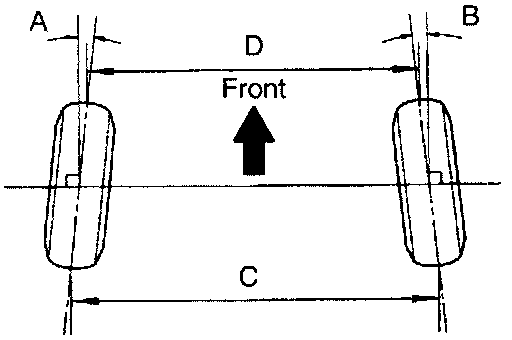

Toe-In

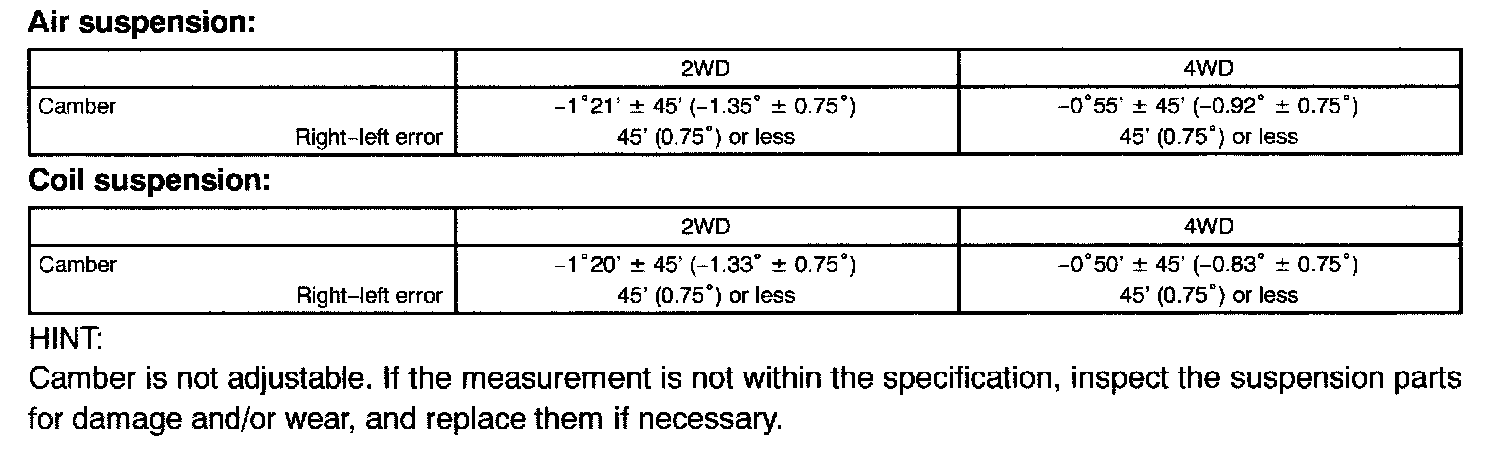

Camber
