1. Description
   • When troubleshooting OBD II vehicles, the only difference from the usual troubleshooting procedure is that you need to connect the vehicle to the OBD I scan tool complying with SAE J1978 or the hand-held tester, and read the various data output from the vehicle's ECM.
   • OBD II regulations require that the vehicle's on board computer illuminates the Malfunction Indicator Light (MIL) on the instrument panel when the computer detects a malfunction in the emission control system/components or in the powertrain control components which affect vehicle emissions, or in the powertrain control components which affect vehicle emissions, or a malfunction in the computer. In addition to the MIL illuminating when a malfunction is detected, the applicable Diagnostic Trouble Codes (DTCs) prescribed by SAE J2012 are recorded in the ECM memory (See DIAGNOSTIC TROUBLE CODE CHART ).

     If the malfunction does not reoccur in 3 consecutive trips, the MIL goes off automatically but the DTCs remain recorded in the ECM memory.

     Fig 1: Identifying MIL

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • To check the DTC, Connect he hand-held tester or OBD II Scan tool to the Data Link Connector 3 (DLC3) of the vehicle. The hand-held tester or OBD II scan tool also enables you to erase the DTC and check the freeze frame data and various forms of engine data (for operating instructions, see the OBD II scan tool's instruction book). The DTC includes SAE controlled codes and manufacturer controlled codes. SAE controlled codes must be set as prescribed by the SAE, while manufacturer controlled codes can be set freely by a manufacturer within the prescribed limits (see DIAGNOSTIC TROUBLE CODE CHART  ).
   • The diagnosis system operates in the normal mode during normal vehicle use. It also has a check mode for technicians to simulate malfunction symptoms and troubleshoot it. Most DTCs use the 2 trip detection logic* to prevent erroneous detection, and to ensure a through malfunction detection. By switching the ECM to the check mode when troubleshooting, a technician can cause the MIL to illuminate for a malfunction that is only detected once or momentarily (hand-held tester only) (see step 3).

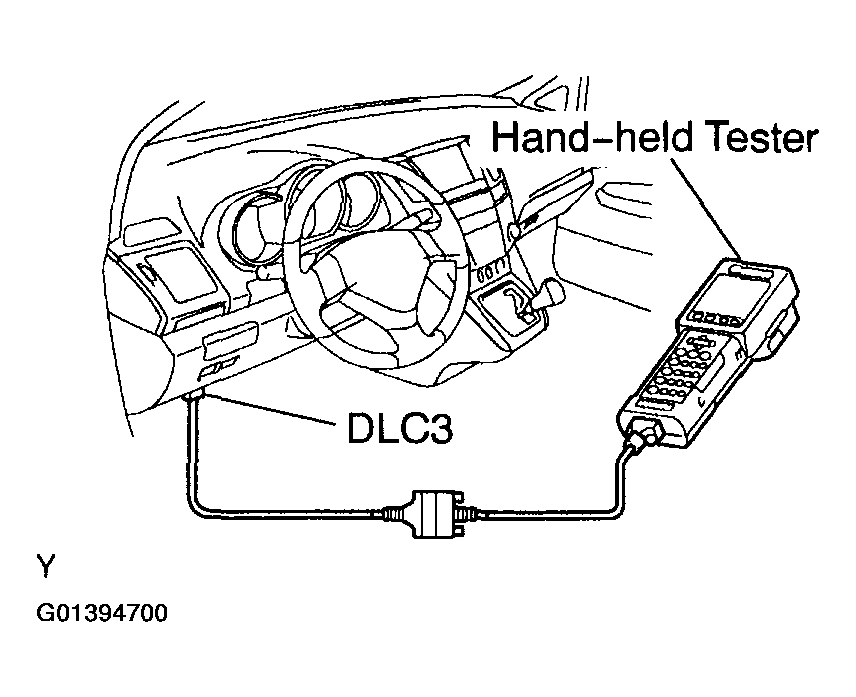

     Fig 2: Connecting Scan Tool To DLC3

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • *2 trip detection logic:

     When a malfunction is first detected, the malfunction is temporarily stored in the ECM memory (1st trip). If the same malfunction is detected again during the second drive test, this second detection causes the MIL to illuminate (2nd trip) (However, the ignition switch must be turned OFF between the 1st trip and 2nd trip).

   • Freeze frame data:

     The freeze frame data records the engine conditions (fuel system, calculated load, engine coolant temperature, fuel trim, engine speed, vehicle speed, etc.) when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction

     Priorities for troubleshooting:

     If troubleshooting priorities for multiple DTCs are given in the applicable DTC chart, these priorities should be followed.

     If no instructions are given, perform troubleshooting for those DTCs according to the following priorities.

   1. DTCs other than fuel trim malfunction (DTCs P0171, P0172, P0174 and P0175) and misfire (DTCs P0300 - P0306).
   2. Fuel trim malfunction (DTCs P0171, P0172, P0174 and P0175).
   3. Misfire (DTCs P0300 - P0306).
2. Check the DLC3.

   The vehicle's ECM uses the ISO 9141-2 for communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 9141-2 format.

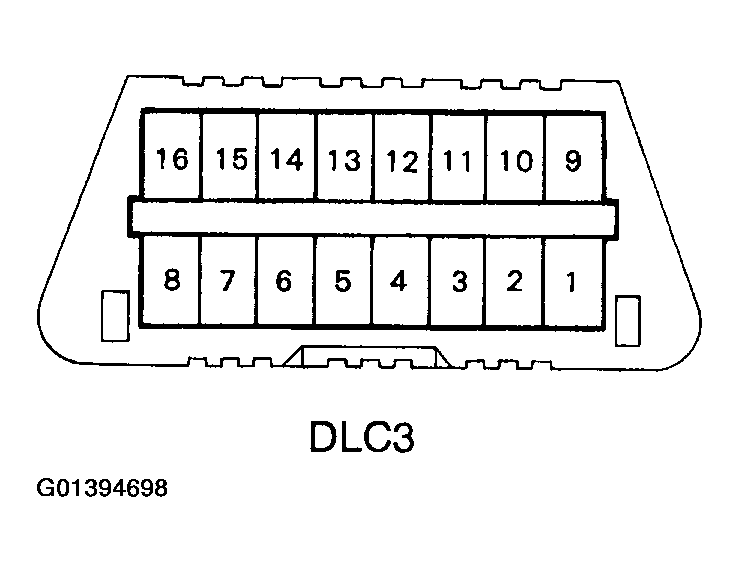

   Fig 3: Identifying DLC3 Terminal Arrangement

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

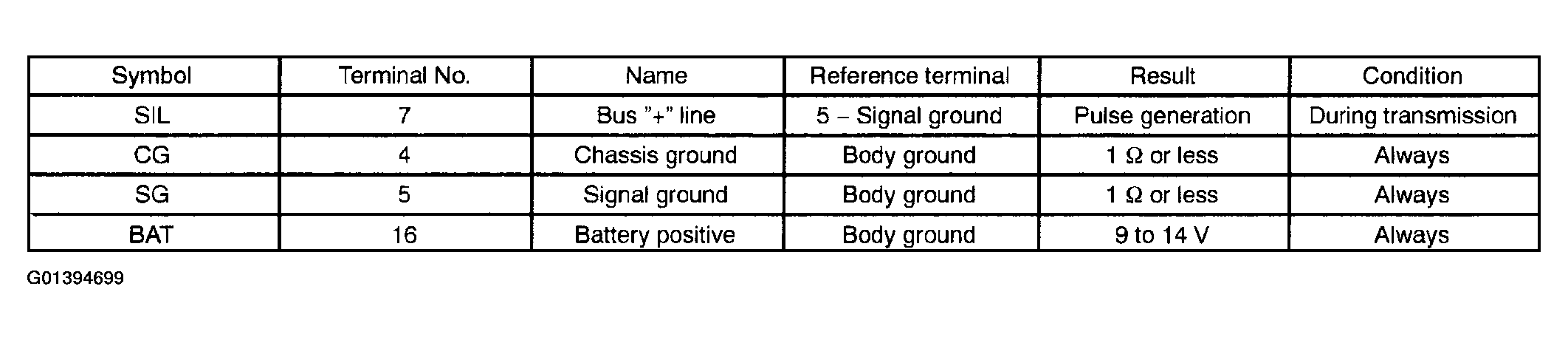

   Fig 4: Identifying DLC3 Circuits

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If the display shows UNABLE TO CONNECT TO VEHICLE when you have connected the cable of the OBD II scan tool or hand-held tester to the DLC3, turned the ignition switch ON and operated the scan tool, there is a problem on the vehicle side or tool side.

   • If the communication is normal when the tool is connected to another vehicle, inspect the DLC3 on the original vehicle.
   • If the communication is still impossible when the tool is connected to another vehicle, the problem is probably in the tool itself, so consult the Service Department listed in the tool's instruction manual.
3. Inspect the battery voltage.

   Battery Voltage: 11 to 14 V

   If voltage is below 11 V, recharge the battery before proceeding.

4. Check the MIL.
   1. The MIL comes on when the ignition switch is turned ON and the engine is not running

      HINT:

      If the MIL is not illuminated; troubleshoot the MIL circuit (See MIL CIRCUIT  ).

   2. When the engine is started, the MIL should go off if the lamp remains on, it means that the diagnosis system has selected a malfunction or abnormality in the system.

1. Checking DTCs using the OBD II scan tool or hand-held tester.
   1. Connect the OBD II scan tool or hand-held tester to the DLC3.
   2. Turn the ignition switch ON.
      Fig 5: Connecting Scan Tool To DLC3

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Use the OBD II scan tool or the hand-held tester to check the DTCs and freeze frame data and then write them down. If you need help with the OBD II scan tool, refer to the scan tool's instruction book. If there is no DTC in the normal mode, check the pending fault code using the Continuous Test Results function (Mode 7 for SAE J1979) on the OBD II scan tool or the hand-held tester.
   4. See DIAGNOSTIC TROUBLE CODE CHART  to confirm the details of the DTCs.
   NOTE:

   • When simulating a symptom with the OBD II scan tool (excluding hand-held tester) to check for DTCs, use the normal mode. For codes on the DTC chart subject to "2 trip detection logic", perform either of the following actions.
   • Turn the ignition switch OFF after the symptom is simulated once. Then repeat the simulation process again. When the problem has been simulated twice, the MIL lights up and the DTCs are recorded in the ECM.
   • Check the pending fault code using the Continuous Test Results function (Mode 7 for SAE J1979) on the OBD II scan tool.
2. Clearing the DTCs using the OBD II scan tool or the hand-held tester.
   1. Connect the OBD II scan tool or the hand-held tester to the DLC3.
   2. Turn the ignition switch ON.
   3. When operating an OBD II scan tool (complying with SAE J1978) or the hand-held tester to erase the codes, the DTCs and freeze frame data will be erased. (See the OBD II scan tool's instruction book for operating instructions.)
3. Clearing the DTCs not using the OBD II scan tool or the hand-held tester.
   1. Disconnect the battery terminal or remove the EFI No. 1 and ETCS fuses from the fusible link block for more than 60 seconds.

HINT:

Hand-held tester only:

Compared to the normal mode, the check mode has more sensing ability to detect malfunctions. Furthermore, the same diagnostic items which are detected in the normal mode can also be detected in the check mode.

1. Procedure for Check Mode using the hand-held tester.
   1. Check the initial conditions.
      • Battery positive voltage 11 V or more
      • Throttle valve fully closed
      • Transmission in the P or N position
      • A/C switched OFF
   2. Turn the ignition switch OFF.
   3. Connect the hand-held tester to the DLC3.
   4. Turn the ignition switch ON.
   5. Switch the hand-held tester from the normal mode to the check mode (check that the MIL flashes).
      Fig 6: Connecting Scan Tool To DLC3

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: If the hand-held tester switches the ECM from the normal mode to the check mode or vice-versa, or if the ignition switch is turned from ON to ACC or OFF during the check mode, the DTC and freeze frame data will be erased.
   6. Start the engine (MIL goes off after the engine starts).
   7. Simulate the conditions of the malfunction described by the customer.
      NOTE: Leave the ignition switch ON until you have checked the DTC, etc.

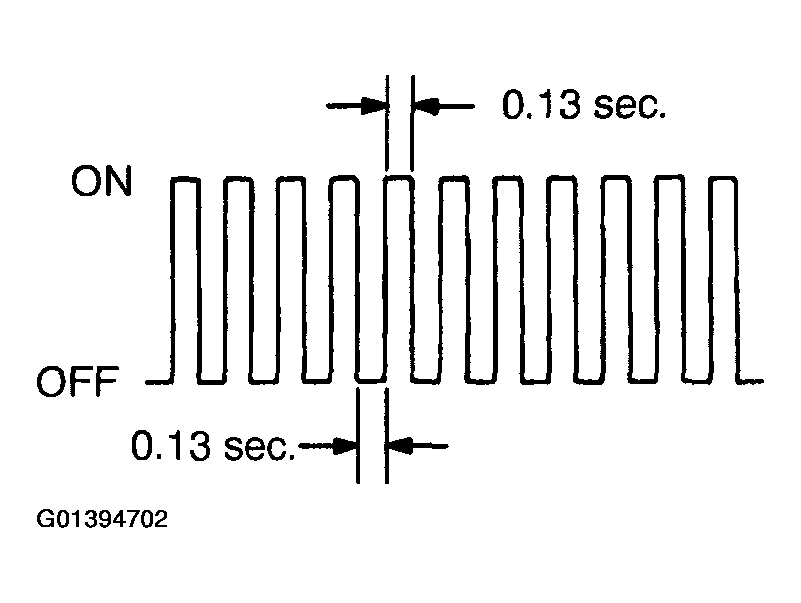

      Fig 7: Identifying MIL Flash Pattern

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   8. After simulating the malfunction conditions, use the hand-held tester diagnosis selector to check the DTC and freeze frame data, etc.

      HINT:

      Be sure not to turn the ignition switch OFF, as turning it OFF switches the diagnosis system from the check mode to the normal mode, which erases all the DTCs, etc.

   9. After checking the DTC, inspect he applicable circuit.
2. Clearing the DTCs using the OBD II scan tool or the hand-held tester.
   1. Connect the OBD I scan tool or the hand-held tester to the DLC3.
   2. Turn the ignition switch ON.
   3. When operating an OBD II scan tool (complying with SAE J1978) or the hand-held tester to erase the codes, the DTCs and freeze frame data will be erased. (See the OBD II scan tool's instruction book for operating instructions.)
3. Clearing the DTCs not using the OBD II scan tool or the hand-held tester.
   1. Disconnect the battery terminal or remove the EFI No. 1 and ETCS fuses from the fusible link block for more than 60 seconds.

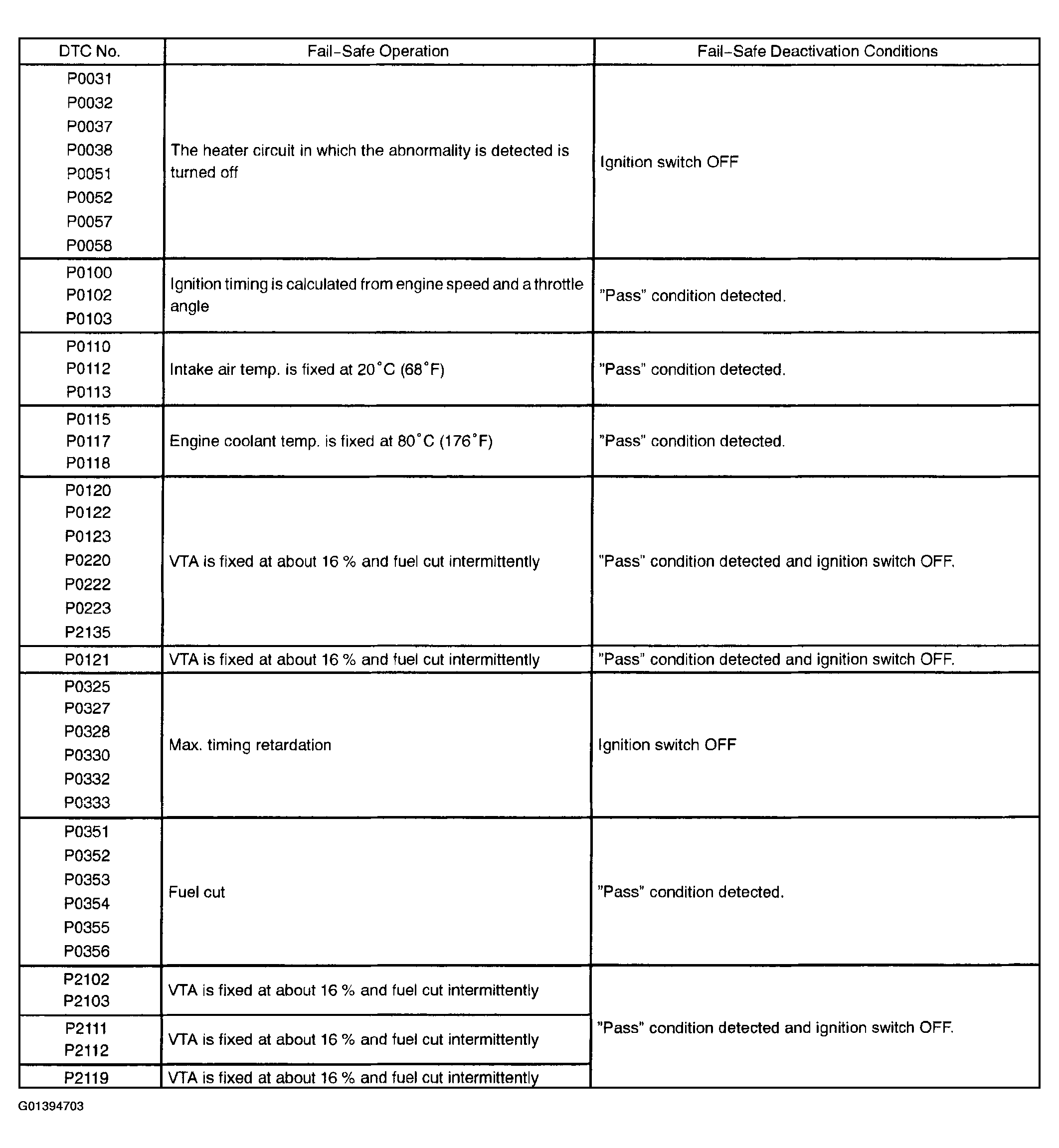

If any of the following codes are recorded, the ECM enters the fail-safe mode.

Fig 8: Fail-Safe Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Hand-held tester only:

By putting the vehicle's ECM in the check mode, the 1 trip detection logic is possible instead of the 2 trip detection logic, and the sensitivity to detect faults is increased. This makes it easier to detect intermittent problems.

1. Clear the DTCs (See step 2).
2. Set the check mode (See step 3).
3. Perform a simulation test (See SYMPTOM SIMULATION ).
4. Check the connector and terminal (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
5. Wiggle the harness and the connector (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

HINT:

Using the DTA LIST displayed by the hand-held tester or the OBD I scan tool, you can read the value the switches, sensors, actuators and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one method to shorten diagnostic time.

1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the hand-held tester or the OBD II scan tool to the DLC3.
4. Turn the ignition switch ON.
5. Push the "ON" button of the hand-held tester or the OBD II scan tool.
6. Select the item "DIAGNOSIS/ENHANCED OBD II/DATA LIST".
7. According to the display on tester, read the "DATA LIST".

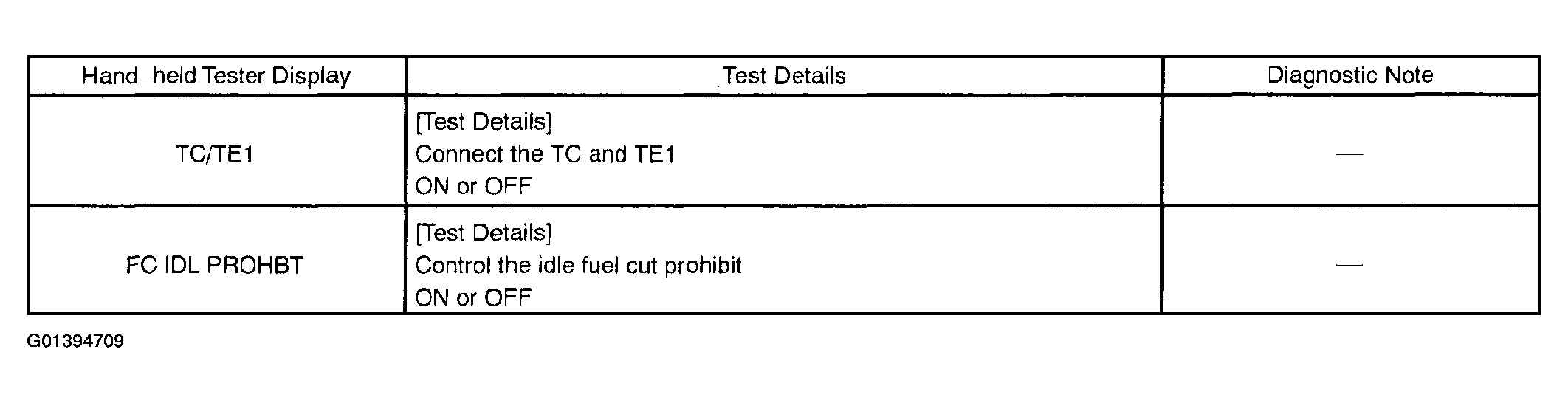

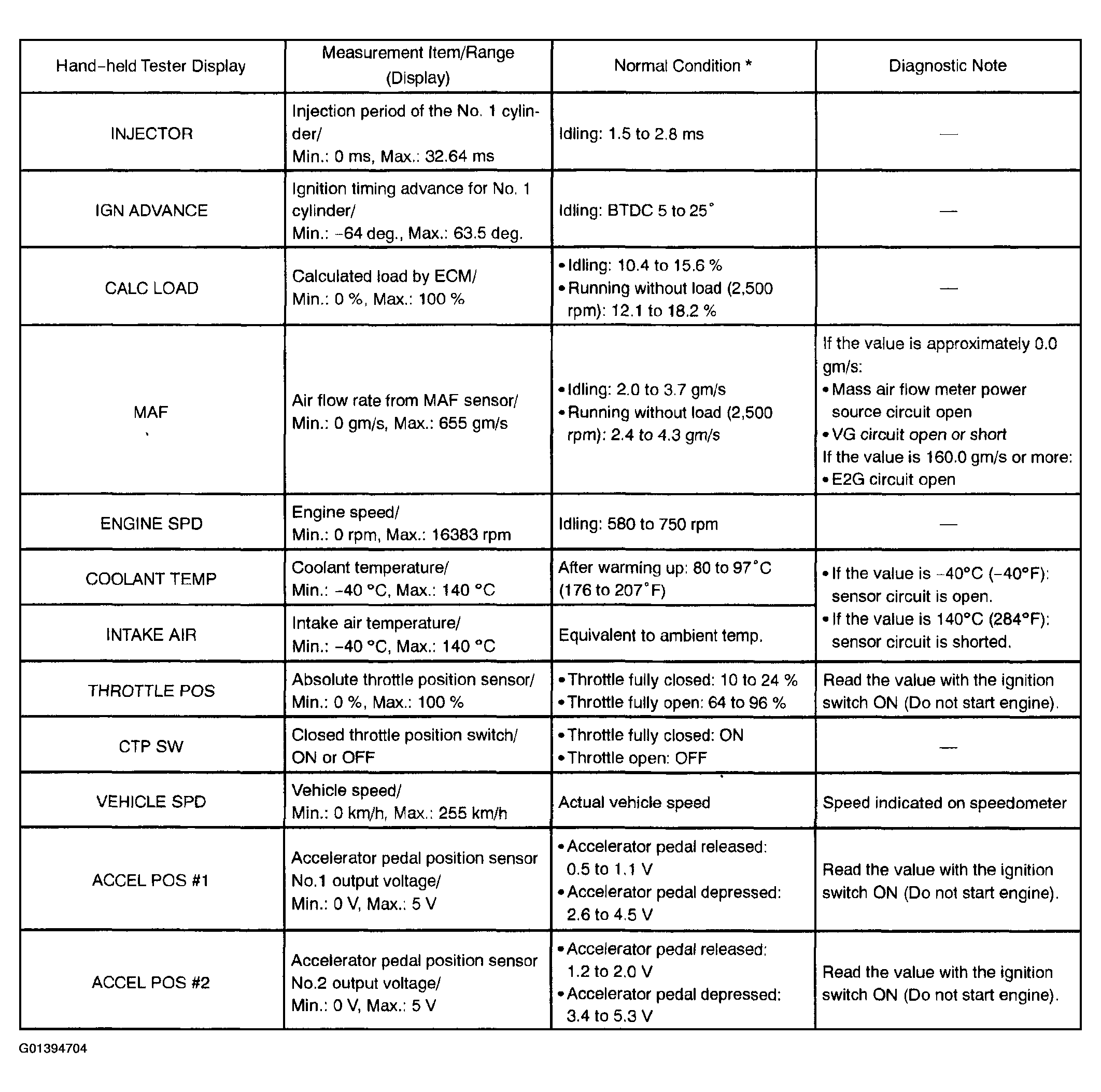

   Fig 9: Displaying Data List (1 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

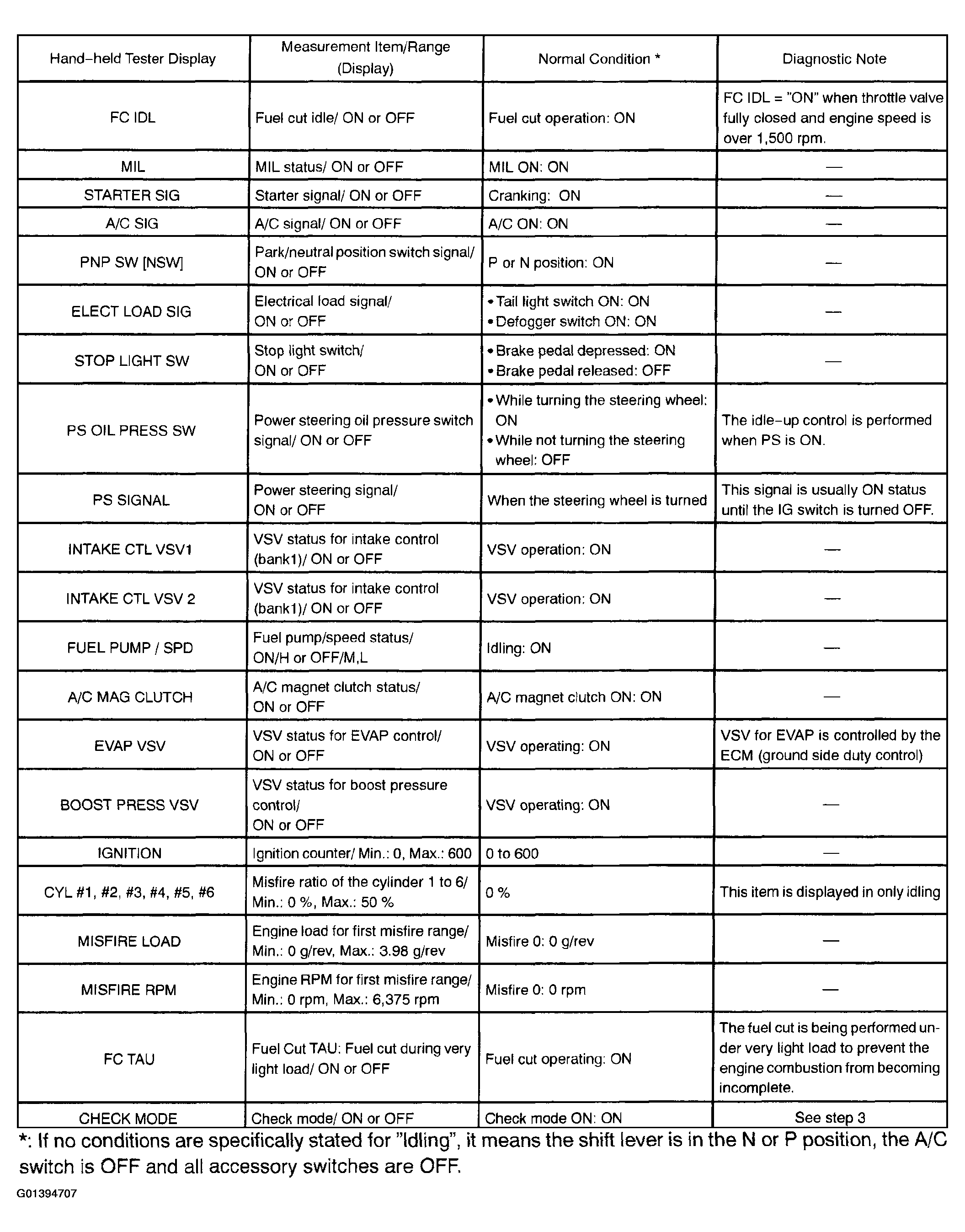

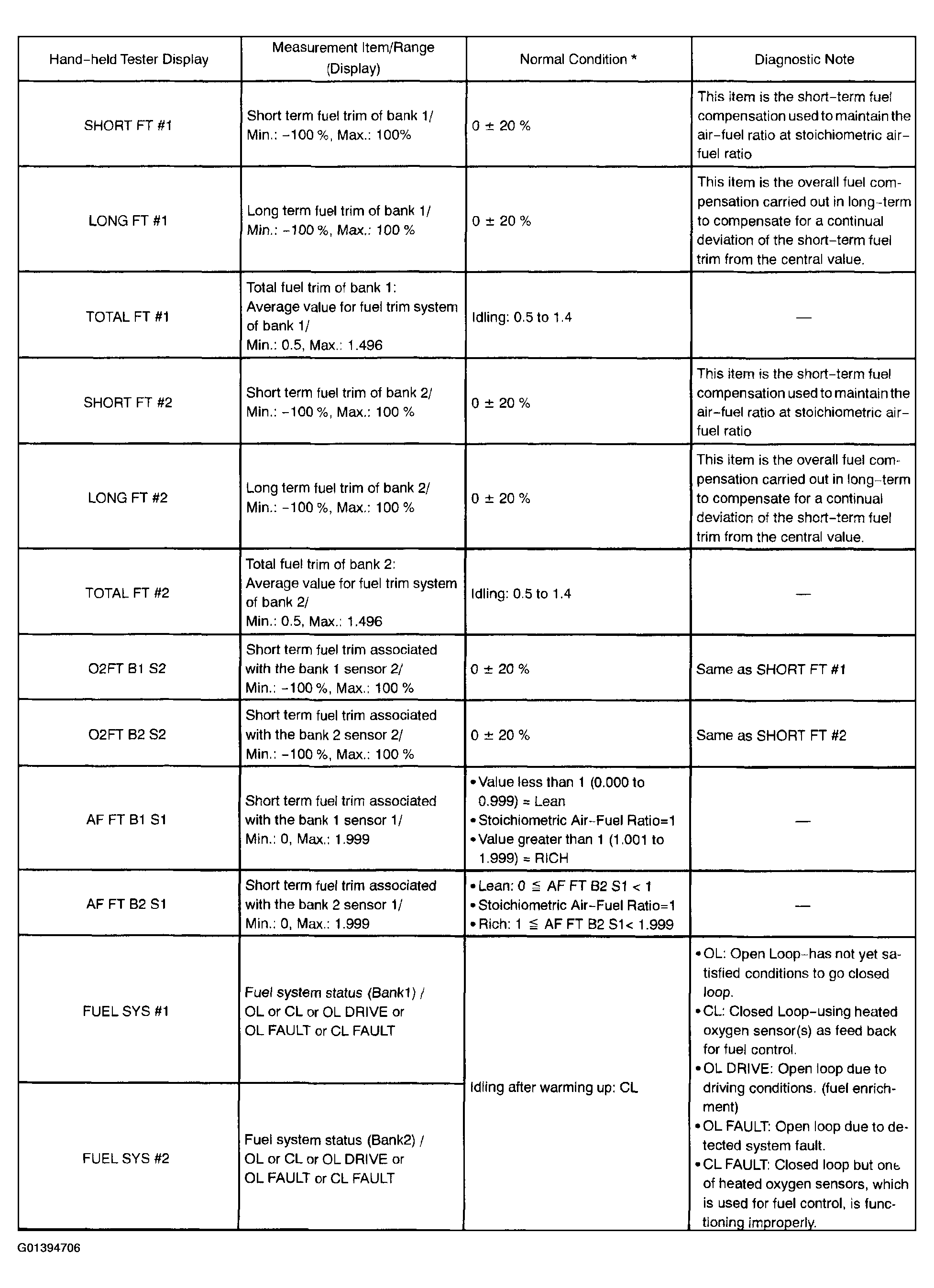

Fig 10: Displaying Data List (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

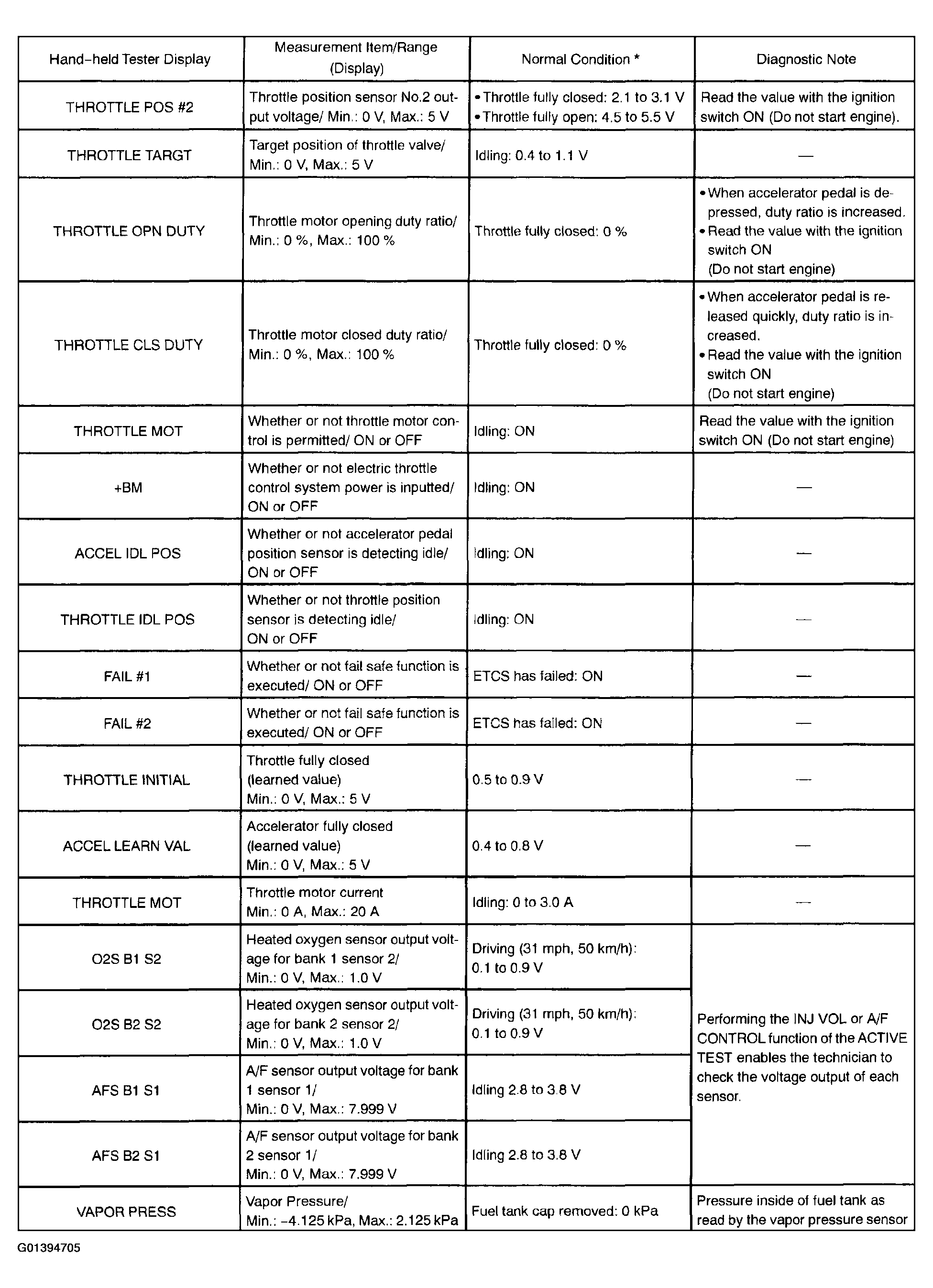

Fig 11: Displaying Data List (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Displaying Data List (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the ACTIVE TEST using the hand-held tester or the OBD II scan tool allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one method to shorten diagnostic time.

It is possible to display the DATA LIST during the ACTIVE TEST.

1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the hand-held tester or the OBD II scan tool to the DLC3.
4. Turn the ignition switch ON.
5. Push the "ON" button of the hand-held tester or the OBD II scan tool.
6. Select the item "DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST".
7. According to the display on tester, perform the "ACTIVE TEST".

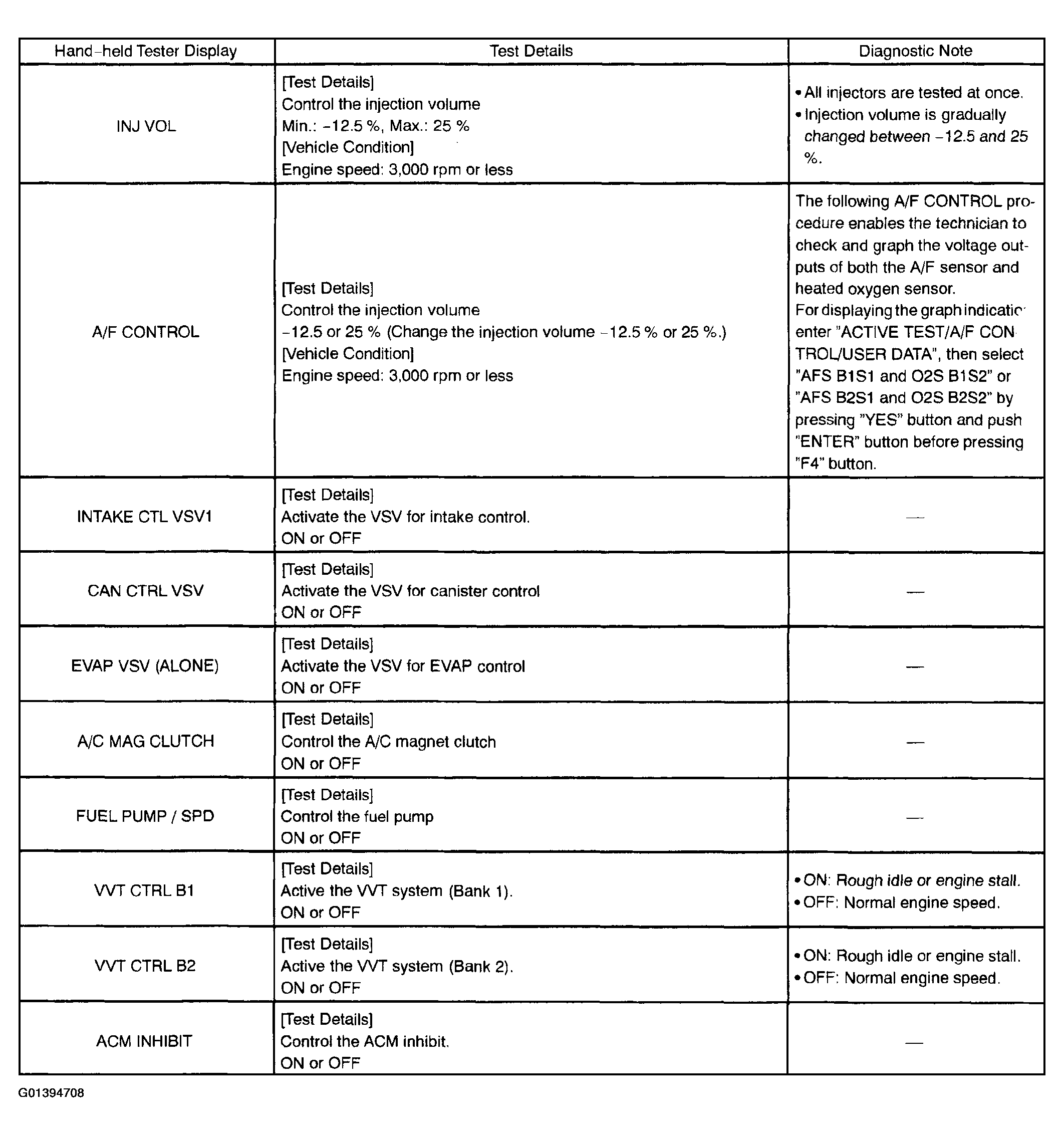

   Fig 13: Performing Active Test (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Performing Active Test (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This reference list indicates the part names used in this manual along with their definitions.

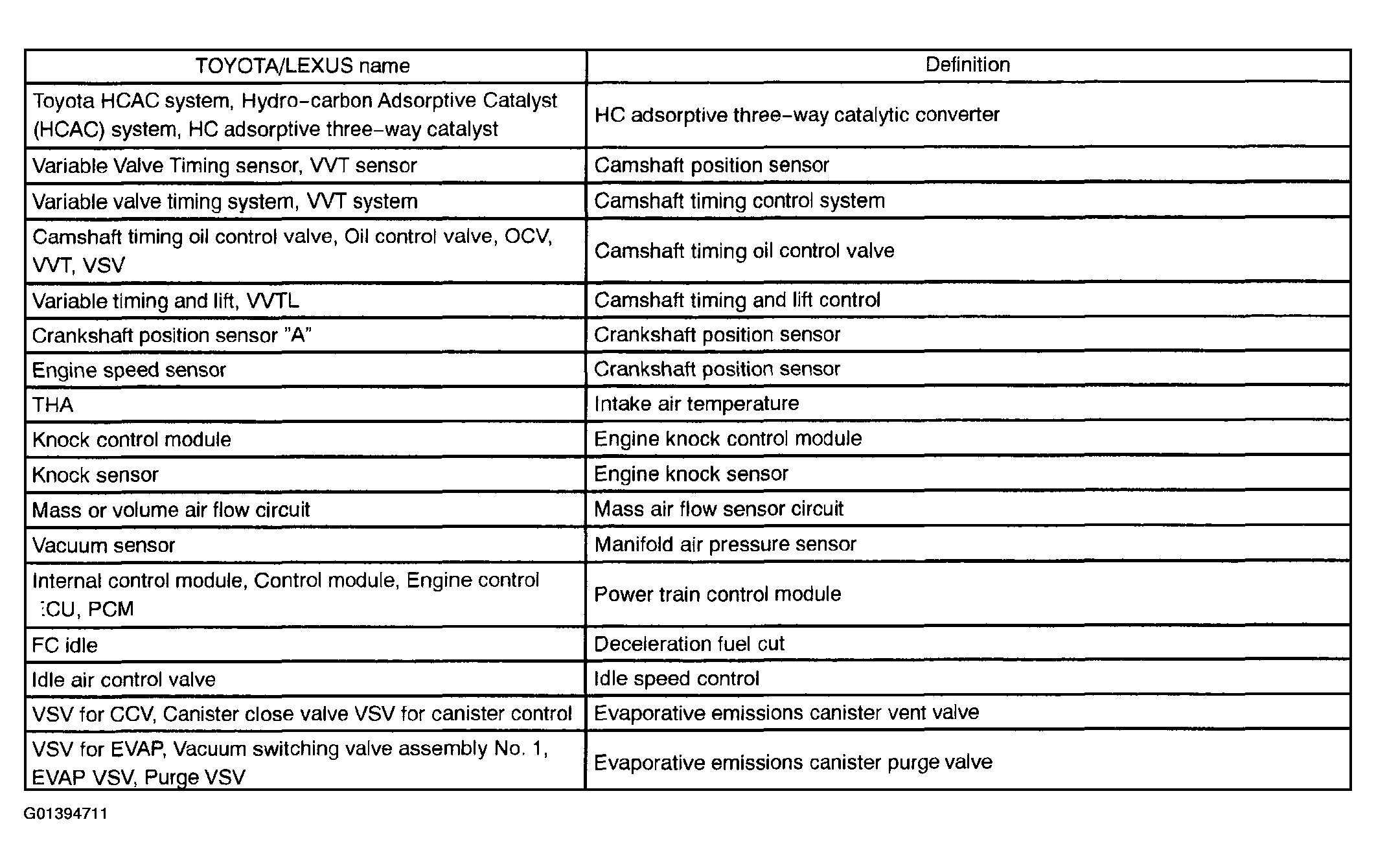

Fig 16: Toyota/Lexus Part And System Name List (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

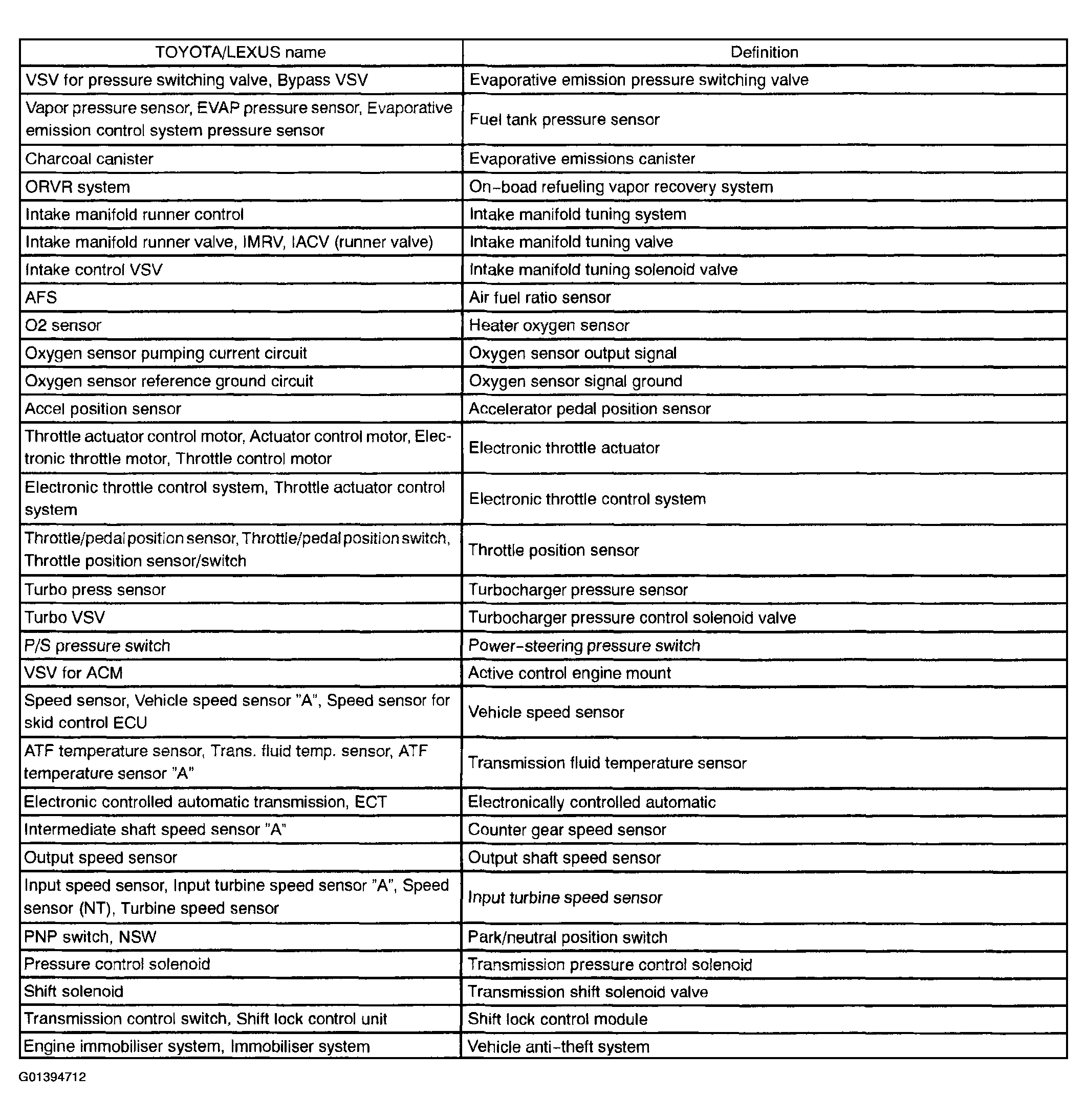

Fig 17: Toyota/Lexus Part And System Name List (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

This table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line on the left are being set.

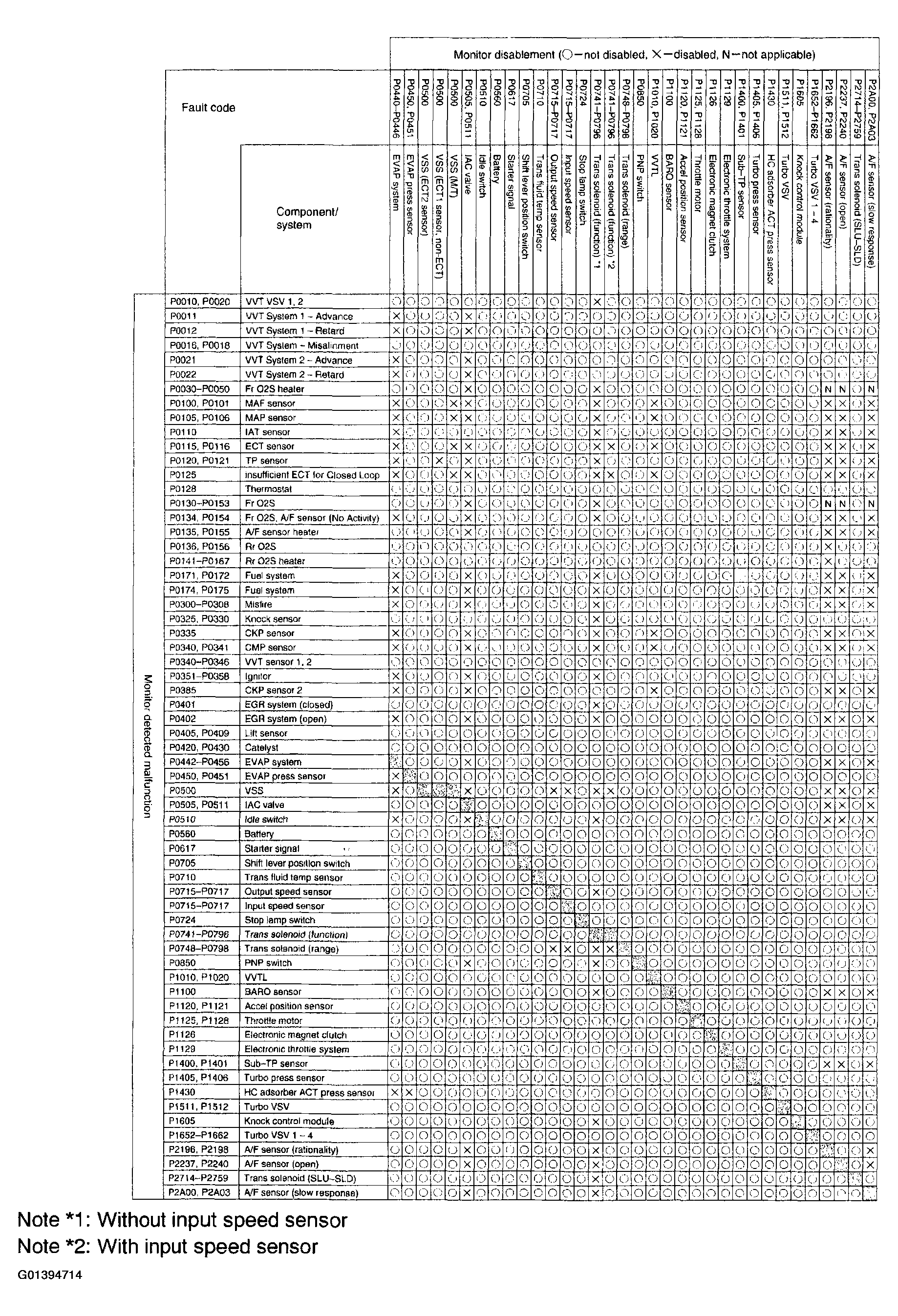

Fig 18: ECM Monitoring Status Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

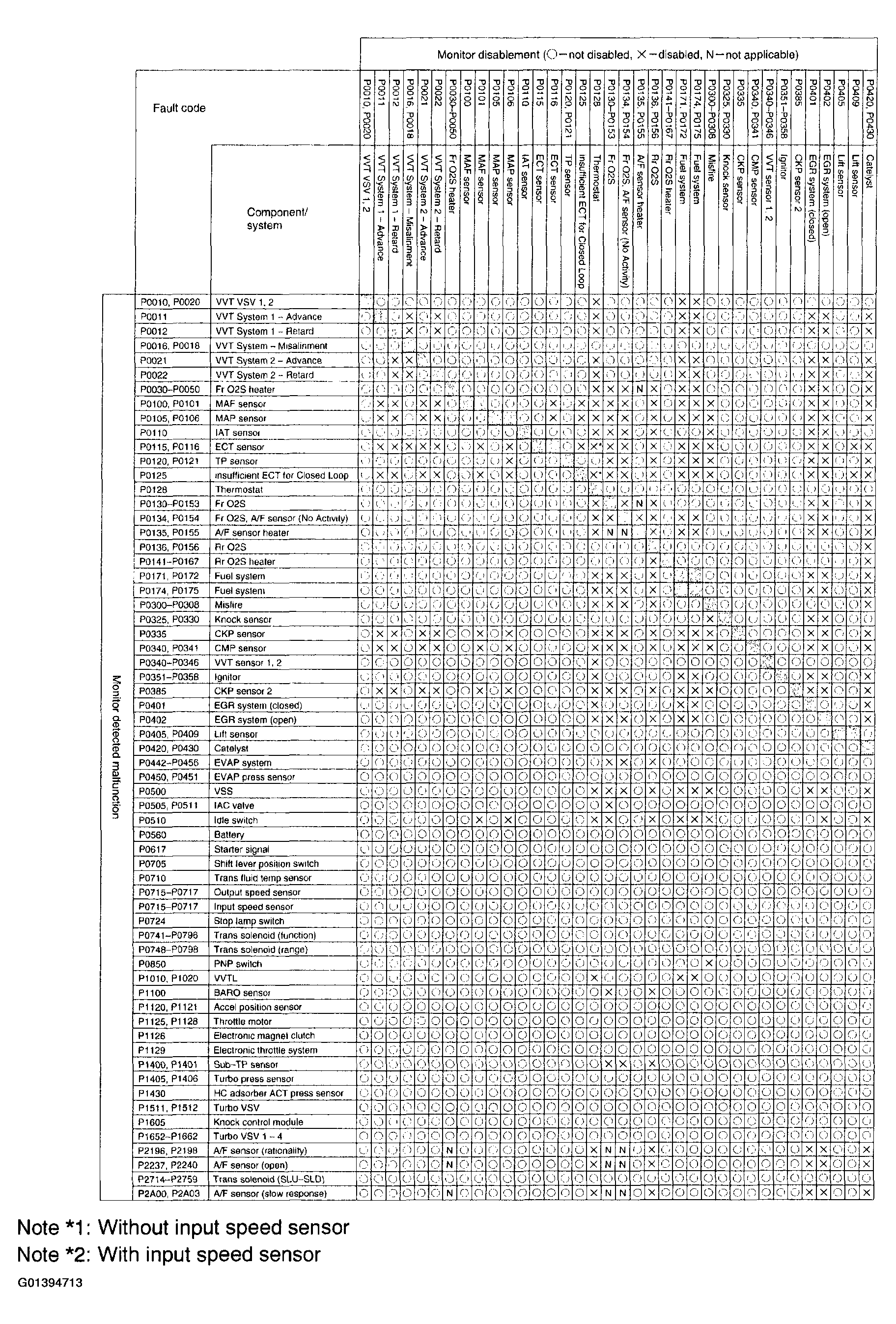

Fig 19: ECM Monitoring Status Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
