Fuel Lid Lock Control: Components

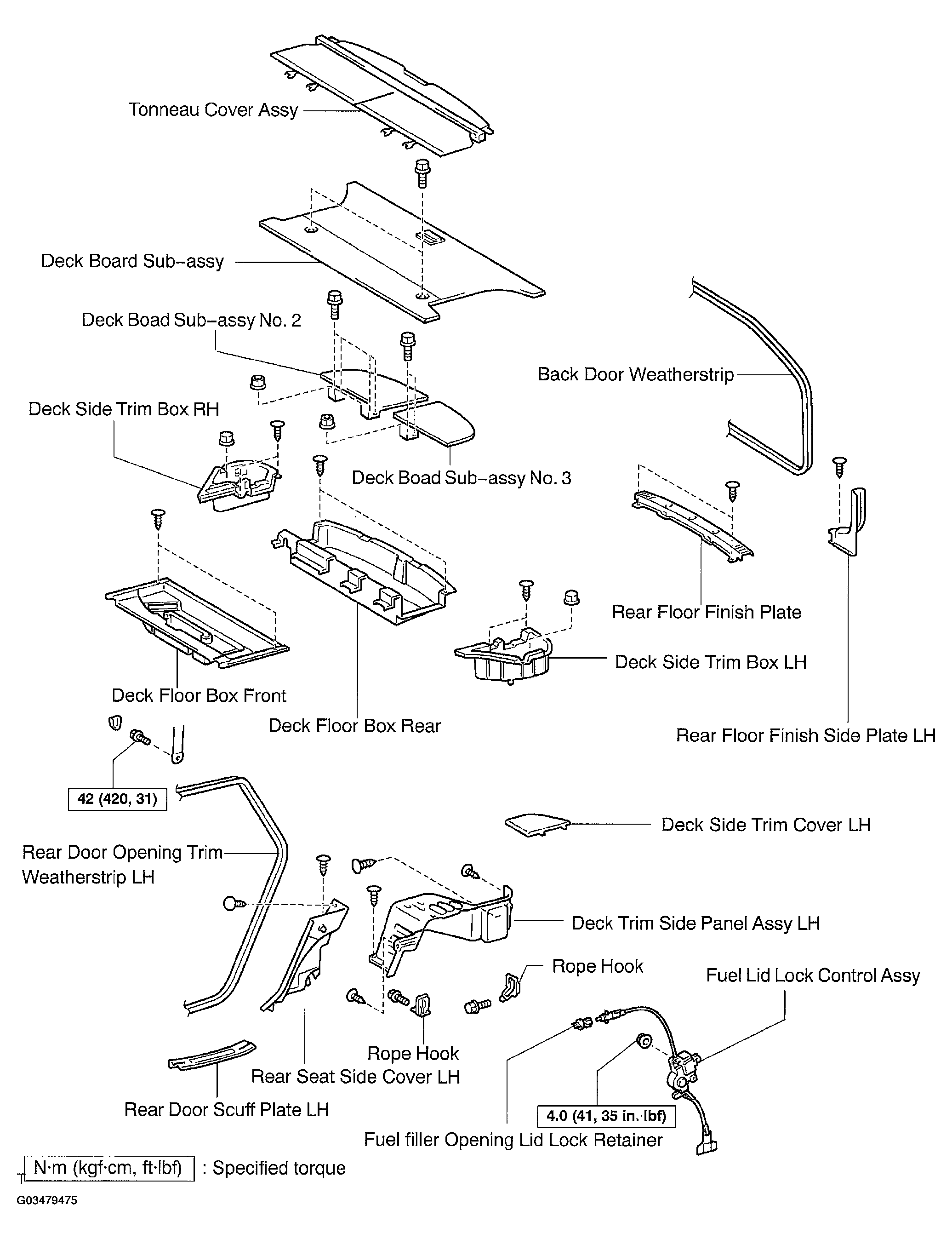

Fig 1: Identifying Fuel Lid Lock Control Assembly Components
G03479475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
