Manual Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

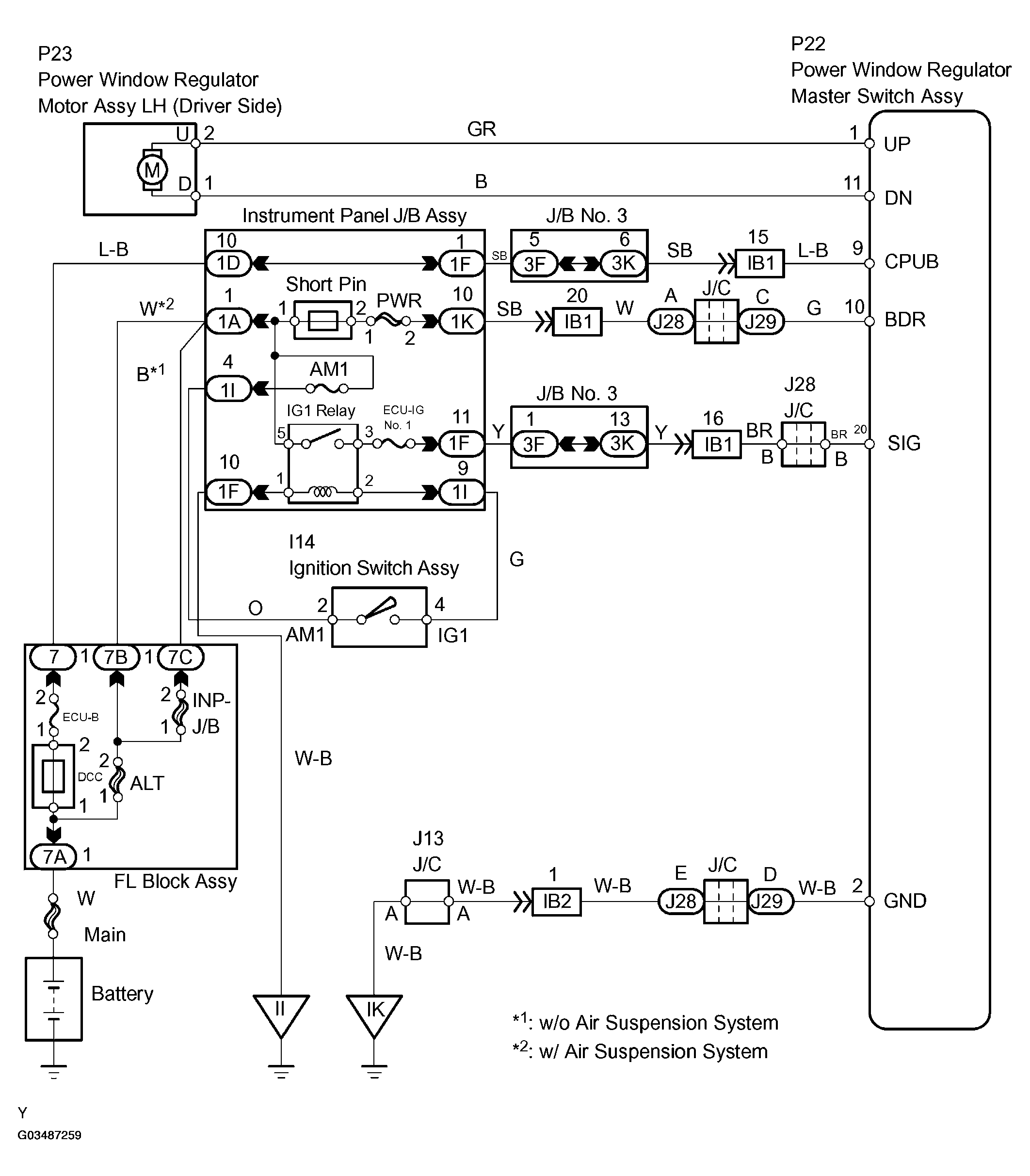

Fig 1: Wiring Diagram - Manual UP/DOWN Function Not Operate On Driver Side
G03487259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
