Inspection Procedure

1. Check that the power window AUTO UP/DOWN function operates normally.

1. NG: Go to step 2
2. OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)

1. Remove the PWR M-fuse from the instrument panel J/B.
2. Check the resistance.

   Standard: Below 1 Ω

1. NG: REPLACE FUSE
2. OK: Go to next step.

1. Disconnect the P19 regulator switch connector.

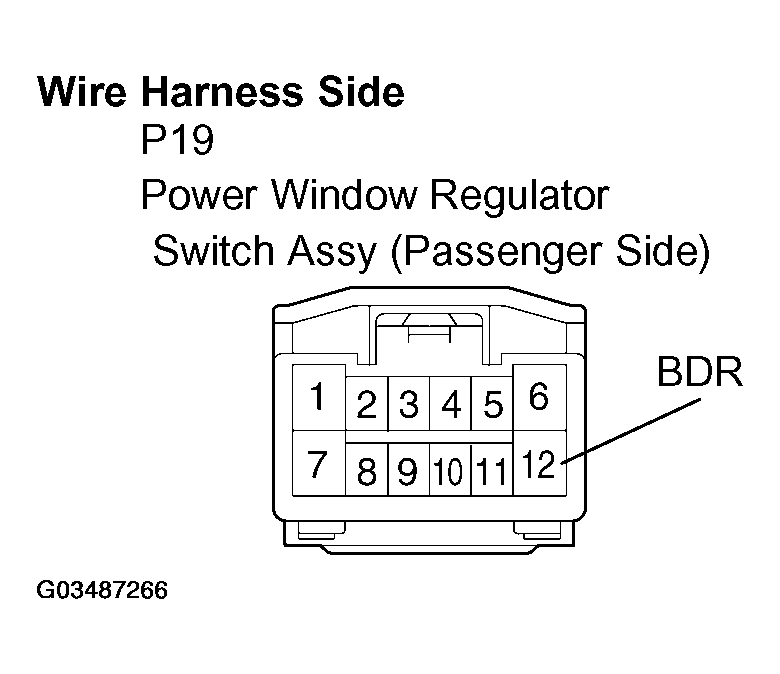

Fig 1: Identifying Power Window Regulator Switch Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the voltage between the wire harness side connector and the body ground.

   Standard:

   VOLTAGE BETWEEN REGULATOR SWITCH CONNECTOR TERMINALS AND BODY GROUND



   Tester Connection	Specified Condition
   P19-12 (BDR) - Body ground	10 to 14 V

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.

1. Disconnect the P19 regulator switch connector.

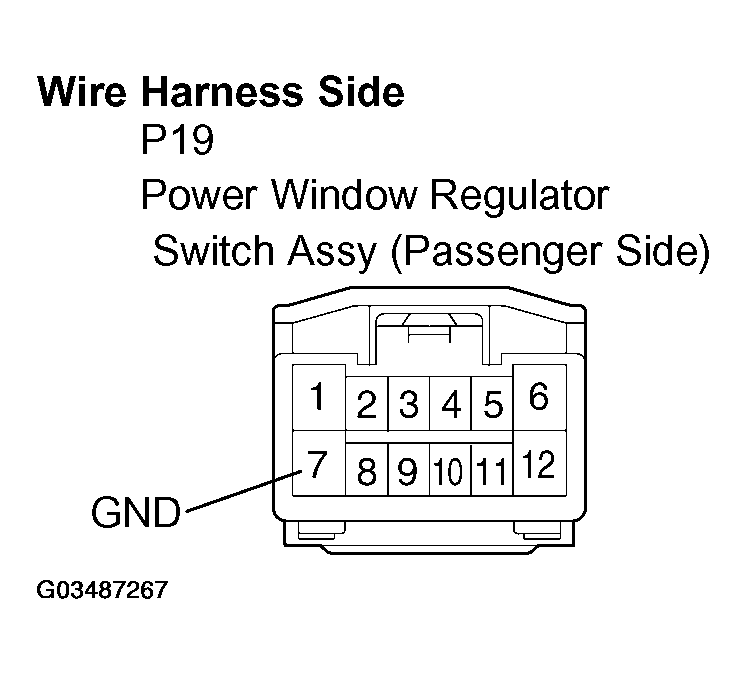

Fig 2: Disconnecting P19 Regulator Switch Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the resistance between the wire harness side connector and body ground.

   Standard:

   RESISTANCE BETWEEN REGULATOR SWITCH CONNECTOR TERMINALS AND BODY GROUND



   Tester Connection	Specified Condition
   P19-7 (GND) - Body ground	Below 1 Ω

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.

1. Remove the regulator switch (the connector is connected).
2. Turn the ignition switch ON.

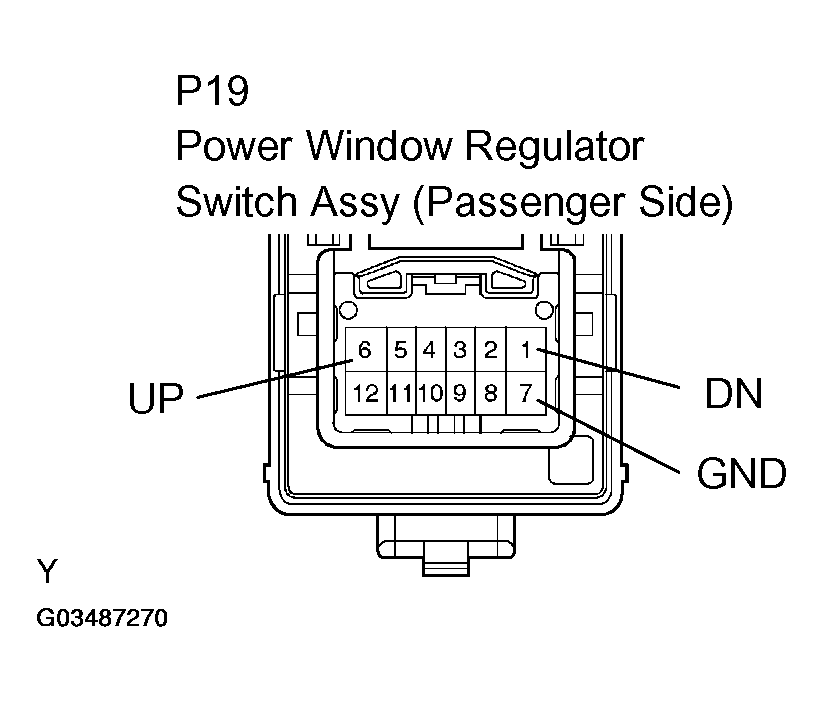

Fig 3: Identifying Power Window Regulator Switch Connector Terminals (Passenger Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the voltage between the terminals.

   Standard:

   VOLTAGE BETWEEN REGULATOR SWITCH CONNECTOR TERMINALS AND BODY GROUND



   Window Lock Switch Condition	Tester Connection	Specified Condition
   ON (Normal)	P19-11 (PCT) - P19-7 (GND)	10 to 14 V
   OFF (Lock)	P19-11 (PCT) - P19-7 (GND)	Below 1 V

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.

1. Disconnect the P19 regulator switch connector.

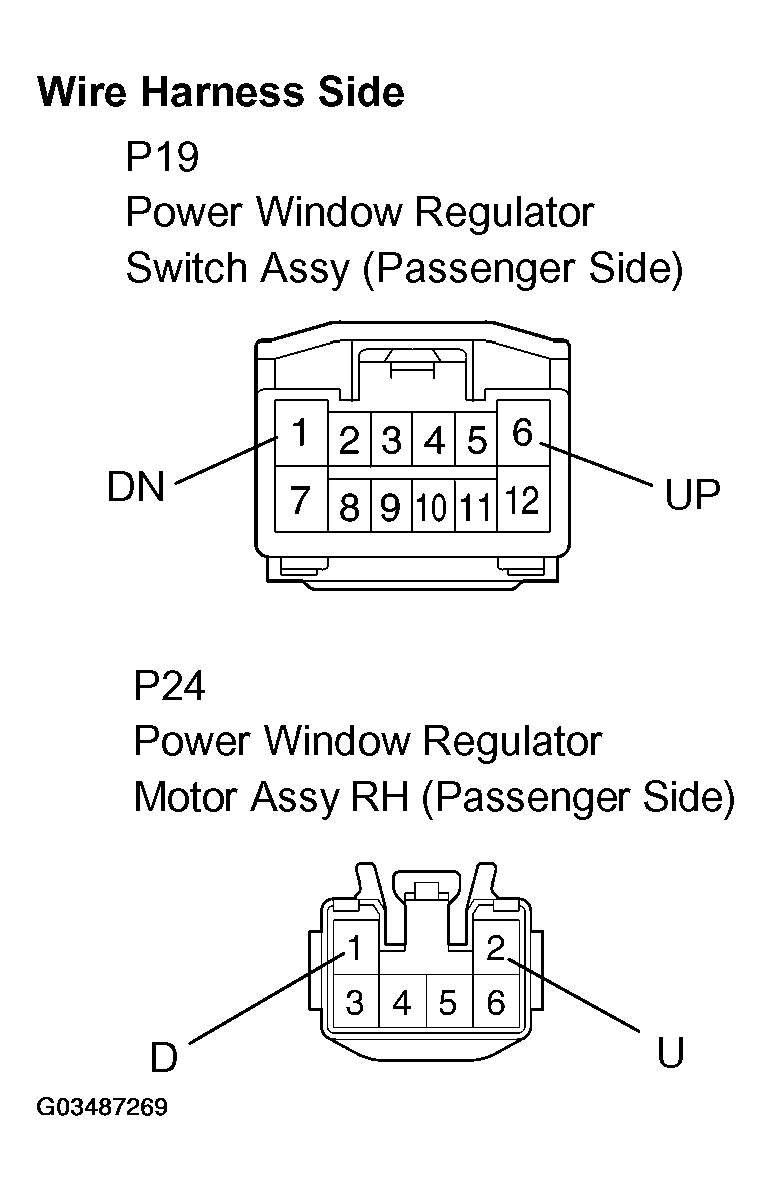

Fig 4: Disconnecting P19 Regulator Switch Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the P24 power window motor connector.
3. Check the resistance of the wire harness side connectors.

   Standard:

   RESISTANCE BETWEEN REGULATOR SWITCH CONNECTOR TERMINALS AND BODY GROUND



   Tester Connection	Specified Condition
   P19-1 (DN) - P24-1 (D)	Below 1 Ω
   P19-6 (UP) - P24-2 (U)
   P19-1 (DN) - Body ground	10 kΩ or higher
   P19-6 (UP) - Body ground

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go to next step.

1. Remove the regulator switch (the connector is connected).
2. Turn the ignition switch ON.

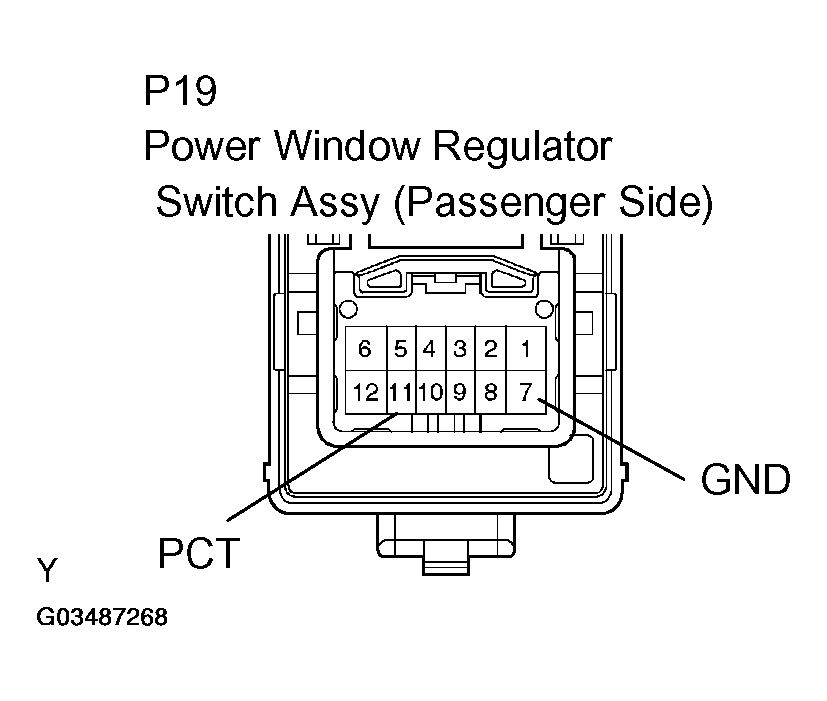

Fig 5: Identifying Power Window Regulator Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the voltage between the terminals.

   Standard:

   VOLTAGE BETWEEN REGULATOR SWITCH CONNECTOR TERMINALS AND BODY GROUND



   Switch Condition	Tester Connection	Specified Condition
   UP	P19-6 (UP) - P19-7 (GND)	10 to 14 V
   DOWN	P19-1 (DN) - P19-7 (GND)

1. NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY
2. OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH (PASSENGER SIDE)

Reference:

Check operation of the power window motor (passenger side).

1. Remove the motor (See OVERHAUL ).
2. Apply battery voltage to terminals 1 and 2.
3. Check that the motor rotates smoothly.

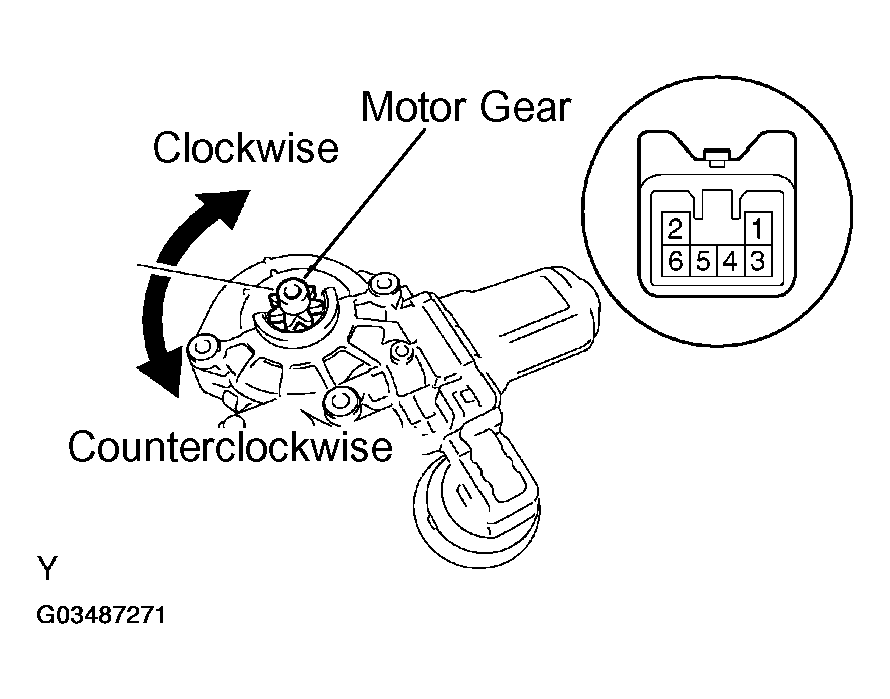

   Fig 6: Checking Operation Of Power Window Motor (Passenger Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Do not apply battery voltage to any terminal except 1 and 2.

   Standard:

   POWER WINDOW MOTOR MEASUREMENT CONDITION AND SPECIFIED CONDITION



   Measurement Condition	Specified Condition
   Battery positive (+) --> 1 Battery negative (-) --> 2	Motor gear rotates clockwise
   Battery positive (+) --> 2 Battery negative (-) --> 1	Motor gear rotates counterclockwise
