Remote Up/Down Function Does Not Operate: Wiring Diagram

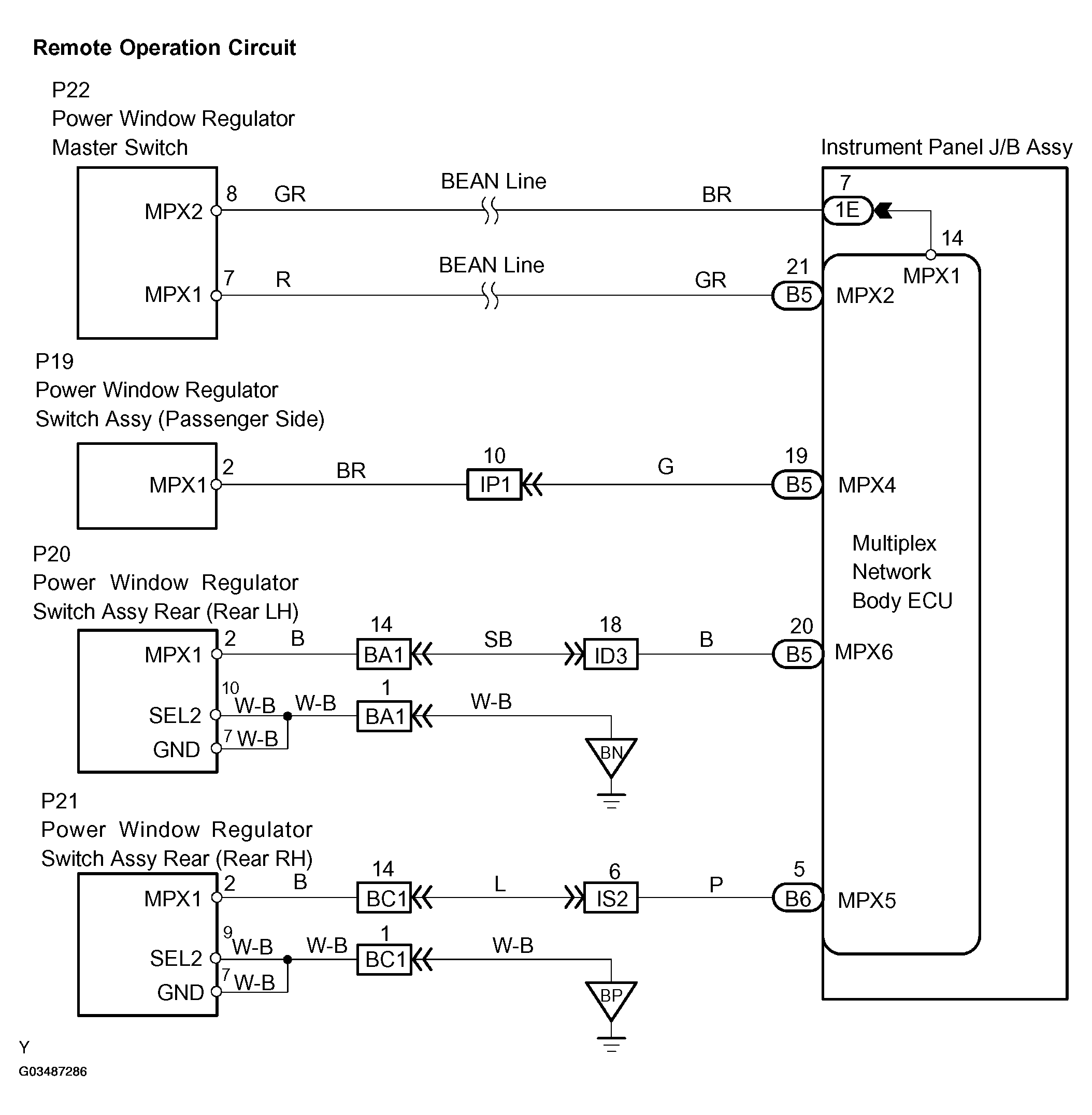

Fig 1: Wiring Diagram - Remote Operation Circuit
G03487286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

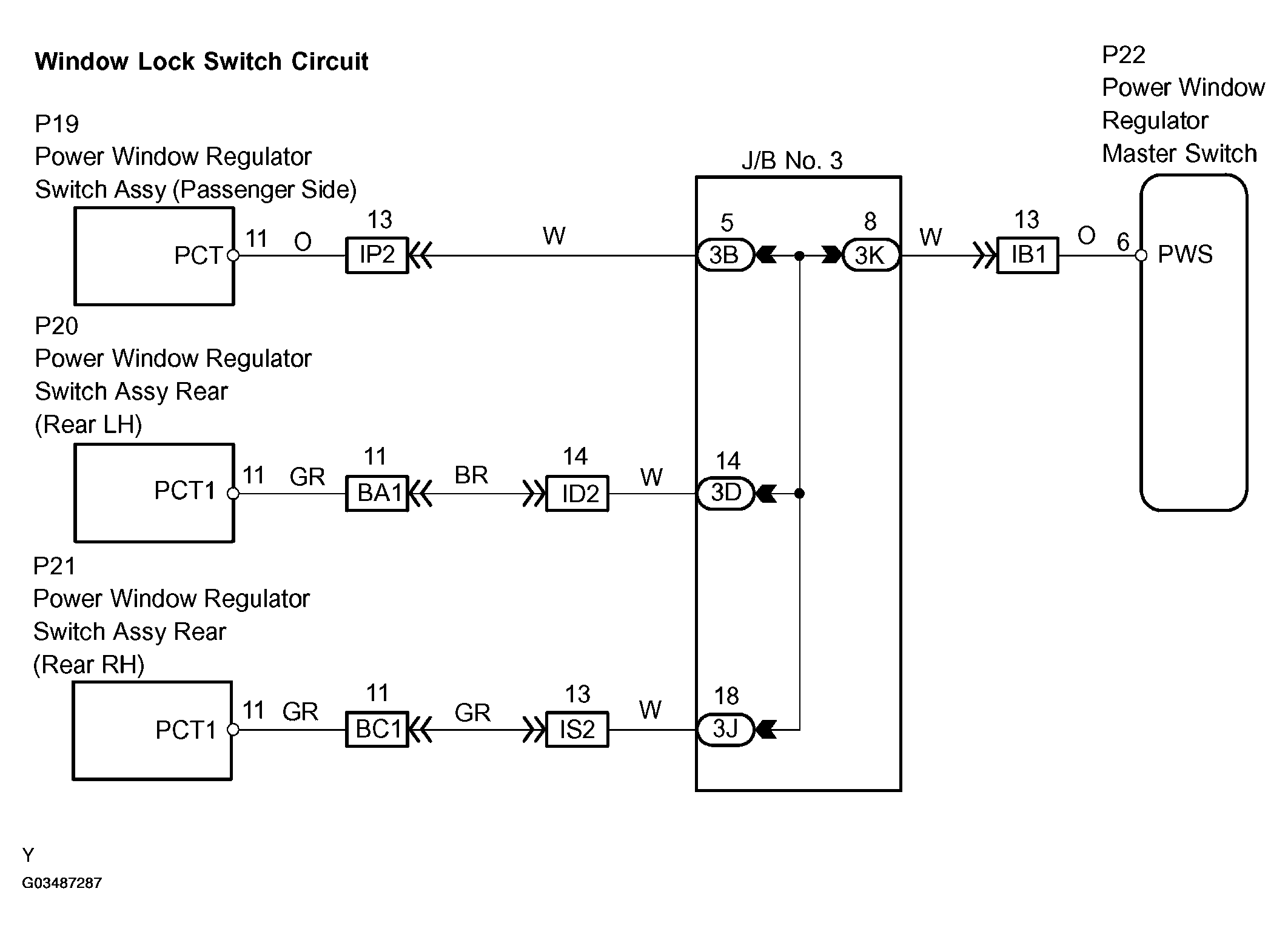

Fig 2: Wiring Diagram - Window Lock Switch Circuit
G03487287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
