GPS Antenna: Replacement

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See  REPLACEMENT  )
2. REMOVE INSTRUMENT PANEL PIN NO.1 (See  REPLACEMENT  )
3. REMOVE DEFROSTER NOZZLE ASSY (See  REPLACEMENT  )
4. REMOVE GPS ANTENNA
   1. Remove the 2 screws.
   2. Disconnect the clamp and antenna.

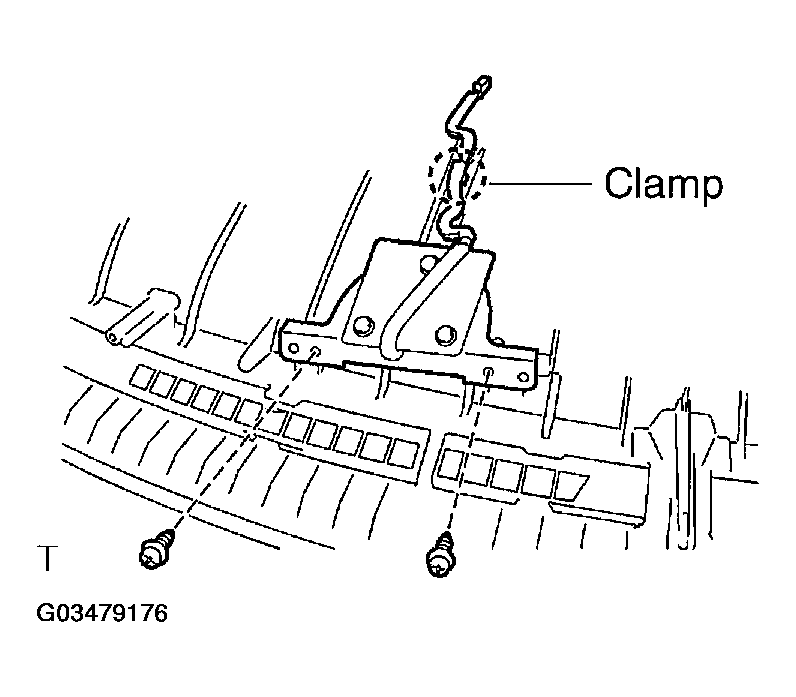

      Fig 1: Removing GPS Antenna

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL GPS ANTENNA
   1. Install the antenna as shown in the illustration.
   2. Install the 2 screws.

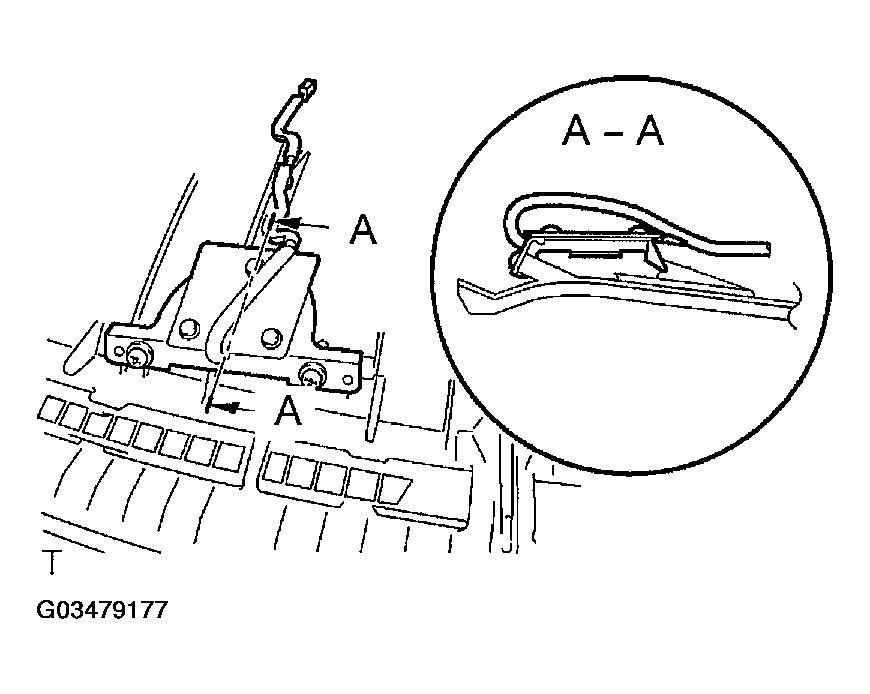

      Fig 2: Installing GPS Antenna

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
