Fuel Injector ASSY (3MZ-FE): Components

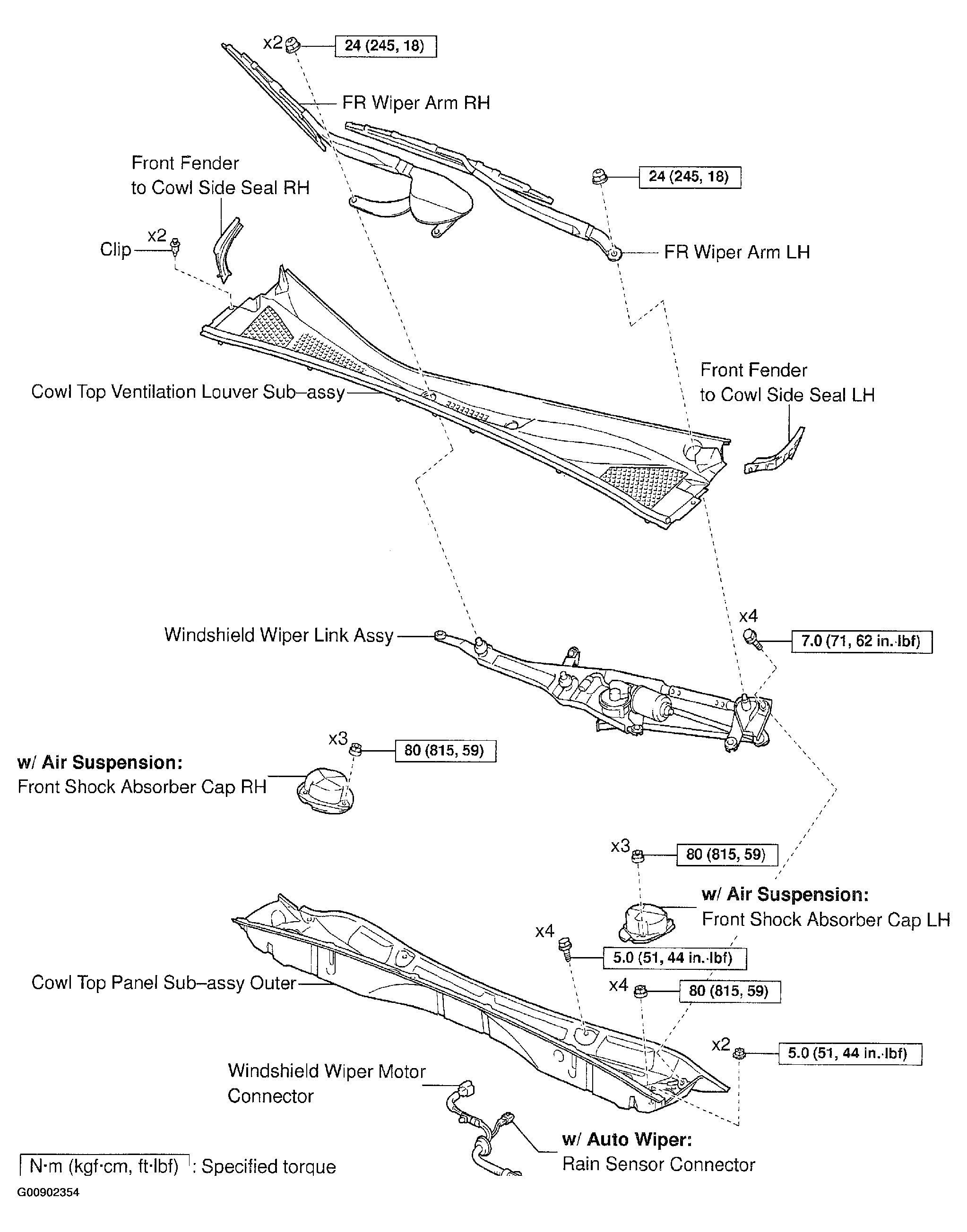

Fig 1: Identifying Components Requiring Removal To Service Fuel System Components (1 Of 4)
G00902354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

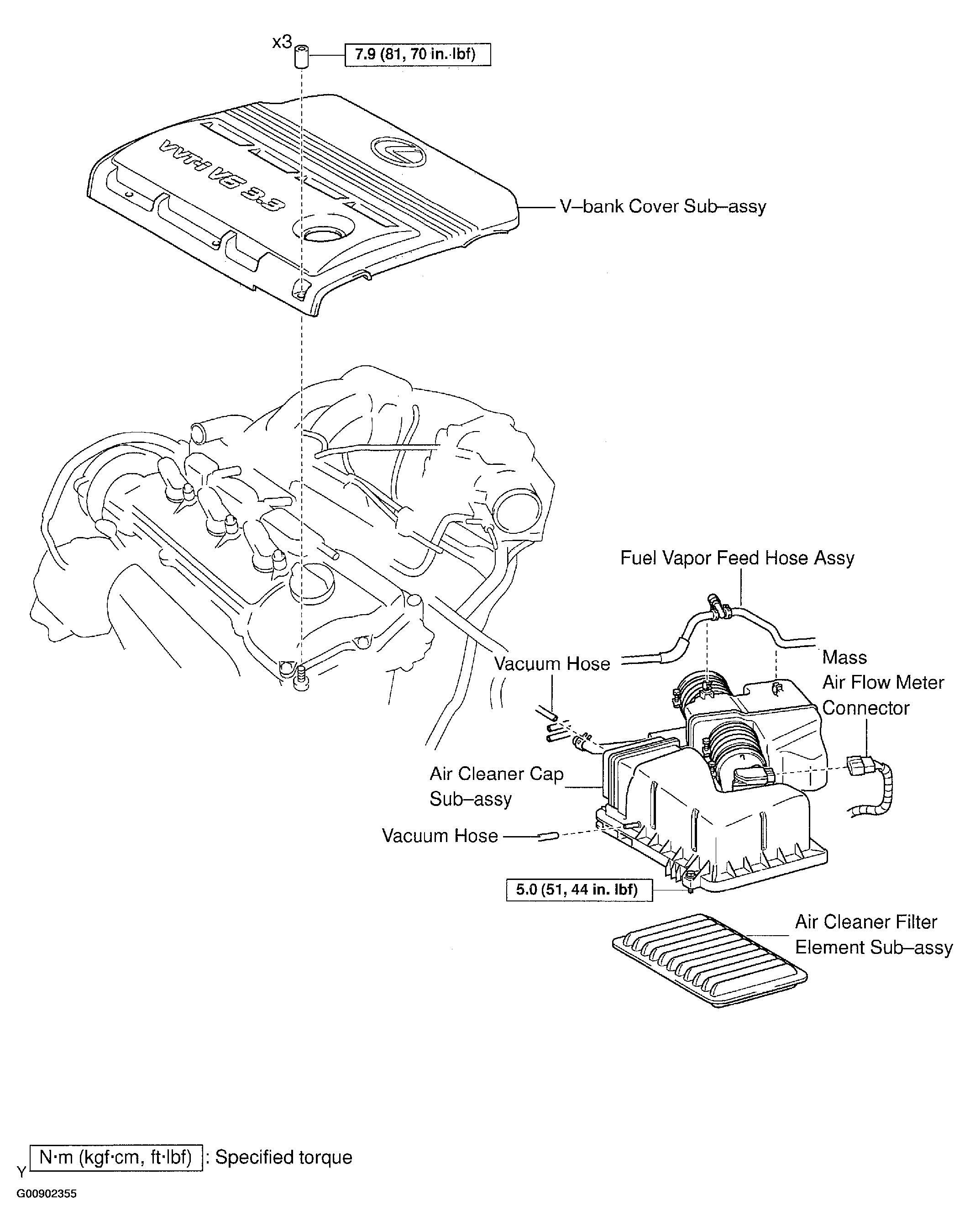

Fig 2: Identifying Components Requiring Removal To Service Fuel System Components (2 Of 4)
G00902355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

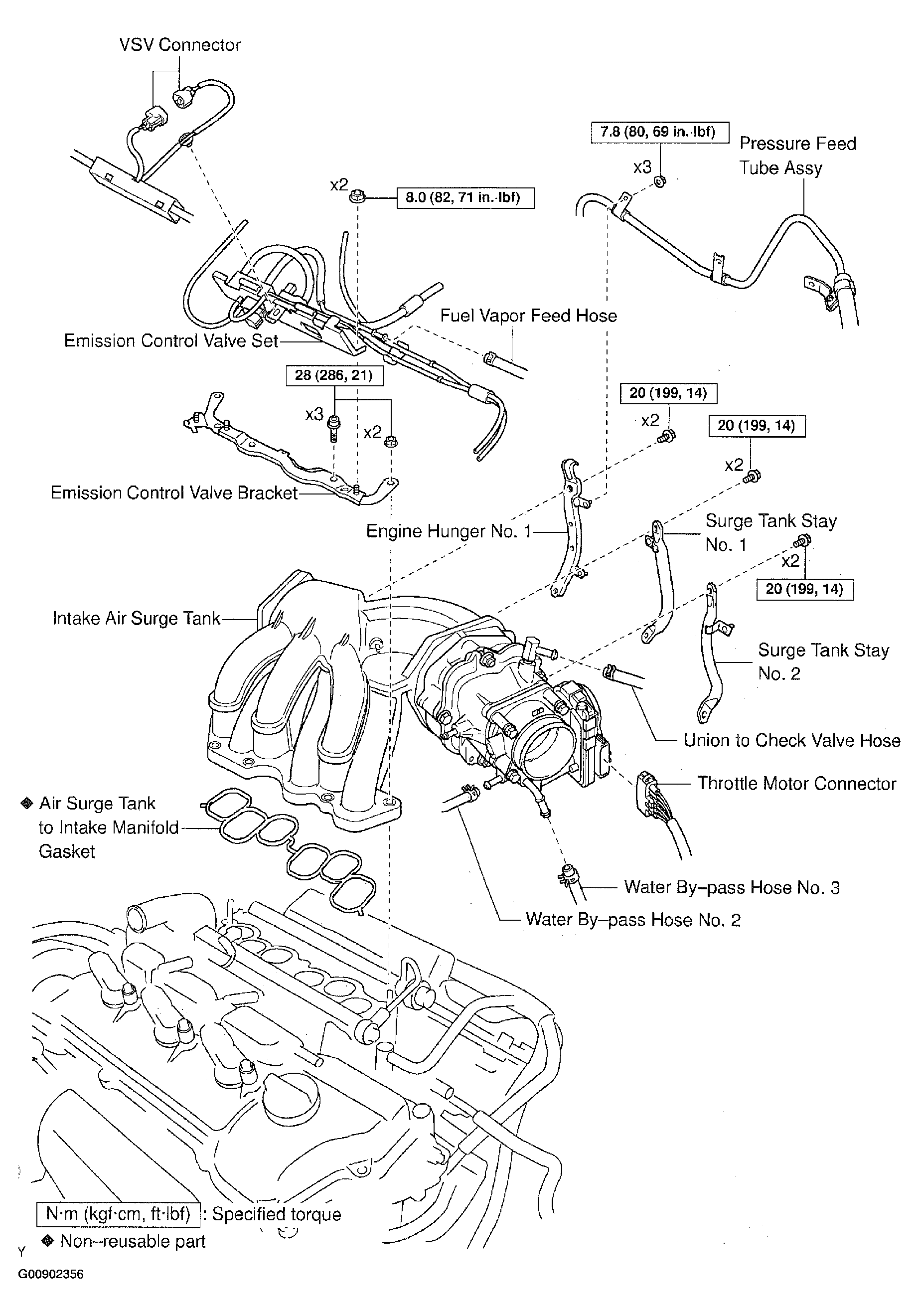

Fig 3: Identifying Components Requiring Removal To Service Fuel System Components (3 Of 4)
G00902356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

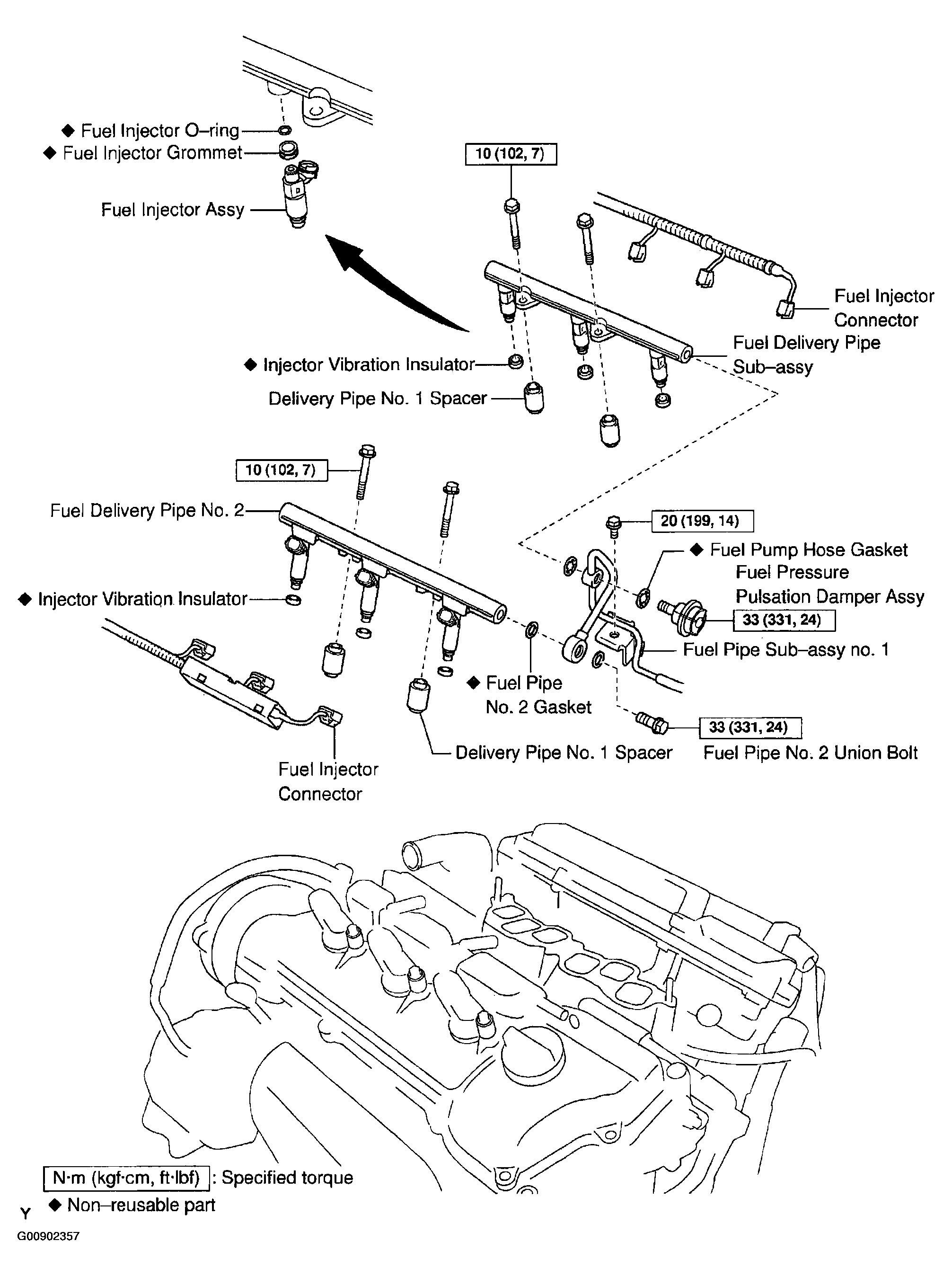

Fig 4: Identifying Components Requiring Removal To Service Fuel System Components (4 Of 4)
G00902357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
