Active Control Engine Mount: Location

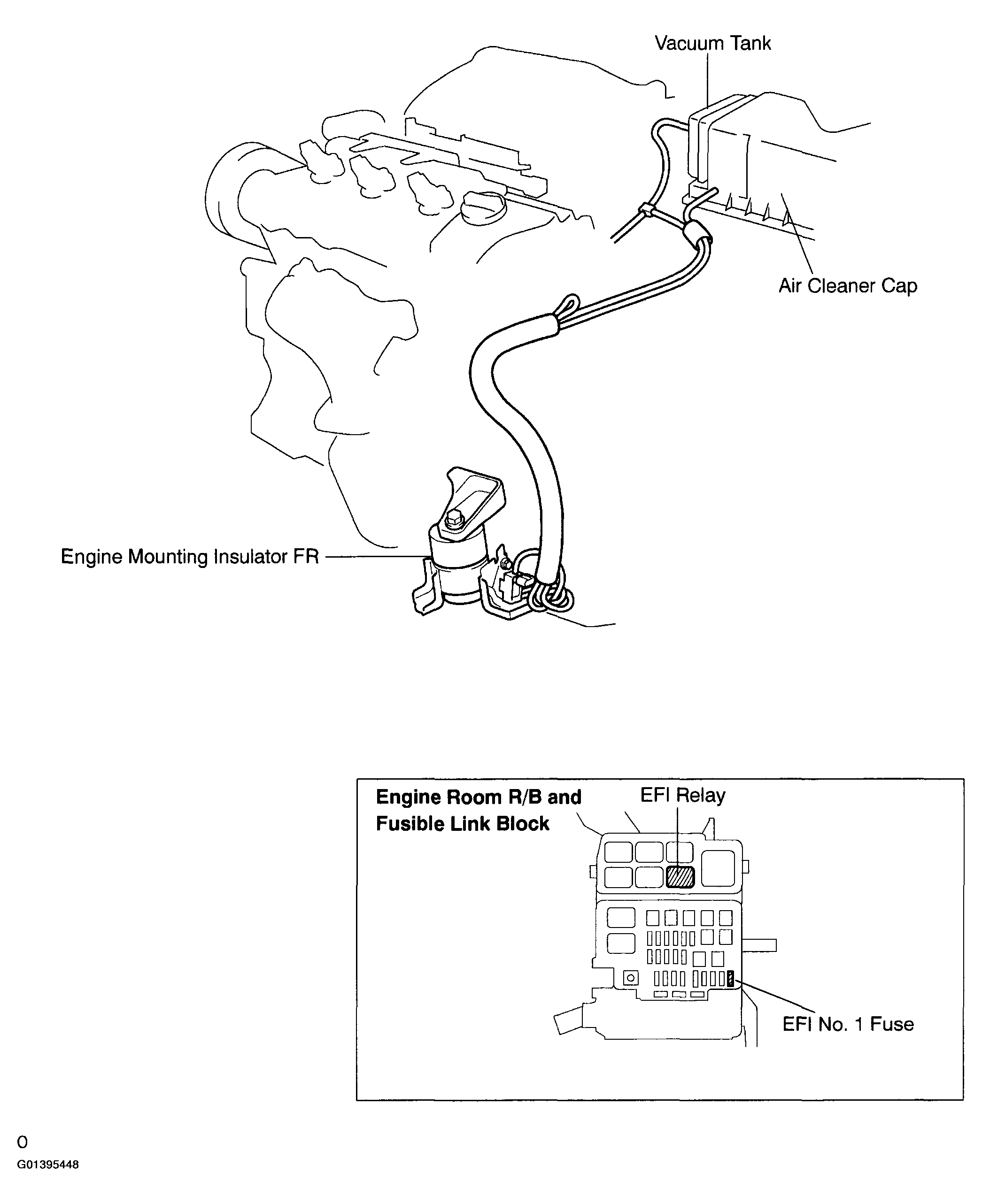

Fig 1: Identifying Active Control Engine Mount Location
G01395448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
