Lexus
>>
2004
>>
RX 330 AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
SFI System - Diagnosis
>>
DTC P0116: Engine Coolant Temperature Circuit Range/Performance Problem
>>
Monitor Strategy
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Strategy

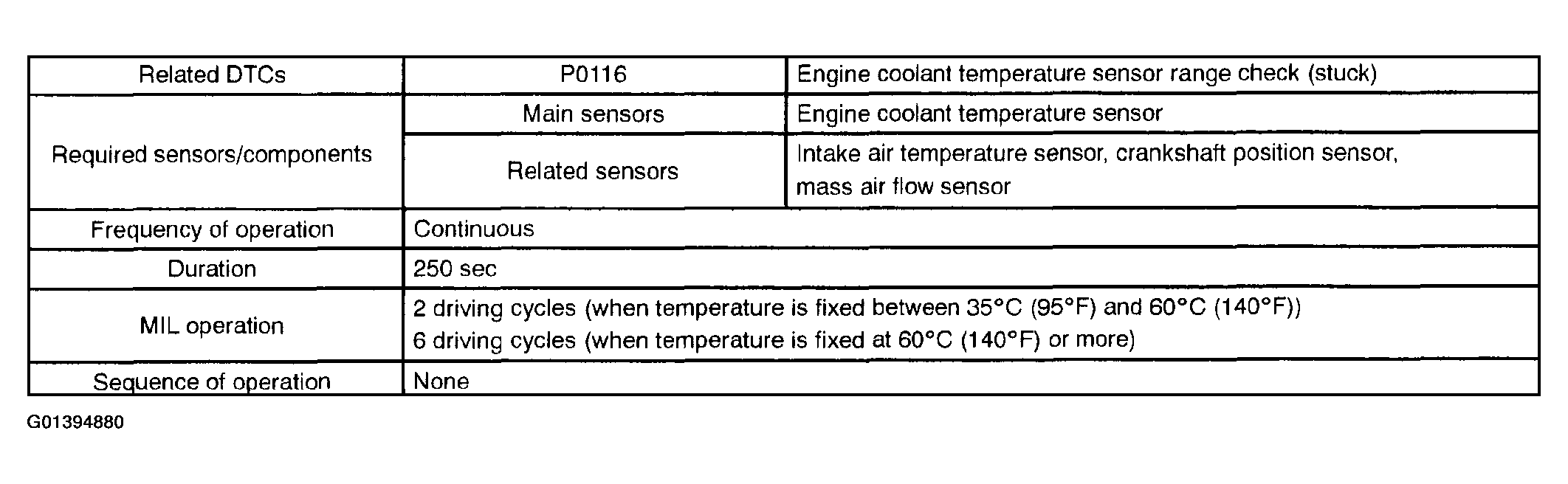

Fig 1: Monitor Strategy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
