Inspection Procedure

HINT:

Troubleshoot each trouble symptom in accordance with the chart below.

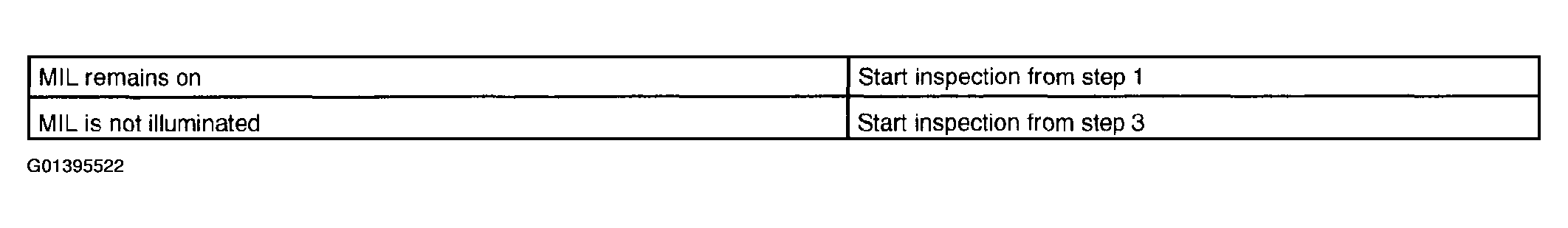

Fig 1: Identifying Inspection Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. CLEAR DTC
   1. Connect the hand-held tester or the OBD II scan tool to the DLC 3.
   2. Turn the ignition switch ON and push the hand-held tester or the OBD II scan tool main switch ON.
   3. Read the DTC (See PRE-CHECK  ).
   4. Clear the DTC (See PRE-CHECK  ).
   5. Check that MIL is not illuminated.
      1. Standard: MIL is not illuminated
      1. OK: REPAIR CIRCUIT INDICATED BY OUTPUT CODE (See  DIAGNOSTIC TROUBLE CODE CHART   )
      2. NG: GO TO NEXT STEP.
2. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN WIRE HARNESS)
   1. Disconnect the E5 ECM connector.

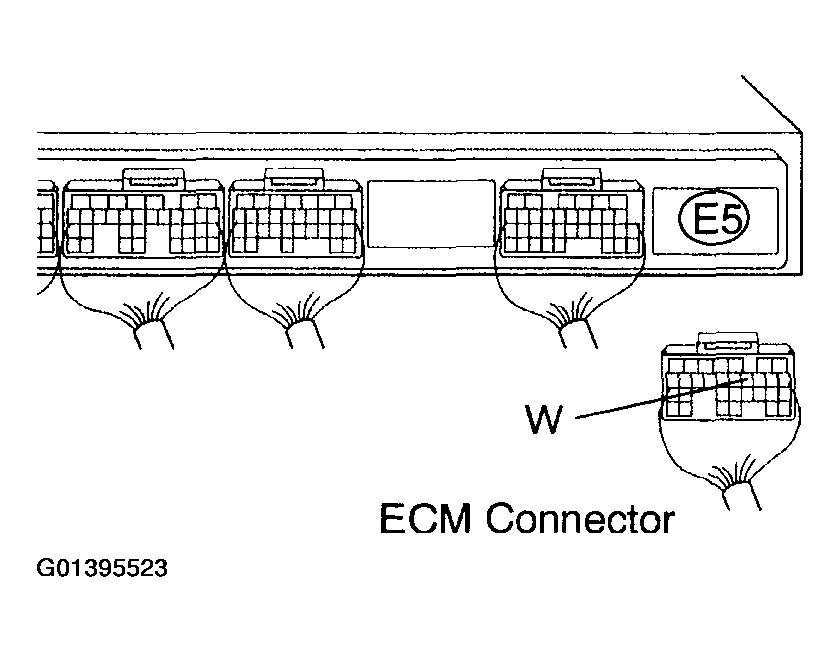

      Fig 2: Identifying E5 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Turn the ignition switch ON.
   3. Check that MIL is not illuminated.
      1. Standard: MIL is not illuminated
   4. Reconnect the ECM connector.
   1. OK: REPLACE ECM (See  REPLACEMENT  in ENGINE CONTROL SYSTEM )
   2. NG: CHECK AND REPAIR HARNESS AND CONNECTOR (COMBINATION METER - ECM)
3. CHECK THAT MIL IS ILLUMINATED
   1. Check that the MIL is illuminated when turning the ignition switch ON.
      1. Standard: MIL is illuminated
   1. OK: SYSTEM OK
   2. NG: GO TO NEXT STEP.
4. INSPECT COMBINATION METER ASSY (MIL CIRCUIT)
   1. See the combination meter troubleshooting in the PROBLEM SYMPTOMS TABLE .
   1. OK: CHECK AND REPAIR HARNESS AND CONNECTOR (COMBINATION METER - ECM)
   2. NG: REPAIR OR REPLACE BULB OR COMBINATION METER ASSEMBLY
