Stereo Component Amplifier: Components

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Stereo Component Amplifier Replacement Components (1 Of 3)
G05270670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Stereo Component Amplifier Replacement Components (2 Of 3)
G05270671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

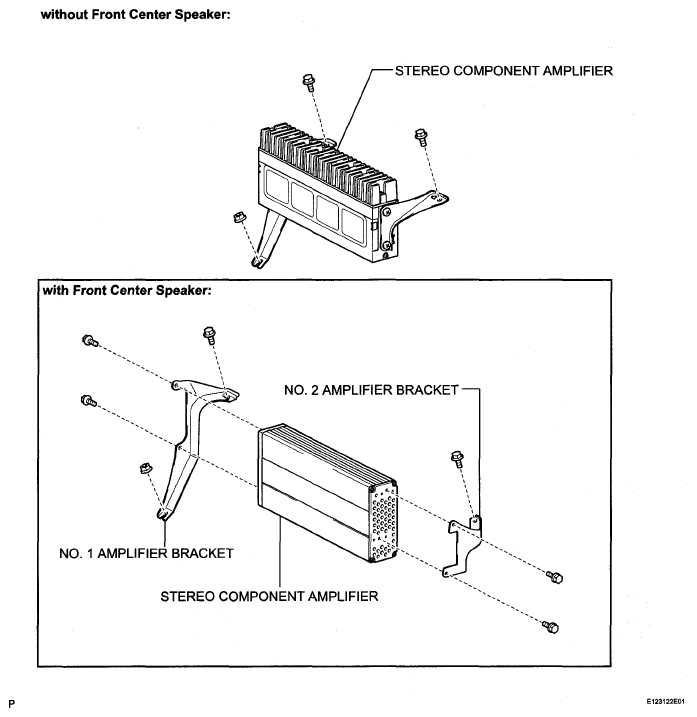

Fig 3: Identifying Stereo Component Amplifier Replacement Components (3 Of 3)
G05270672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
