Seat Belt Warning System: Inspection

1. Inspect the buckle switch.
   1. Fasten the seat belt (Buckle switch is ON).
   2. Check the resistance between the terminals.

      Standard:

      TESTER CONDITION SPECIFICATION



      Tester Connection	Specified Condition
      A-3 - A-4	1 MΩ or higher
      A-4 - A-5	Below 1 Ω

      ^*  When the positive and negative poles between the terminals are exchanged, there is a resistance of Below 1 Ω in one way but a resistance of 1 MΩ or higher in the other way.

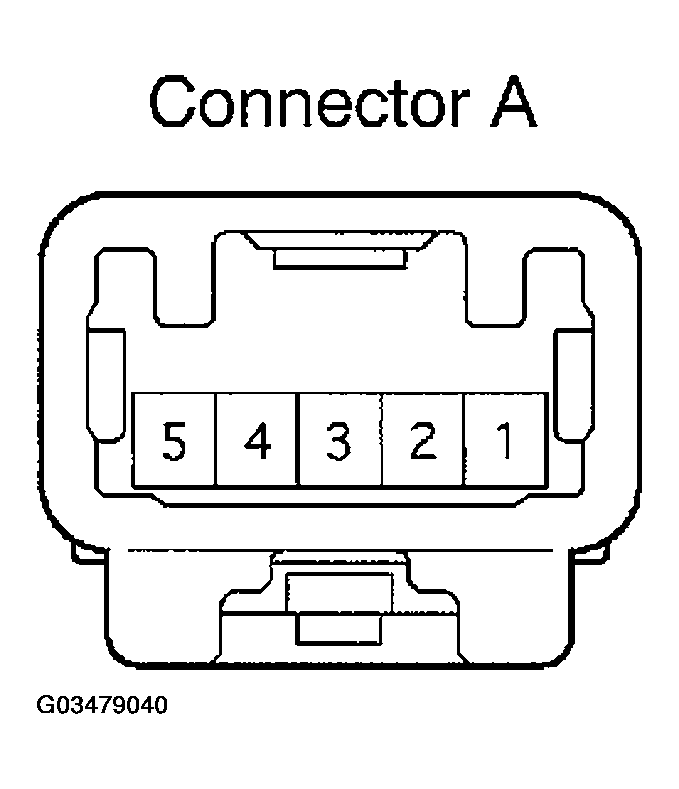

      Fig 1: Identifying Seat Belt Connector "A"

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Release the seat belt (Buckle switch is OFF).
   4. Check the resistance between the terminals.

Standard:

^*  When the positive and negative poles between the terminals are exchanged, there is a resistance of 1 MΩ or higher in either way.

If the result is not as specified, replace the inner belt assy.

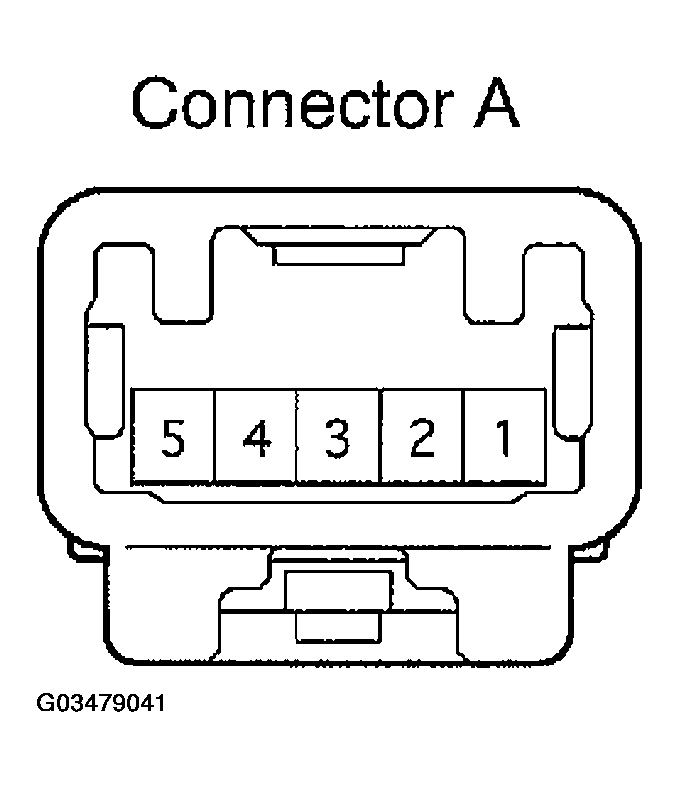

Fig 2: Identifying Seat Belt Connector "A"

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Inspect the buckle switch.
   1. Fasten the seat belt (Buckle switch is ON).
   2. Check the resistance between the terminals.

      Standard:

      TESTER CONDITION SPECIFICATION



      Tester Connection	Specified Condition
      A-4 - A-5	1 MΩ or higher

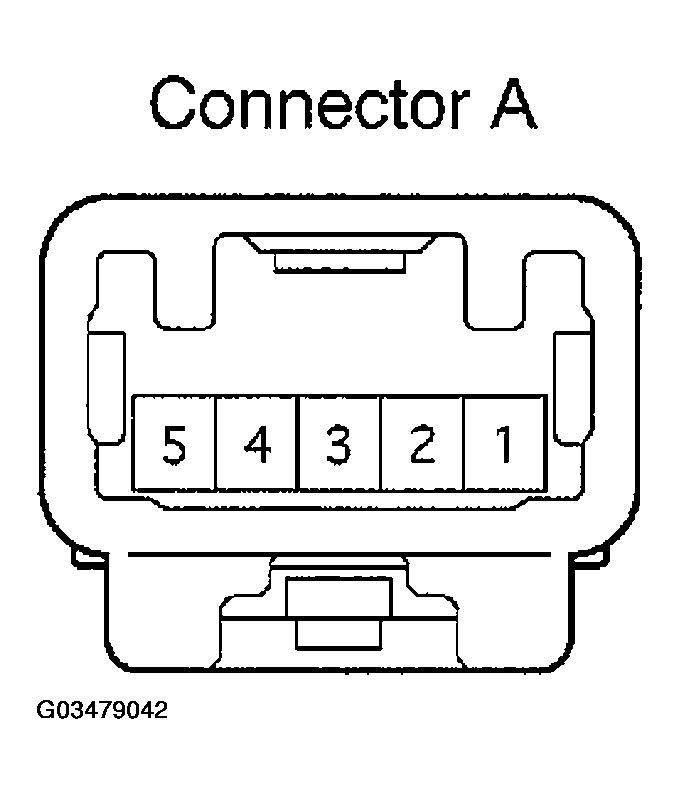

      Fig 3: Identifying Seat Belt Connector "A"

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Release the seat belt (Buckle switch is OFF).
   4. Check the resistance between the terminals.

   Standard:

   TESTER CONDITION SPECIFICATION



   Tester Connection	Specified Condition
   A-4 - A-5	Below 1 Ω

   If the result is not as specified, replace the inner belt assy.

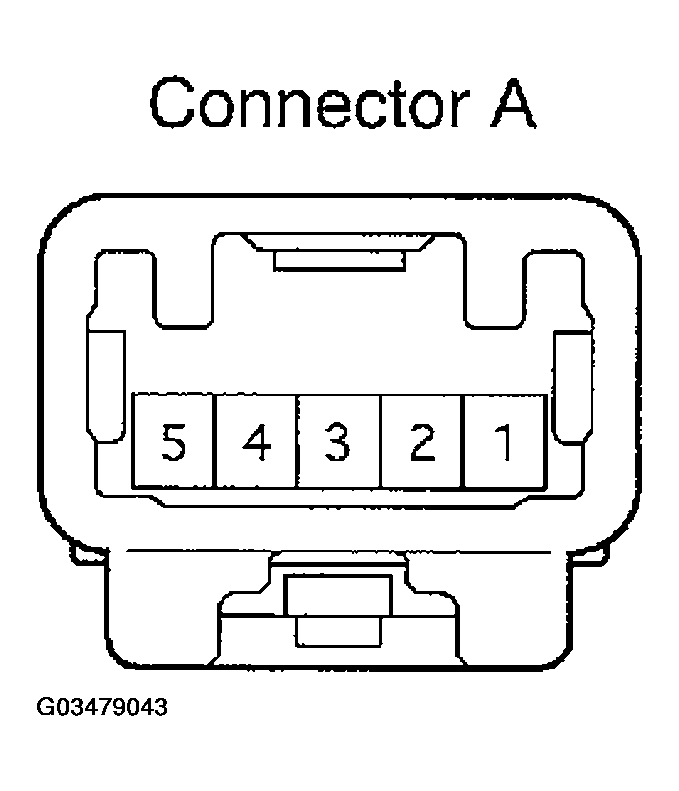

   Fig 4: Identifying Seat Belt Connector "A"

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the circuit for the airbag seat position sensor.
   1. Check the resistance between the terminals.

   Standard:

   TESTER CONDITION SPECIFICATION



   Tester Connection	Specified Condition
   1 - 2 (Connector for airbag seat position sensor)	Below 1 Ω

   If the result is not as specified, replace the inner belt assy.

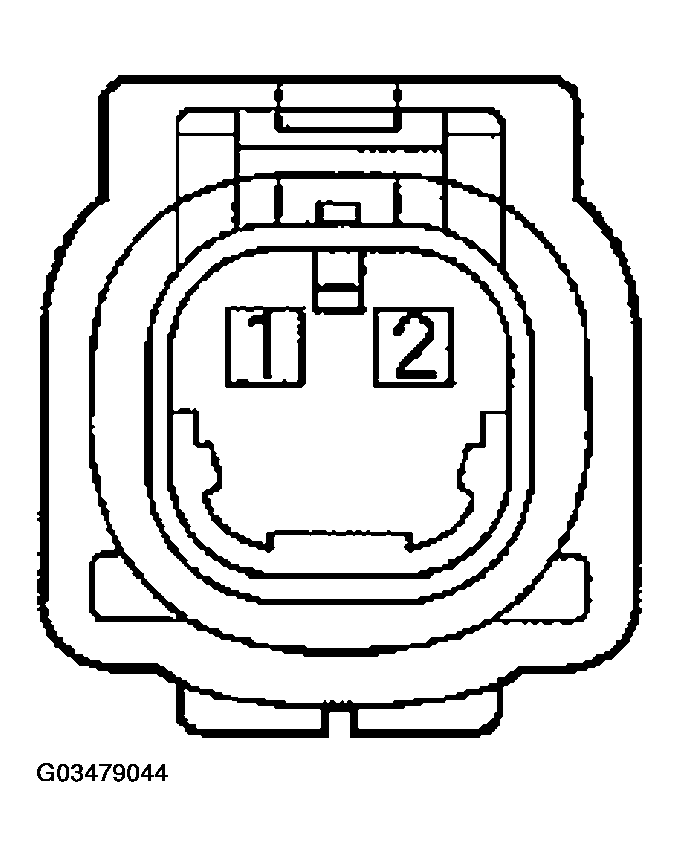

   Fig 5: Identifying Airbag Seat Position Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
