System Specifications

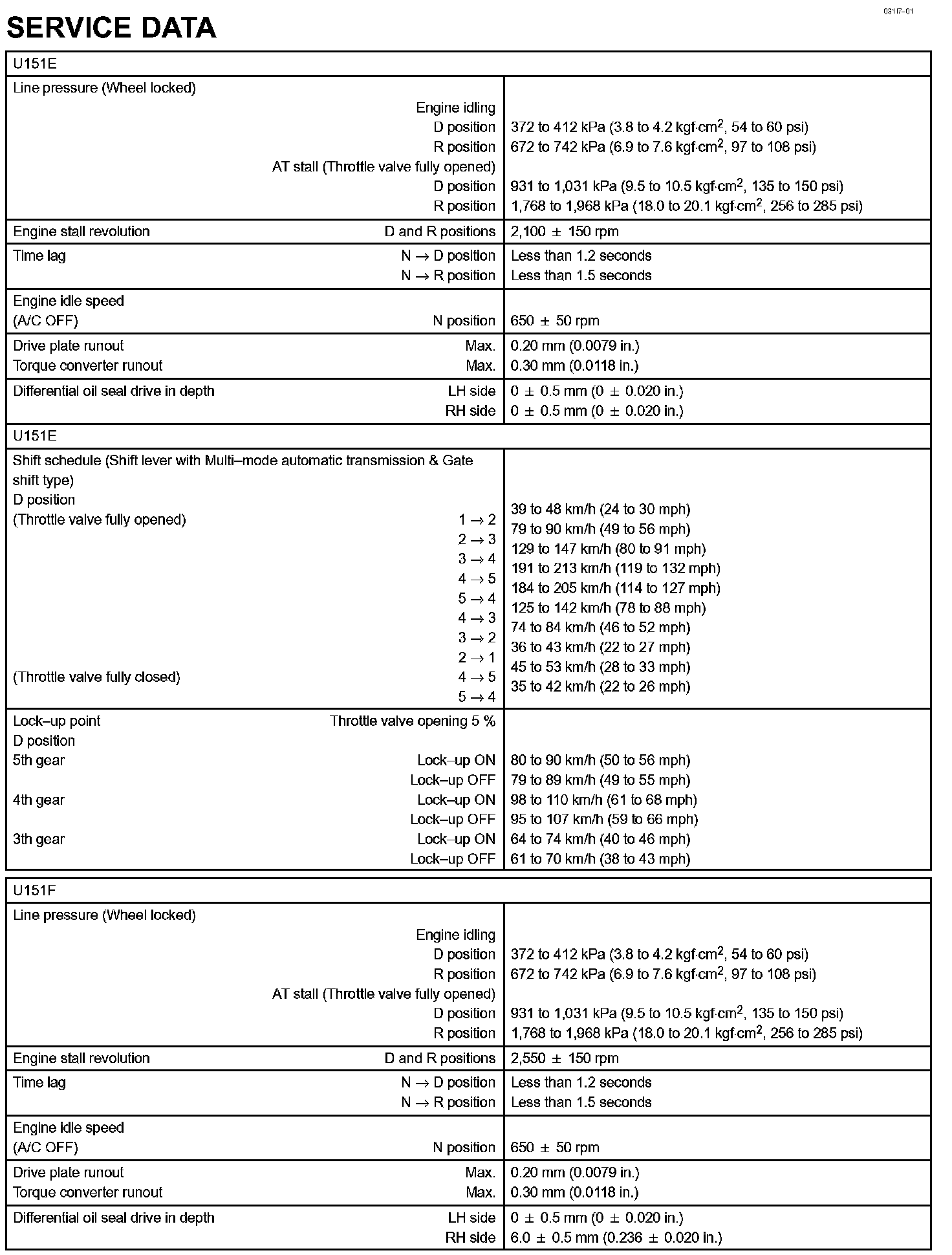

Automatic Transmission / Transaxle - Service Data Part 1:

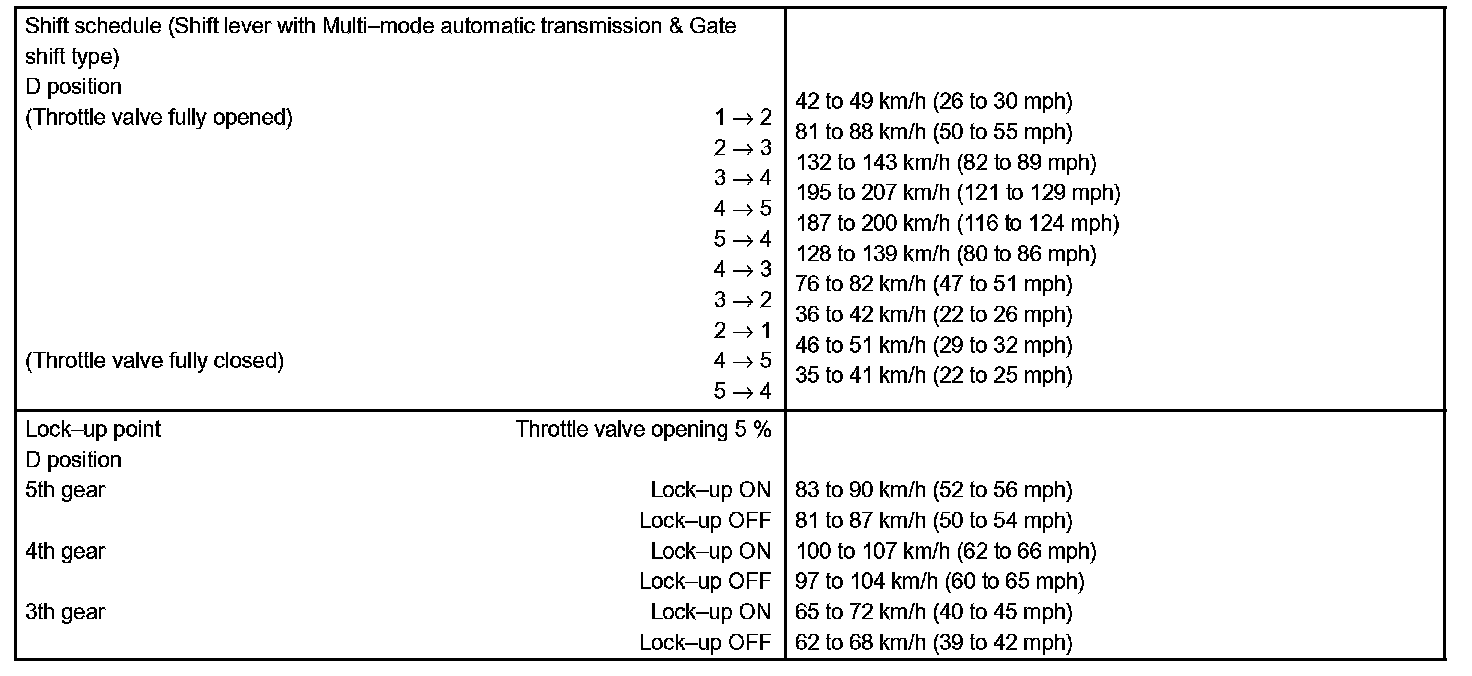

Automatic Transmission / Transaxle - Service Data Part 2:

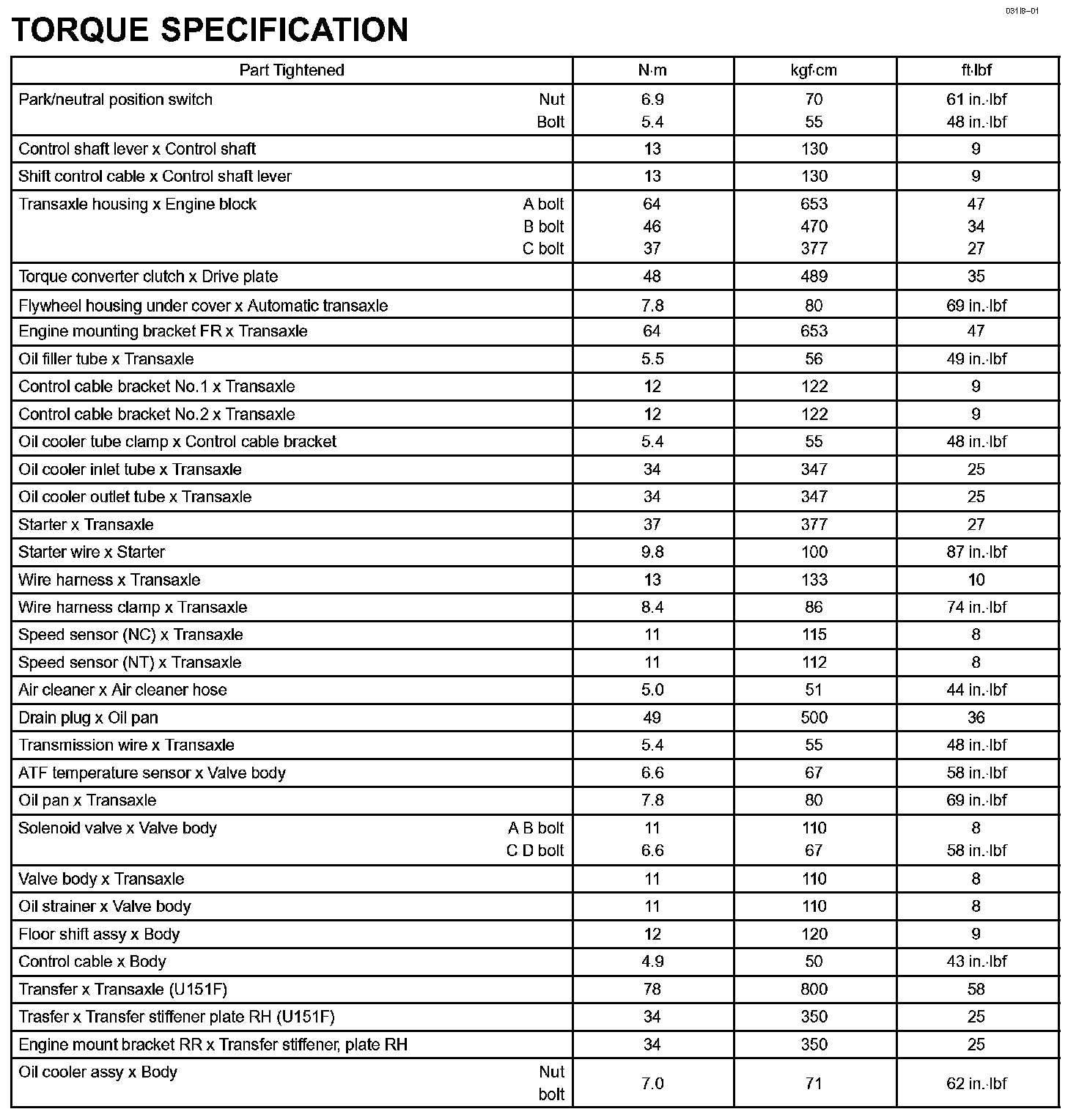

Automatic Transmission / Transaxle - Torque Specification:
