Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY IDENTIFICATION

RELAY DESCRIPTION
Headlight Cleaner Control Relay

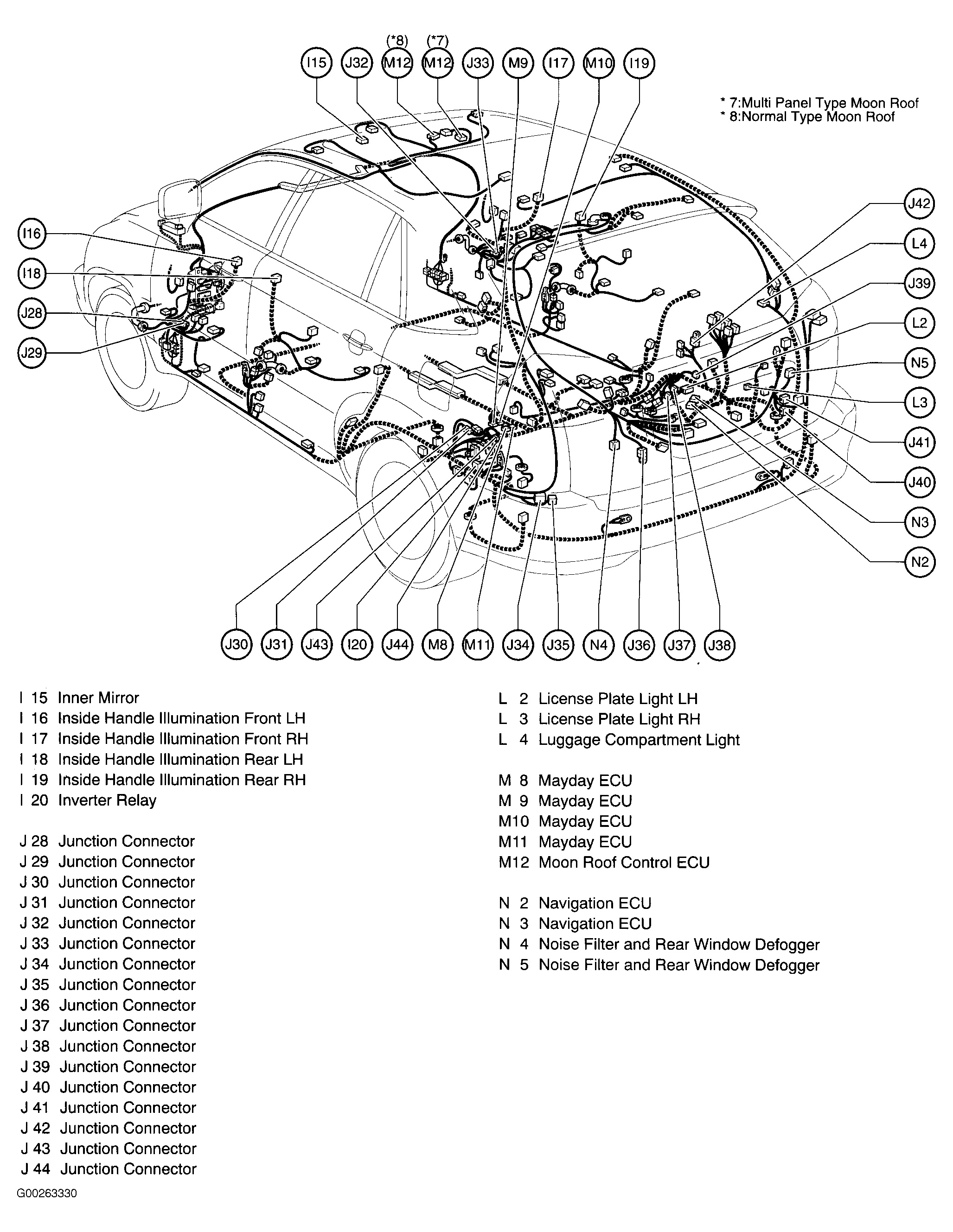

Fig 2: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER'S AREA RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Wiper Motor and Relay
Inverter Relay

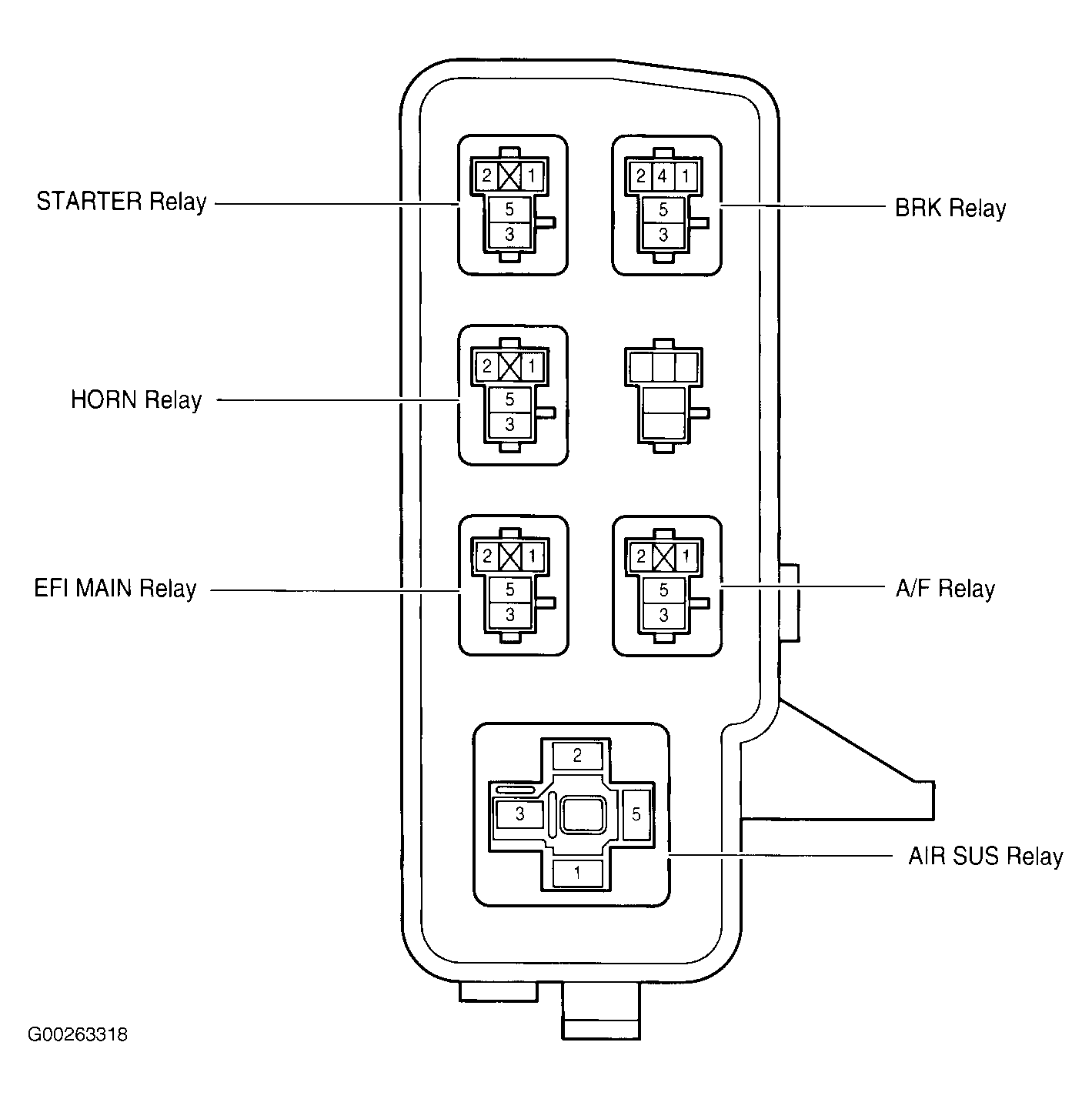

Fig 3: Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
EFI Main Relay
Horn Relay
Starter Relay
BRK Relay
A/F Relay
Air SUS Relay

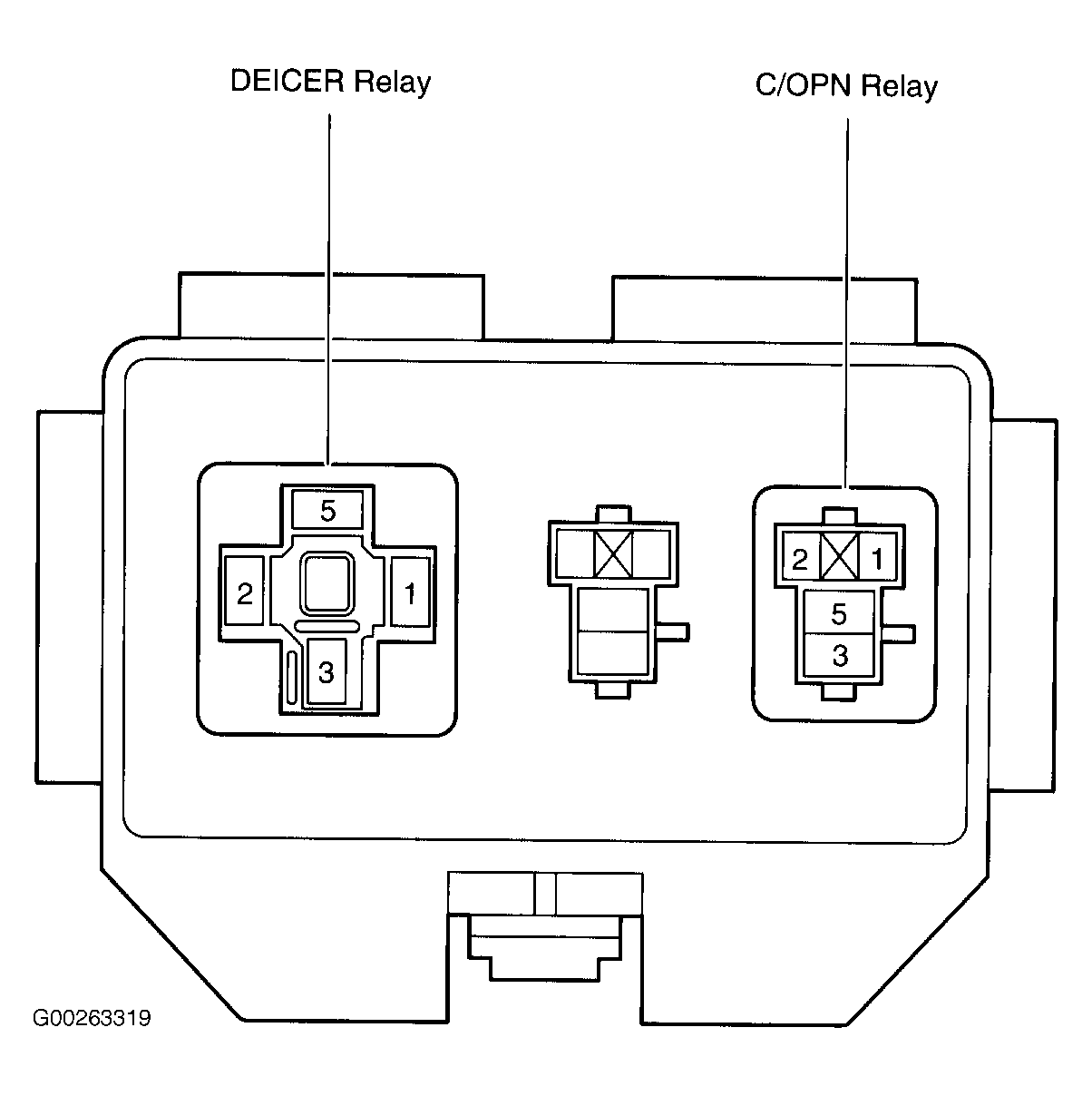

Fig 4: R/B No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK NO. 1 RELAY IDENTIFICATION

RELAY DESCRIPTION
Deicer Relay
C/OPN Relay

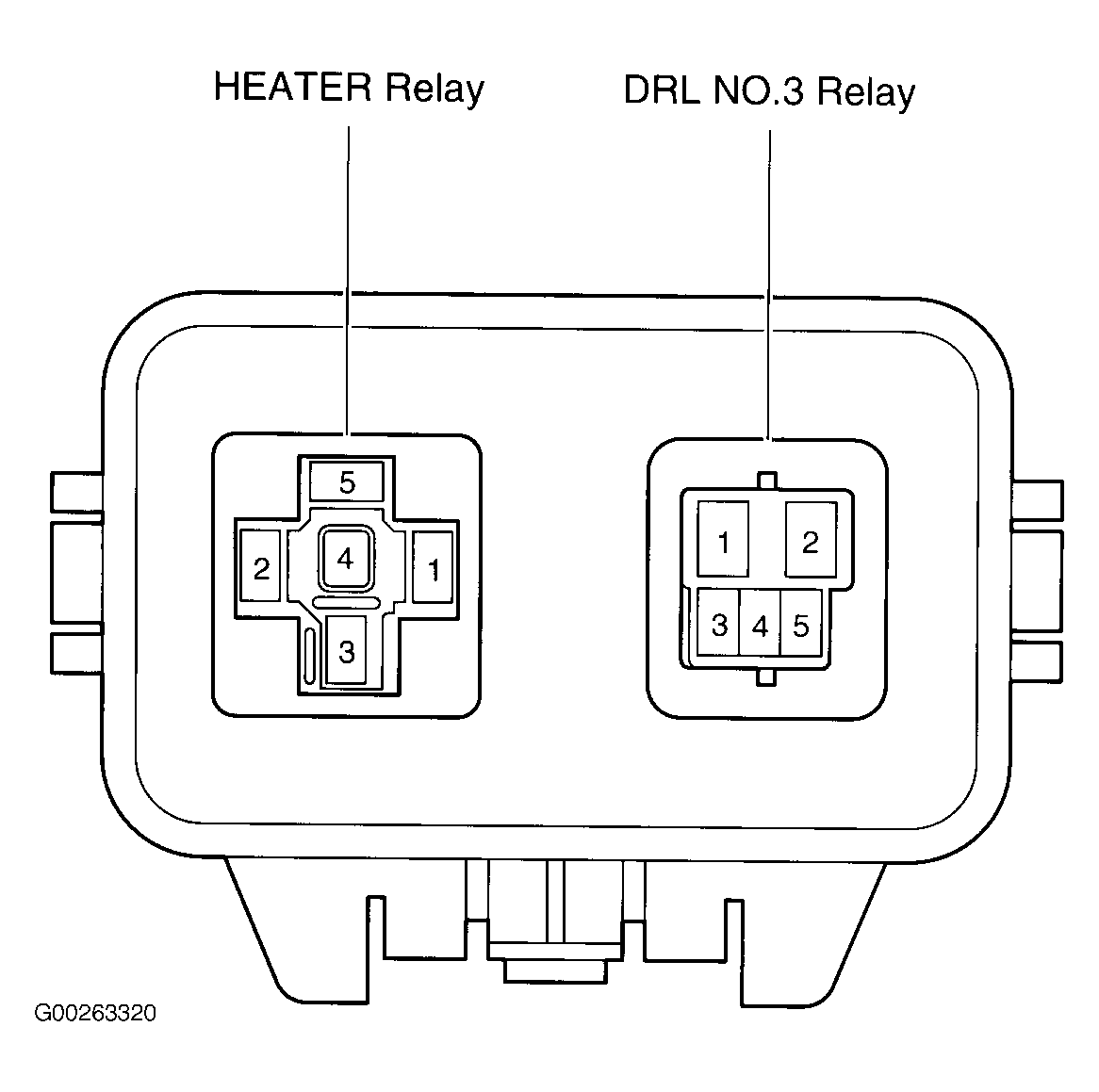

Fig 5: R/B No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK NO. 3 RELAY IDENTIFICATION

RELAY DESCRIPTION
Heater Relay
DRL No.3 Relay

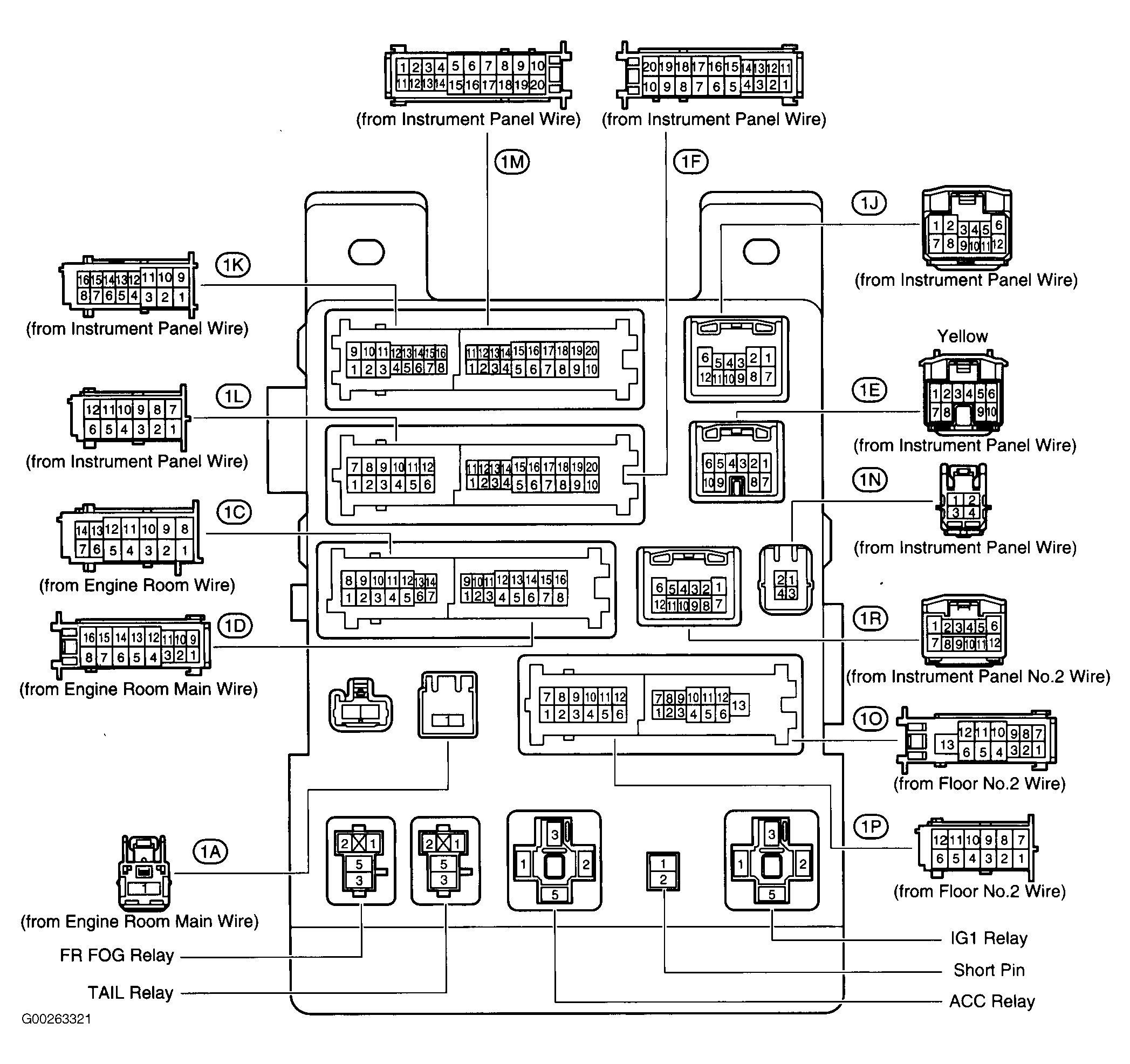

Fig 6: Instrument Panel J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL JUNCTION BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
Tail Relay
FR Fog Relay
IG1 Relay
ACC Relay

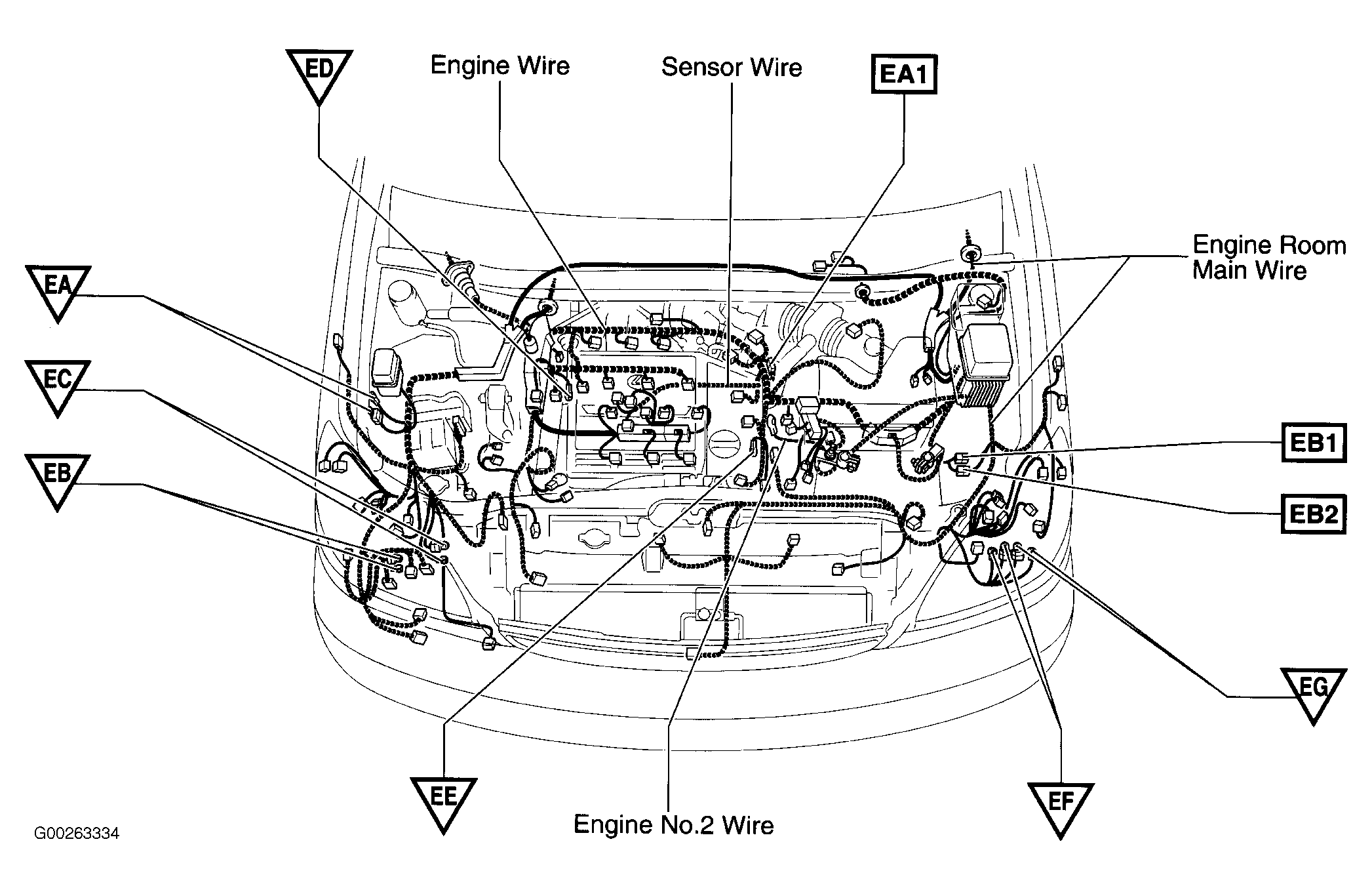

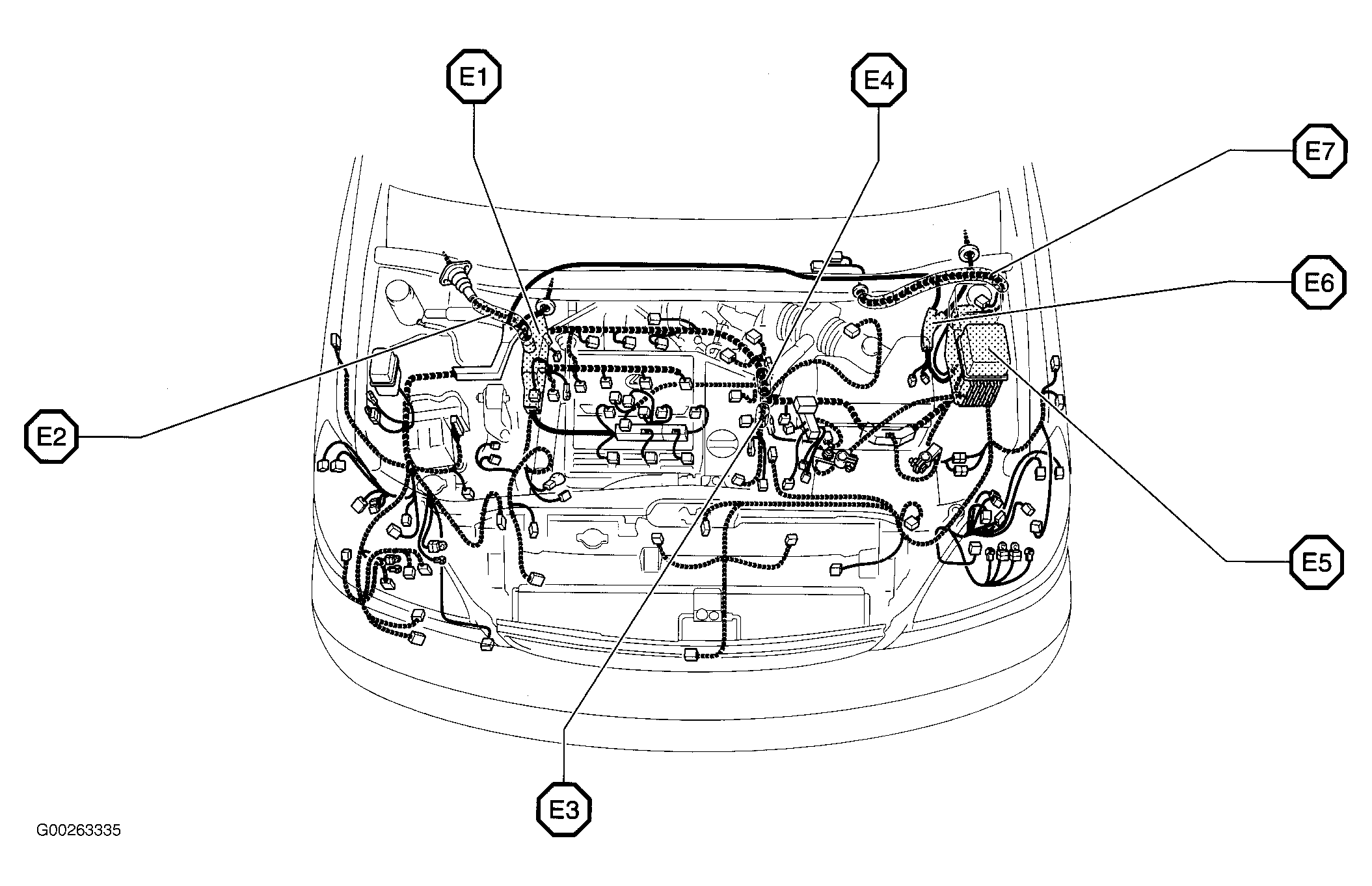

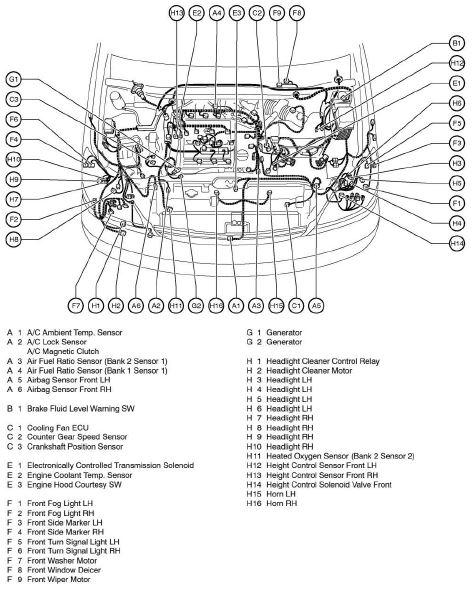

Fig 7: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

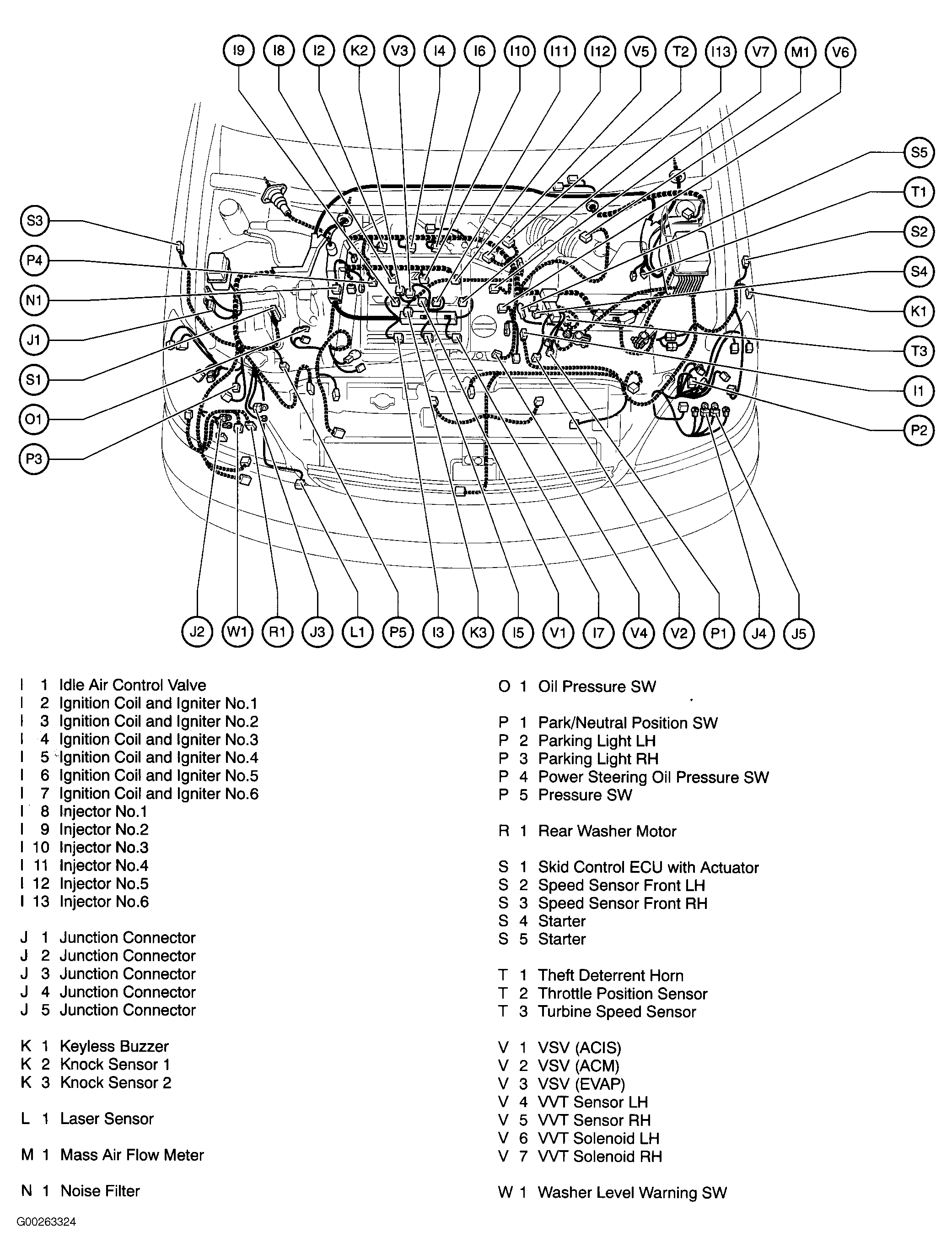

Fig 8: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

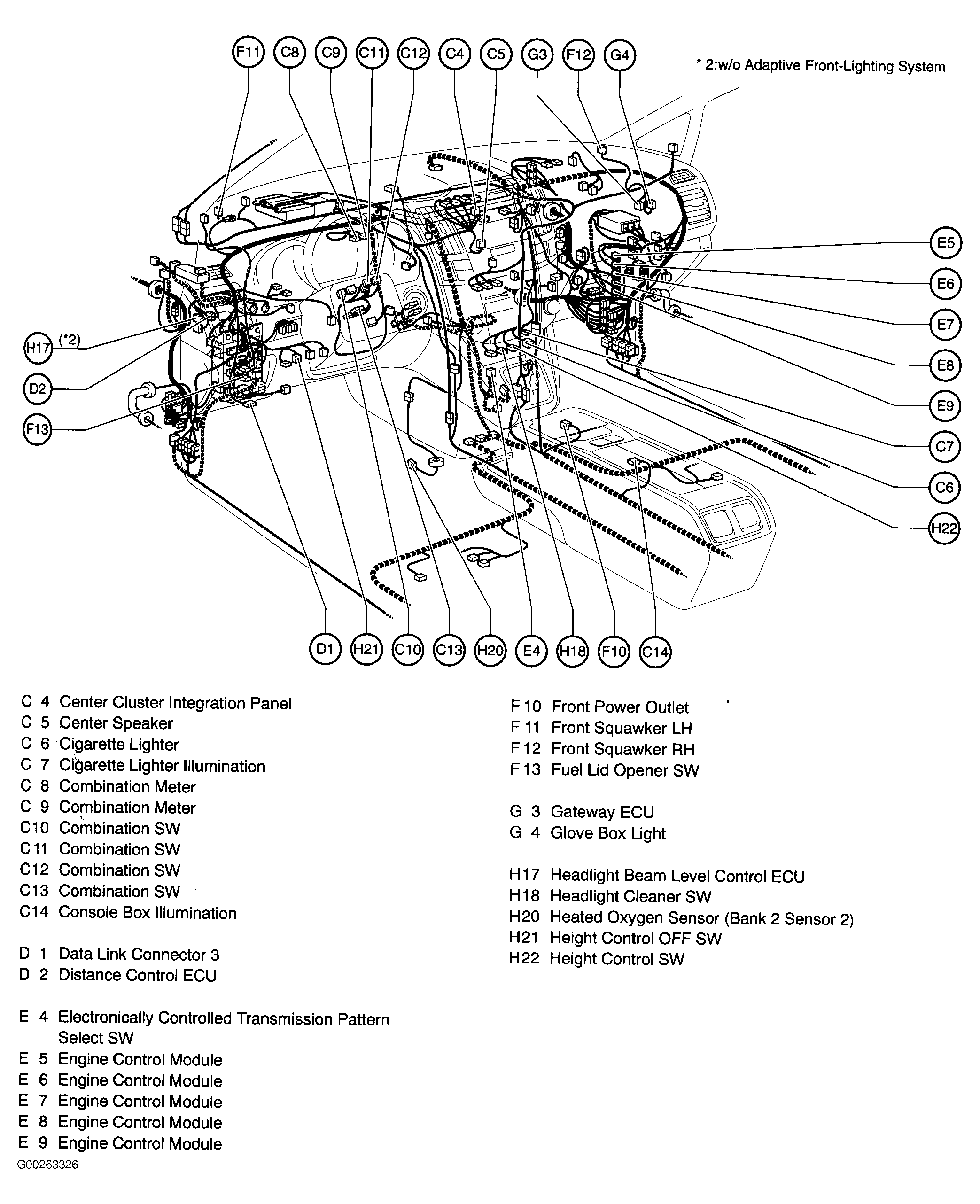

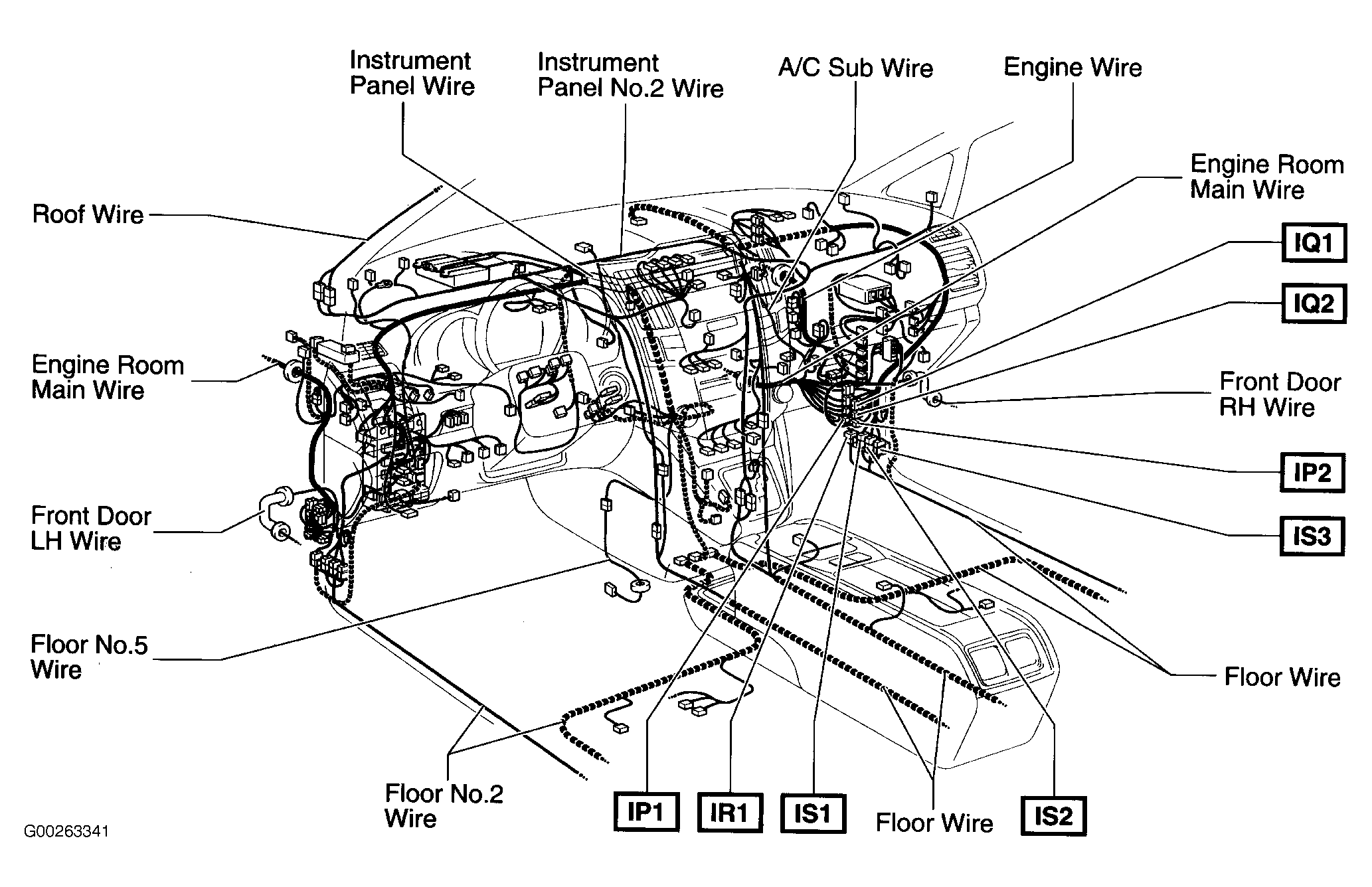

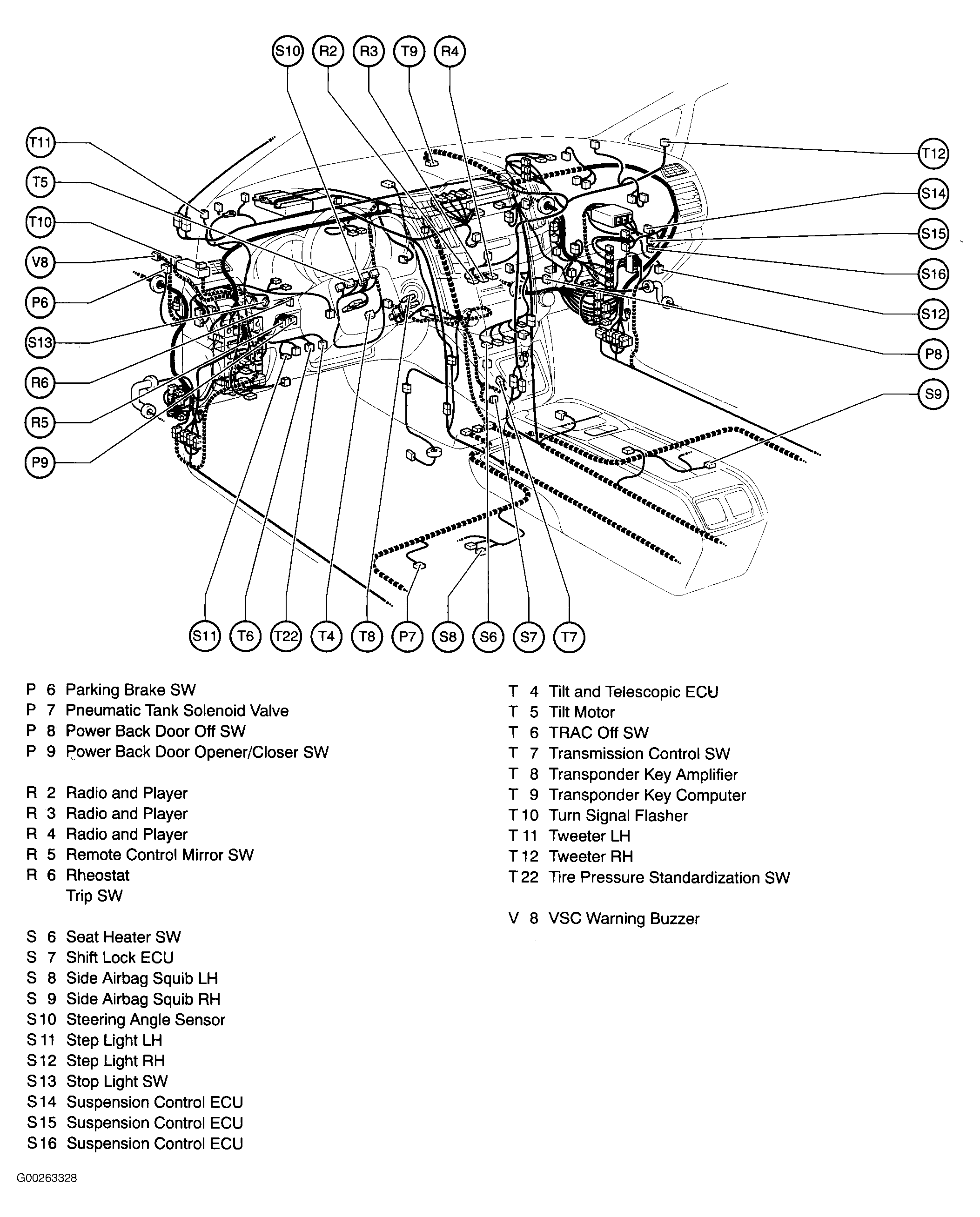

Fig 9: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

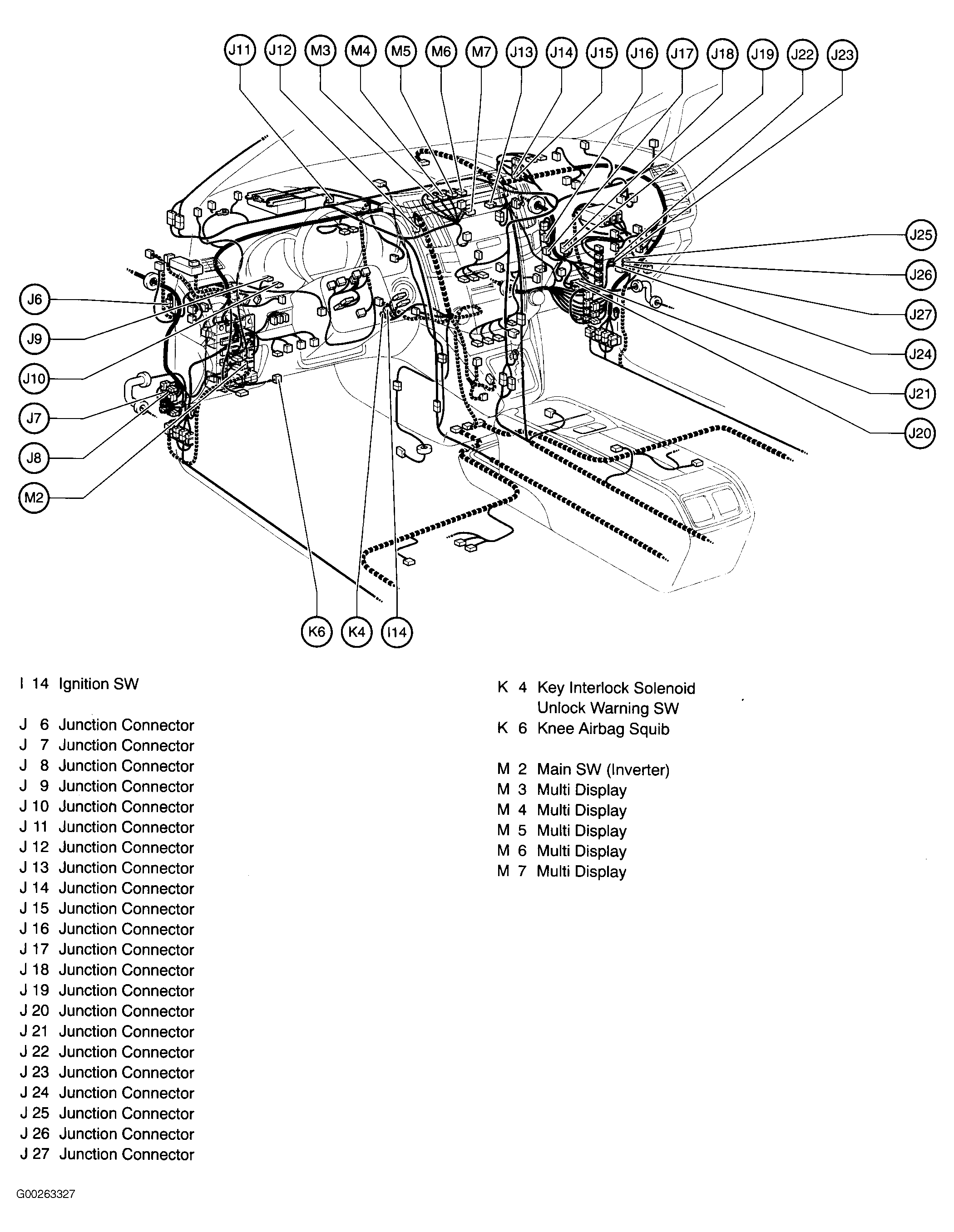

Fig 10: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

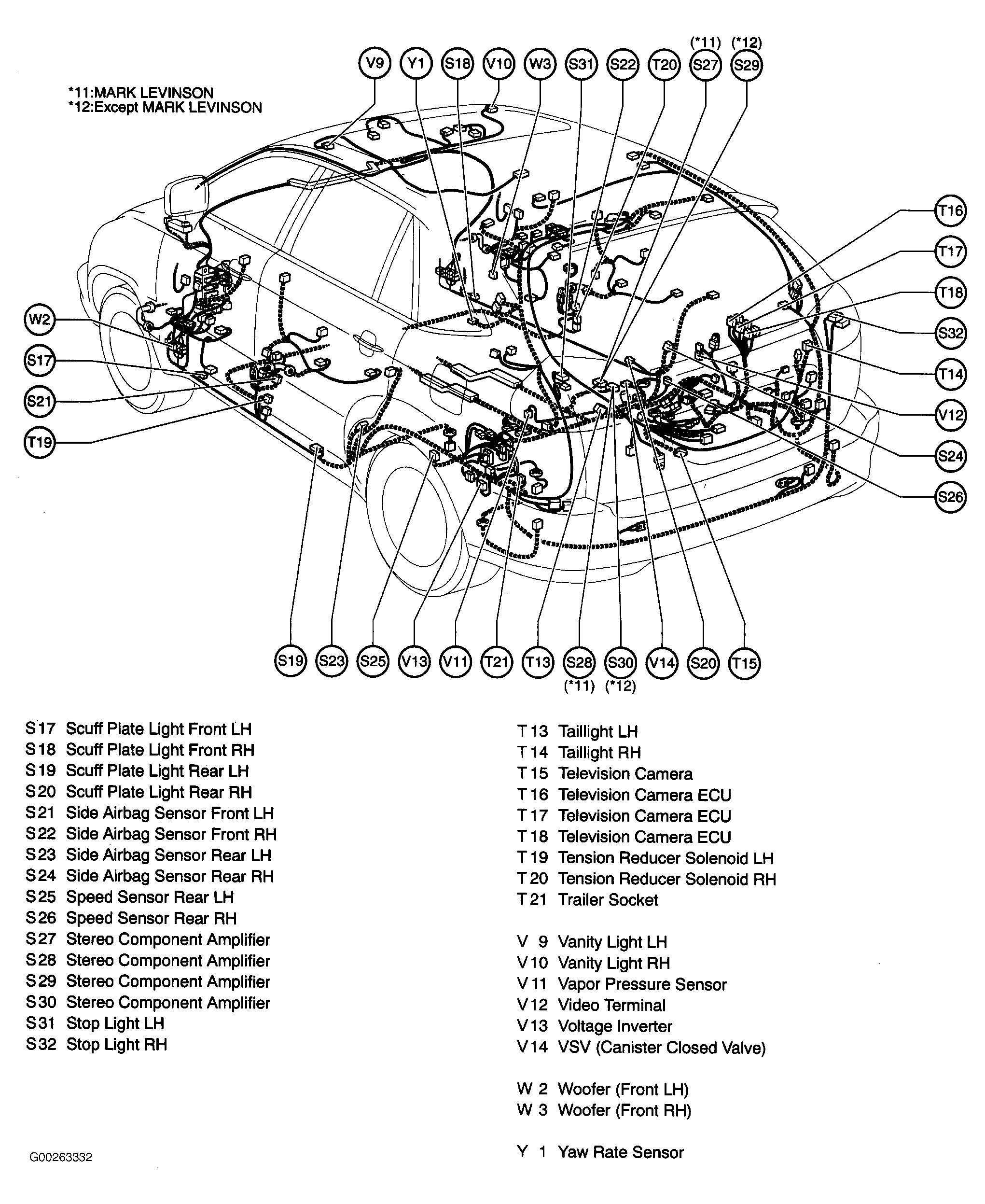

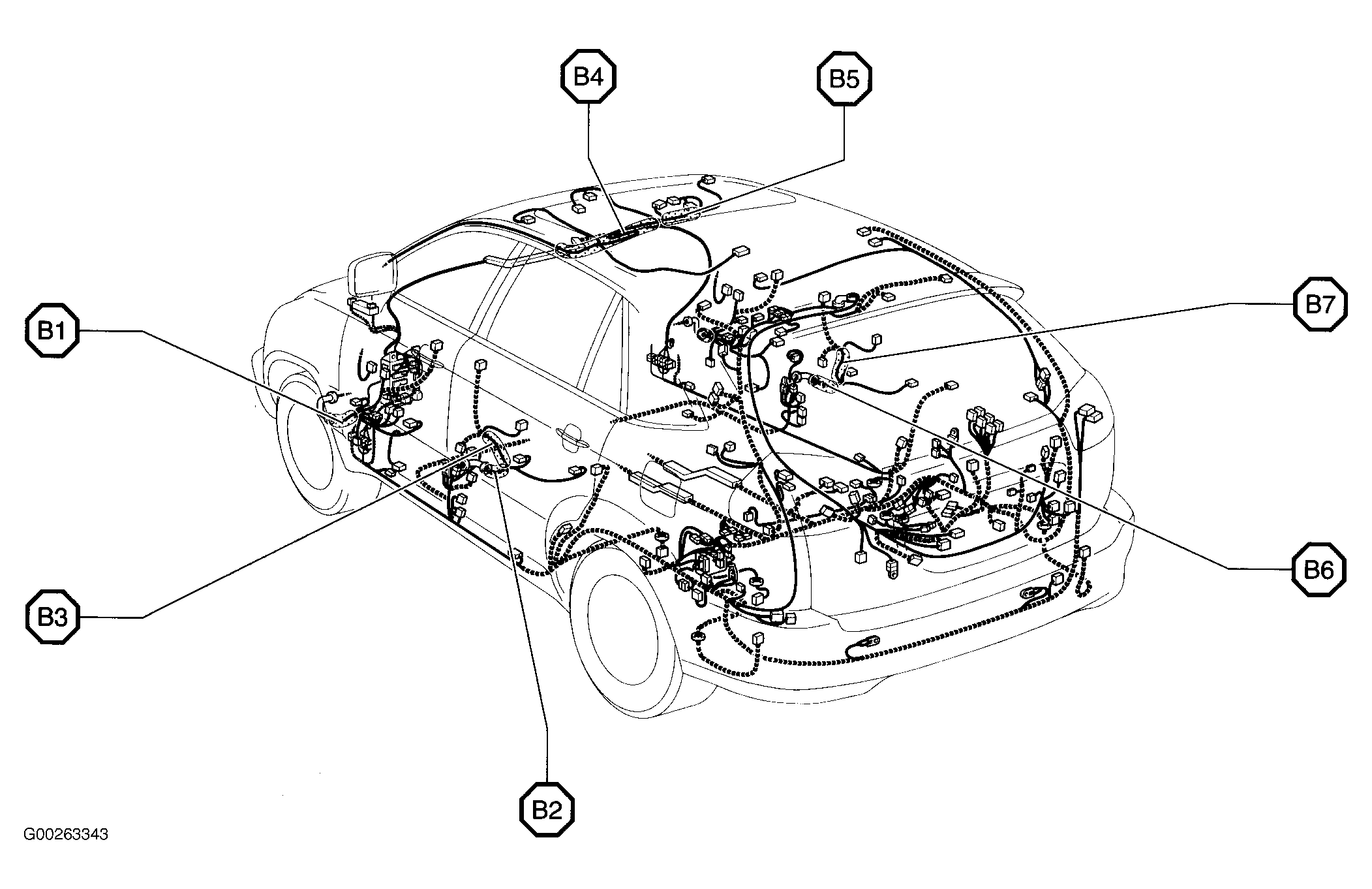

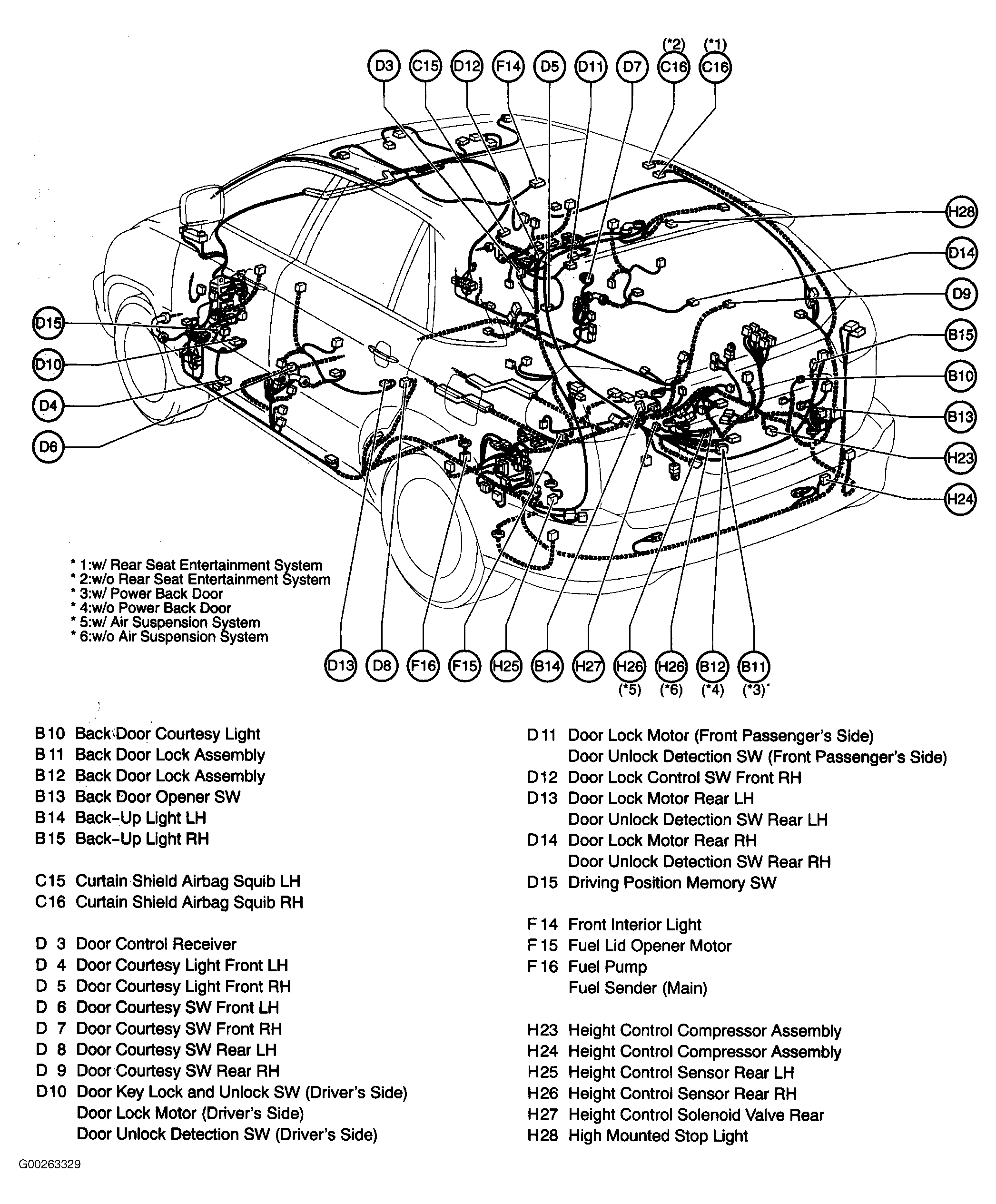

Fig 13: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

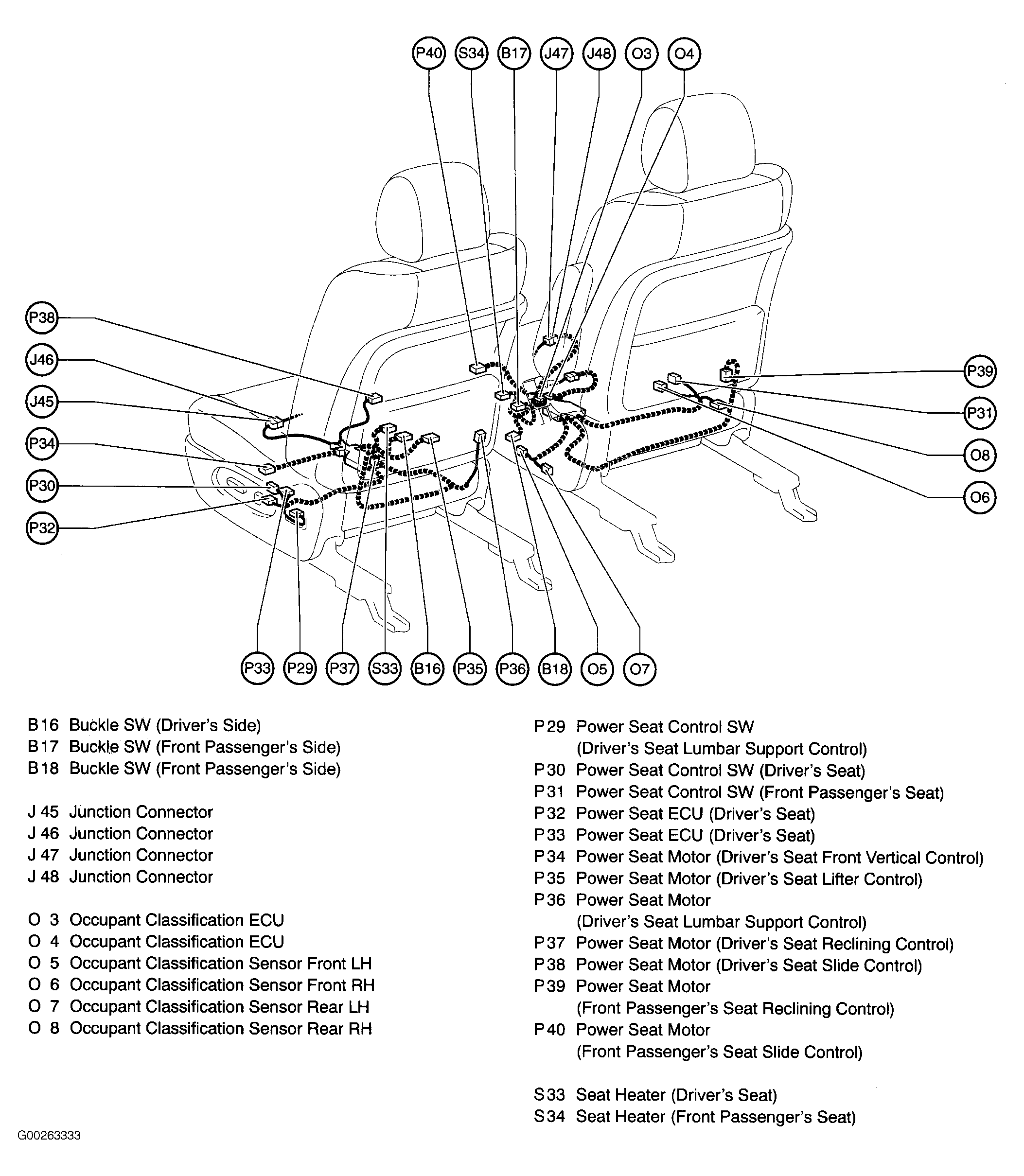

Fig 17: Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

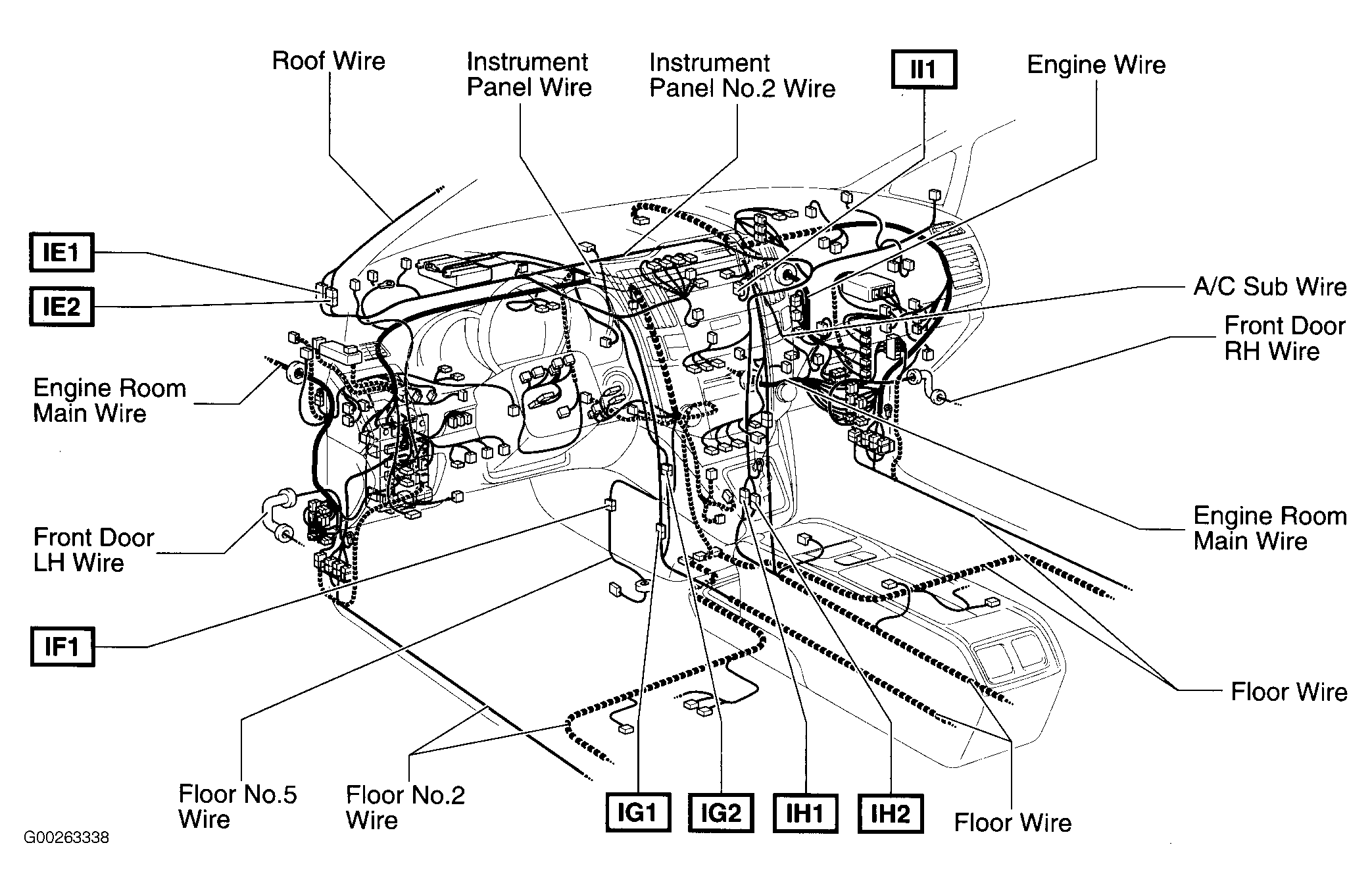

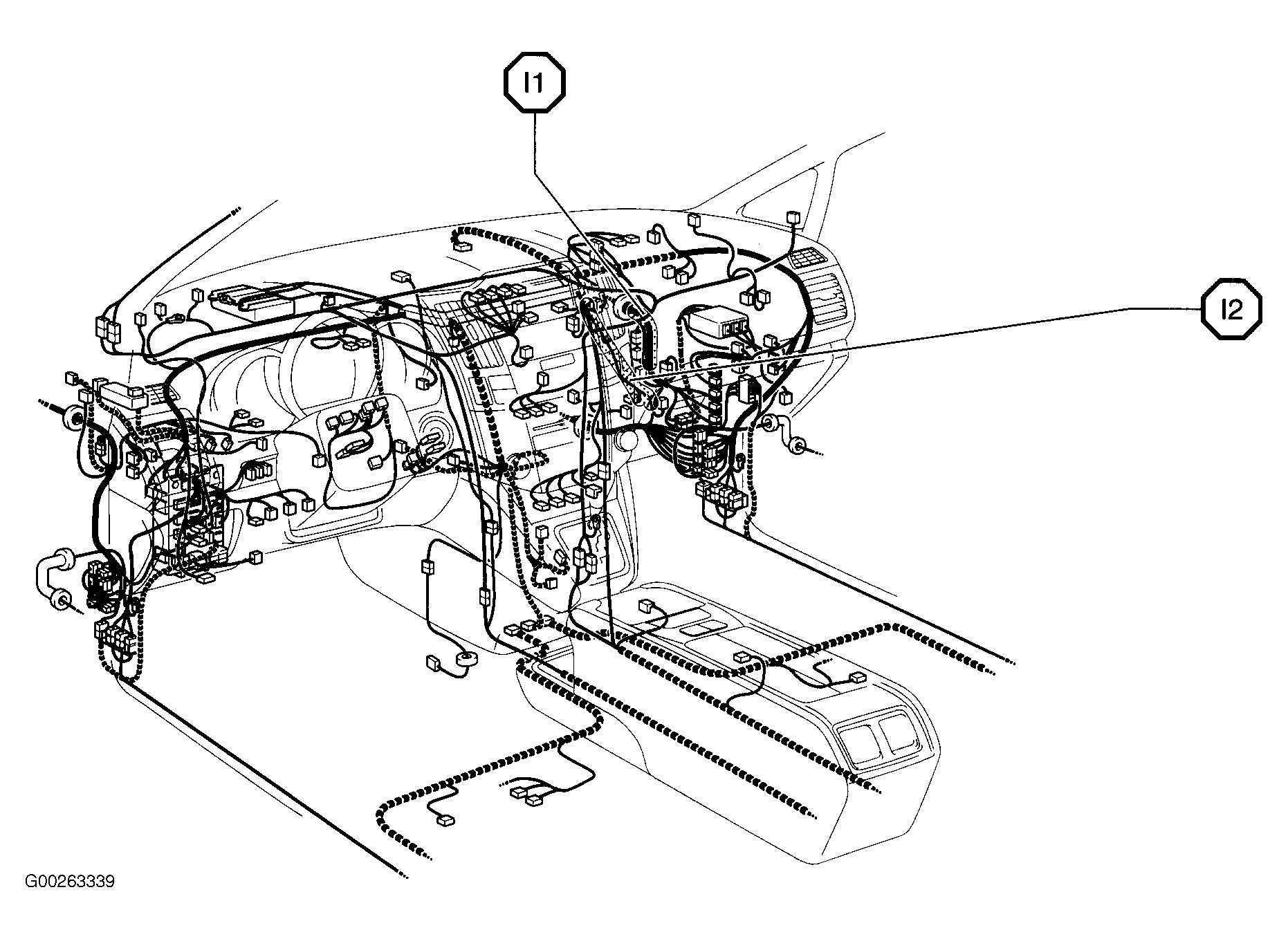

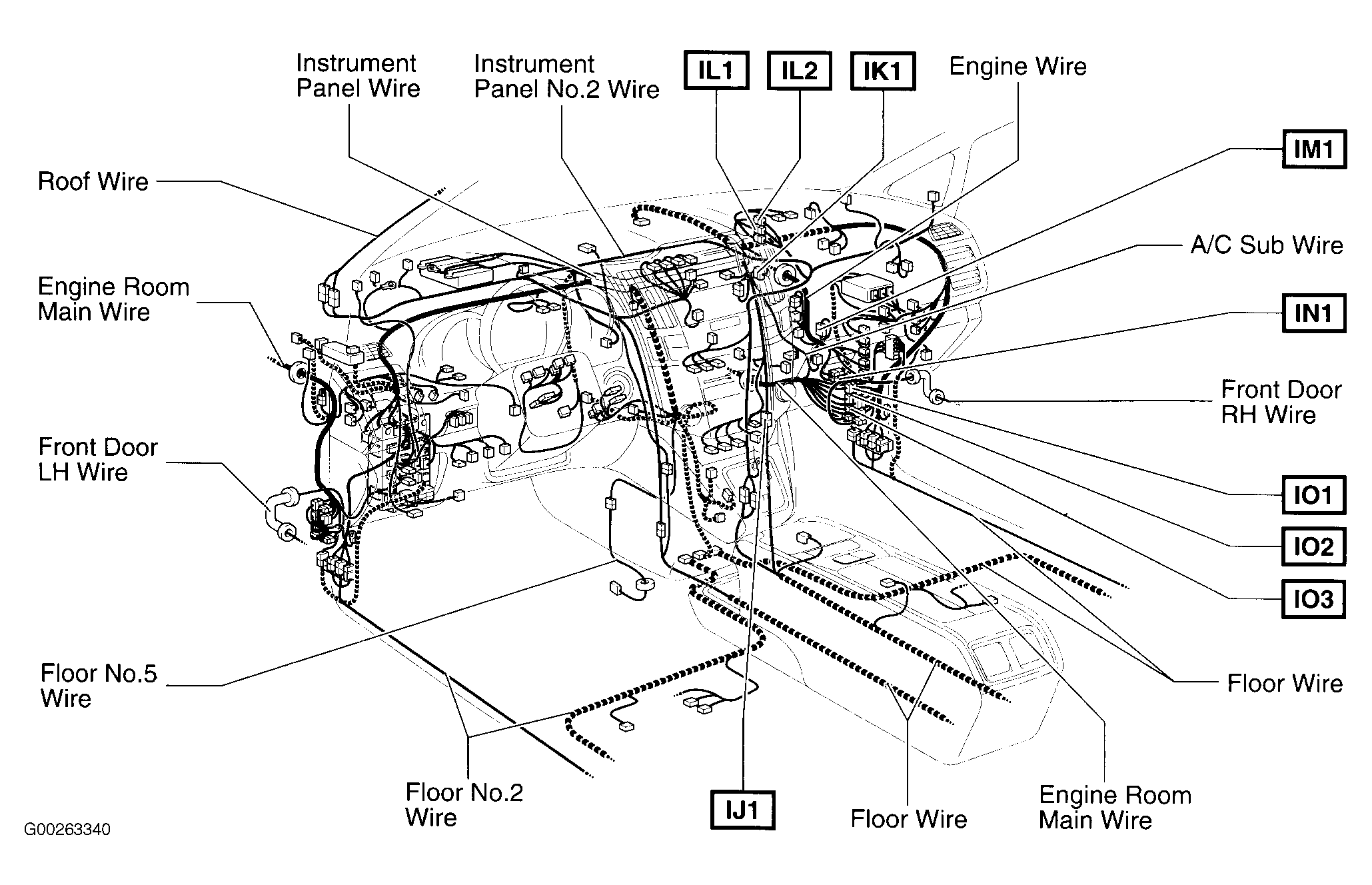

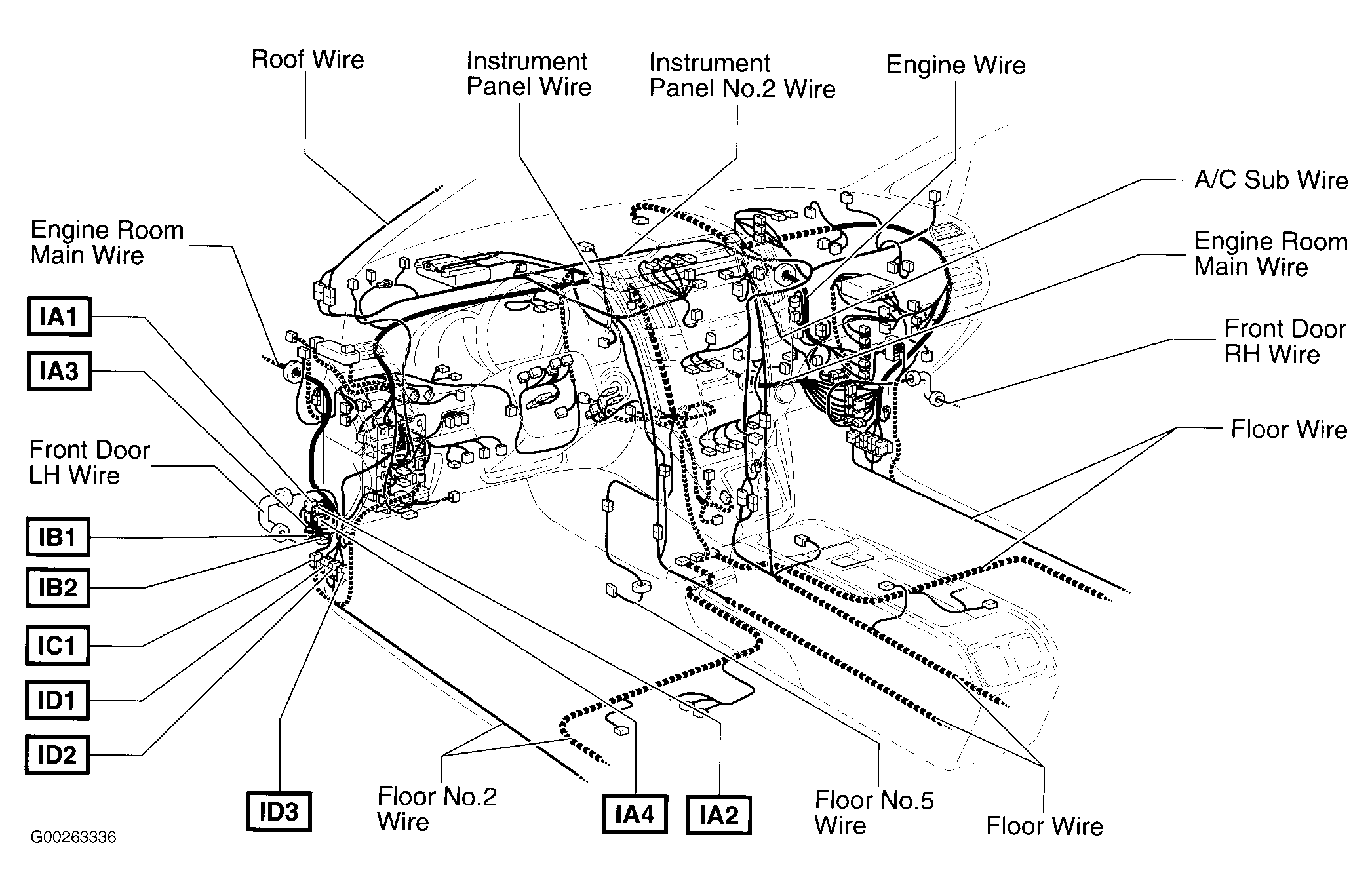

Fig 20: Dash

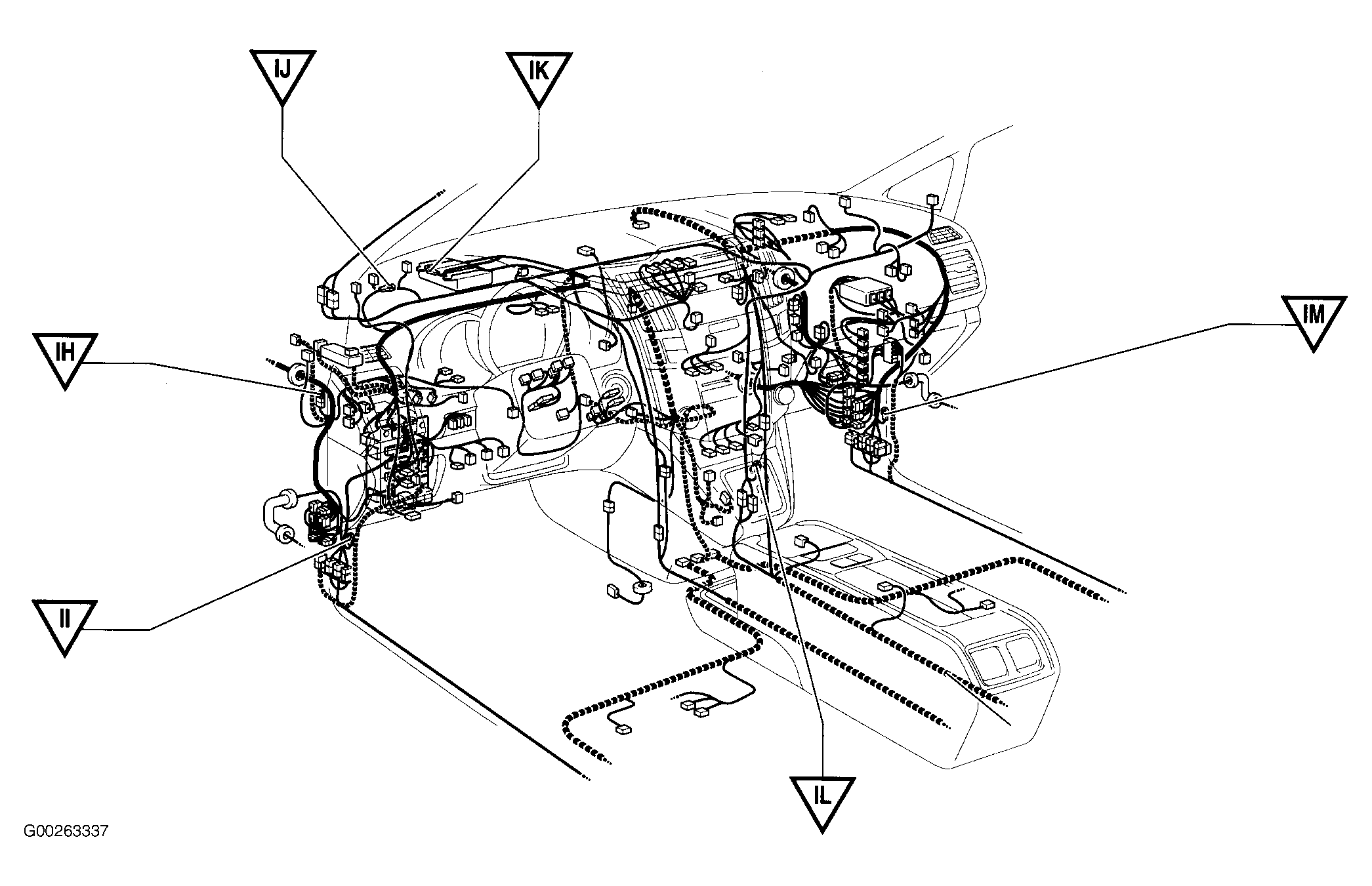

Fig 21: Dash

Fig 22: Dash

Fig 23: Dash

Fig 24: Dash

Fig 25: Dash

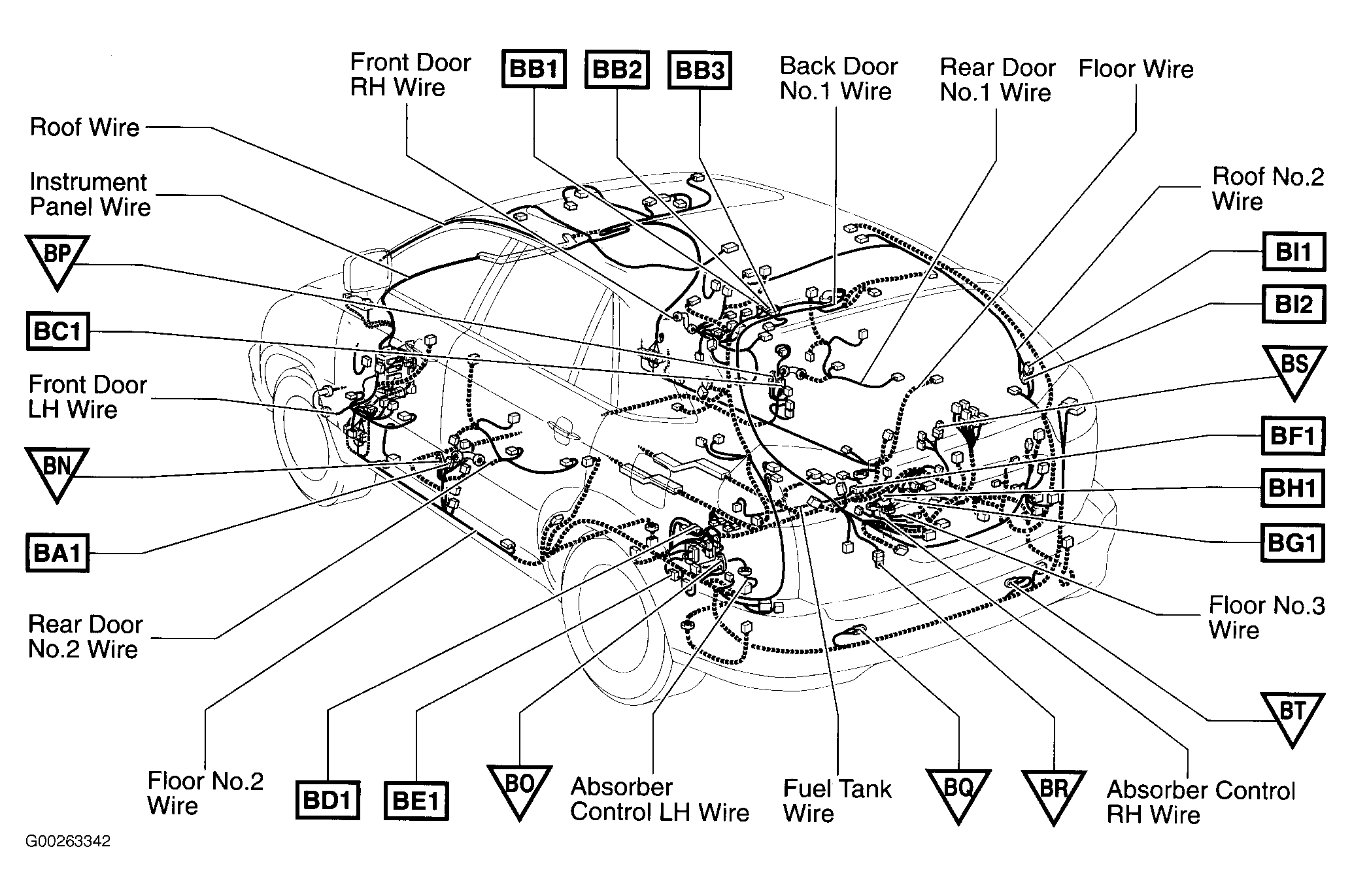

Fig 26: Vehicle Overview

Fig 27: Vehicle Overview

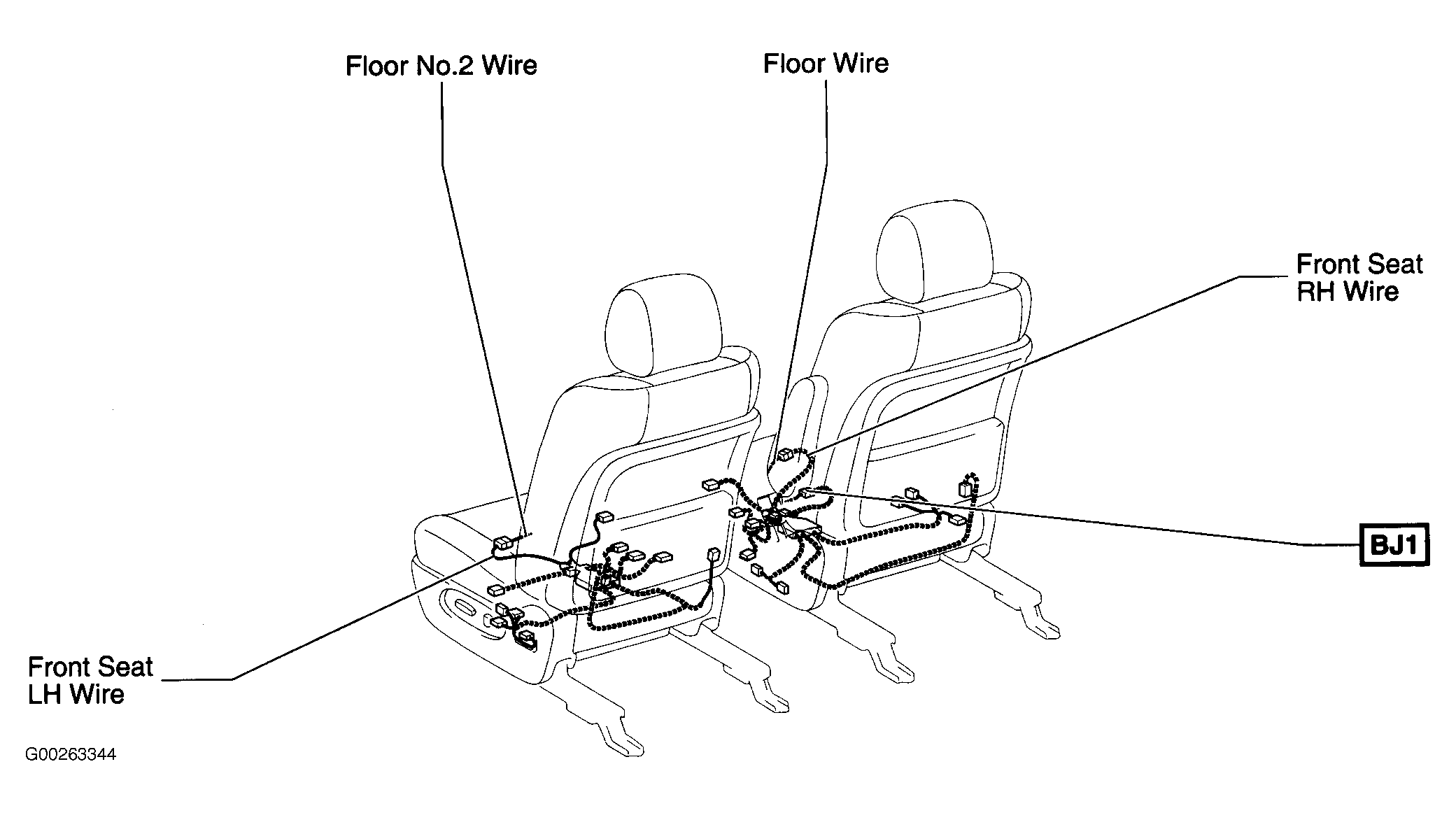

Fig 28: Front Seats

Fig 29: Dash

Fig 30: Vehicle Overview
