Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

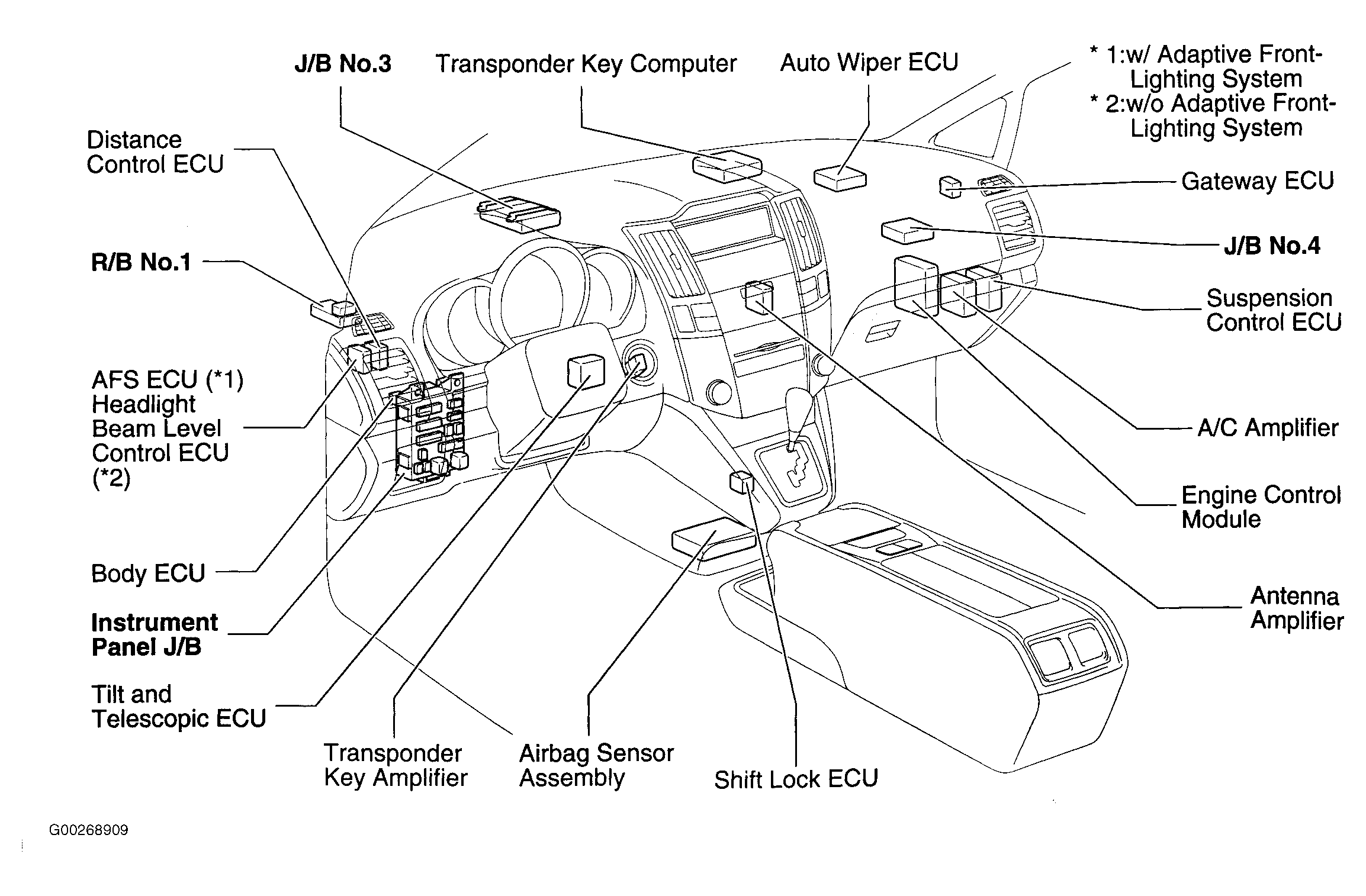

| AFS ECU | Left side of dash. See Figure. |
| Auto Wiper ECU | Top right side of dash. See Figure. |
| Blower Motor Controller | Right side of dash. See Figure. |

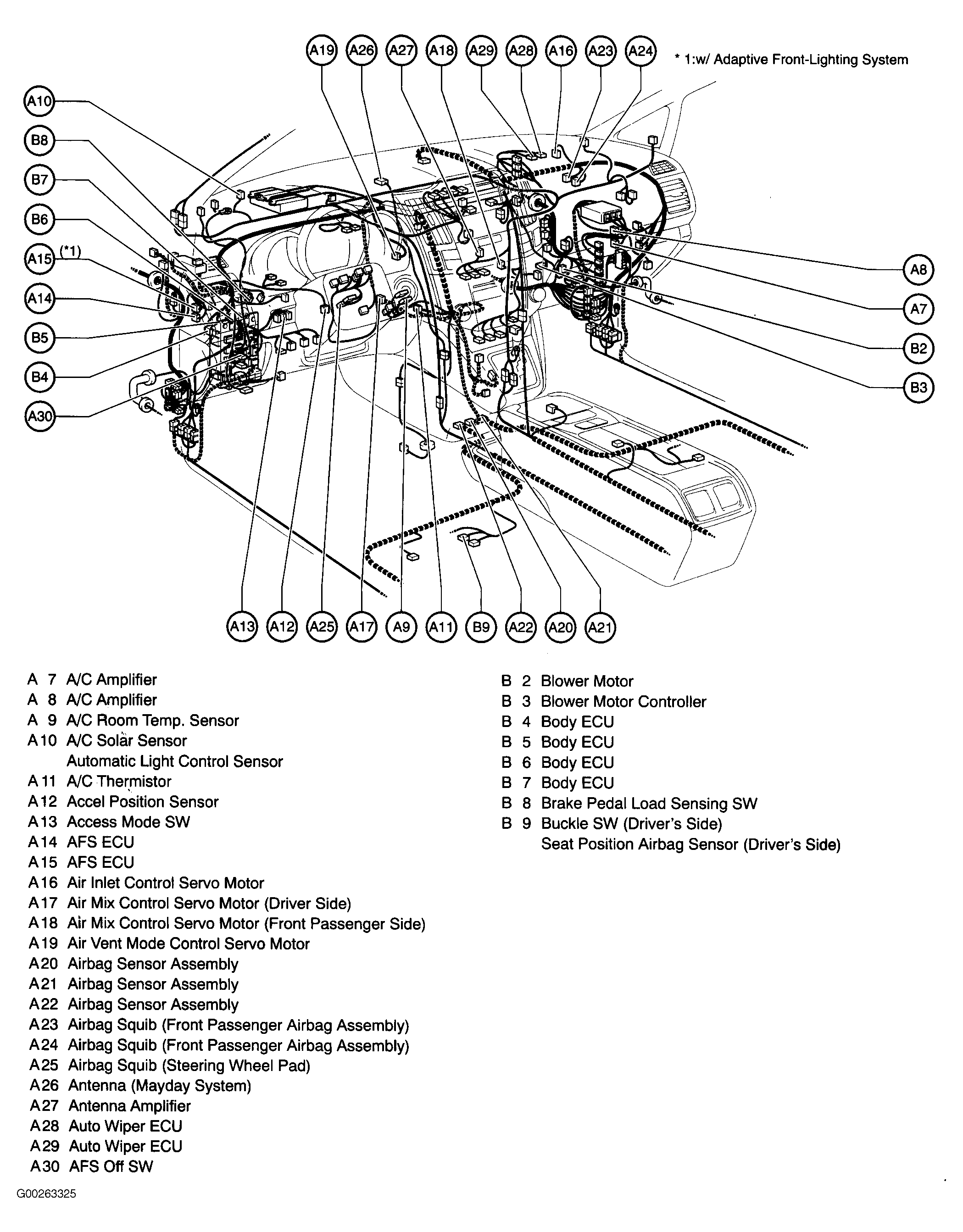

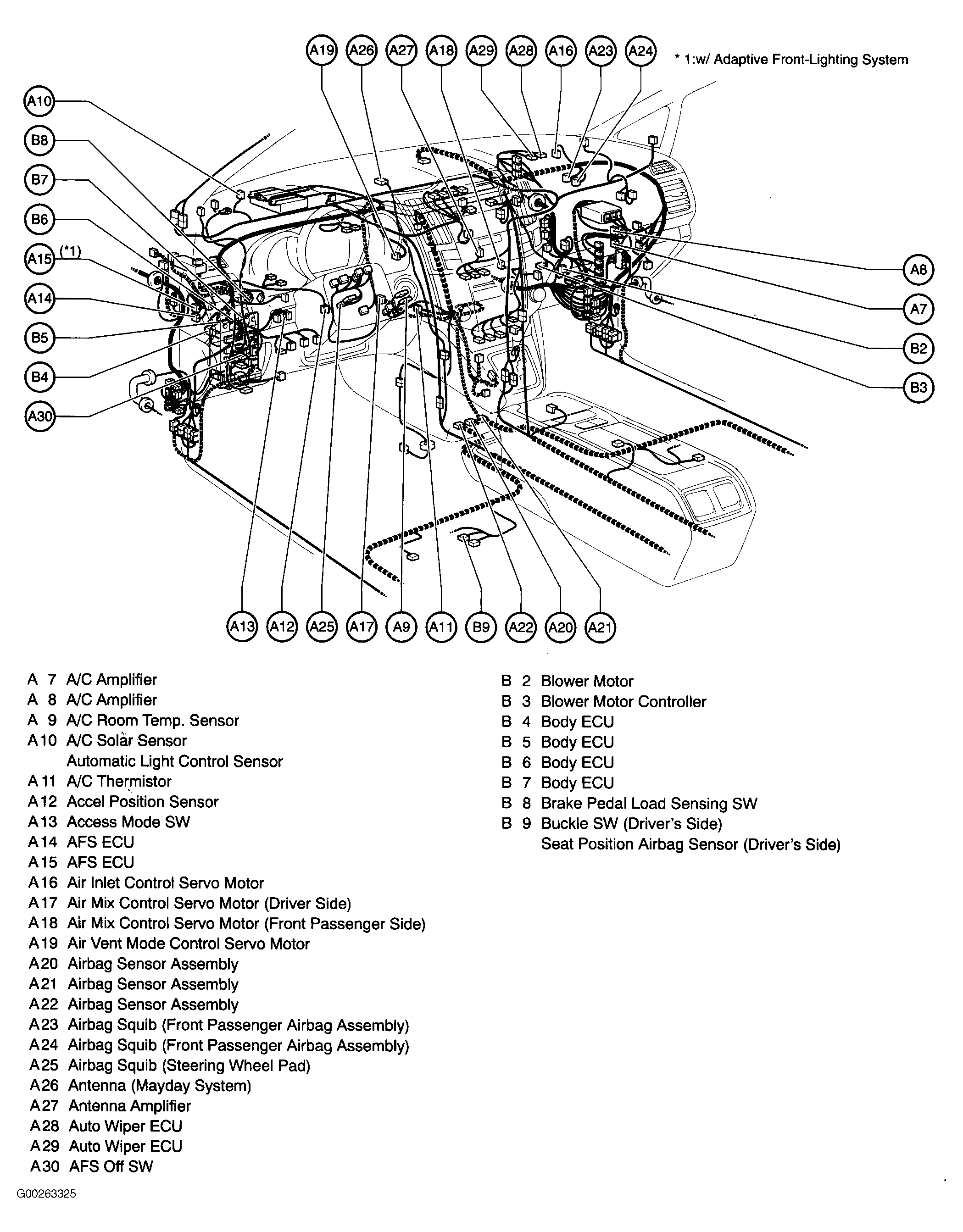

| Body ECU | Behind left side of dash. See Figure. |

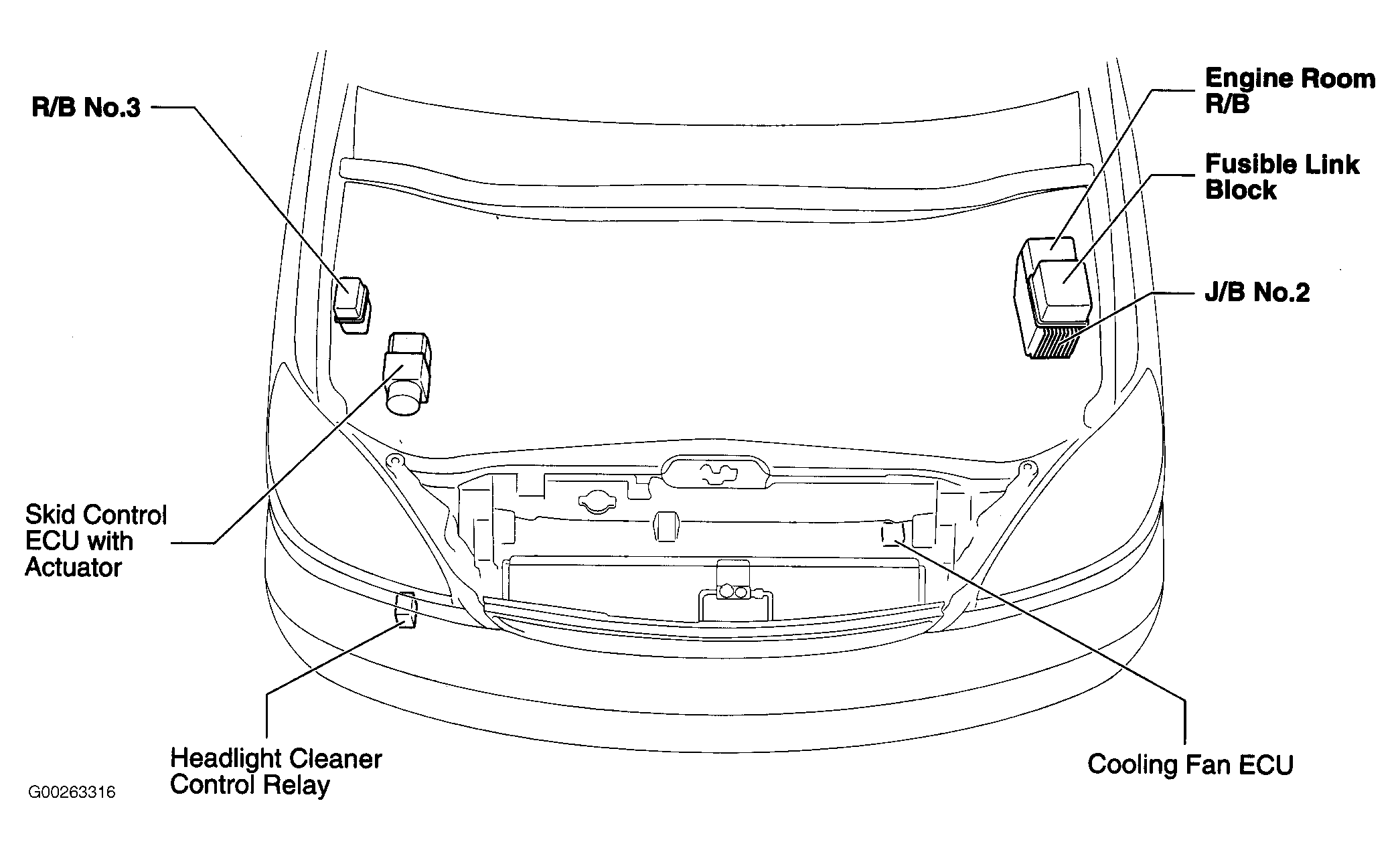

| Cooling Fan ECU | Left front of engine compartment. See Figure. |
| Distance Control ECU | Left side of dash. See Figure. |

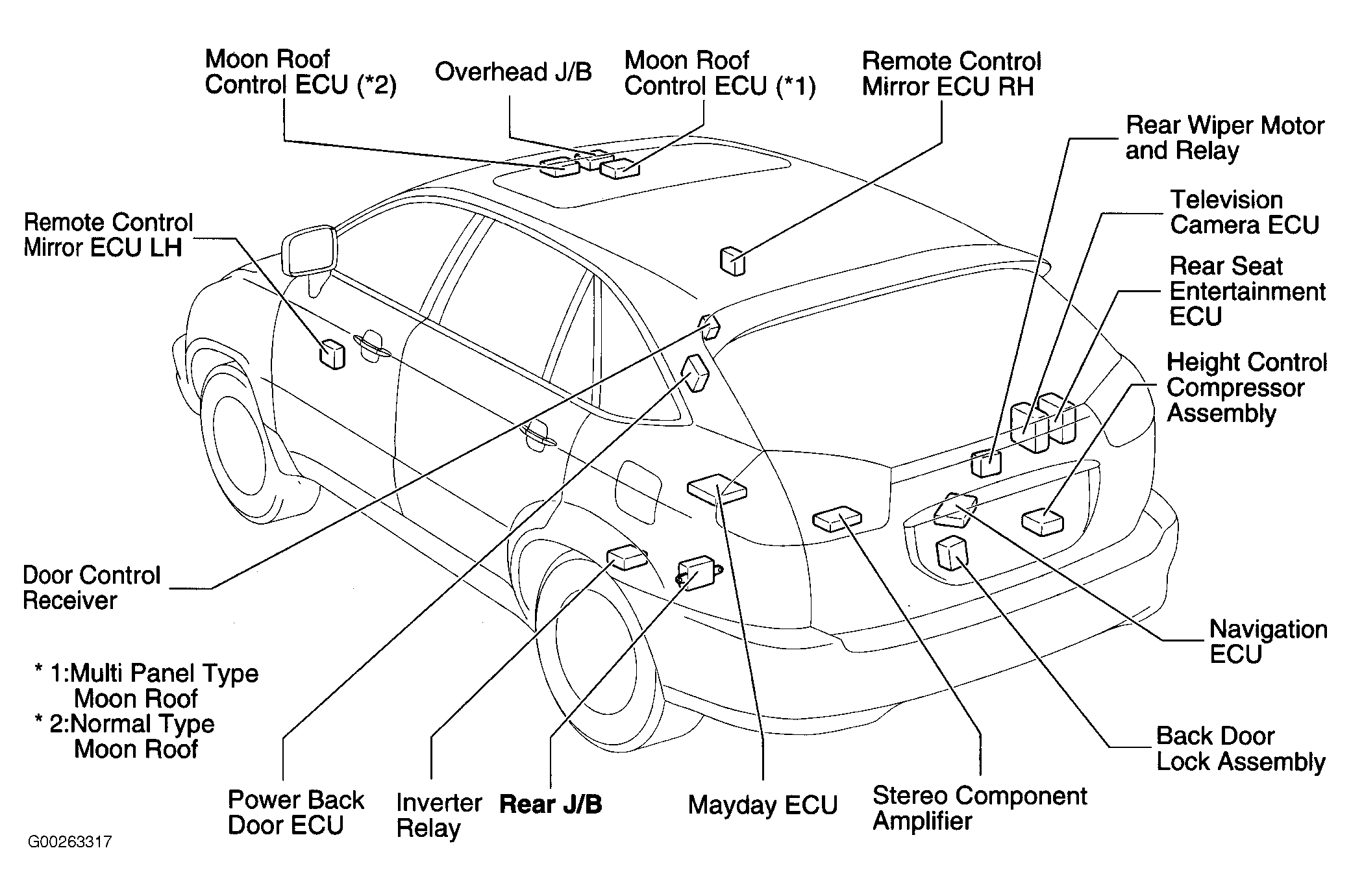

| Door Control Receiver | Top of left "D" pillar. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Gateway ECU | Right side of dash. See Figure. |
| Headlight Beam Level Control ECU | Behind left end of dash. See Figure. |
| Mayday ECU | Left rear of vehicle. See Figure. |
| Moon Roof Control ECU (Multi Panel Type Moon Roof) | Front center of roof. See Figure. |
| Moon Roof Control ECU (Normal Type Moon Roof) | On front center of moon roof. See Figure. |
| Navigation ECU | At rear of cargo area. See Figure. |

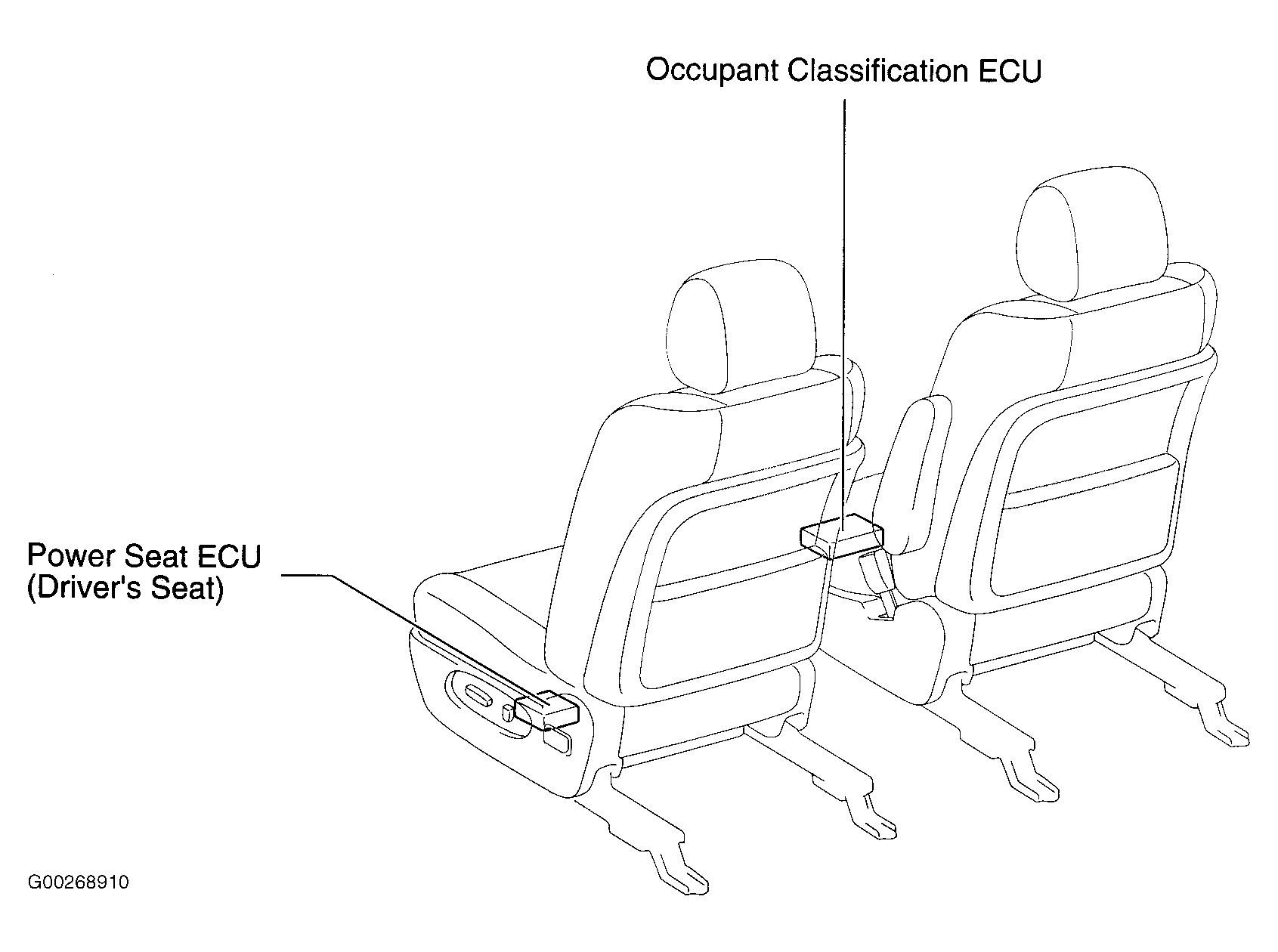

| Occupant Classification ECU | At right front seat. See Figure. |
| Power Back Door Drive Unit | Right side of dash. See Figure. |

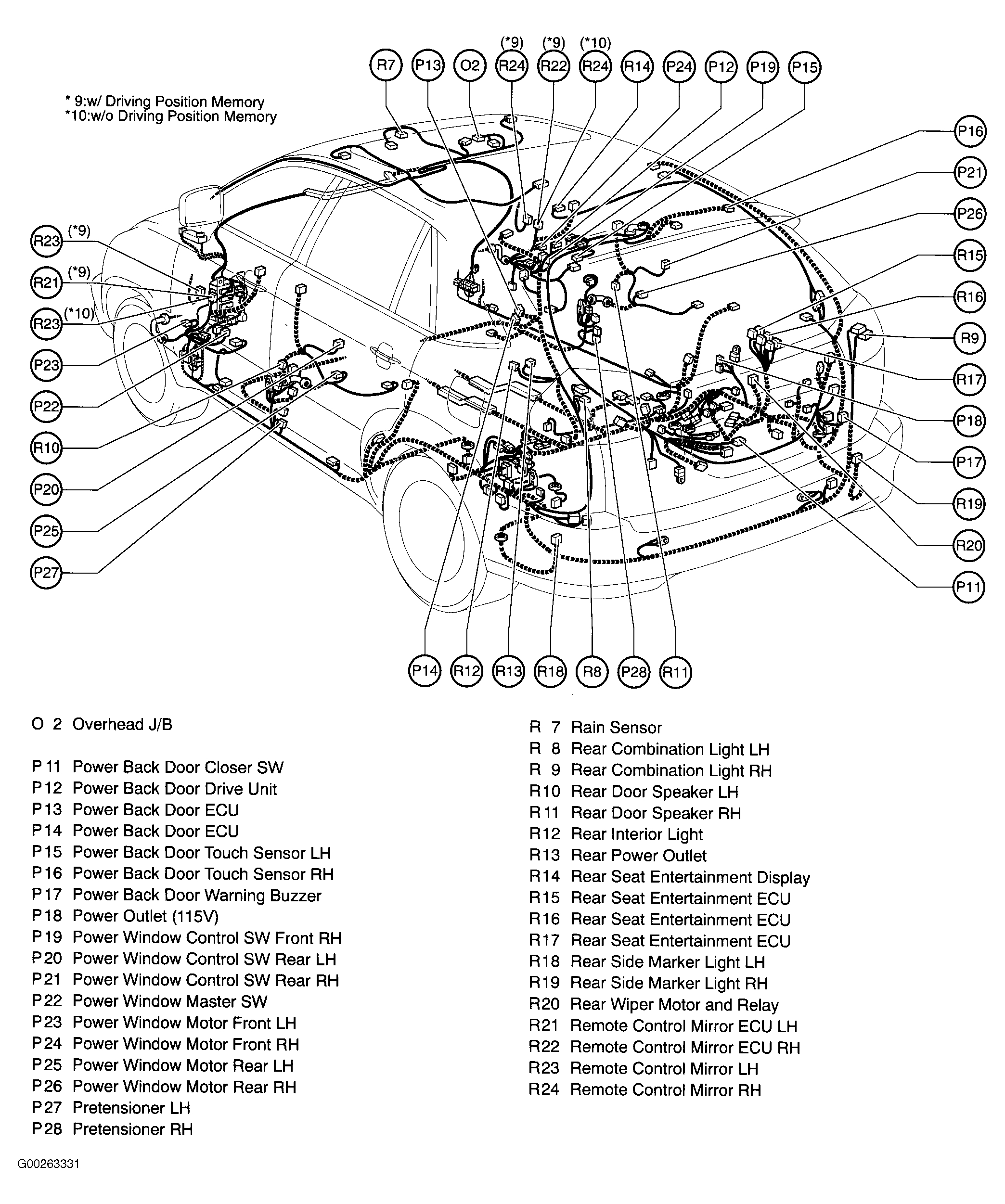

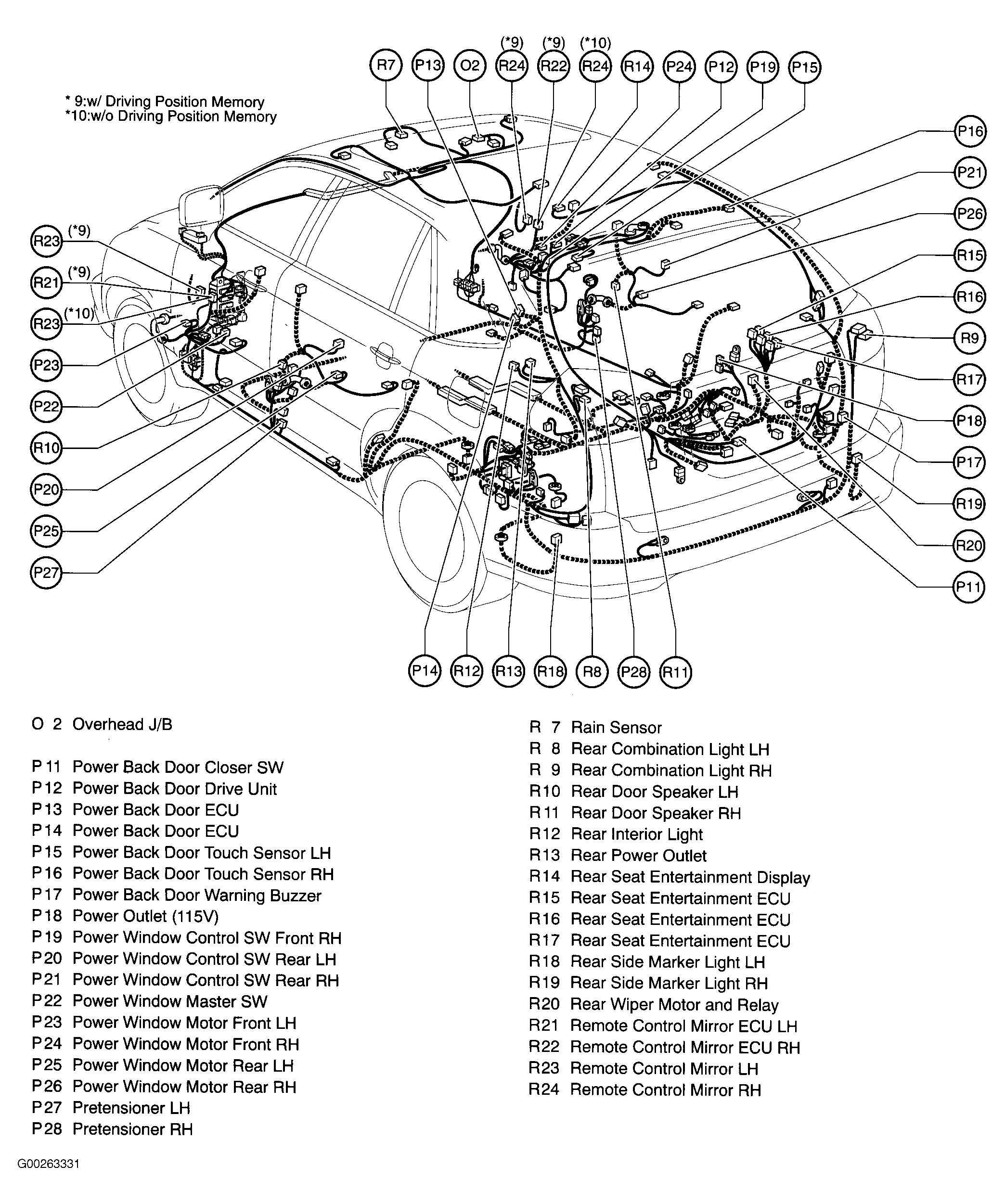

| Power Back Door ECU | Center of left "D" pillar. See Figure. |
| Power Seat ECU (Driver's Seat) | Under driver's seat. See Figure. |
| Rear Seat Entertainment ECU | In right rear of cargo area. See Figure. |
| Remote Control Mirror ECU LH | In left front door. See Figure. |
| Remote Control Mirror ECU RH | In right front door. See Figure. |
| Shift Lock ECU | Under center console, beside shift lever. See Figure. |
| Skid Control ECU W/Actuator | Right front of engine compartment. See Figure. |
| Suspension Control ECU | Under right side of dash. See Figure. |
| Television Camera ECU | Right rear of cargo area. See Figure. |
| Tilt & Telescopic ECU | At base of steering column. See Figure. |
| Transponder Key Computer | Center of dash. See Figure. |
