Mayday Switch ASSY: Replacement

HINT:

The installation is in the reverse order of the removal.

1. REMOVE MAP LAMP ASSY

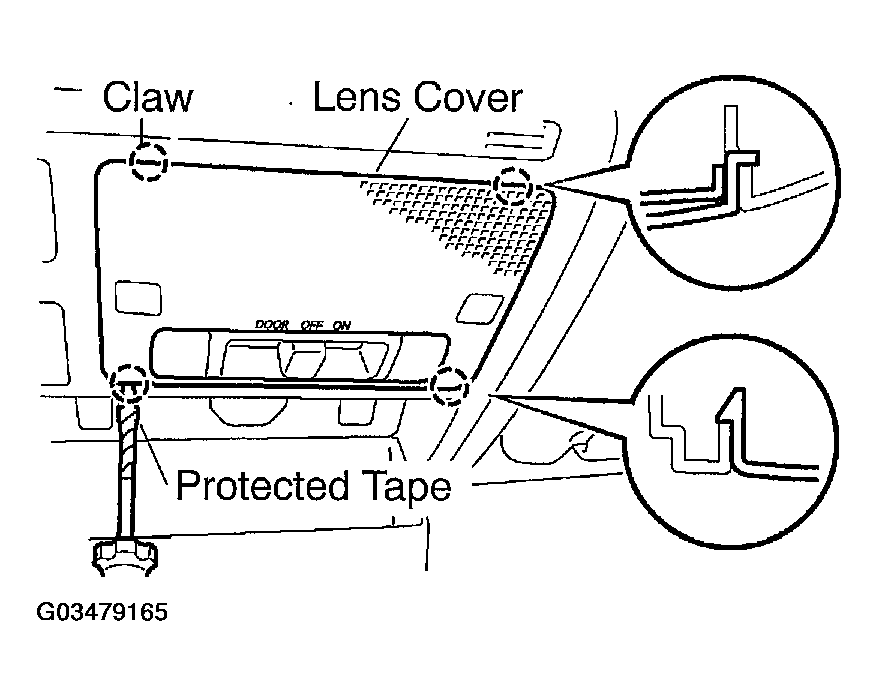

   1. Using a screwdriver, pry out the lens cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 1: Removing Lens Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

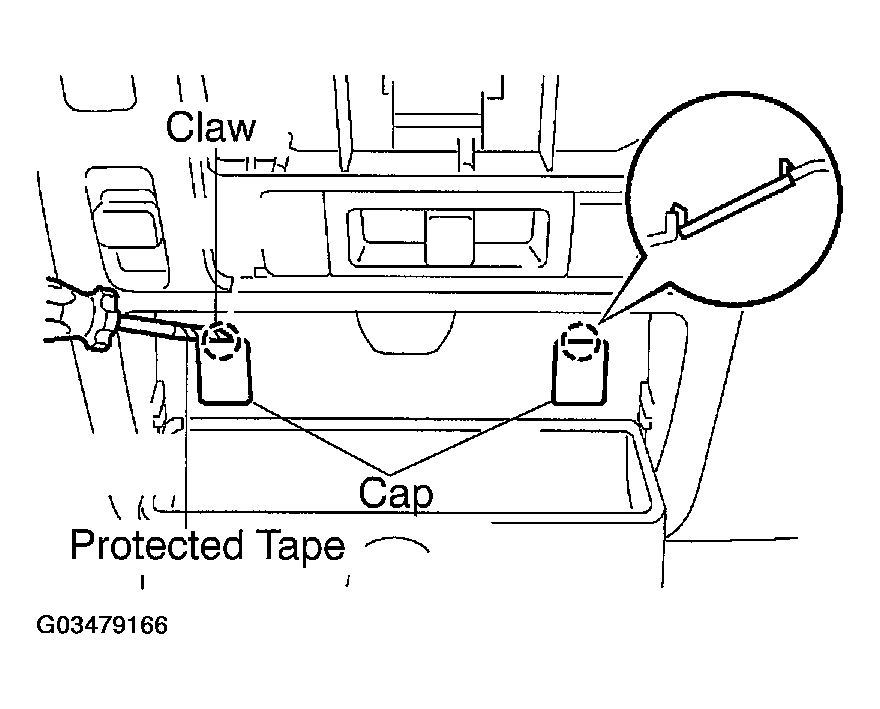

   2. Using a screwdriver, pry out the 2 caps.

      HINT:

      Tape the screwdriver tip before use.

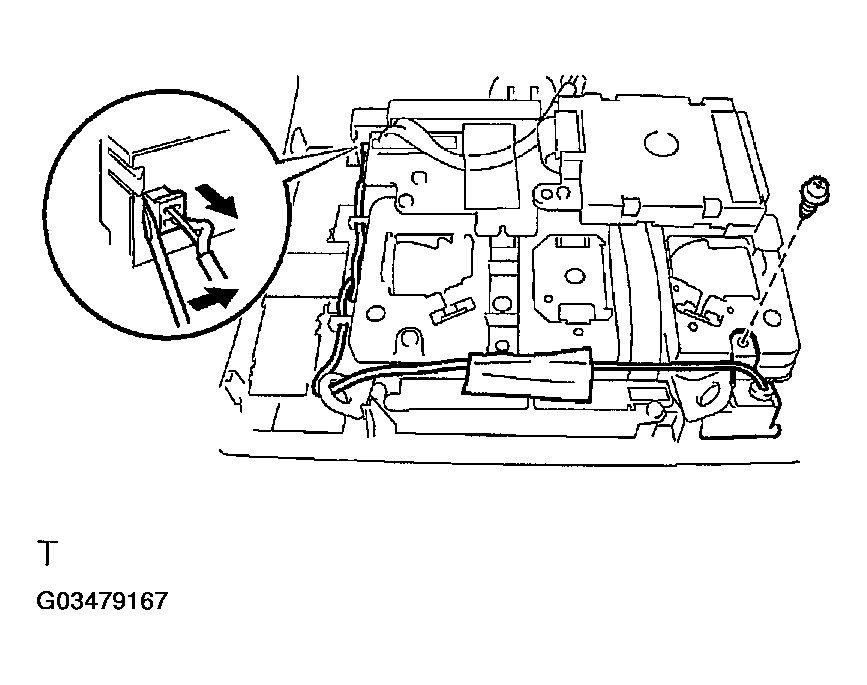

   3. Remove the 4 screws.
   4. Remove the map lamp and disconnect the connector.
      Fig 2: Removing MAP Lamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE MICROPHONE ASSY
   1. Remove the screw.
   2. Using a screwdriver, disconnect the connector and remove the microphone.
      Fig 3: Removing Microphone

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

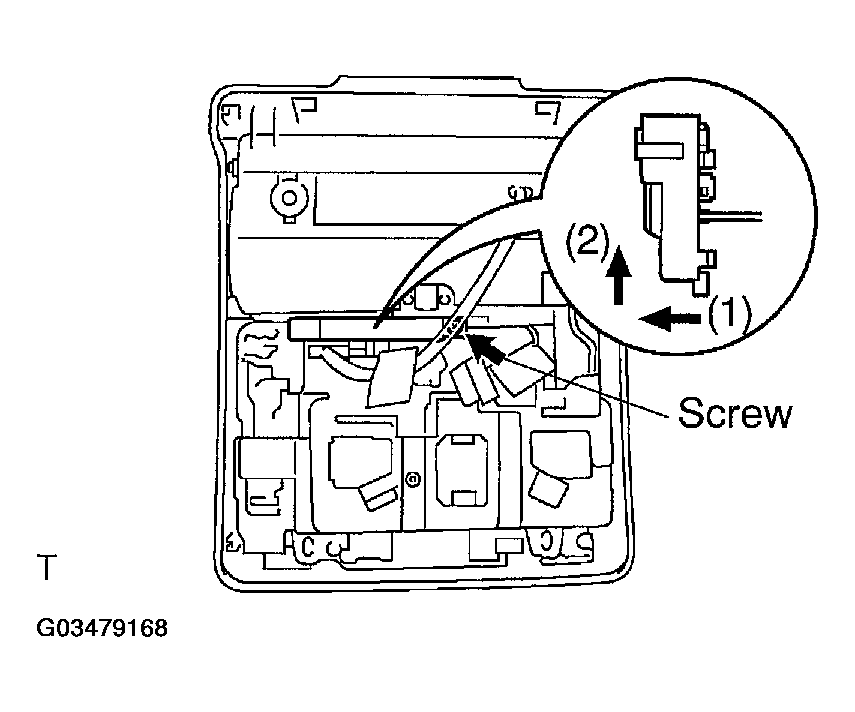

3. REMOVE MICROPHONE AMPLIFIER ASSY
   1. Remove the screw.
   2. Remove the microphone amplifier, as shown in the illustration.
      Fig 4: Removing Microphone Amplifier

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
