Active Test

ACTIVE TEST

COMBINATION METER:

HINT: Performing the ACTIVE TEST using the hand-held tester allows the relay, VSC, the actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the method to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.




a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position.

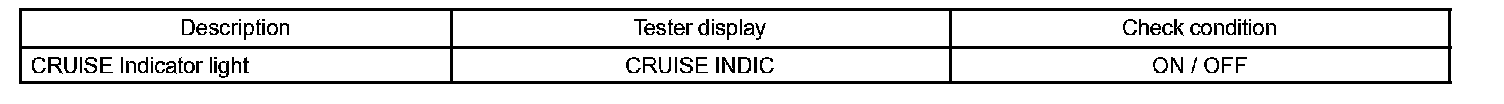

c. According to the display on tester, perform the "ACTIVE TEST".
