Air Bag

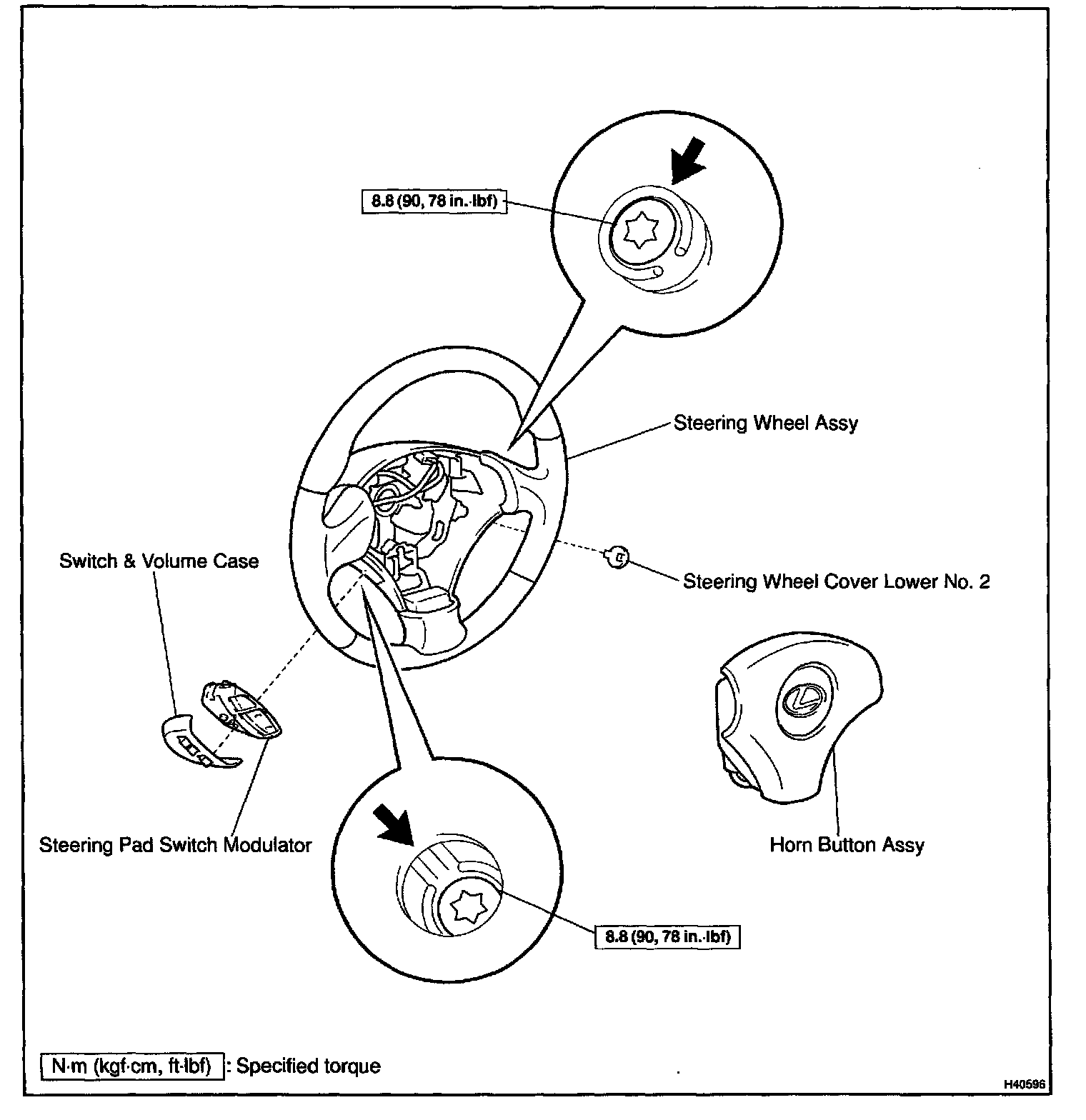

Horn Button Assy:

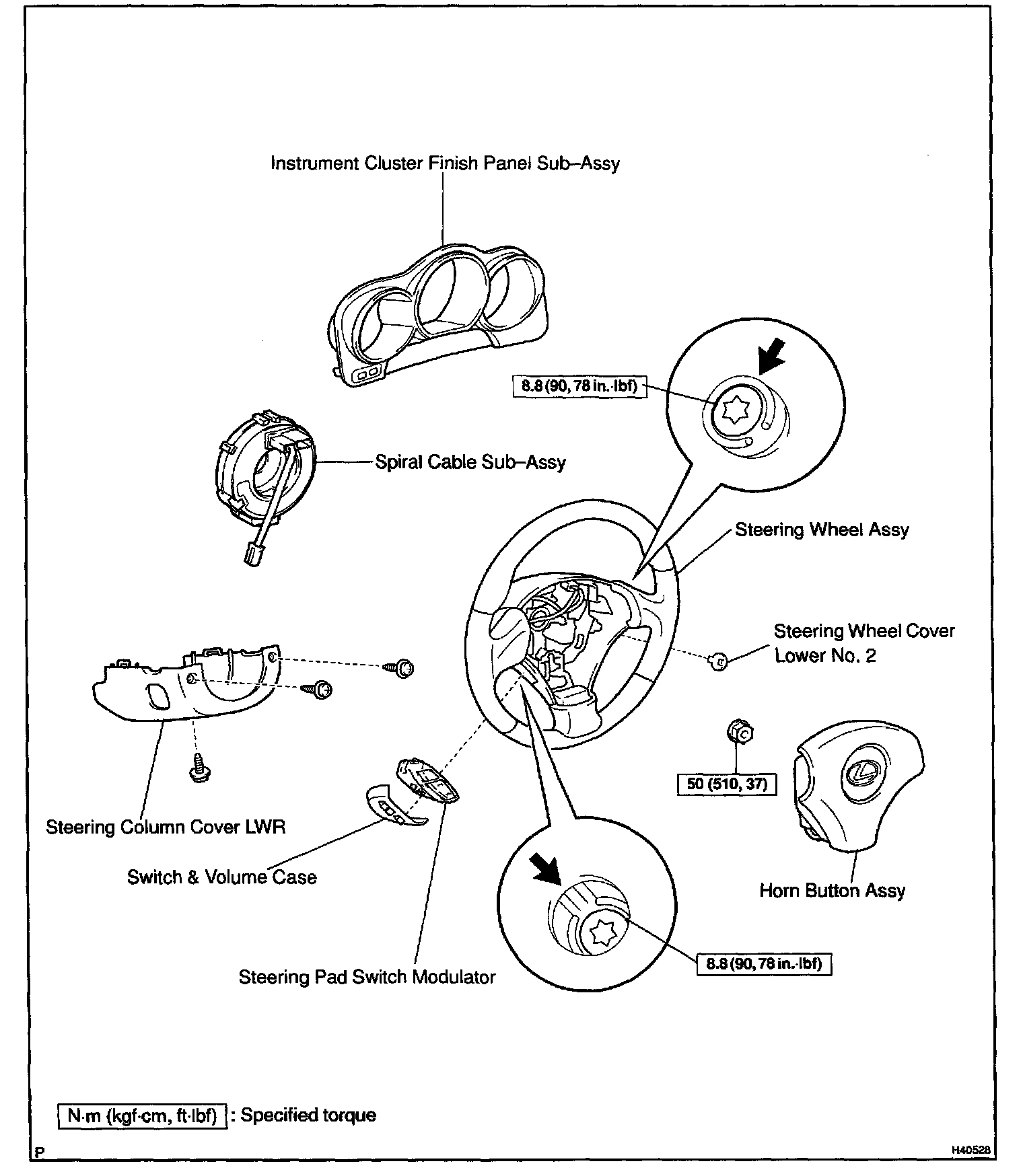

Spiral Cable Sub-Assy:

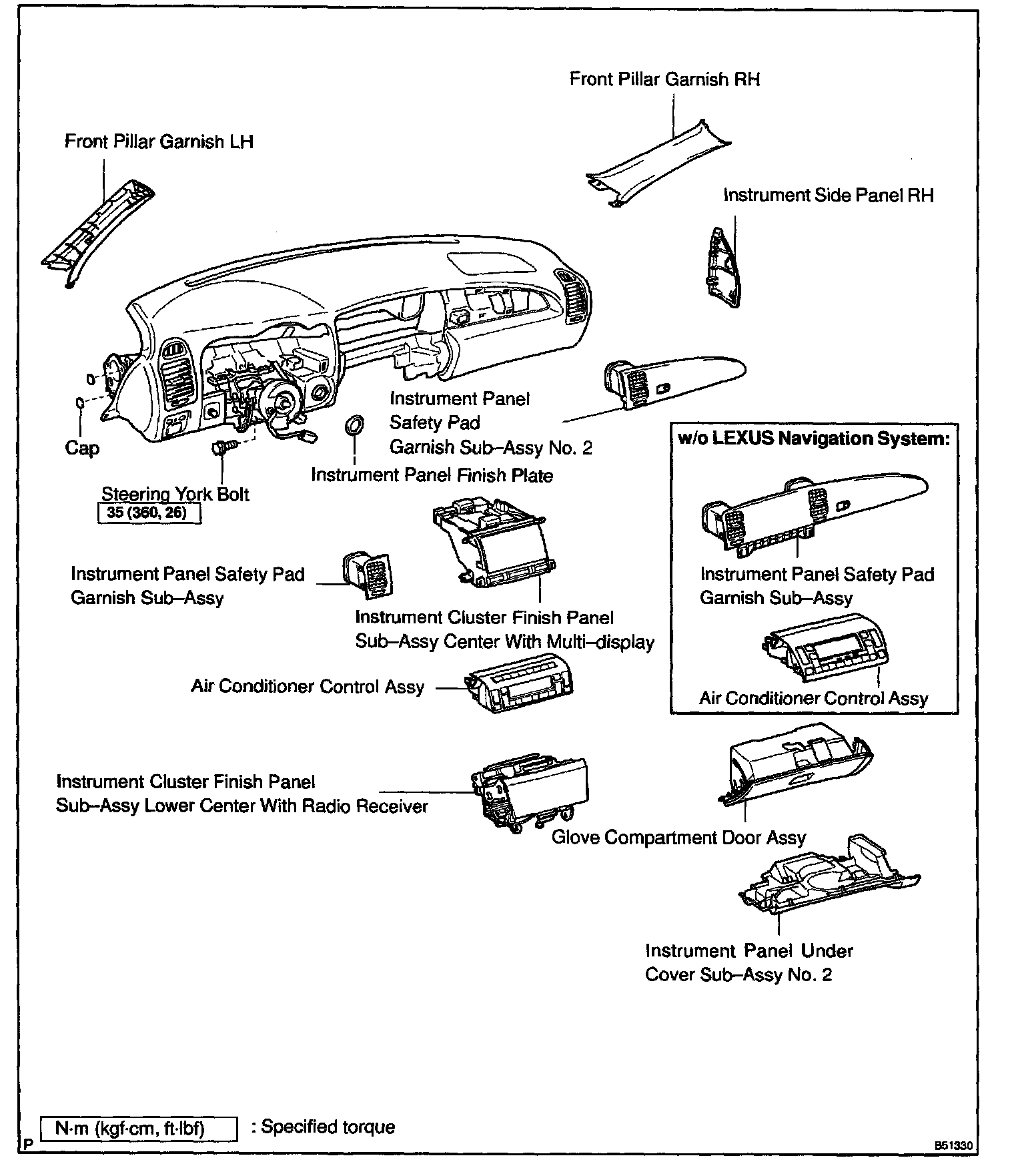

Instr Pnl Pass L/Door Air Bag Assy Part 1:

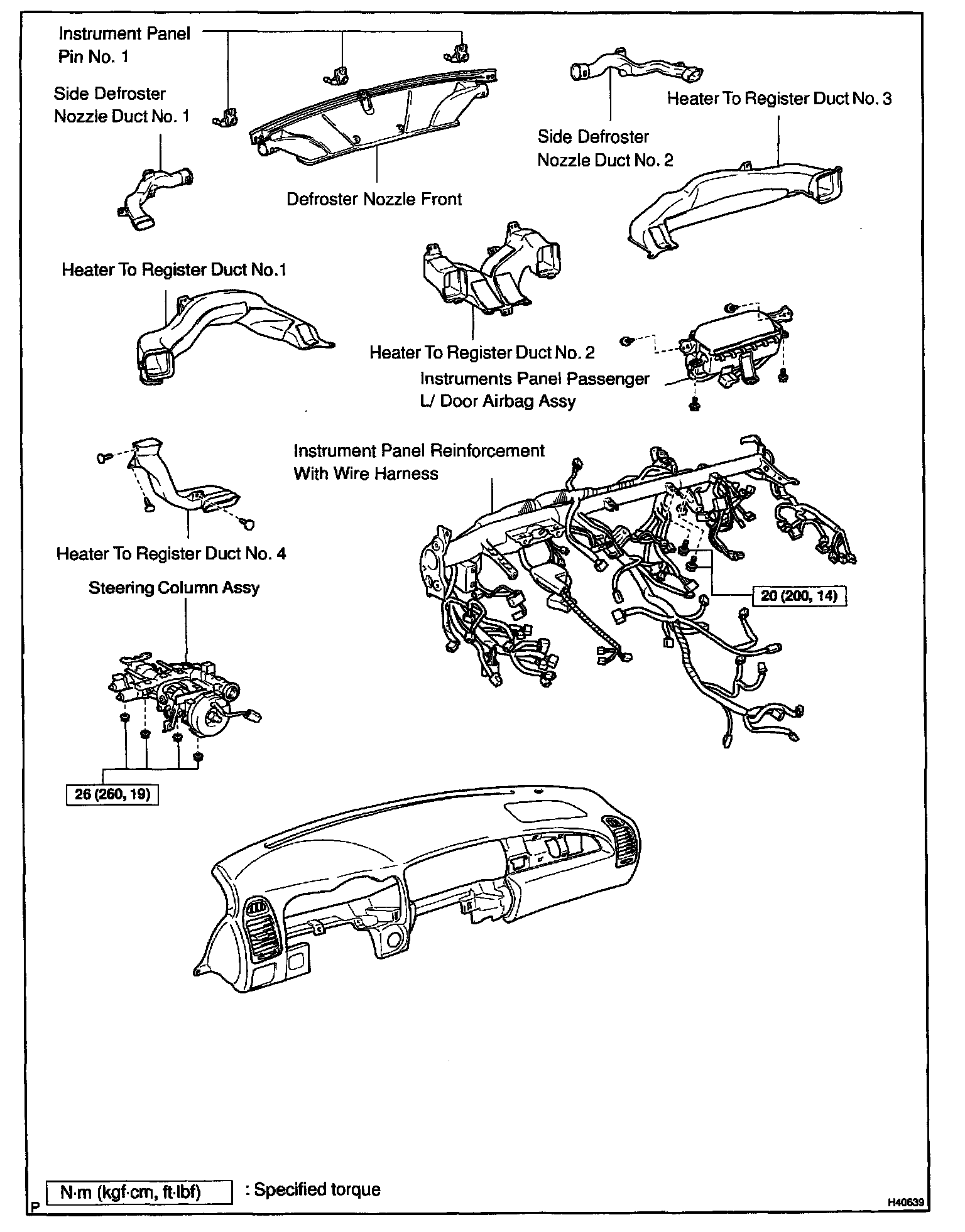

Instr Pnl Pass L/Door Air Bag Assy Part 2:



Instr Pnl Pass L/Door Air Bag Assy Part 3:
