Data List

DATA LIST

HINT: According to the DATA LIST displayed by the LEXUS Hand-held tester,you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.




a. Connect the LEXUS Hand-held tester to the DLC3.
b. Turn the ignition switch ON.

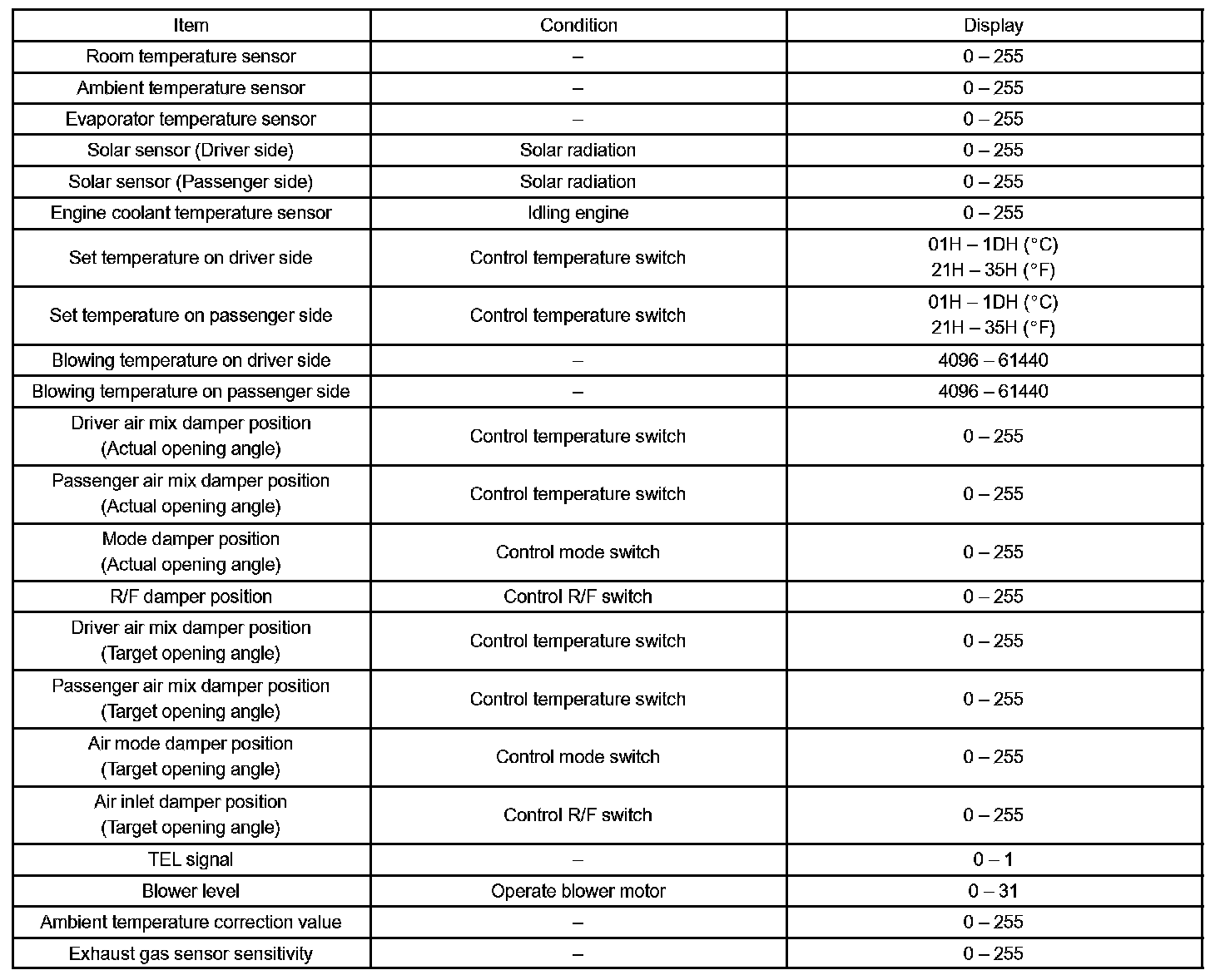

c. According to the display on tester, read the "DATA LIST".
