Intake Manifold

INSTALL INTAKE MANIFOLD ASSY

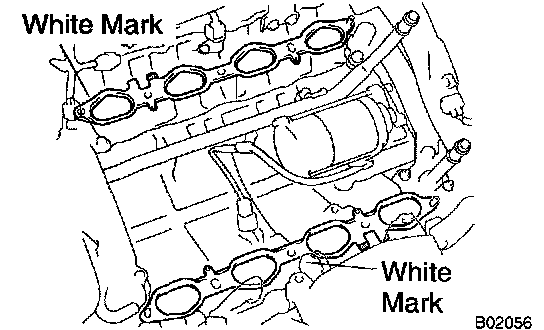

Intake Manifold Gaskets:

a. Place 2 new gaskets on the cylinder heads with the white mark facing outward.

NOTICE: Be careful of the installation direction.

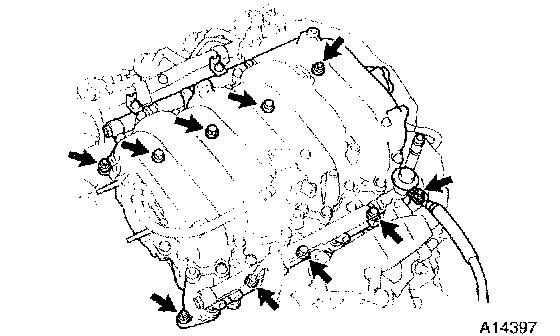

Torque Sequence:

b. Install the intake manifold assy with the 6 bolts and 4 nuts.
Torque: 18 Nm (185 kgf-cm, 13 ft. lbs.)
