Flex Plate

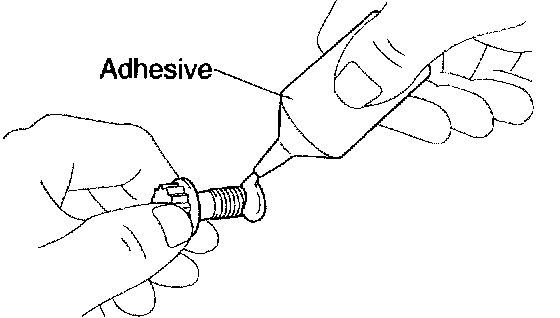

Apply adhesive to two or three of the threads of the mounting bolt end.

Drive plate & ring gear sub-assy x Crankshaft

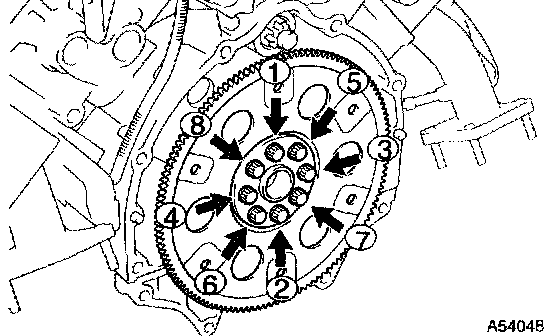

Bolt Torque Sequence:

1st 49 Nm (500 kgf-cm, 36 ft. lbs.)

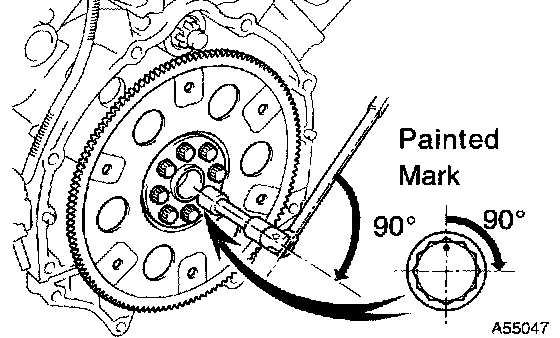

Torque Angle:

2nd Turn 90° Turn 90°Turn 90°
Drive plate & ring gear sub-assy x Torque converter clutch 48 Nm (490 kgf-cm, 35 ft. lbs.)
Drive plate runout
Max. 0.20 mm (0.0079 inch)
Torque converter clutch x Drive plate 48 Nm (490 kgf-cm, 35 ft. lbs.)
