Inspection Procedure

1. NO: Go to step   3
2. YES: GO TO NEXT STEP.

1. Using the hand-held tester, check the rear outer view mirror condition by the data monitor.

   Standard:

   Driver side J/B

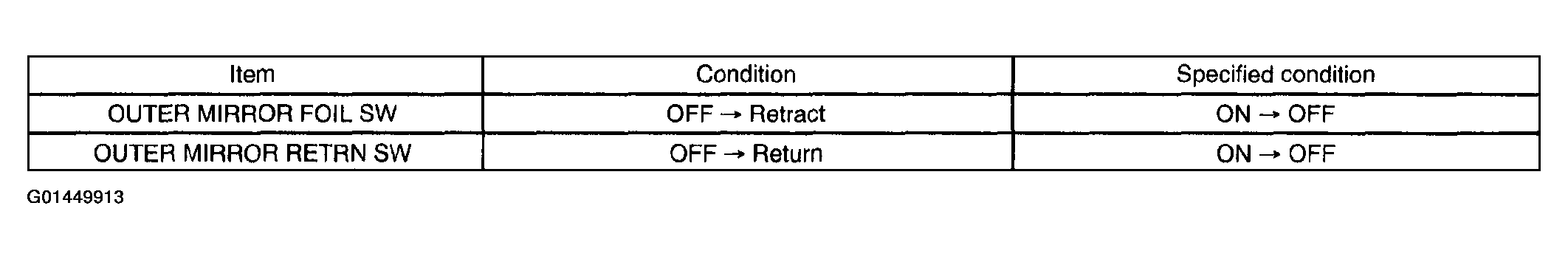

   Fig 1: Driver Side J/B Specified Condition Table - Rear Outer View Mirror

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK:  (See FLOW CHART 2 )
2. NG: GO TO NEXT STEP.

1. Check the continuity between each terminal of the retract switch.

   Standard:

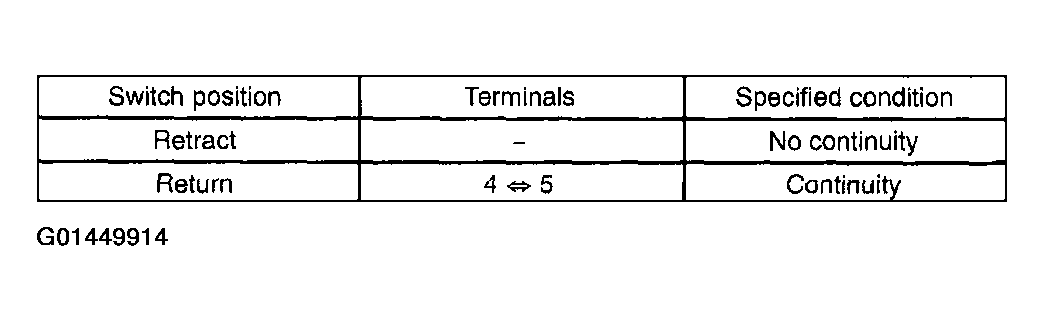

   Fig 2: Specified Condition Table - Retract Switch, Outer Mirror

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

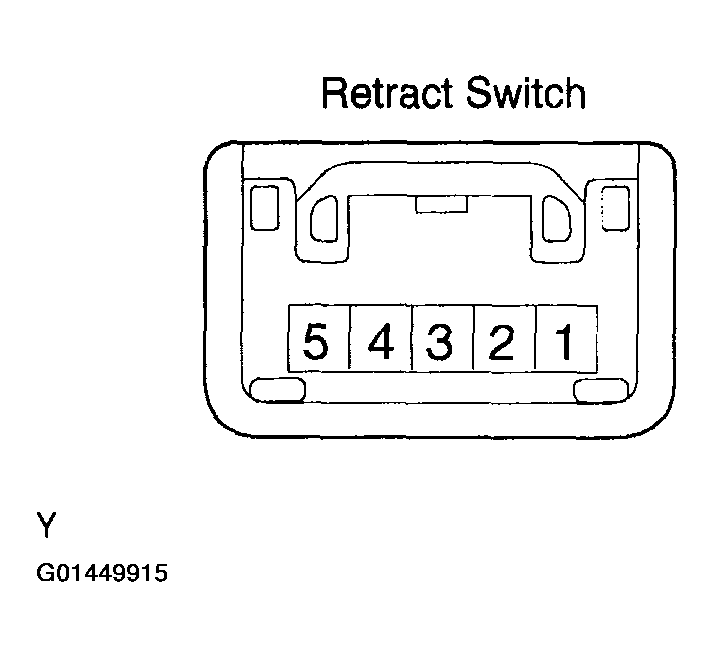

   Fig 3: Identifying Retract Switch Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE OUTER MIRROR SWITCH ASSY
2. OK: GO TO NEXT STEP.

1. Disconnect the retract switch and driver side J/B connectors.
2. Check the continuity between each terminal of the retract switch vehicle's side connector and the driver side J/B vehicle's side connector (See TERMINALS OF ECU ).

   Standard:

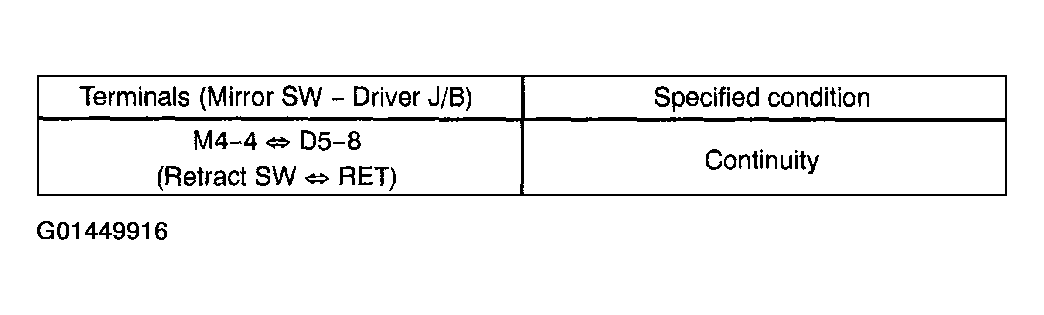

   Fig 4: Continuity Between Each Terminal Of The Retract Switch Vehicle's Side Connector And The Driver Side J/B Vehicle's Side Connector - Retract Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

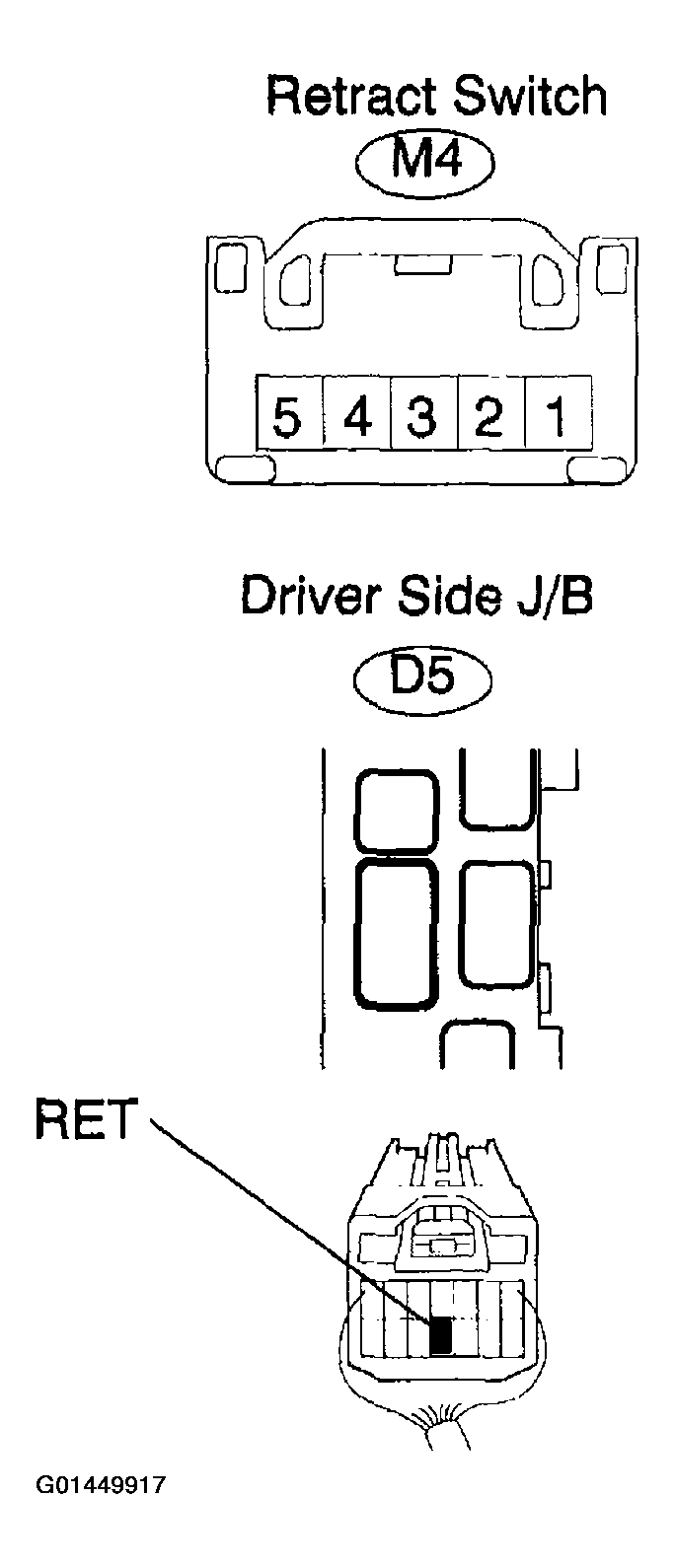

   Fig 5: Identifying Retract Switch (M4) Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• With hand-held tester, proceed to OK-A.
• Without hand-held tester, proceed to OK-B.

1. OK-A: REPLACE DRIVER SIDE JUNCTION BLOCK
2. OK-B:  (See FLOW CHART 2 )
3. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
