Diagnostic Trouble Code Table
DIAGNOSTIC TROUBLE CODE TABLE
| DTC | Description |
|---|---|
| DTC B1211 | DRIVER DOOR ECU COMMUNICATION STOP |
| DTC B1212 | FRONT PASSENGER DOOR ECU COMMUNICATION STOP |
| DTC B1213 | TILT AND TELESCOPIC ECU COMMUNICATION STOP |
| DTC B1214, B1215, B1266, B1267, B1291, B1292 | DOOR SYSTEM COMMUNICATION BUS MALFUNCTION (+B SHORT)/(GND SHORT), INSTRUMENT PANEL SYSTEM COMMUNICATION BUS MALFUNCTION (+B SHORT)/(GND SHORT), LIGHT SYSTEM COMMUNICATION BUS MALFUNCTION (+B SHORT)/(GND SHORT) |
| DTC B1247 | TIRE PRESSURE MONITOR RECEIVER COMMUNICATION STOP |
| DTC B1248 | AVC-LAN COMMUNICATION IMPOSSIBLE |
| DTC B1261 | ECM (ENGINE ECU) COMMUNICATION STOP |
| DTC B1262 | A/C ECU COMMUNICATION STOP |
| DTC B1263 | LUGGAGE ROOM JUNCTION BLOCK ECU COMMUNICATION STOP |
| DTC B1269 | THEFT DETERRENT ECU COMMUNICATION STOP |
| DTC B1271 | COMBINATION METER ECU COMMUNICATION STOP |
| DTC B1272 | POWER SEAT ECU COMMUNICATION STOP |
| DTC B1273 | SLIDING ROOF ECU COMMUNICATION STOP |
| DTC B1278 | COMBINATION SWITCH ECU COMMUNICATION STOP |
| DTC B1281 | AIRBAG ECU COMMUNICATION STOP |
| DTC B1282 | SKID CONTROL ECU COMMUNICATION STOP |
| DTC B1283 | DRIVER SIDE JUNCTION BLOCK ECU COMMUNICATION STOP |
| DTC B1284 | PASSENGER SIDE JUNCTION BLOCK ECU COMMUNICATION STOP |
| DTC B1285 | STEERING PAD SWITCH COMMUNICATION STOP |
| DTC B1289 | PASSENGER SEAT ECU COMMUNICATION STOP |
| DTC B1294 | IMMOBOLISER ECU COMMUNICATION STOP |
| DTC B1296 | FRONT LIGHT ECU COMMUNICATION STOP |

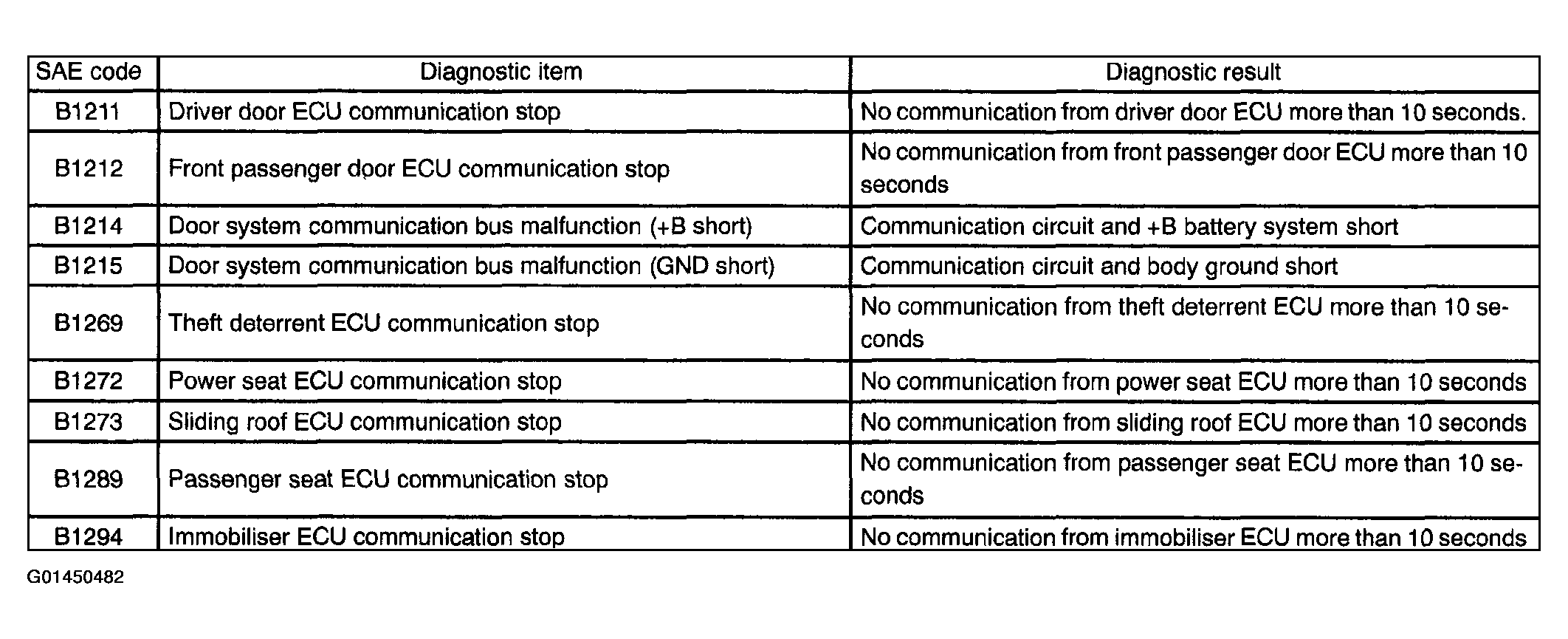

- GATEWAY ECU DIAGNOSTIC TROUBLE CODE (DOOR BUS)

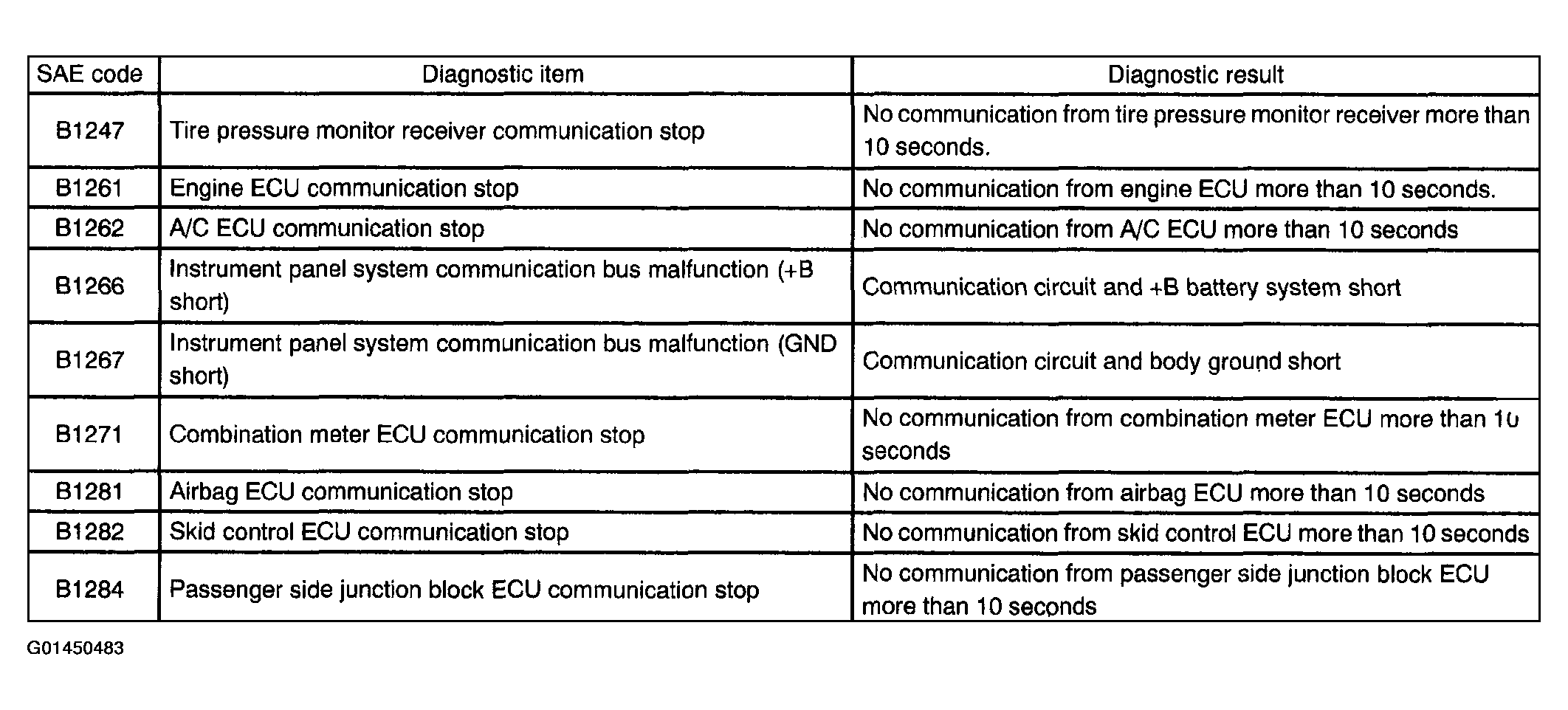

- GATEWAY ECU DIAGNOSTIC TROUBLE CODE (I/P BUS)

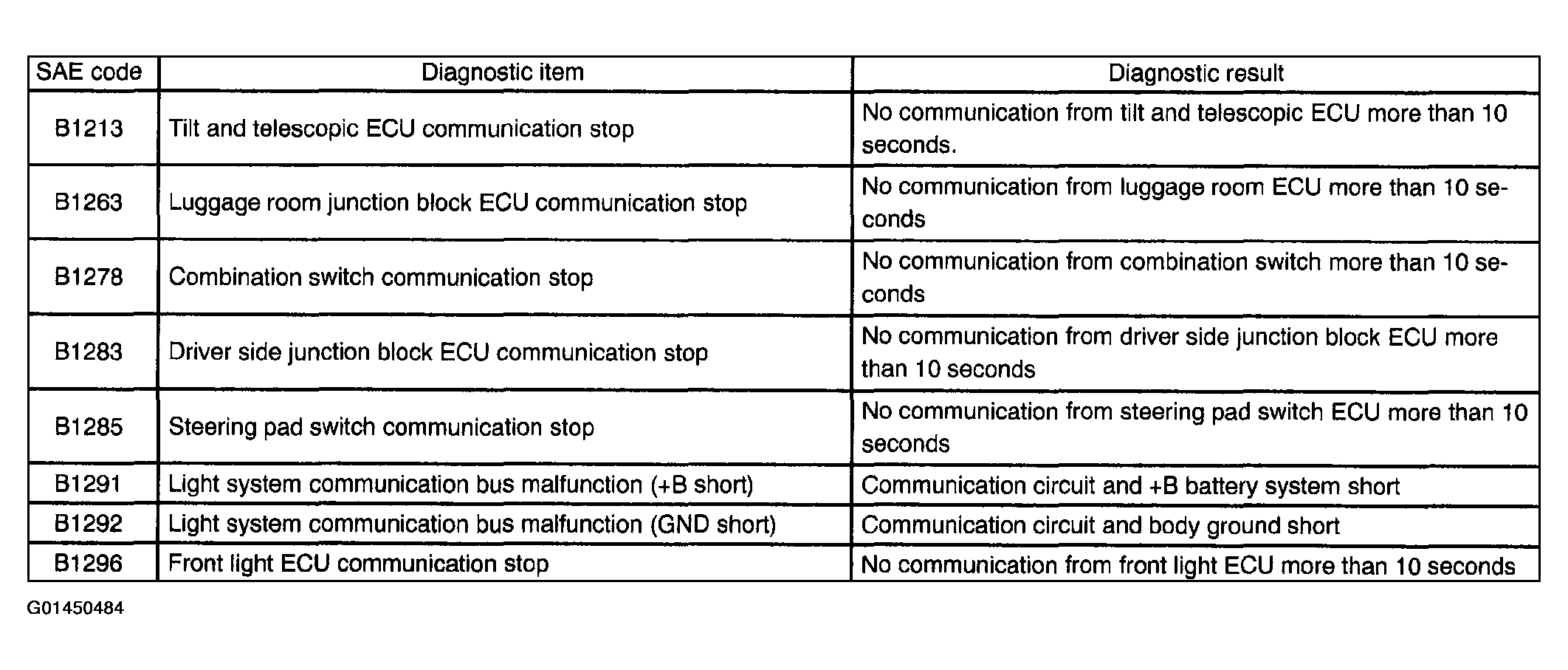

- GATEWAY ECU DIAGNOSTIC TROUBLE CODE (LIGHTING BUS)

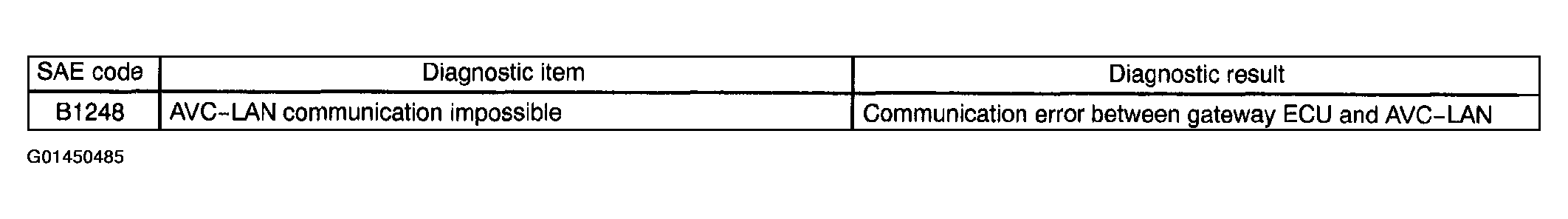

- GATEWAY ECU DIAGNOSTIC TROUBLE CODE (AVC-LAN)
