Driver Power Window Does Not Operate: Wiring Diagram

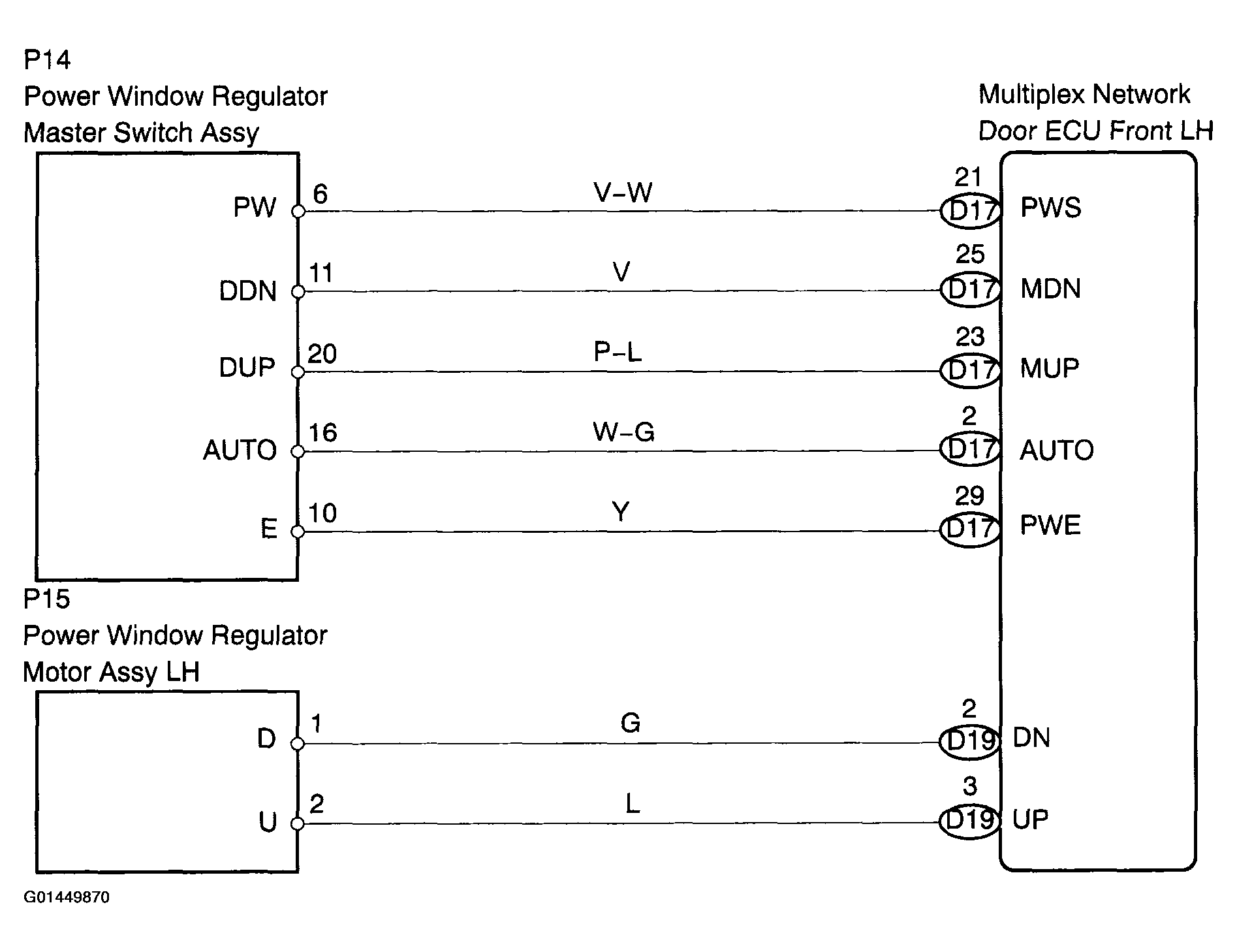

Fig 1: Power Window Wiring Schematic
G01449870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
