Passenger Window Dose Not Operate Via Master Switch: Wiring Diagram

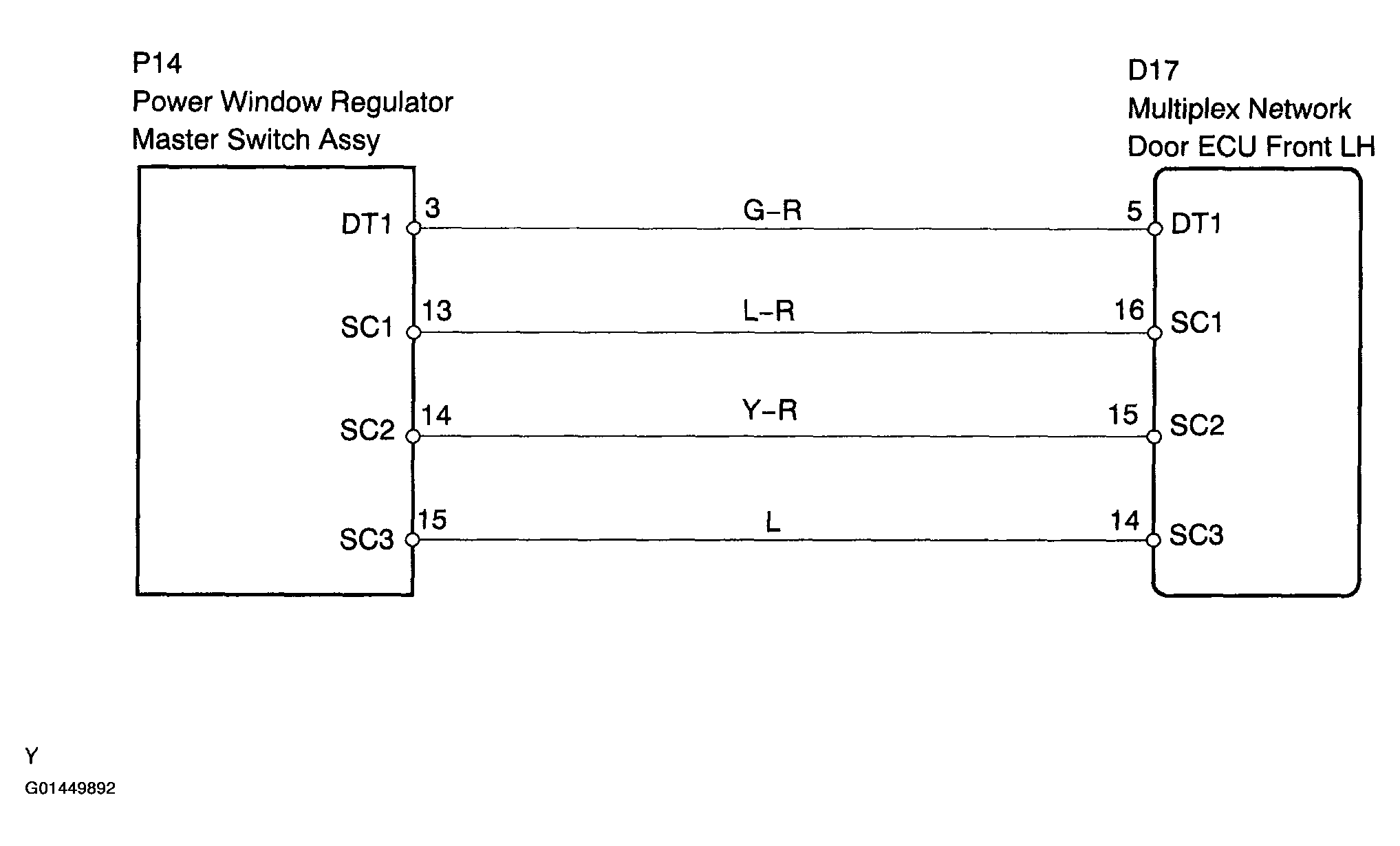

Fig 1: Passenger Window Wiring Schematic
G01449892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
