Testing Procedure

For wiring diagram see Fig 1. For testing procedure see Fig 2 and Fig 3 .

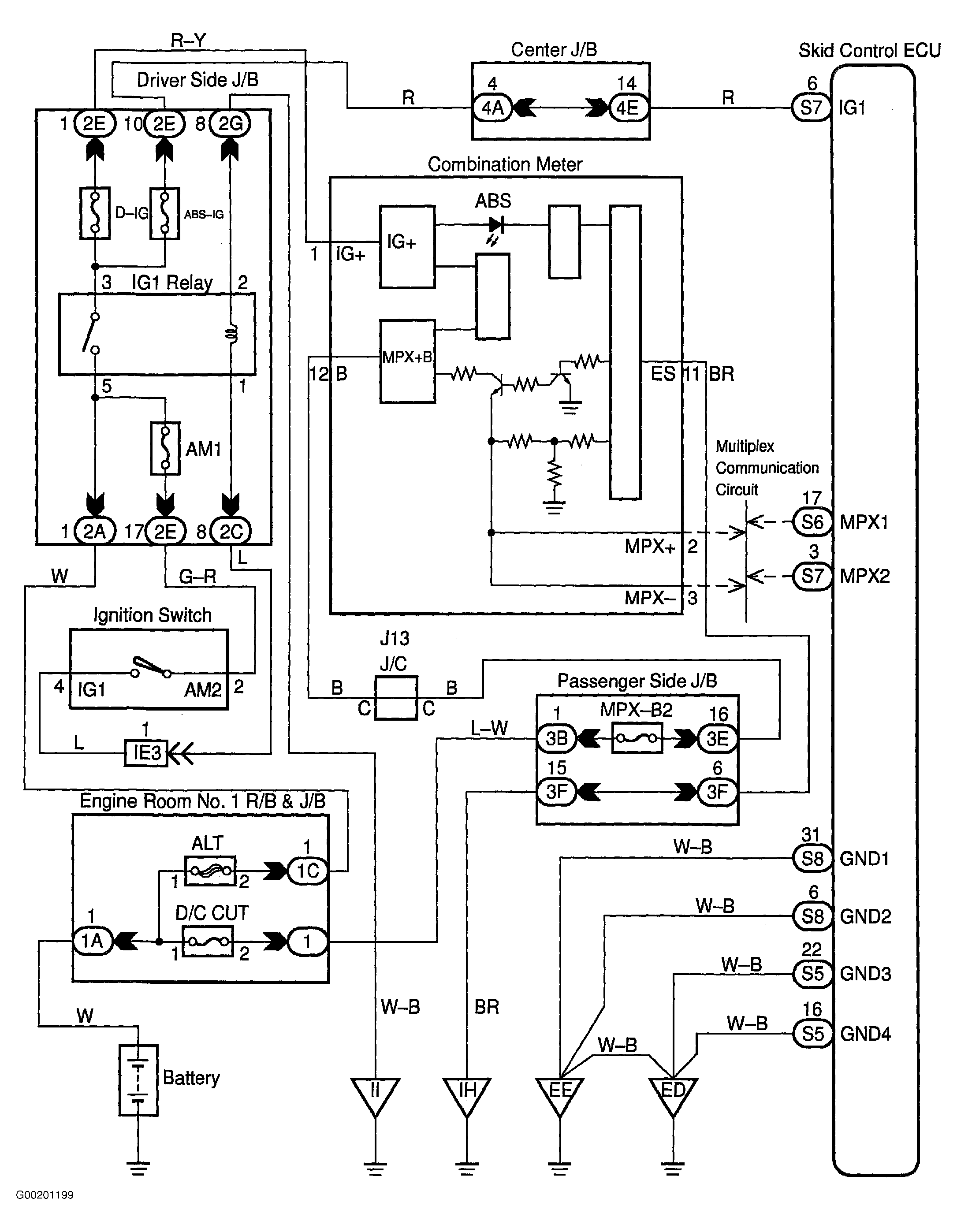

Fig 1: Wiring Diagram ABS ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

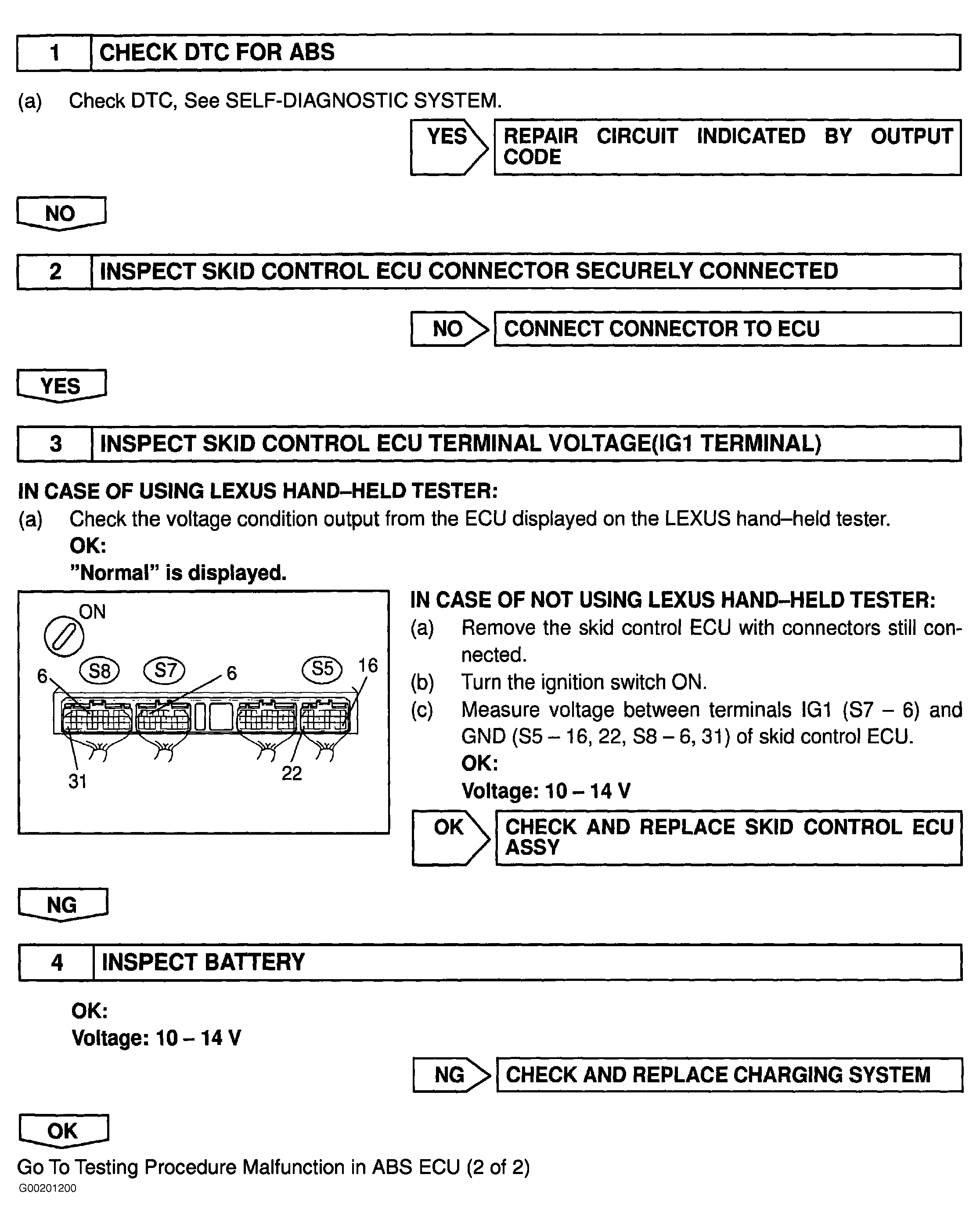

Fig 2: Testing Procedure Malfunction In ABS ECU (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

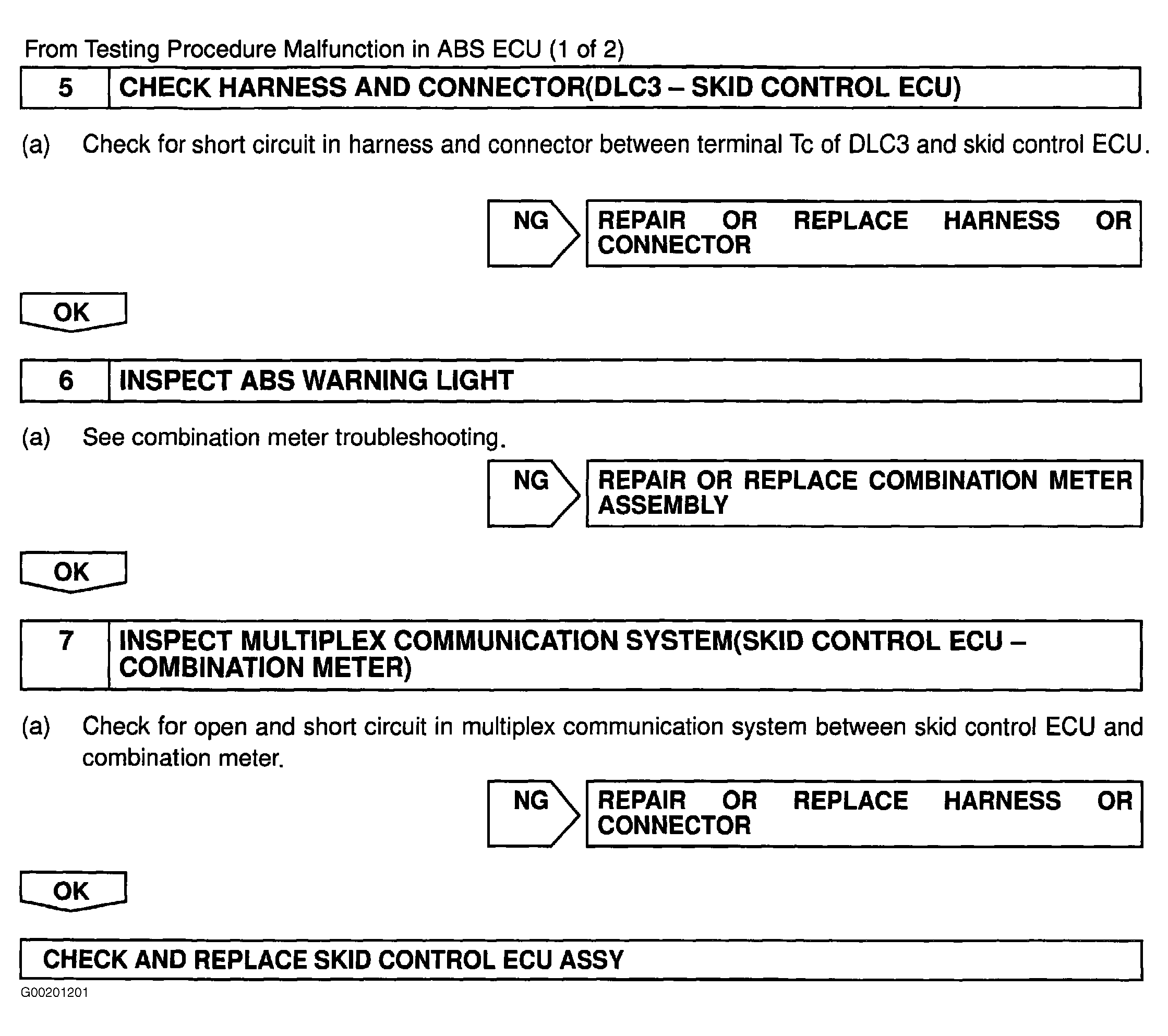

Fig 3: Testing Procedure Malfunction In ABS ECU (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
