Combination Meter ASSY: Overhaul

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (See  REPLACEMENT  )
2. REMOVE COMBINATION METER ASSY (See  REPLACEMENT  )
3. REMOVE COMBINATION METER GLASS
   1. Disengage the 9 claws and remove the combination meter glass.

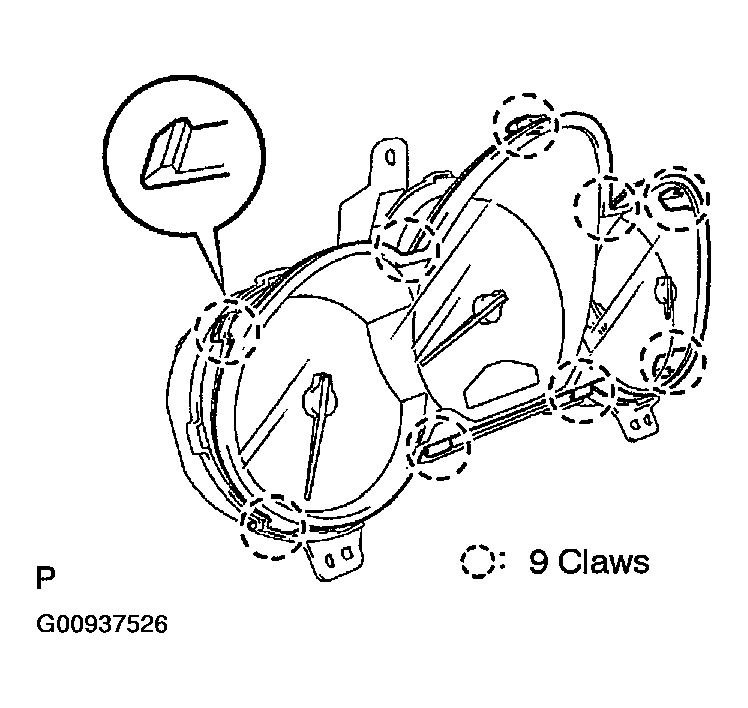

   Fig 1: Disengaging Claws & Removing Combination Meter Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
