GPS Antenna: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. MOVE ROOF PANEL TO HALF (See  OVERHAUL  )
2. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
3. REMOVE REAR SEAT HEADREST PLATE COVER (See  OVERHAUL  )
4. REMOVE WIND DEFLECTOR BOARD ASSY (See  OVERHAUL  )
5. REMOVE REAR SEAT HEADREST PLATE (See  OVERHAUL  )
6. REMOVE REAR SEAT HEADREST ASSY (See  OVERHAUL  )
7. REMOVE REAR SEAT BACK ASSY (See  OVERHAUL  )
8. REMOVE REAR SEAT BACK BOARD (See  OVERHAUL  )
9. REMOVE DOOR SCUFF PLATE ASSY RH (See  OVERHAUL  )
10. REMOVE DOOR SCUFF PLATE ASSY LH (See  OVERHAUL  )
11. REMOVE QUARTER TRIM PANEL ASSY FRONT RH (See  OVERHAUL  )
12. REMOVE QUARTER TRIM PANEL ASSY FRONT LH (See  OVERHAUL  )

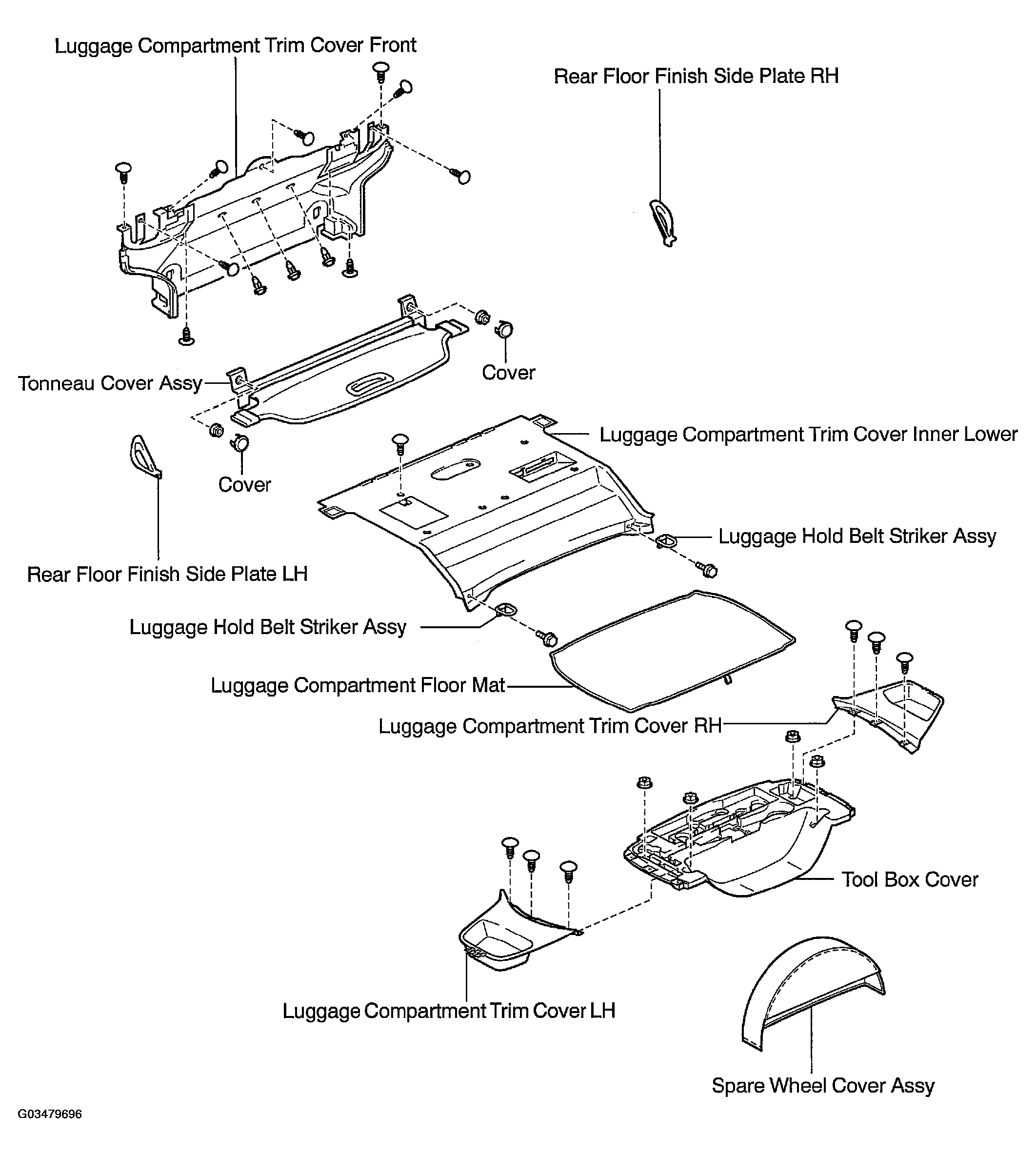

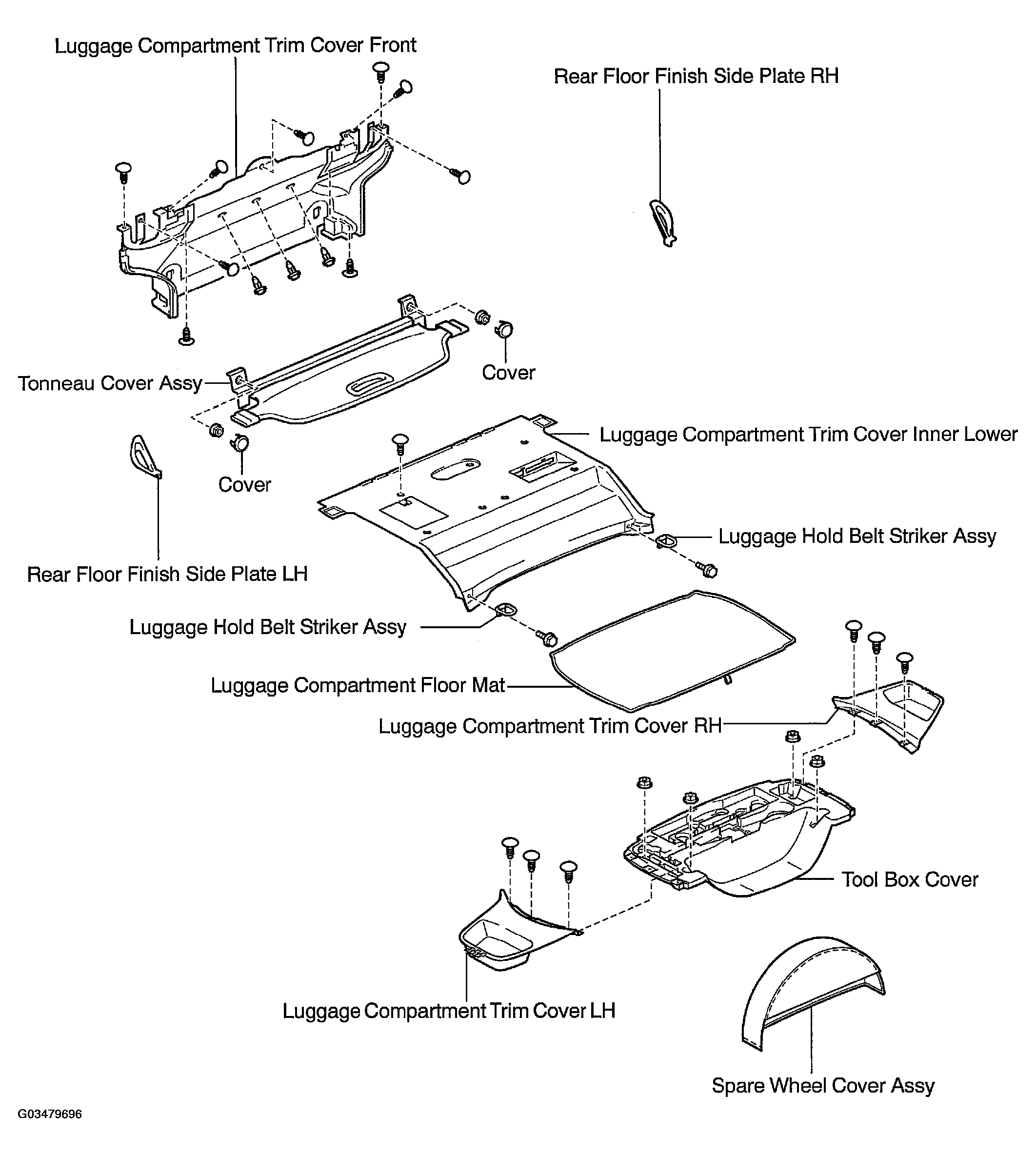

13. REMOVE SPARE WHEEL COVER ASSY (See  Figure )
14. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  Figure )
15. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (See  Figure )
16. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH (See  Figure )
17. REMOVE TOOL BOX COVER (See  Figure )
18. REMOVE LUGGAGE HOLD BELT STRIKER ASSY (See  Figure )
19. REMOVE TONNEAU COVER ASSY (See  Figure )
20. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER (See  Figure )
21. REMOVE REAR FLOOR FINISH SIDE PLATE RH (See  Figure )
22. REMOVE REAR FLOOR FINISH SIDE PLATE LH (See  Figure )
23. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT (See  Figure )
24. RAISE PACKAGE TRAY TRIM ASSY (See  OVERHAUL  )
25. REMOVE PACKAGE TRAY TRIM ASSY (See  OVERHAUL  )
26. REMOVE BACK PANEL TRIM COVER
    1. Remove the 4 clips and back panel trim cover.
27. REMOVE GPS ANTENNA
    1. Disconnect the connector and 3 clamps.
    2. Remove the 2 bolts and GPS antenna with package tray trim bracket.
    3. Using a knife, cut off the adhesive tape.
       NOTE: Do not damage the package tray trim bracket.
    4. Disconnect the 2 clamps, and then remove the GPS antenna.

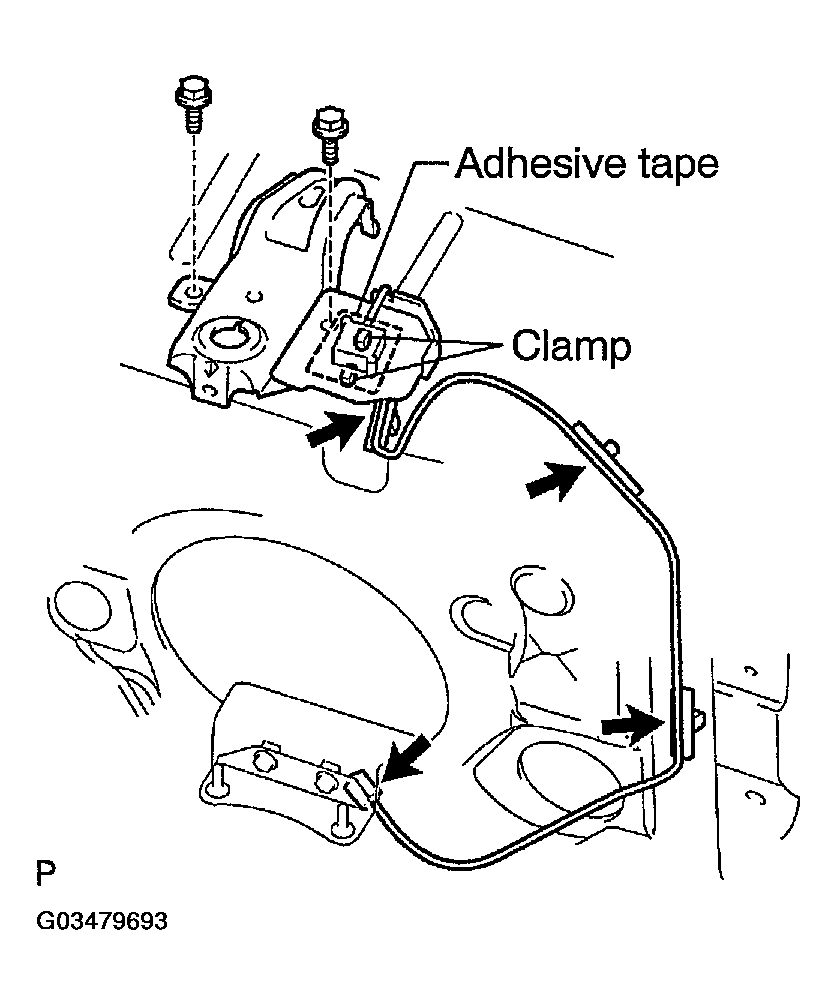

    Fig 1: Disconnecting Connector And 3 Clamps

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
28. INSTALL GPS ANTENNA
    1. Install the GPS antenna with package tray trim bracket, with the 2 bolts.
    2. Connect the 3 clamps.
    3. Connect the connector.

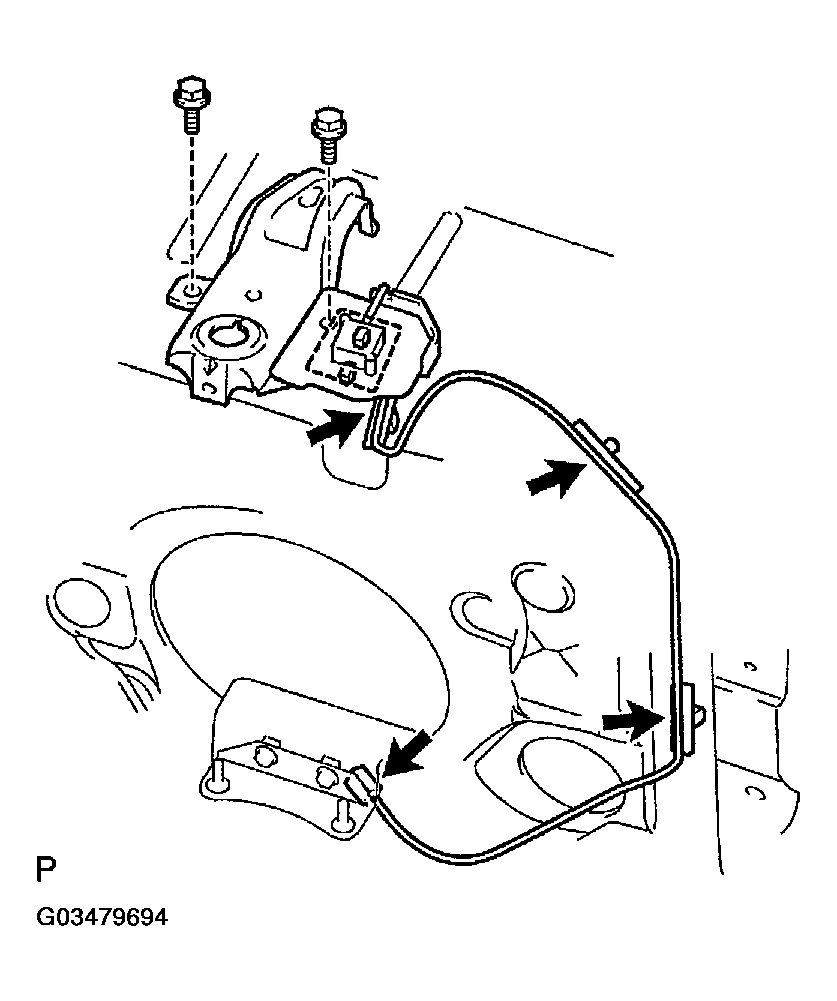

    Fig 2: Connecting Connector And 3 Clamps

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
