Telephone Transceiver ASSY (2003 My): Components

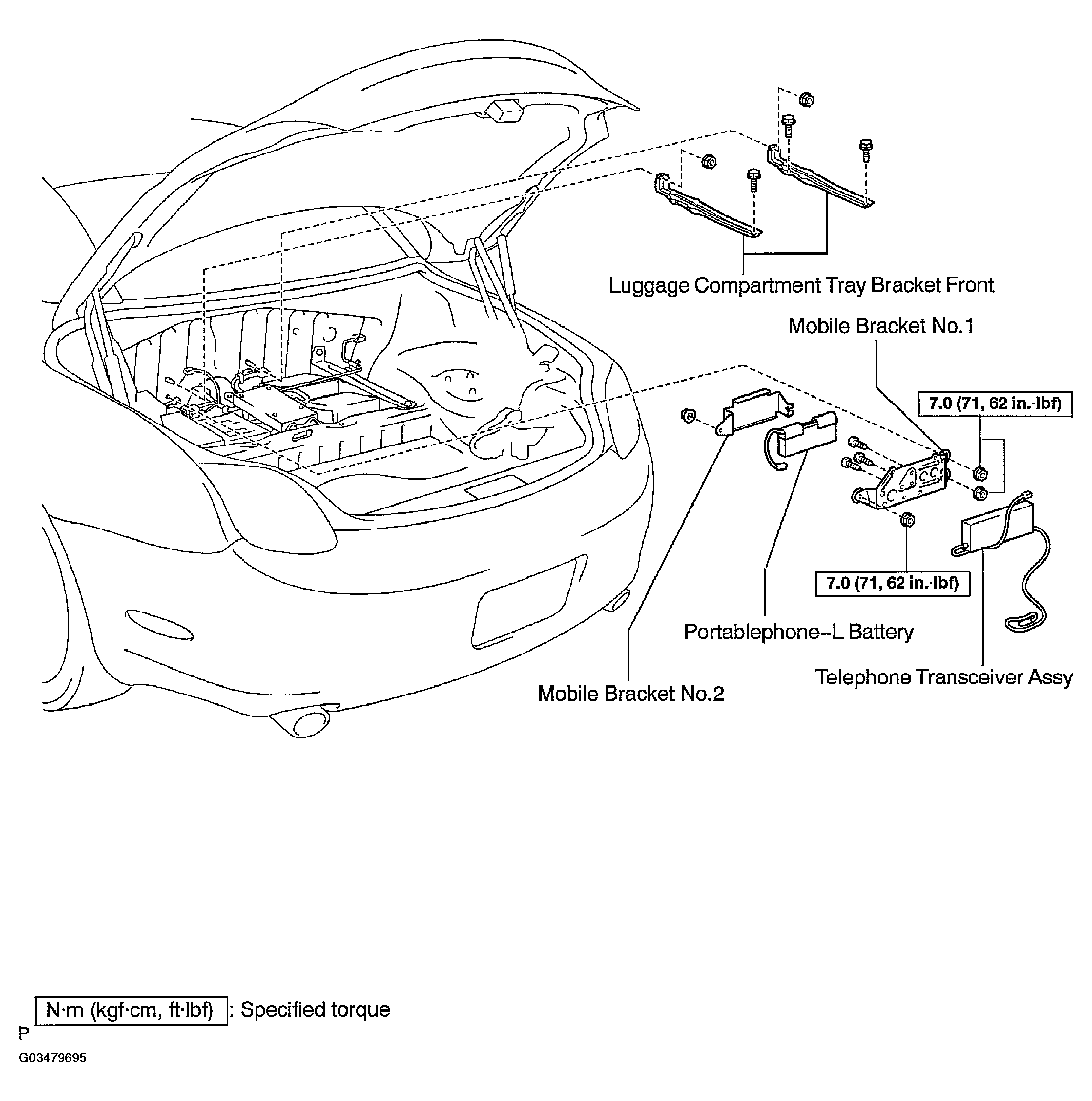

Fig 1: Exploded View Of Telephone Transceiver Assy (2003 MY)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Luggage Compartment Trim Components (2003 MY)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
