Telephone Transceiver ASSY (2003 My): Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE SPARE WHEEL COVER ASSY (See  Figure )
2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  Figure )
3. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (See  Figure )
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH (See  Figure )
5. REMOVE TOOL BOX COVER (See  Figure )
6. REMOVE LUGGAGE HOLD BELT STRIKER ASSY (See  Figure )
7. REMOVE TONNEAU COVER ASSY (See  Figure )
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER (See  Figure )
9. REMOVE REAR FLOOR FINISH SIDE PLATE RH (See  Figure )
10. REMOVE REAR FLOOR FINISH SIDE PLATE LH (See  Figure )
11. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT (See  Figure )
12. REMOVE LUGGAGE COMPARTMENT TRAY BRACKET FRONT
    1. Remove the 2 nuts and 3 bolts.
    2. Remove the 2 luggage compartment tray bracket fronts.

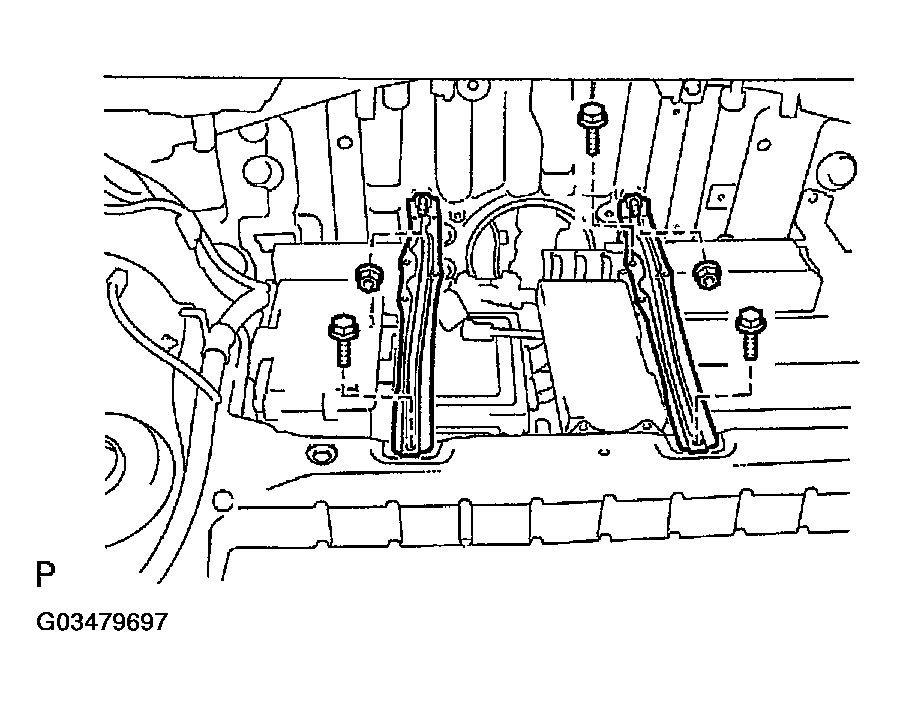

    Fig 1: Removing 2 Nuts And 3 Bolts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE TRANSCEIVER & BATTERY ASSY
    1. Disconnect the connectors and clamps.
    2. Remove the 3 nuts and transceiver & battery assembly.
14. REMOVE PORTABLEPHONE-L BATTERY
    1. Remove the nut and mobile bracket No.2.
    2. Disconnect the connector, and then remove the portable-phone-L battery.
15. REMOVE TELEPHONE TRANSCEIVER ASSY
    1. Disconnect the connectors and clamps.
    2. Remove the 3 screws and telephone transceiver assembly from the mobile bracket No.1.
    NOTE: The telephone transceiver assembly should be replaced together with the mayday ECU assembly.

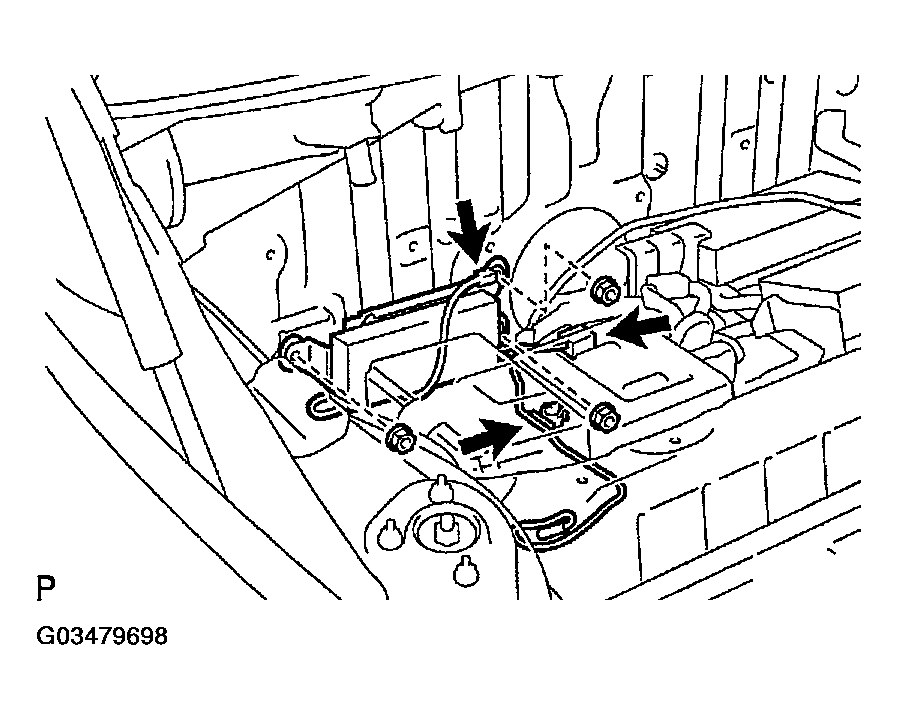

    Fig 2: Removing 3 Nuts And Transceiver & Battery Assembly

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. INSTALL TRANSCEIVER & BATTERY ASSY
    1. Disconnect the 2 dummy connectors from the wire harness connectors of a new telephone transceiver assembly, and connect those wire harness connectors each other.
    2. Install the transceiver & battery assembly with the 3 nuts.

       Torque: 7.0 N.m (71 kgf.cm, 62 in..lbf)

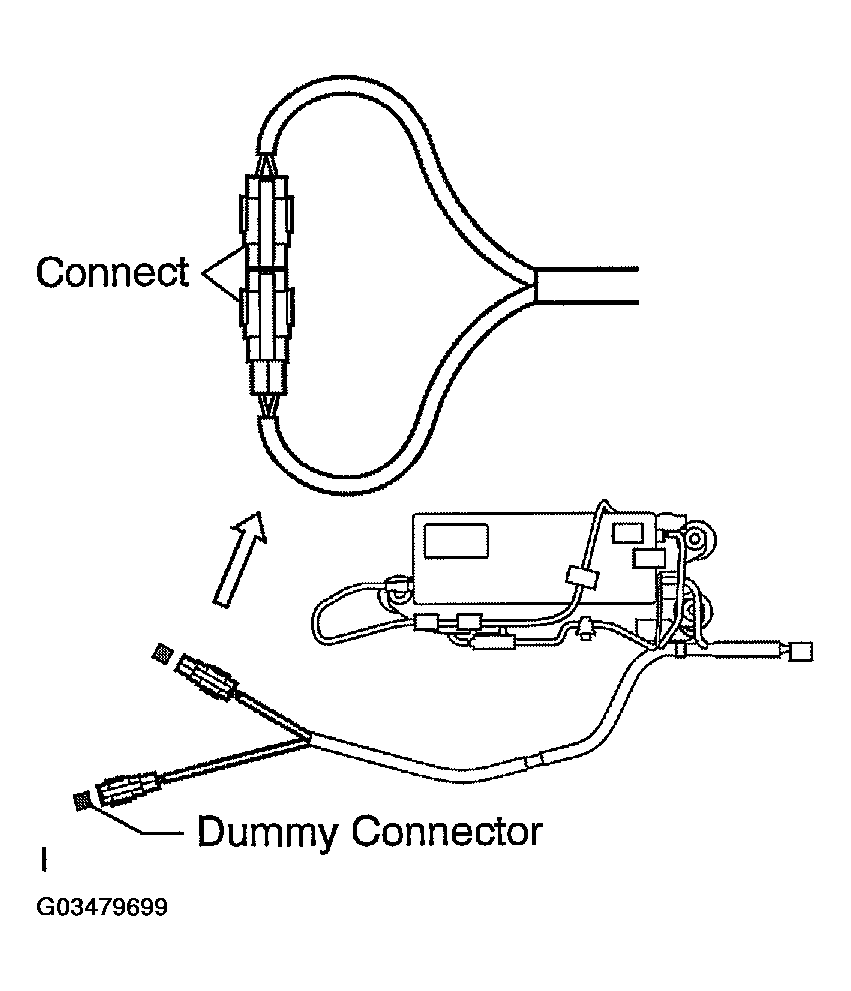

       Fig 3: Connecting Wire Harness Connectors

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: Make sure that the last 4 digits of serial No. of the mayday ECU assembly correspond to those of the telephone transceiver assembly.
    3. Connect the connectors and clamps.

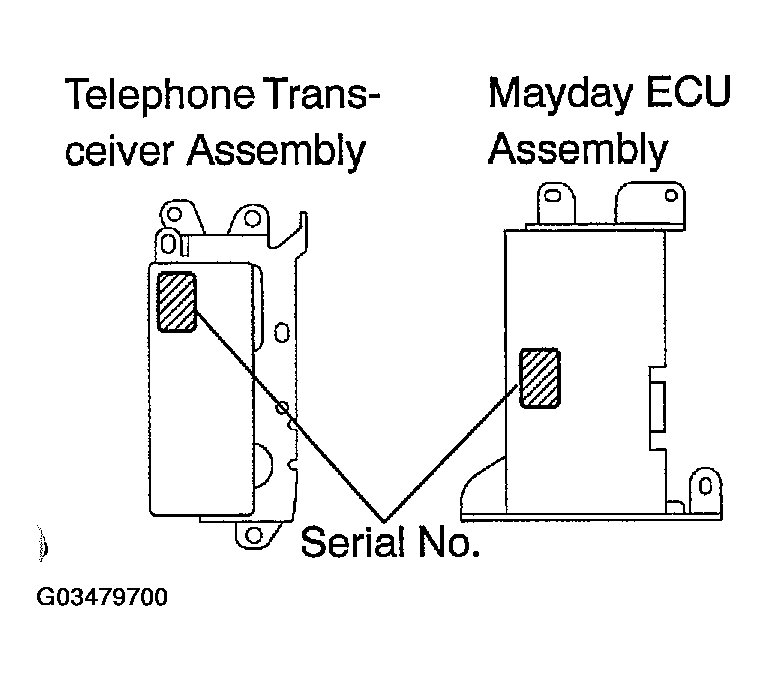

    Fig 4: Identifying Mayday ECU Assembly And Telephone Transceiver Assembly

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
