Circuit Description

Refer to DTC P0115 on DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT, DTC P0117 ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT, DTC P0118 ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT  .

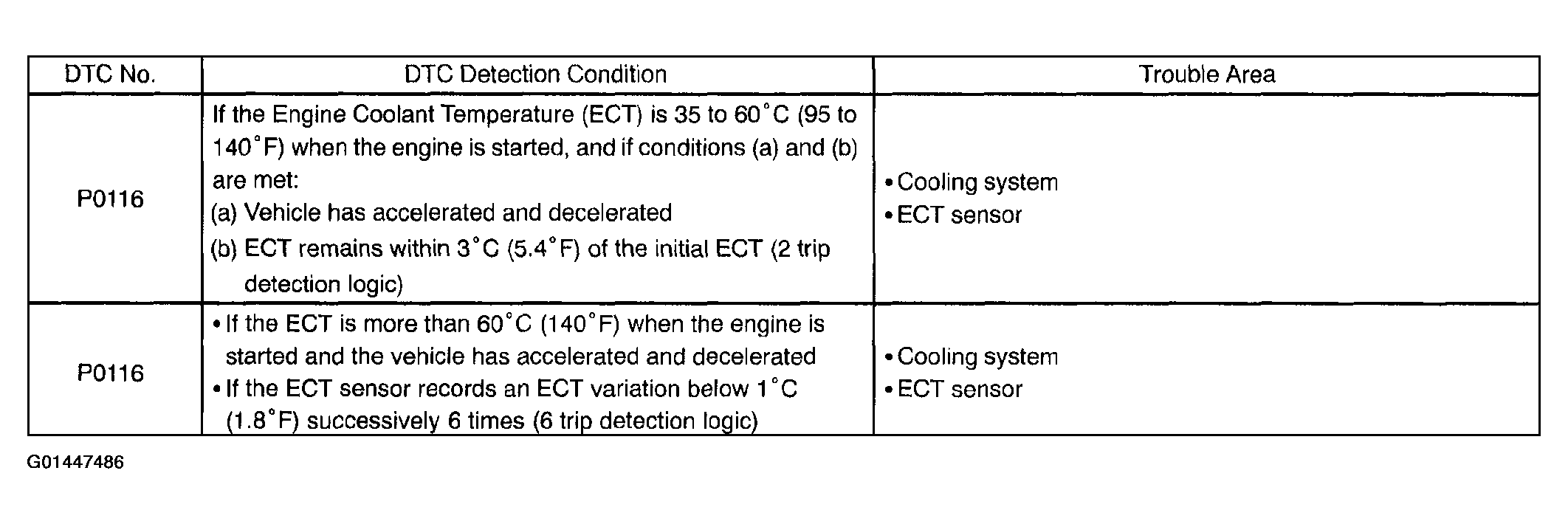

Fig 1: Problem Symptom Table
G01447486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
