Typical Enabling Conditions

All:

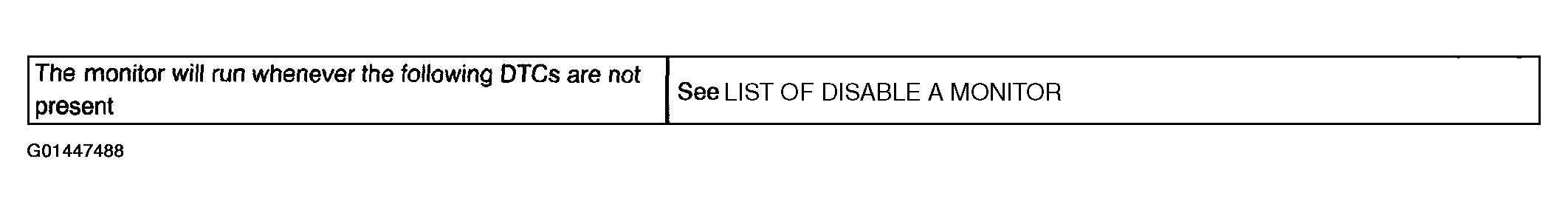

Fig 1: Typical Enabling Conditions Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ECT sensor stuck:

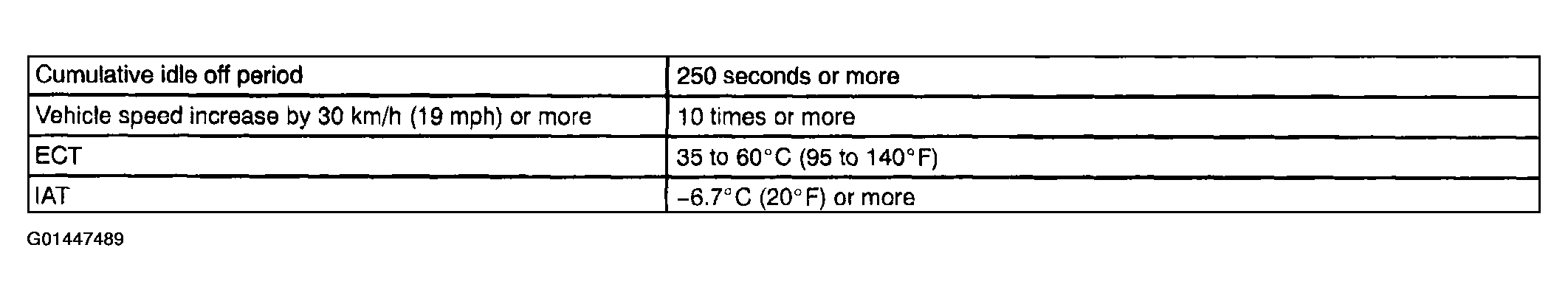

Fig 2: ECT Sensor Stuck Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ECT sensor stuck at high ECT:

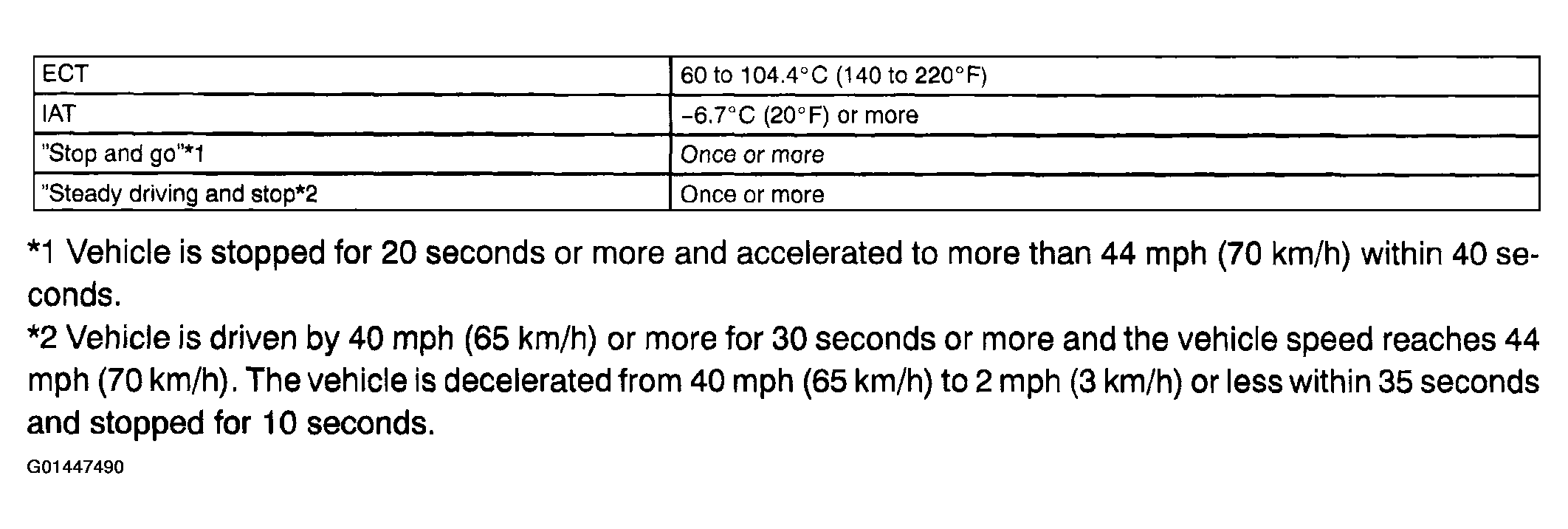

Fig 3: ECT Sensor Stuck At High ECT Chart

*1 Vehicle is stopped for 20 seconds or more and accelerated to more than 44 mph (70 km/h) within 40 seconds.

*2 Vehicle is driven by 40 mph (65 km/h) or more for 30 seconds or more and the vehicle speed reaches 44 mph (70 km/h). The vehicle is decelerated from 40 mph (65 km/h) to 2 mph (3 km/h) or less within 35 seconds and stopped for 10 seconds.
