Normal Mode And Check Mode

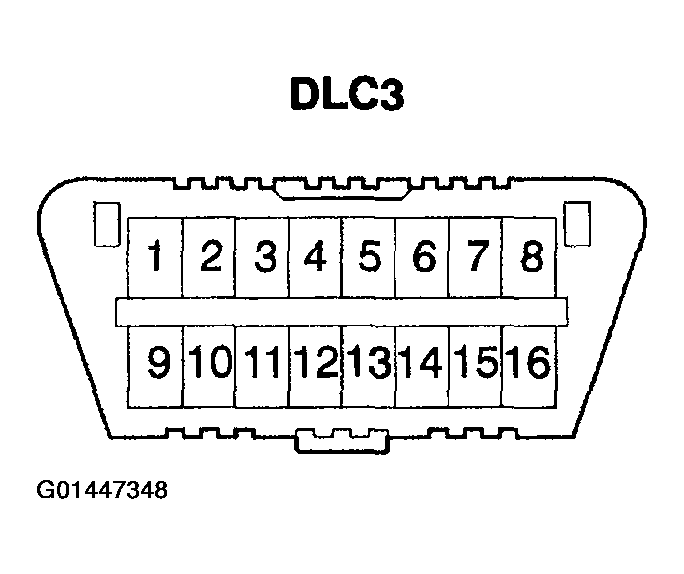

Fig 1: Identifying DLC3 Terminal (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The diagnosis system operates in Normal Mode during normal vehicle use. In Normal Mode, "2-trip detection logic" is used to ensure accurate detection of malfunctions. A Check Mode, is also available to technicians as an option. In Check Mode, "1-trip detection logic" is used for simulating malfunction symptoms and increasing the system's ability to detect malfunctions, including intermittent malfunctions.
