Waveform 1

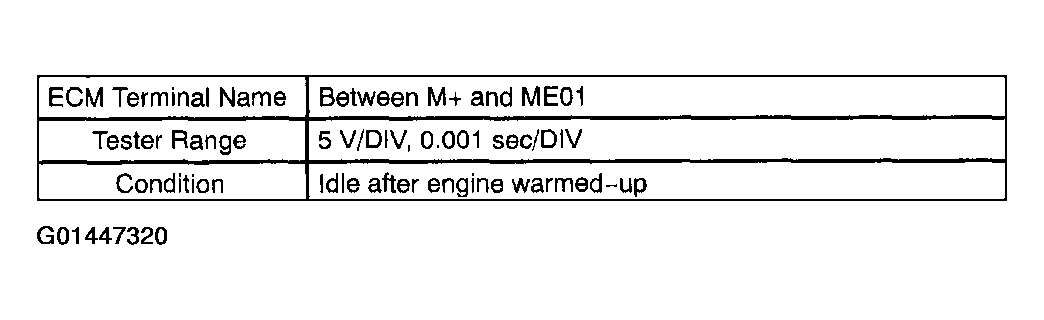

Fig 1: Throttle Actuator Waveform Representation Table 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Throttle actuator positive terminal

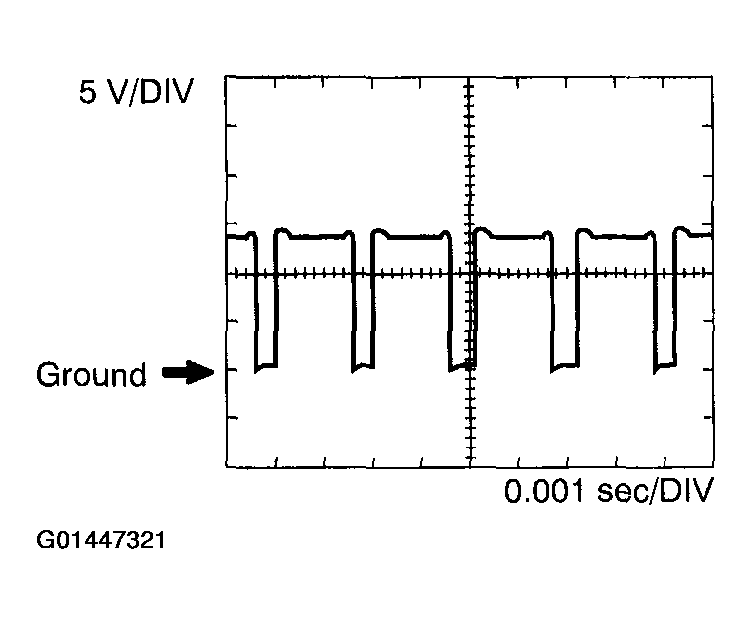

Fig 2: Throttle Actuator Waveform Representation (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The waveform expands depending on the throttle opening angle.
