Waveform 11

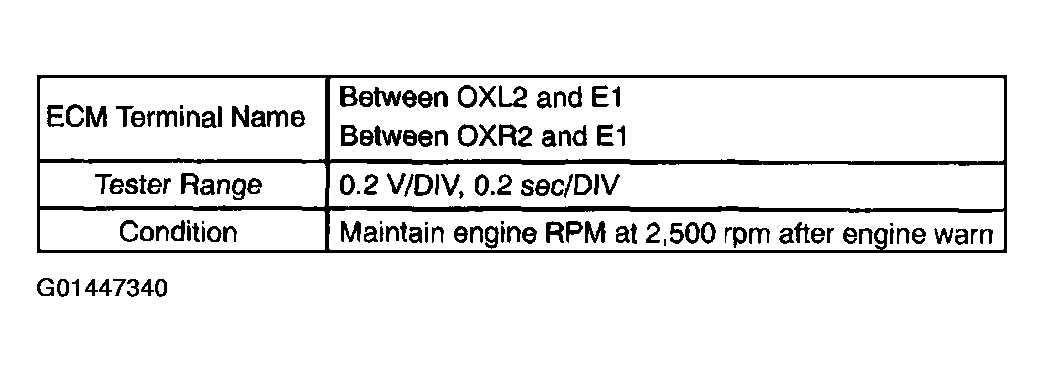

Fig 1: Throttle Actuator Waveform Representation Table 11

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear heated oxygen sensor (HO2S)

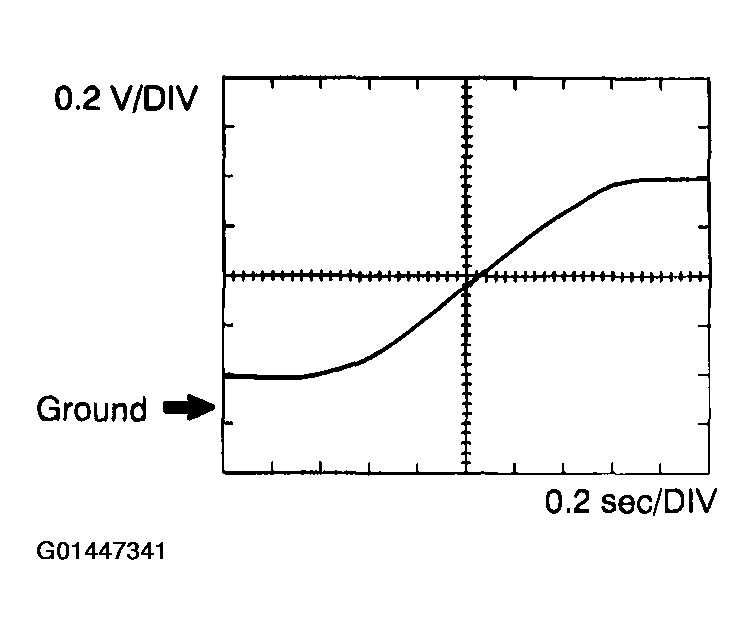

Fig 2: Throttle Actuator Waveform Representation (11 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

In the DATA LIST, the items O2S B1 and B2 S1 show the ECM input values of the rear O2 sensor.
