Waveform 12

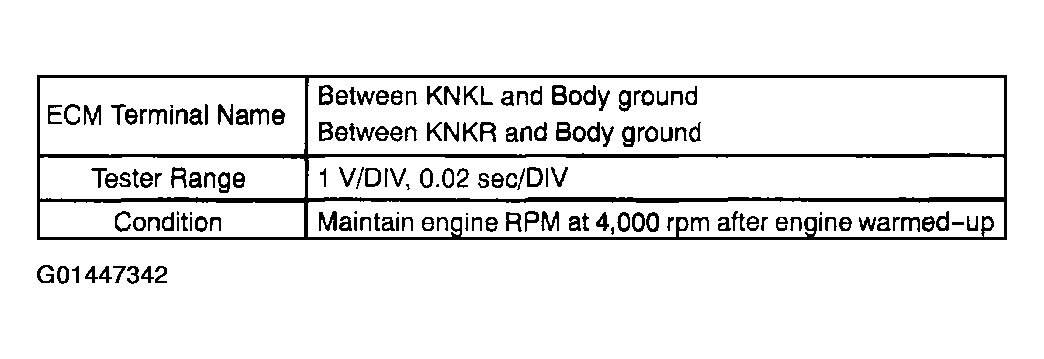

Fig 1: Throttle Actuator Waveform Representation Table 12

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Knock sensor

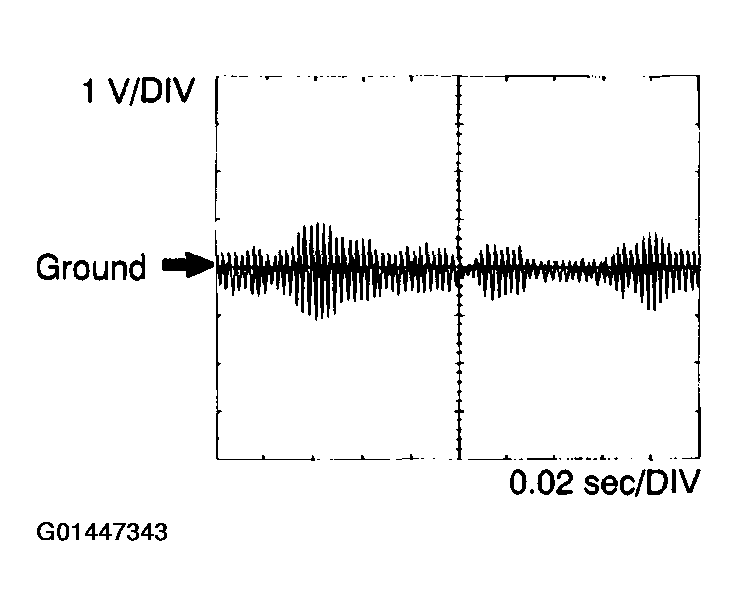

Fig 2: Throttle Actuator Waveform Representation (12 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as engine rpm increases.

The waveforms and amplitudes displayed differ slightly depending on the vehicle.
