Waveform 3

Fig 1: Throttle Actuator Waveform Representation Table 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Camshaft position (CMP) sensor
2. Crankshaft position (CKP) sensor

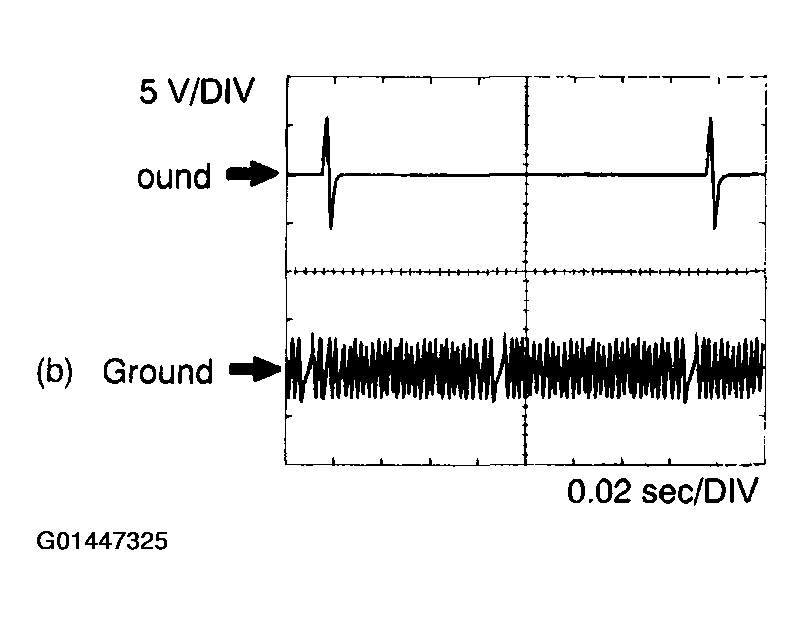

   Fig 2: Throttle Actuator Waveform Representation (3 Of 13)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as engine rpm increases.
