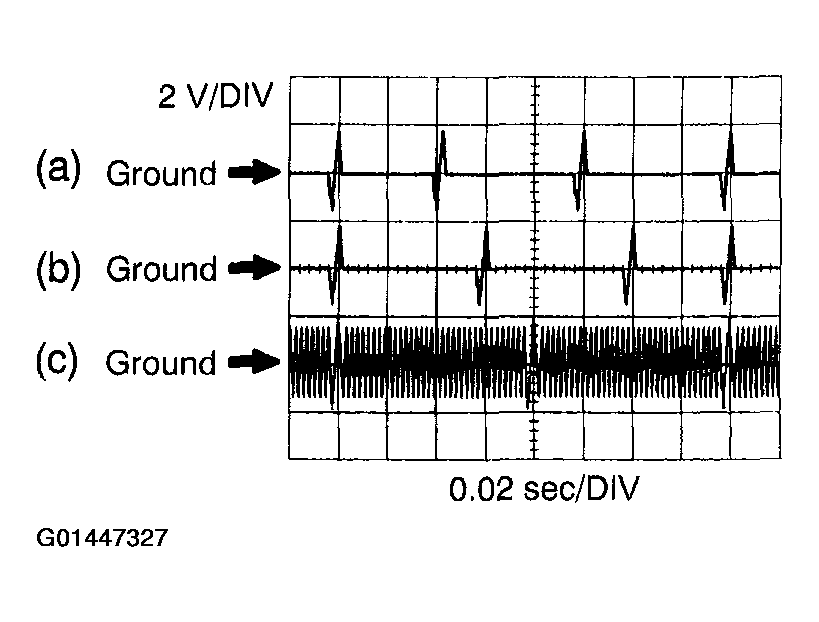

Waveform 4

Fig 1: Throttle Actuator Waveform Representation Table 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Variable valve timing (VVT) sensor Bank 1
2. VVT sensor Bank 2
3. Crankshaft position (CKP) sensor
   Fig 2: Throttle Actuator Waveform Representation (4 Of 13)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as engine rpm increases.
