Waveform 7

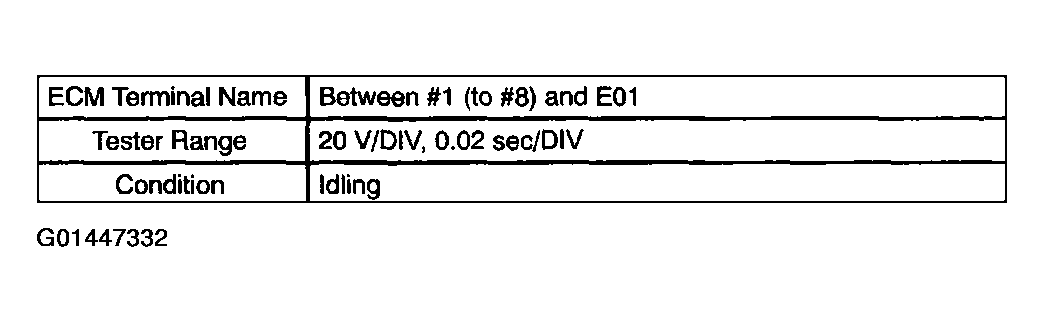

Fig 1: Throttle Actuator Waveform Representation Table 7

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fuel injector

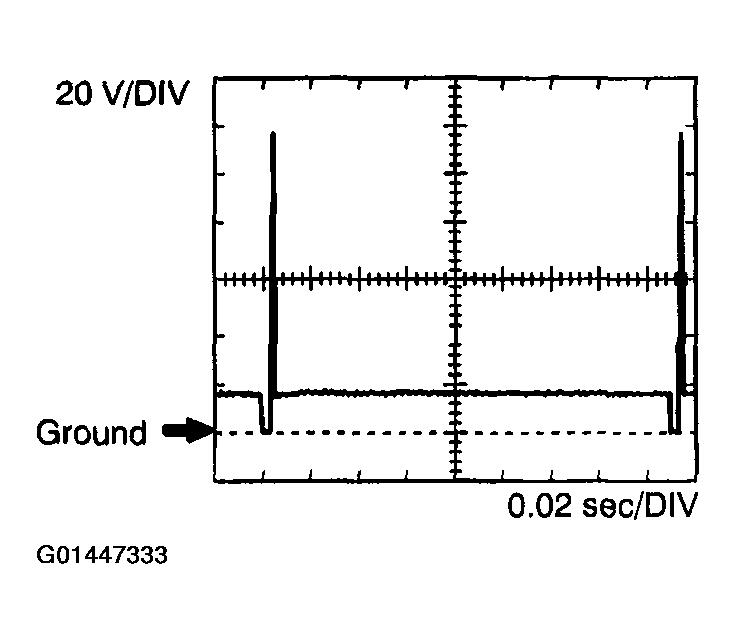

Fig 2: Throttle Actuator Waveform Representation (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as engine rpm increases.
